Yueqing Renhe Electric Co.,325604About UsNo.27 Huancheng East Road, Liushi1. OEM available. Experienced intelligent digital meters product supplier
2. Professional design team and sales department for your service.
100% test for air pressure and inspection for product appearance before shipment
3. Alibaba golden supplier, factory recognized by CE/FSC/ISO9001 and so on.
4. 7/24 Service for you, all the quotation will be dealed within 24 hours.
5. Location advantage: Nearby Ningbo port, the second largest port in China,
convenient transportation and low cost, and close to Shanghai, convenient for
customers to visit our factory.
6. Strict Requirement: Our company always insist on these principles“Do serve every user since
1) Suitable to measure currents from A to hundreds of kA. 2) High linearity. 3) The absence of magnetic core grants a wide frequency response to be suitable for measurement of harmonic content and transients. 4) Very useful with large size or awkward shaped conductors or in places with limited access. 5) Non-intrusive, no power drawn from the main. 6) Not damaged by large overloads. 7) There is no danger from open-circuited secondary.

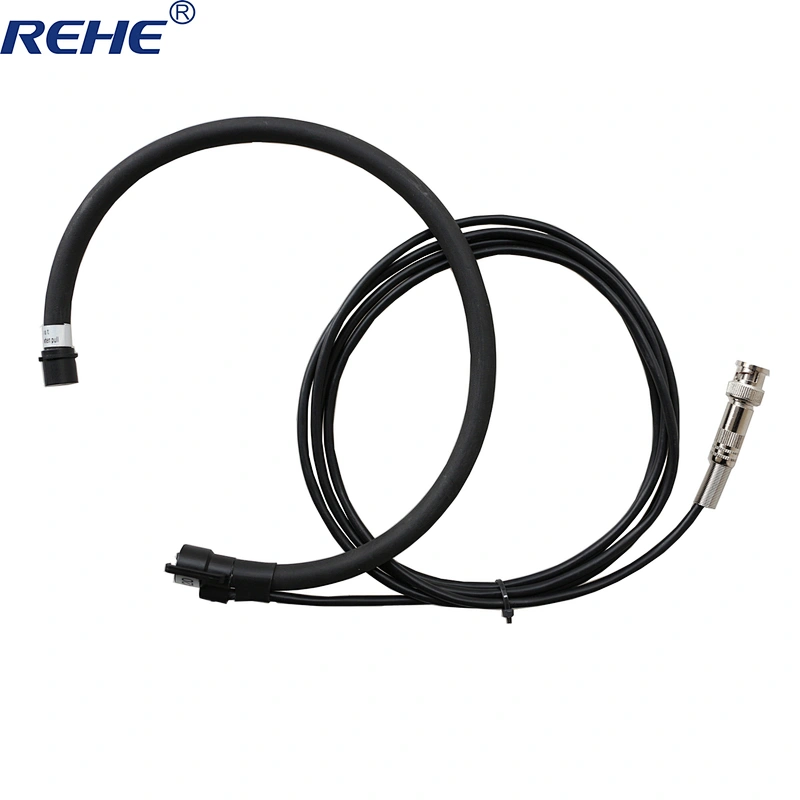

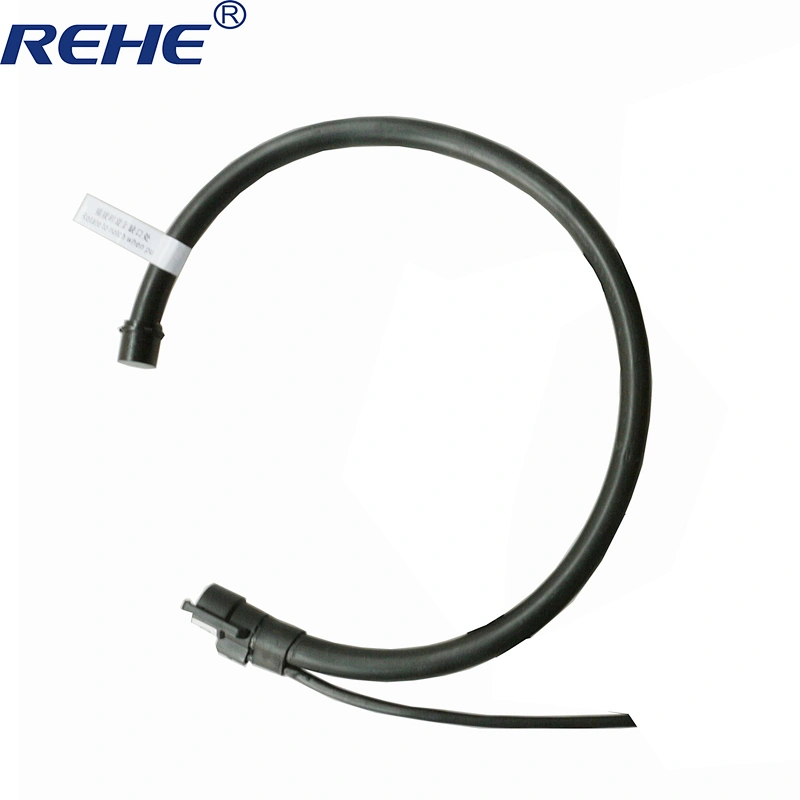

TRANSDUCER
Coil length:
210mm
Inner diameter:
60mm (±10%)
Coil cross section:
6.5±0.2 mm/8±0.2 mm/10±0.2 mm
Fastening:
bayonetholder
Material:
thermoplastic UL94-V0
Color:
coil: black, red, yellow, blue (other color could be customized)
closing unit: black
CONNECTION CABLE
Type:
cable (with 3-wire terminal)
cable + BNC/Oscilloscope Interface
Length:
3000 mm (standard), other length could be customized.
Material:
Xy23/0.1Ts/2C+A+B
Color:
black
ELECTRICAL CHARACTERISTICS
Output level (RMS):
40mV/1000A @50Hz
80mV/1000A @50Hz
100mV/1000A @50Hz
Accuracy:
class 1.0 (coil must be calibrated with amplifier/integrator load impedance)
