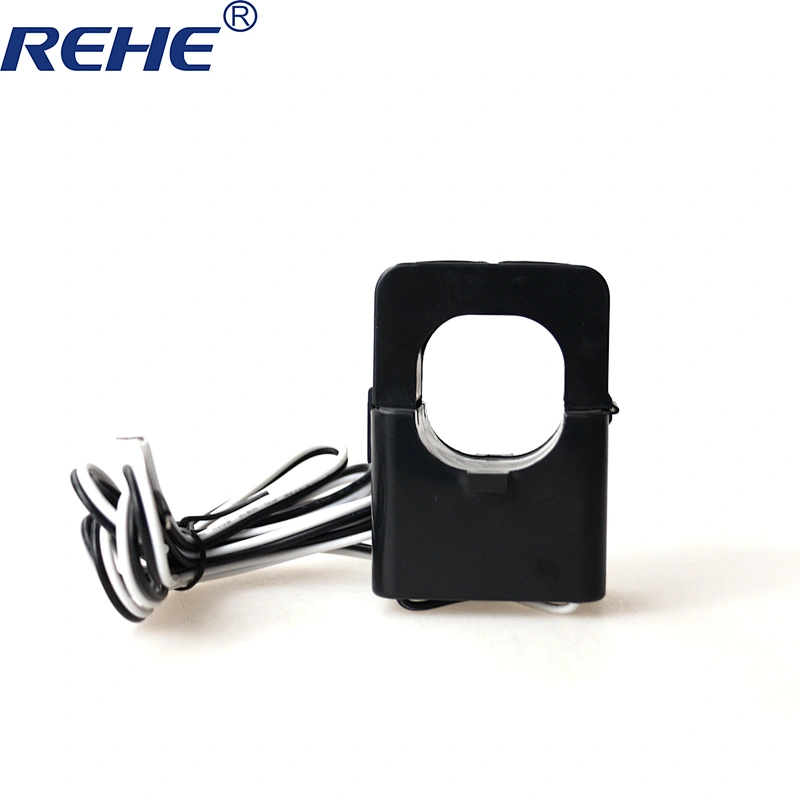

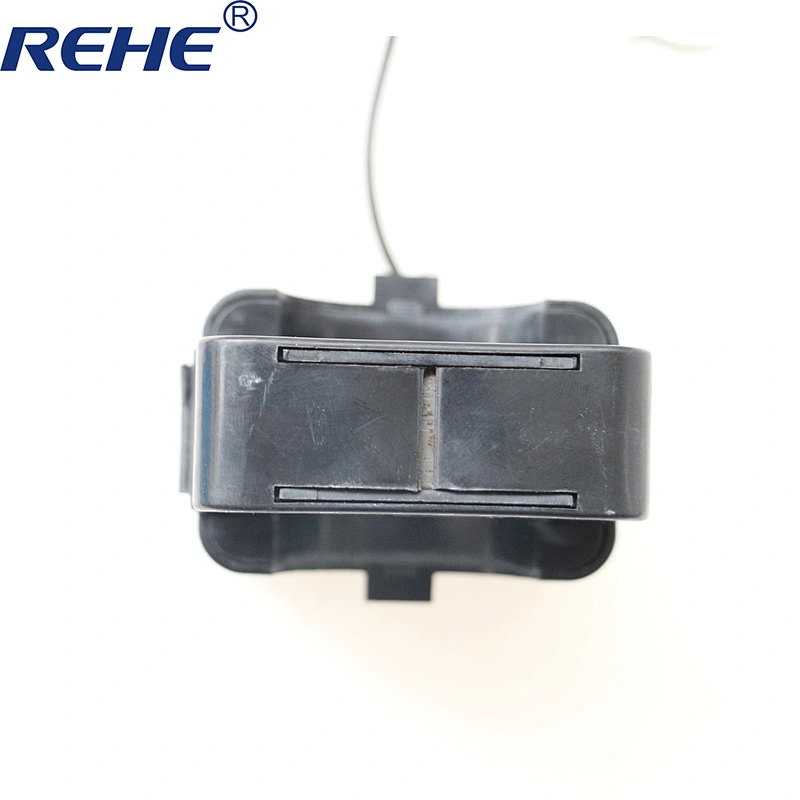

REHE Split Core Current Transformer KCT-36 300A/100mA 400A/40mA 500A/50mA 600A/60mA 300-600/0.333V AC Current Sensor Split
REHE Split Core Current Transformer KCT-36 300A/100mA 400A/40mA 500A/50mA 600A/60mA 300-600/0.333V AC Current Sensor Split
REHE Split Core Current Transformer KCT-36 300A/100mA 400A/40mA 500A/50mA 600A/60mA 300-600/0.333V AC Current Sensor Split
REHE Split Core Current Transformer KCT-36 300A/100mA 400A/40mA 500A/50mA 600A/60mA 300-600/0.333V AC Current Sensor Split
REHE Split Core Current Transformer KCT-36 300A/100mA 400A/40mA 500A/50mA 600A/60mA 300-600/0.333V AC Current Sensor Split

REHE Split Core Current Transformer KCT-36 300A/100mA 400A/40mA 500A/50mA 600A/60mA 300-600/0.333V AC Current Sensor Split

Model NO.
REHE-KCT36
Price:
US $ 23.00-24.15 / piece
Delivery
FOB Shanghai, Ningbo
Minimum order quantity
1 piece
Supply Ability
10000.0 piece / Day
Country of Origin
Zhejiang, China
Quantity:
  • Model Number:KCT/FRC/HK/DP/SCT/HACT/MSQ/CP/DX/DM/SDH/RCT
  • Usage:Current
  • Phase:Single
  • Coil Structure:Toroidal
  • Coil Number:Autotransformer
  • Primary input:600A
  • Secondary output:0-500mA/1A/5A/333mV
  • Accuracy:1.0/0.5/0.5s
  • Core:Silicon steel sheet / Ferrite / AMD / Permalloy
  • Outer Case:PA UL94-V0/ PC
  • Usage:Current
  • Phase:Single
  • Coil Structure:TOROIDAL
  • Coil Number:AUTOTRANSFORMER
  • Brand Name:REHE
  • Model Number:REHE-KCT36
Product Description

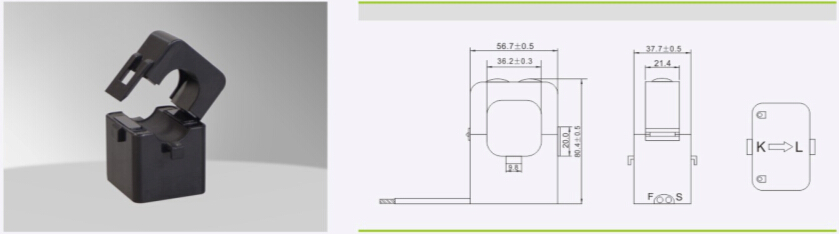

open type.jpg

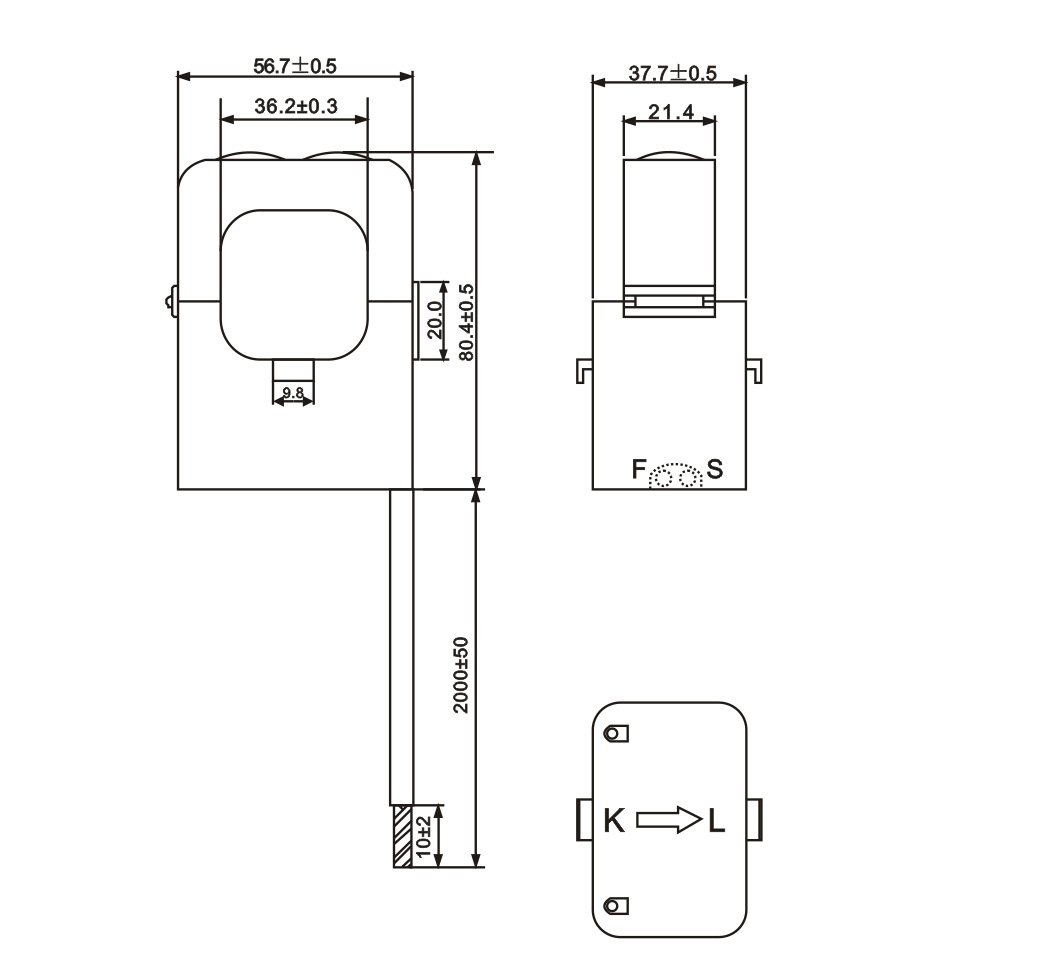

KCT-36 .jpg

ModelKCT-36
Current Ratio300A/100mA400A/40mA500A50mA600A/60mA300-600A/0.333V
Primary Current (A)300A400A500A600A300-600A
Max. Current (A)360A480A600A720A720A
Output100mA40mA50mA60mA0.333V
Load Resistance (Ω)50Ω50Ω50Ω50Ω/
Turns Ration
Class0.5/1.0
Protection Level7.5V0-P
Insuliation CategoryCATIII
Operating Condition-20℃ ~ +50℃, ≤85%RH, No condensation, IN-house & Any direction installable
Storage Condition-30℃ ~ +50℃, ≤85%RH, No condensation
