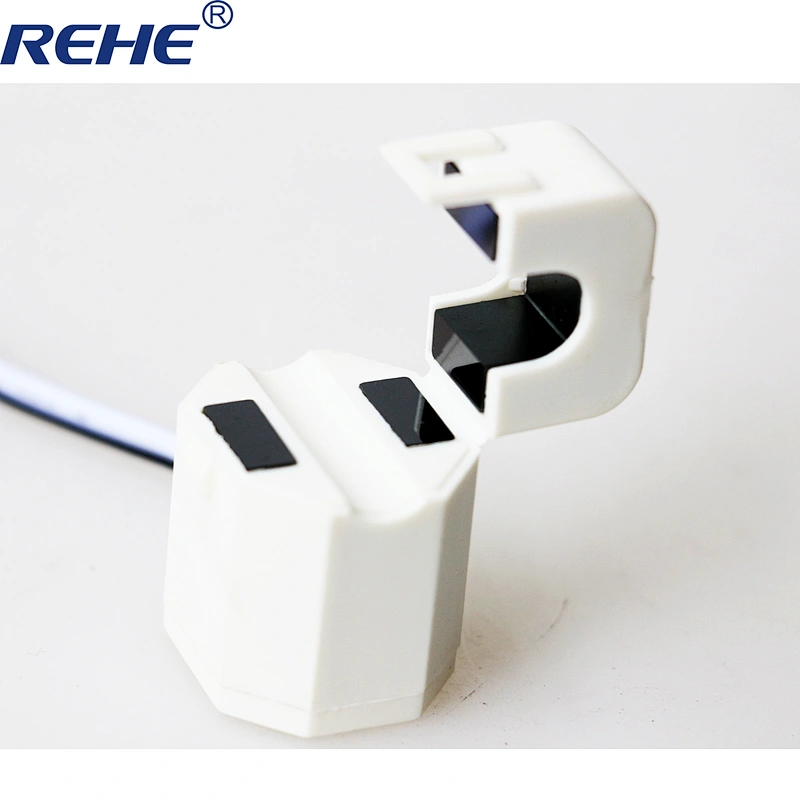

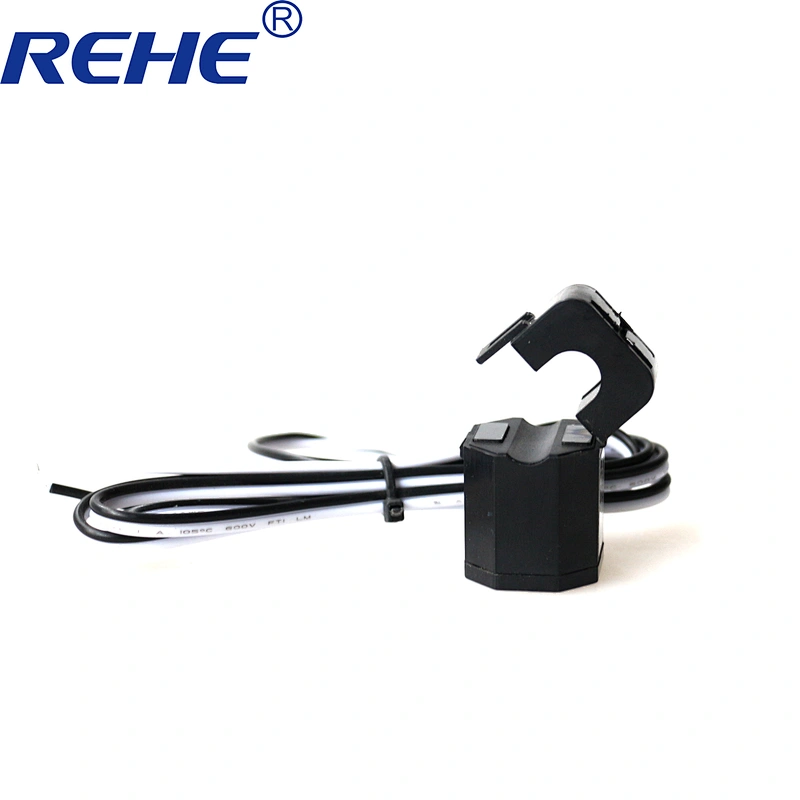

REHE KCT-10 Hinge Design 5A/2.5mA 20A/10mA 60A/20mA 75A/25mA 1-75A/0.333V split core transformer
REHE KCT-10 Hinge Design 5A/2.5mA 20A/10mA 60A/20mA 75A/25mA 1-75A/0.333V split core transformer
REHE KCT-10 Hinge Design 5A/2.5mA 20A/10mA 60A/20mA 75A/25mA 1-75A/0.333V split core transformer
REHE KCT-10 Hinge Design 5A/2.5mA 20A/10mA 60A/20mA 75A/25mA 1-75A/0.333V split core transformer
REHE KCT-10 Hinge Design 5A/2.5mA 20A/10mA 60A/20mA 75A/25mA 1-75A/0.333V split core transformer

REHE KCT-10 Hinge Design 5A/2.5mA 20A/10mA 60A/20mA 75A/25mA 1-75A/0.333V split core transformer

Model NO.
REHE-KCT10
Price:
US $ 4.51-4.60 / piece
Delivery
FOB Shanghai, Ningbo
Minimum order quantity
1 piece
Supply Ability
10000.0 piece / Day
Country of Origin
Zhejiang, China
Quantity:
  • Model Number:KCT/FRC/HK/DP/SCT/HACT/MSQ/CP/DX/DM/SDH/RCT
  • Usage:Current
  • Phase:Single
  • Coil Structure:Toroidal
  • Coil Number:Autotransformer
  • Primary input:5A-10KA
  • Secondary output:0-500mA/1A/5A/333mV
  • Accuracy:1.0/0.5/0.5s
  • Core:Silicon steel sheet / Ferrite / AMD / Permalloy
  • Outer Case:PA UL94-V0/ PC
  • Usage:Current
  • Phase:Single
  • Coil Structure:TOROIDAL
  • Coil Number:AUTOTRANSFORMER
  • Brand Name:REHE
  • Model Number:REHE-KCT10
Product Description

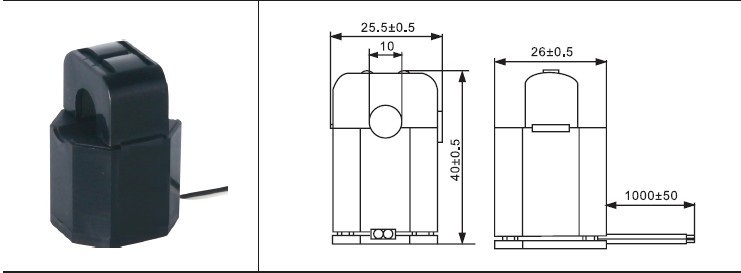

KCT-10 .jpg

ModelKCT-10
Current Ratio5A/2.5mA20A/10mA60A/20mA75A/25mA1-75A/0.333V
Primary Current (A)5A20A50A75A1-75A
Max. Current (A)60A60A75A75A1-75A
Output2.5mA10mA20mA25mA0.333V
Load Resistance (Ω)400Ω100Ω50Ω20Ω/
Turns Ration
Class0.5/1.0
Protection Level7.5V0-P
Insuliation CategoryCATIII
Operating Condition-20℃ ~ +50℃, ≤85%RH, No condensation, IN-house & Any direction installable
Storage Condition-30℃ ~ +50℃, ≤85%RH, No condensation
