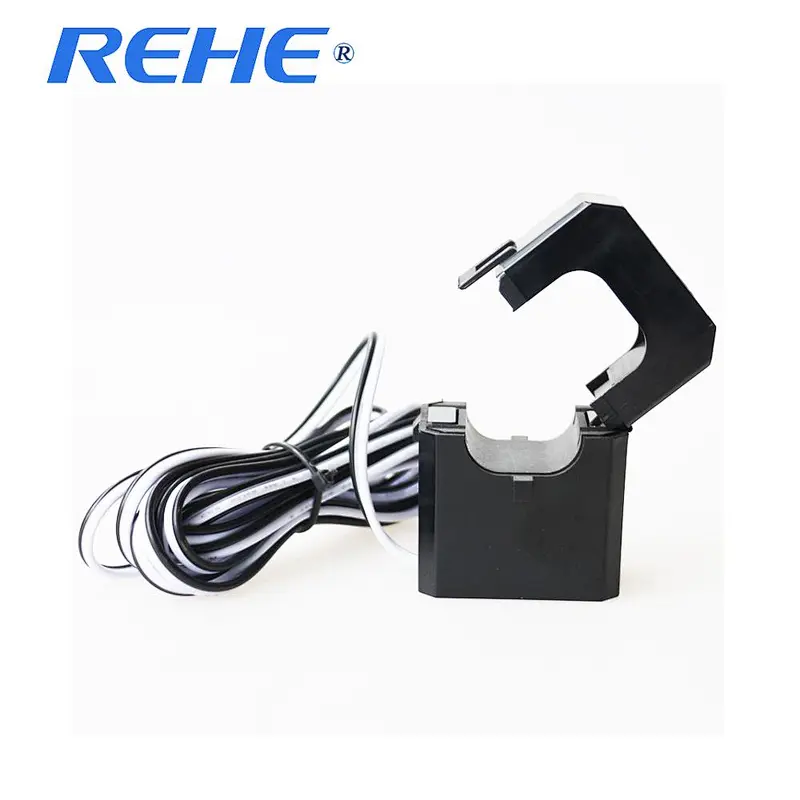

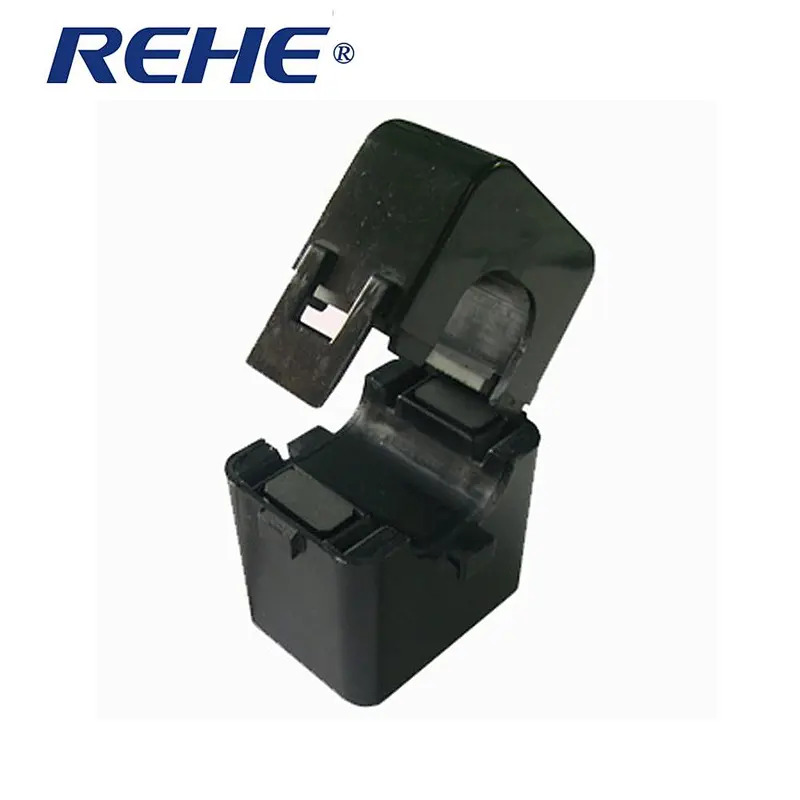

REHE KCT-24 clamp-on current transformer split core current transformer 5a
REHE KCT-24 clamp-on current transformer split core current transformer 5a
REHE KCT-24 clamp-on current transformer split core current transformer 5a
REHE KCT-24 clamp-on current transformer split core current transformer 5a
REHE KCT-24 clamp-on current transformer split core current transformer 5a

REHE KCT-24 clamp-on current transformer split core current transformer 5a

Model NO.
REHE-KCT24
Price:
US $ 12.88-13.23 / piece
Delivery
FOB Shanghai, Ningbo
Minimum order quantity
1 piece
Supply Ability
10000.0 piece / Day
Country of Origin
Zhejiang, China
Quantity:
  • Model Number:KCT/FRC/HK/DP/SCT/HACT/MSQ/CP/DX/DM/SDH/RCT
  • Usage:Current
  • Phase:Single
  • Coil Structure:Toroidal
  • Coil Number:Autotransformer
  • Primary input:5A-10KA
  • Secondary output:0-500mA/1A/5A/333mV
  • Accuracy:1.0/0.5/0.5s
  • Core:Silicon steel sheet / Ferrite / AMD / Permalloy
  • Outer Case:PA UL94-V0/ PC
  • Usage:Current
  • Phase:Single
  • Coil Structure:TOROIDAL
  • Coil Number:AUTOTRANSFORMER
  • Brand Name:REHE
  • Model Number:REHE-KCT24
  • Place of Origin:CN
Product Description

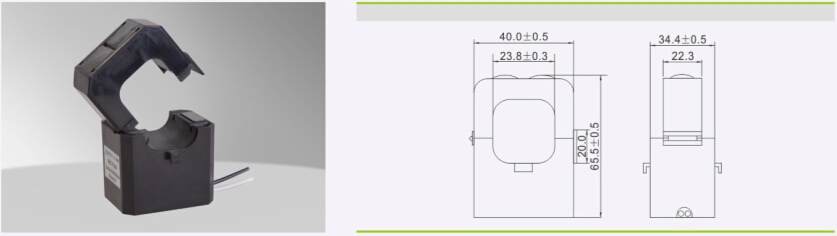

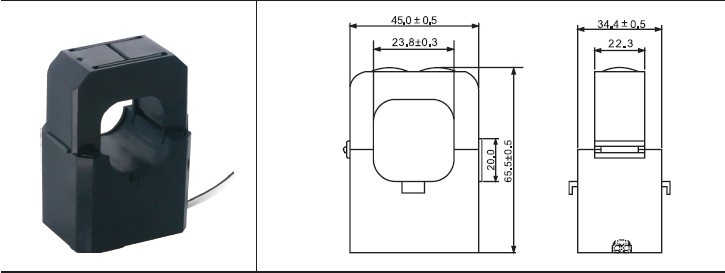

ct manufacturer.jpgchicun.jpg

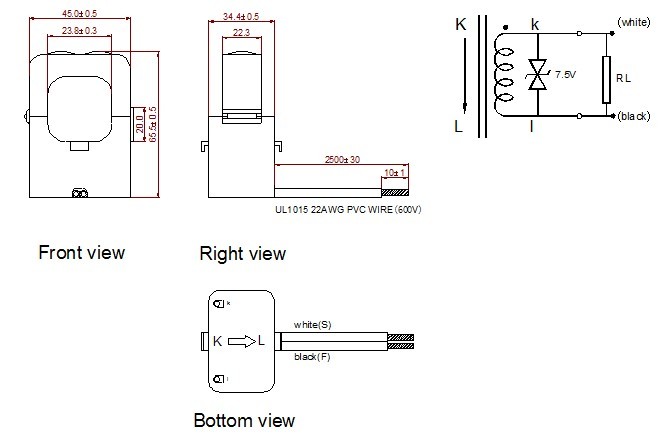

KCT-24 .jpg

ModelKCT-24
Current Ratio100A/40mA200A/40mA200A/66.7mA400A/80mA100-400A/0.333V
Primary Current (A)100A200A200A400A100-400A
Max. Current (A)150A240A240A480A480A
Output40mA40mA66.7mA80mA0.333V
Load Resistance (Ω)50Ω50Ω50Ω50Ω/
Turns Ration
Class0.5/1.0
Protection Level7.5V0-P
Insuliation CategoryCATIII
Operating Condition-20℃ ~ +50℃, ≤85%RH, No condensation, IN-house & Any direction installable
Storage Condition-30℃ ~ +50℃, ≤85%RH, No condensation

Send Message

*
* clear input

Related Products

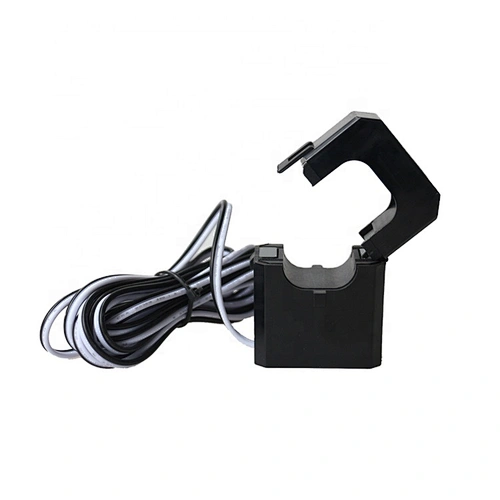

High Quality KCT24 Split Core Current Transformer
