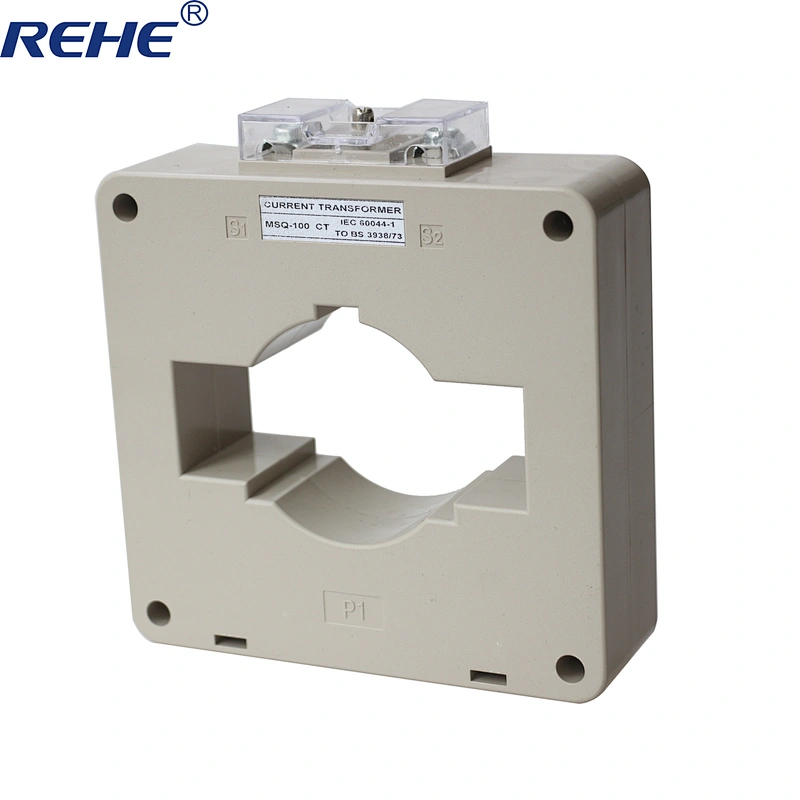

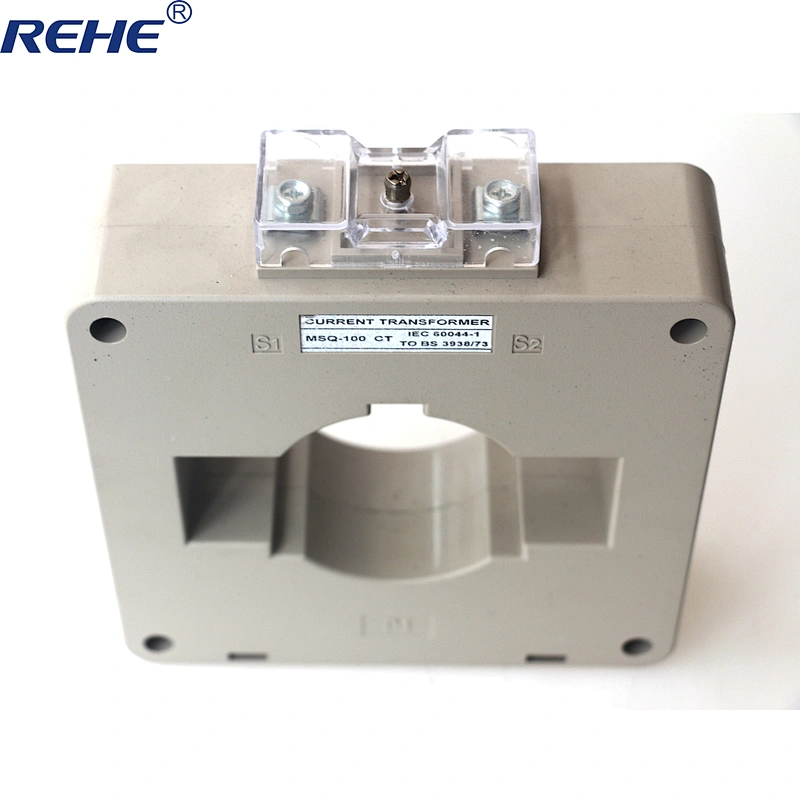

REHE MSQ-100 1500/5A MSQ current transformer window type current transformer
REHE MSQ-100 1500/5A MSQ current transformer window type current transformer
REHE MSQ-100 1500/5A MSQ current transformer window type current transformer
REHE MSQ-100 1500/5A MSQ current transformer window type current transformer
REHE MSQ-100 1500/5A MSQ current transformer window type current transformer

REHE MSQ-100 1500/5A MSQ current transformer window type current transformer

Model NO.
REHE- MSQ-100
Price:
US $ 6.98-7.13 / piece
Delivery
FOB Shanghai, Ningbo
Minimum order quantity
1 piece
Supply Ability
10000.0 piece / Day
Country of Origin
Zhejiang, China
Quantity:
  • Window size:100mm
  • Advantage:Clamp-on design (picture below)
  • INPUT CURRENT:1500/5A
  • Rated output:5A / 1A
  • Accuracy:0.5/ 1.0
  • Frequency:50-400Hz
  • Case:PC/UL94-V0
  • Core:Silicon steel
  • Could be customize:Yes
  • Standard:IEC60044-1,BS7626,VDE0414,UL94
  • Usage:Current
  • Phase:Single
  • Coil Structure:TOROIDAL
  • Coil Number:AUTOTRANSFORMER
  • Brand Name:REHE
  • Model Number:REHE- MSQ-100
Product Description

1.Rated current:5/5A-6000/5A,
2.Secondary current :5A.1A
3.Rated voltage:0.72kV
4.Rated frequency:50/60Hz
5.Class of accuracy:0.5~1.0
6. Rated security coefficient :FS<5
7.Ambient Temperature Range:-20 to +80

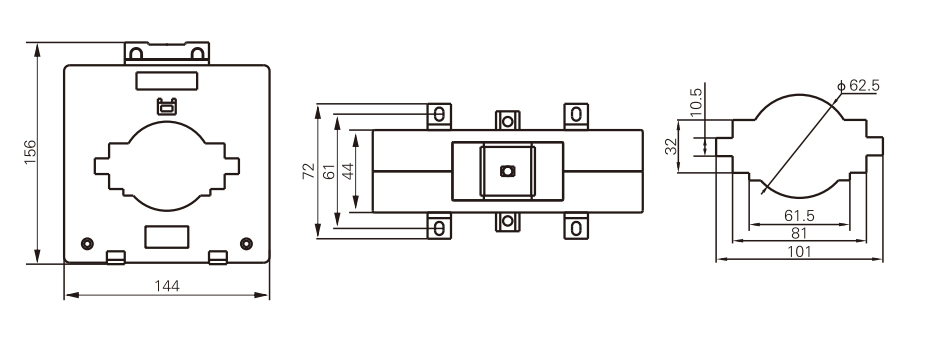

MSQ-100 size.jpg





TypeCurrent ratio(A)Rated power(VA)Rated
Class:0.5Class:1Frequency(Hz)
MSQ-100800/5101050/60
1000/5101550/60
1200/5101550/60
1250/5101550/60
1500/5101550/60
1600/5101550/60
2000/5101550/60
2500/5101550/60
3000/5101550/60
4000/5101550/60
