- Window size:30mm

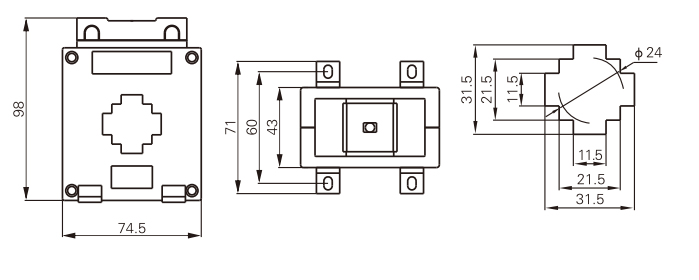

- Advantage:Clamp-on design (picture below)
- INPUT CURRENT:80/5A
- Rated output:5A / 1A
- Accuracy:0.5/ 1.0
- Frequency:50-400Hz
- Case:PC/UL94-V0
- Core:Silicon steel
- Could be customize:Yes
- Standard:IEC60044-1,BS7626,VDE0414,UL94
- Usage:Current
- Phase:Single
- Coil Structure:TOROIDAL
- Coil Number:AUTOTRANSFORMER
- Brand Name:REHE

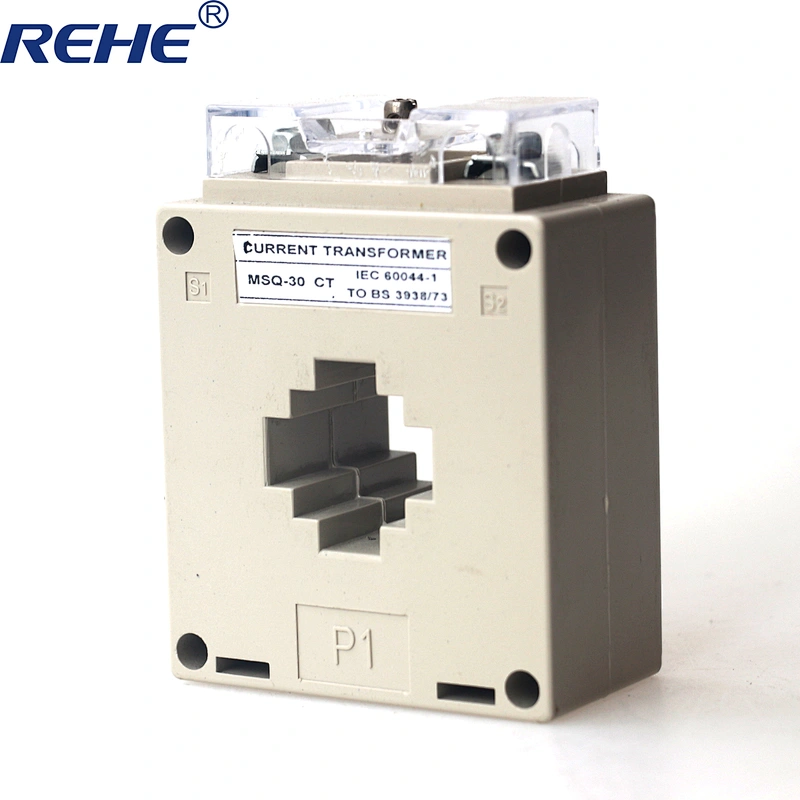

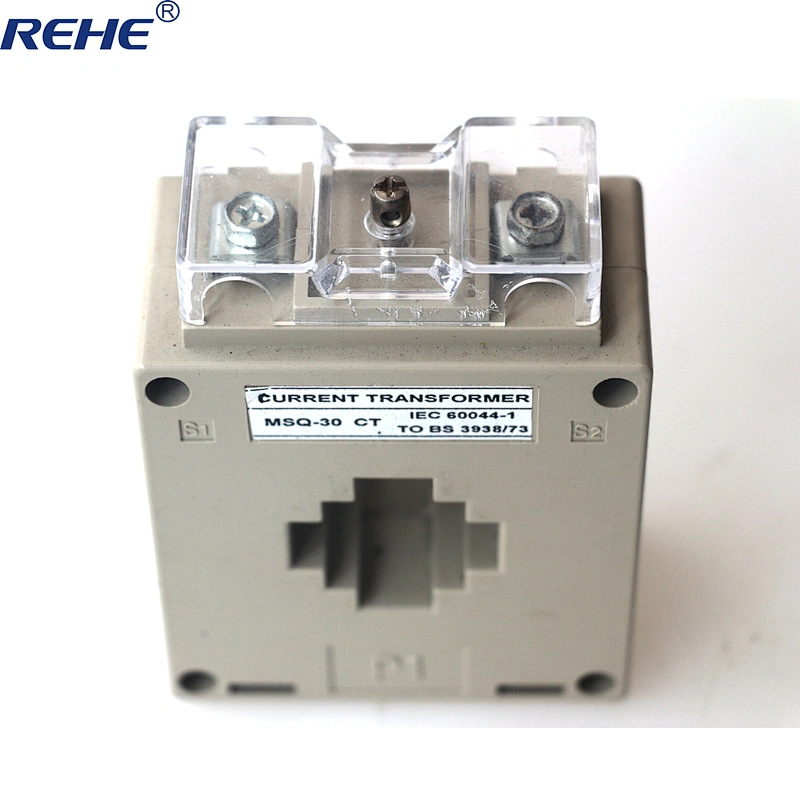

- Model Number:REHE- MSQ-30
Product Description
| Model | Current Ratio (A) | Load (VA) | |
| Class:0.5 | Class: 1.0 | ||
| MSQ-30 | 5.30 | 5 | 5(10T) |
| May-40 | 5 | 5(10T) | |
| May-50 | 5 | 5(6T) | |
| May-60 | 5 | 5(5T) | |
| May-75 | 5 | 5(4T) | |
| May-80 | 5 | 5(4T) | |
| 100/5 | 5 | 5 | |
| 150/5 | 5 | 5 | |
| 200/5 | 5 | 5 | |
| 250/5 | 5 | 7.5 | |
| 300/5 | 10 | 10 | |
1.Rated current:30/5A-300/5A
2.Secondary current :5A.1A
3.Rated voltage:0.72kV
4.Rated frequency:50/60Hz
5.Class of accuracy:0.5~1.0
6. Rated security coefficient :FS<5
7.Ambient Temperature Range:-20 to +80
We can supply some color if customer need like Grey Black and Blue
