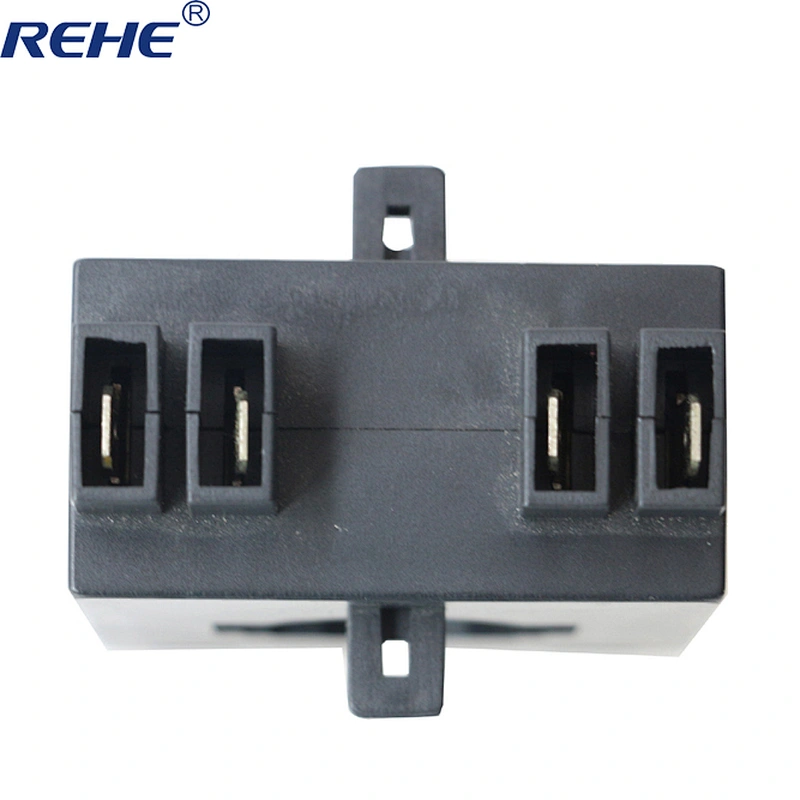

single phase ac current transformer DX-20 50/5A - 150/5A current transformer 200 5 ratio
single phase ac current transformer DX-20 50/5A - 150/5A current transformer 200 5 ratio
single phase ac current transformer DX-20 50/5A - 150/5A current transformer 200 5 ratio
single phase ac current transformer DX-20 50/5A - 150/5A current transformer 200 5 ratio
single phase ac current transformer DX-20 50/5A - 150/5A current transformer 200 5 ratio

single phase ac current transformer DX-20 50/5A - 150/5A current transformer 200 5 ratio

Model NO.
REHE-DX-20
Price:
US $ 2.30-2.30 / piece
Delivery
FOB Shanghai, Ningbo
Minimum order quantity
1 piece
Supply Ability
10000.0 piece / Month
Country of Origin
Zhejiang, China
Quantity:
  • Hole size:20mm
  • Bobbin:PBT
  • Output connection:Terminal
  • Construction:Screw
  • Frequency:50/60 Hz
  • Output:5A / 1A
  • Usage:Current
  • Phase:Single
  • Coil Structure:TOROIDAL
  • Coil Number:AUTOTRANSFORMER
  • Brand Name:REHE
  • Model Number:REHE-DX-20
Product Description

Product Description DX discription

DX range of current transformers have been designed to be double terminal entry which allows short circuit

linksto be fitted when it is necessary to disconnect the measuring instrument from the transformer without damage

tothe CT, or for easier termination to ground of the CT

Features

1) Safe, easy to install, portable

2) Wide inner window, allowing clamping of big cables or bus-bars

3) Wide range of sizes to accommodate all the existing installations

Technique Indes

Electrical ParameterMechanical Parameter
Frequency50/60HzCasePC/UL94-V0
Rated Input

1A-6000A

BobbinPBT
Measuring range5%ln-120%lnCoreSilicon steel
Rated Output1A, 5AConstructionScrew
Rated Voltage0.72KV(AC)Operating Temp-25℃ to +75℃
Dielectric strength3.0KV/1mA/1minOperating Humidity≤85%
Insulation ResistanceDC500V/100MΩminOutput ConnectionTerminal

Model Confirm


customers' requirement.

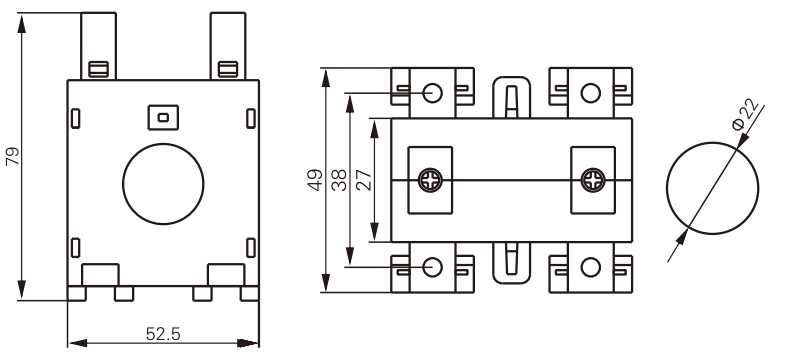

DX-20 size.jpg
