- Color:White
- Warranty:18 Months
- Frequency:50HZ/60HZ
- Installation:DIN Rail Installation
- Rated voltage:220V 230V
- QTY:100pcs/carton
- Display:LCD Display
- Communication:RS485 Port/ MODBUS Protocol
- Pulse Constant:1000imp
- Poles:2P
- Display Type:Digital Only
- Phase:Single Phase
- Brand Name:REHE

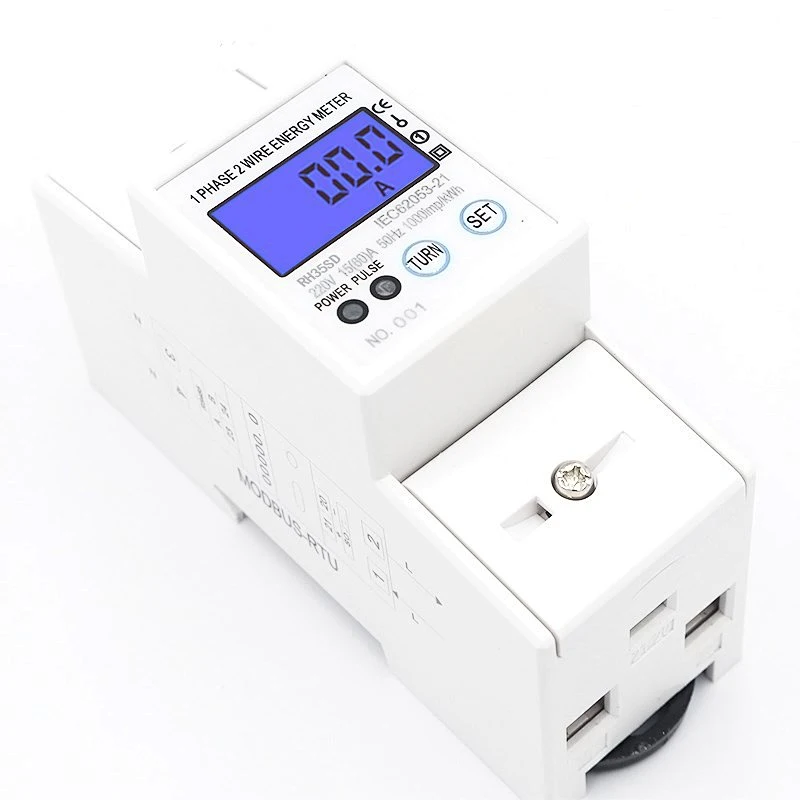

- Model Number:RH35SD
- Dimensions:78*66*43mm
- Operating Temperature:-10℃~+50℃
- Measuring Energy Range:20(80)A
- Accuracy Class:1.0
Technical parameter
| Type | Accuracy | Rated voltage | Rated current | Starting current(A) | Insulating performance |
| RH35SD | Class 1.0 | 220V 230V | 5(20)A 10(40)A 15(60)A 20(80)A | 0.02 | AC voltage 4kv for 1 minute,1.2/50us waveform impulse voltage 6kv. |
Note
If you need different reference voltage or current specification, please advisory us.

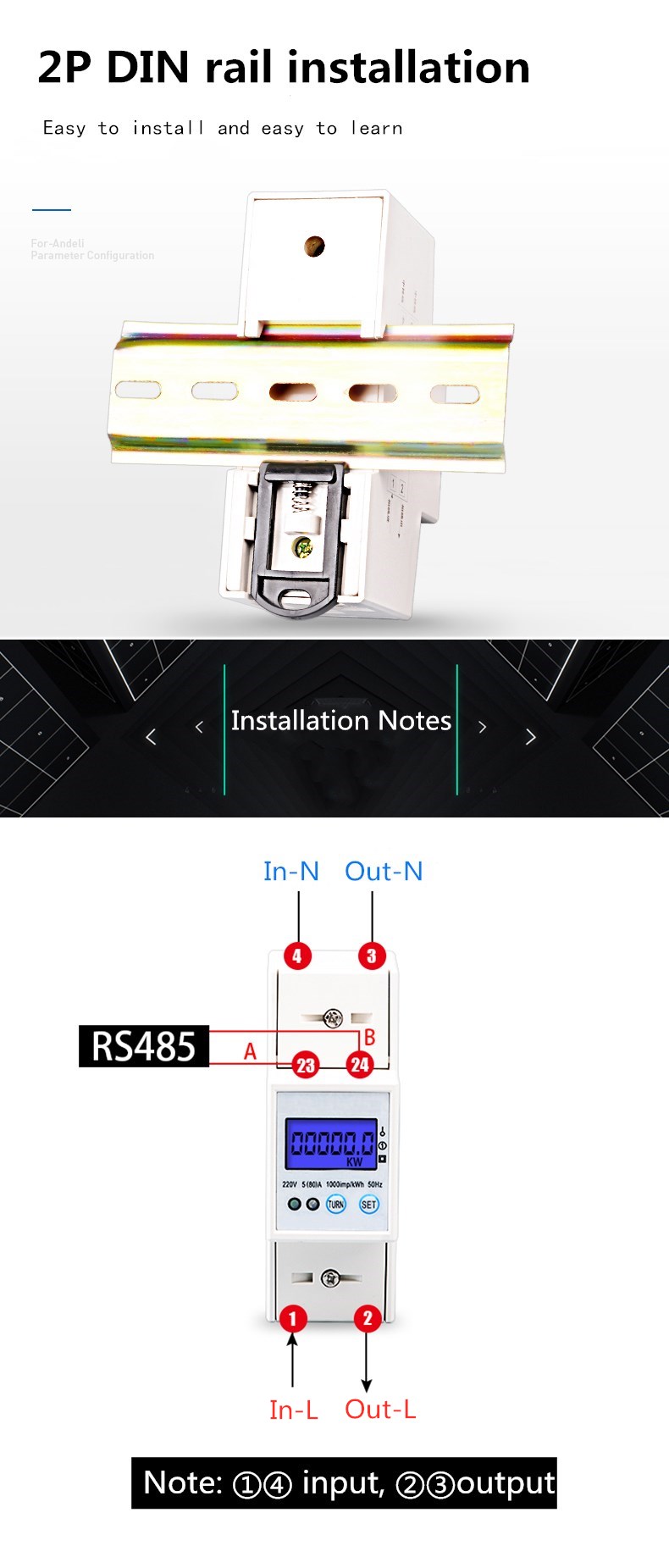

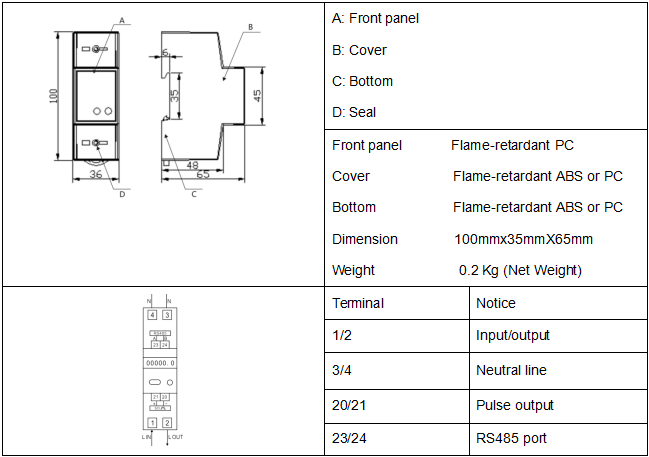

Wiring diagram
Type S
Indicators
Working Humidity ≤75%
Storage Humidity ≤95%
Operating Temperature -10℃~+50℃
Storage Temperature -30℃~+70℃
International Standard IEC 62053-21
Domestic Standard GB/T17215.321-2008
Accuracy Class 1.0
Dustproof and Waterproof IP51
Protective Insulation Encapsulation Type ΙΙ

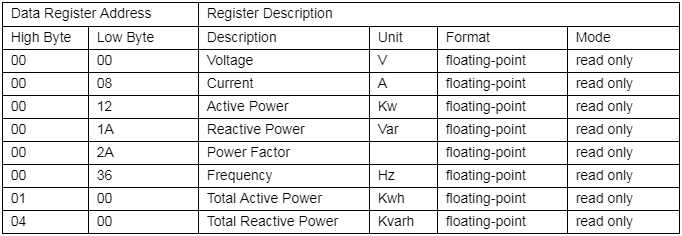

Data Register List

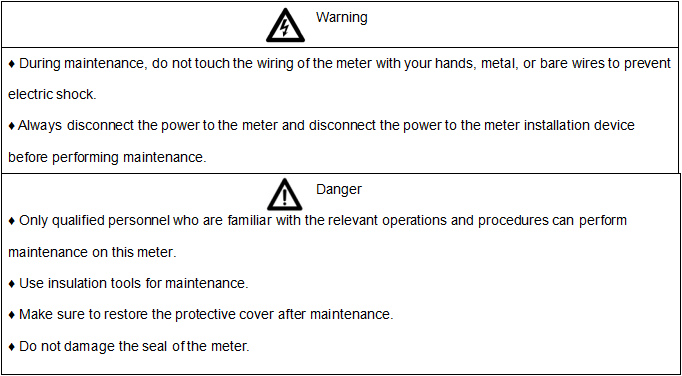

Troubleshooting
Fault Condition Check
