RH35SC AC 4P Single Phase DIN Rail 220VAC 10(40)A 50HZ Electric Watt Two Wire Active Energy meter
RH35SC AC 4P Single Phase DIN Rail 220VAC 10(40)A 50HZ Electric Watt Two Wire Active Energy meter
RH35SC AC 4P Single Phase DIN Rail 220VAC 10(40)A 50HZ Electric Watt Two Wire Active Energy meter
RH35SC AC 4P Single Phase DIN Rail 220VAC 10(40)A 50HZ Electric Watt Two Wire Active Energy meter
RH35SC AC 4P Single Phase DIN Rail 220VAC 10(40)A 50HZ Electric Watt Two Wire Active Energy meter
RH35SC AC 4P Single Phase DIN Rail 220VAC 10(40)A 50HZ Electric Watt Two Wire Active Energy meter
RH35SC AC 4P Single Phase DIN Rail 220VAC 10(40)A 50HZ Electric Watt Two Wire Active Energy meter
RH35SC AC 4P Single Phase DIN Rail 220VAC 10(40)A 50HZ Electric Watt Two Wire Active Energy meter
RH35SC AC 4P Single Phase DIN Rail 220VAC 10(40)A 50HZ Electric Watt Two Wire Active Energy meter
RH35SC AC 4P Single Phase DIN Rail 220VAC 10(40)A 50HZ Electric Watt Two Wire Active Energy meter
RH35SC AC 4P Single Phase DIN Rail 220VAC 10(40)A 50HZ Electric Watt Two Wire Active Energy meter

RH35SC AC 4P Single Phase DIN Rail 220VAC 10(40)A 50HZ Electric Watt Two Wire Active Energy meter

Model NO.
RH75SC
Price:
US $ 8.28-8.28 / piece
Delivery
FOB Shanghai, Ningbo
Minimum order quantity
1 piece
Supply Ability
5000 piece / Day
Country of Origin
Zhejiang, China
Quantity:
  • Color:White
  • Display:LCD Display
  • Frequency:50HZ/60HZ
  • Rated voltage:220V 230V
  • Usage:Active Electric Energy Measurement
  • Material:PC (Poly Carbonate)
  • Poles:4P
  • Wiring method:Type S and type U
  • QTY:48pcs/carton
  • Warranty:18 Months
  • Display Type:Digital Only
  • Phase:Single Phase
  • Place of Origin:CN;ZHE
  • Brand Name:REHE
  • Output Voltage:220V
  • Model Number:RH75SC
  • Dimensions:75*73*88mm
  • Operating Temperature:-25℃~ 70℃
  • Measuring Energy Range:20(80)A
  • Accuracy Class:1.0
Technical parameter
TypeAccuracyRated voltageRated currentStarting current(A)Insulating performance
RH75SCClass 1.0

220V

230V

5(30)A 10(40)A

15(60)A 20(80)A

0.02

AC voltage 4kv for 1 mimute,
1.2/50us waveform impulse voltage 6kv.

Note

If you need different reference voltage or current specification, please advisory us.

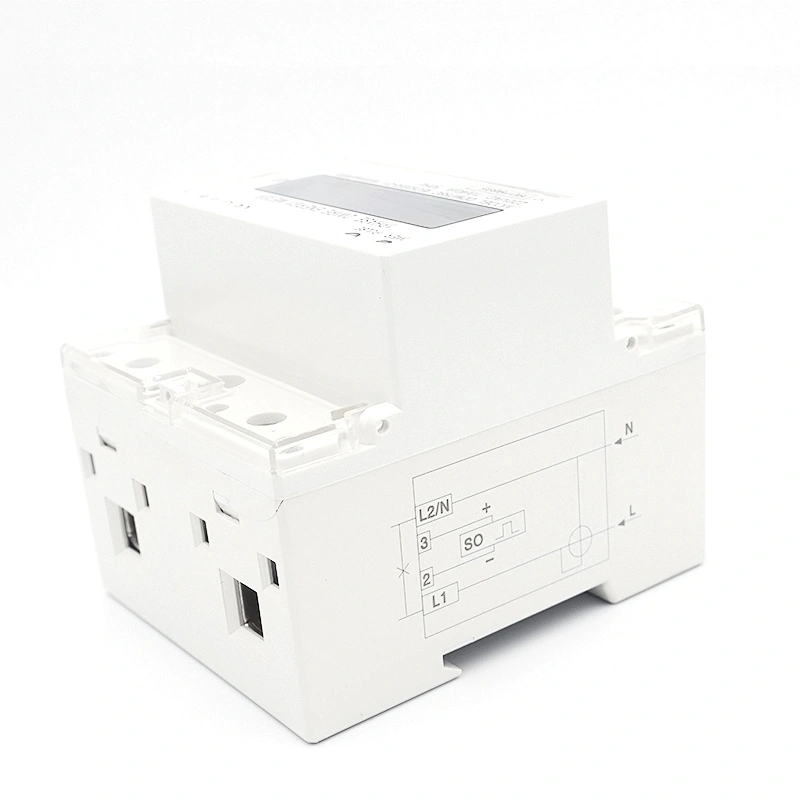

Wiring diagram

Type S

13

RH75SC
