- Frequency:45-65Hz
- Rated Current:1.5(6)A,5(30)A,5(60)A,10(40)A,10(60)A.20(80)A,30(100)A, etc.
- Operation current range:0.05Ib~ I max (Direct);0.02Ib~ I max (with CT)
- Display:LED or LCD
- Communication:RS485 Port MODBUS-RTU Protocol
- Power consumption:Voltage Circuit ≤1.0W 5VA;Current Circuit ≤1VA(Ib)
- Connection mode:3-phase four wires,3- phase 3-wires, 1phase 2 wires.

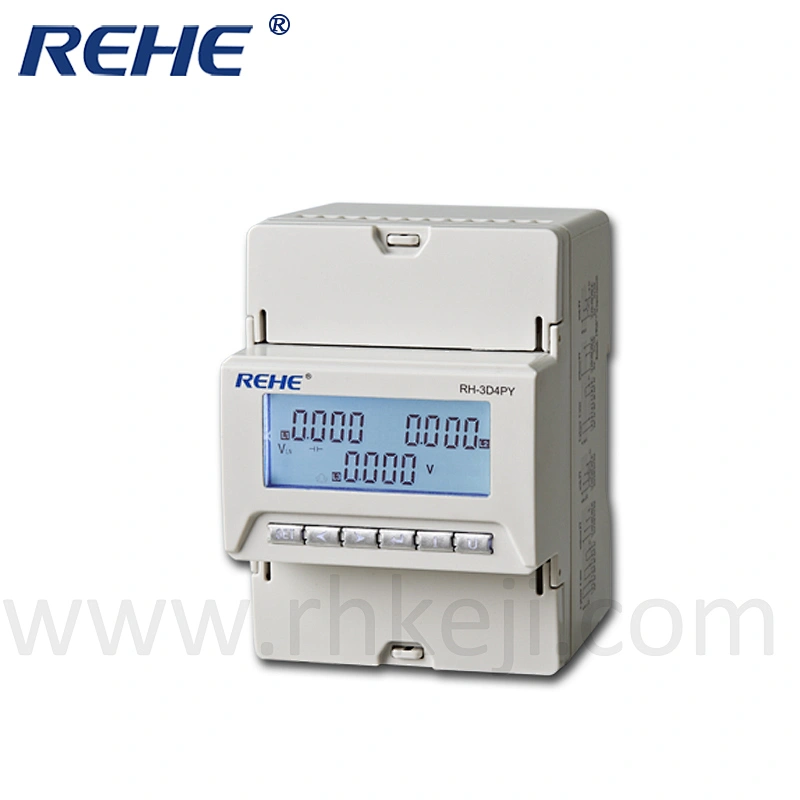

- Product name:Single-Phase Din Rail Kwh Meter with RS485 Communication
- Display Type:Analog and Digital
- Phase:Single Phase
- Brand Name:REHE
- Model Number:RHDDS
- Measuring Energy Range:10(100)A
- Accuracy Class:Class1.0
- Output Voltage:220v/230v/240v
- Operating Temperature:-20℃~+70℃
- Dimensions:76*74*91mm(L*W*H)
Product Description

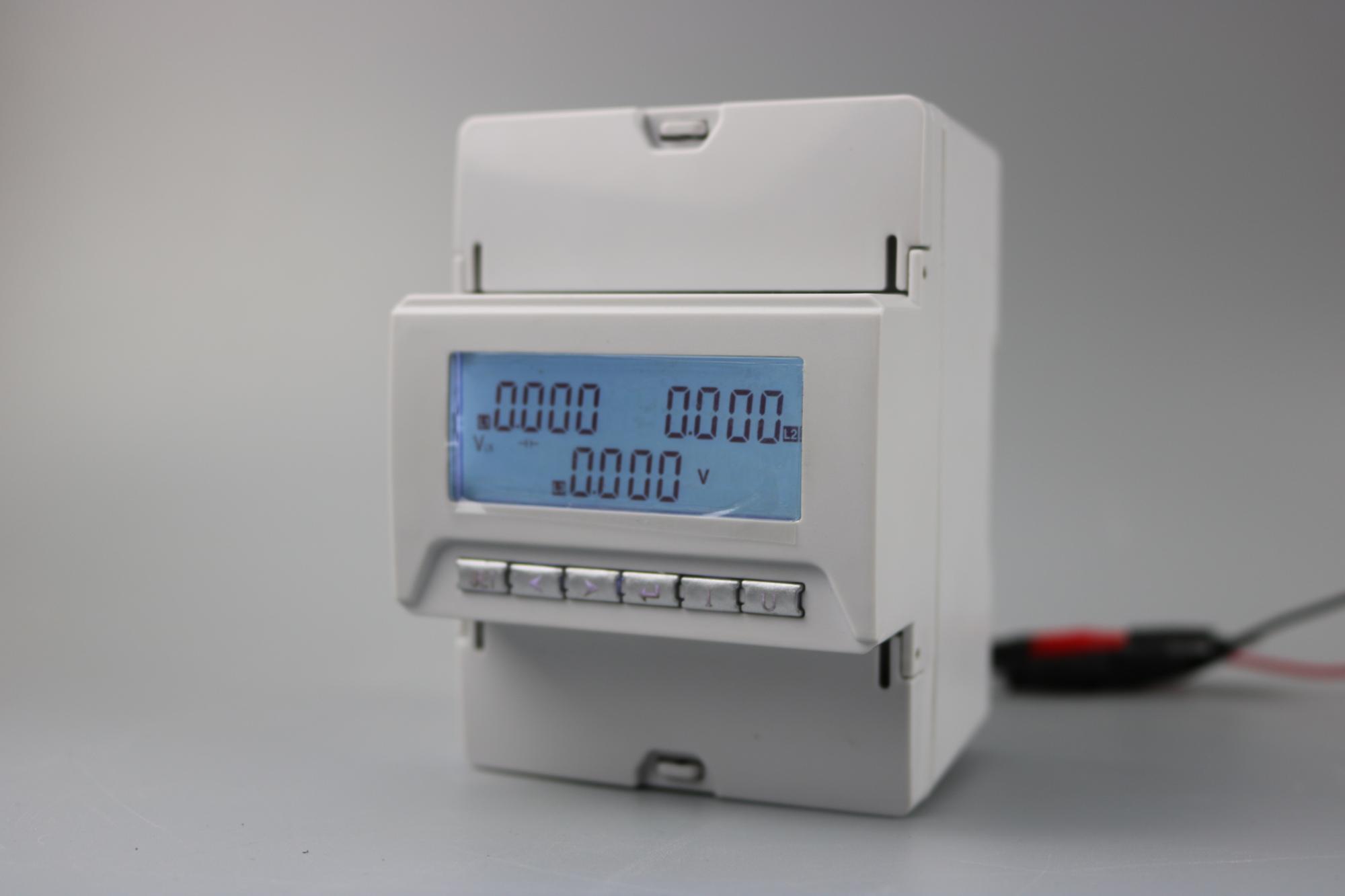

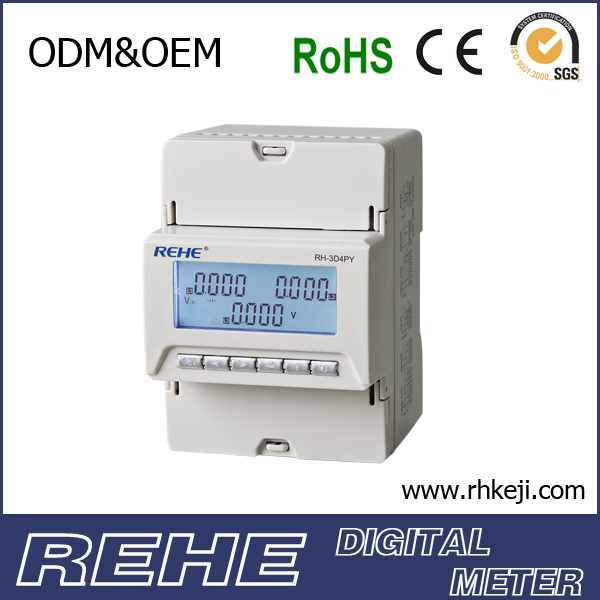

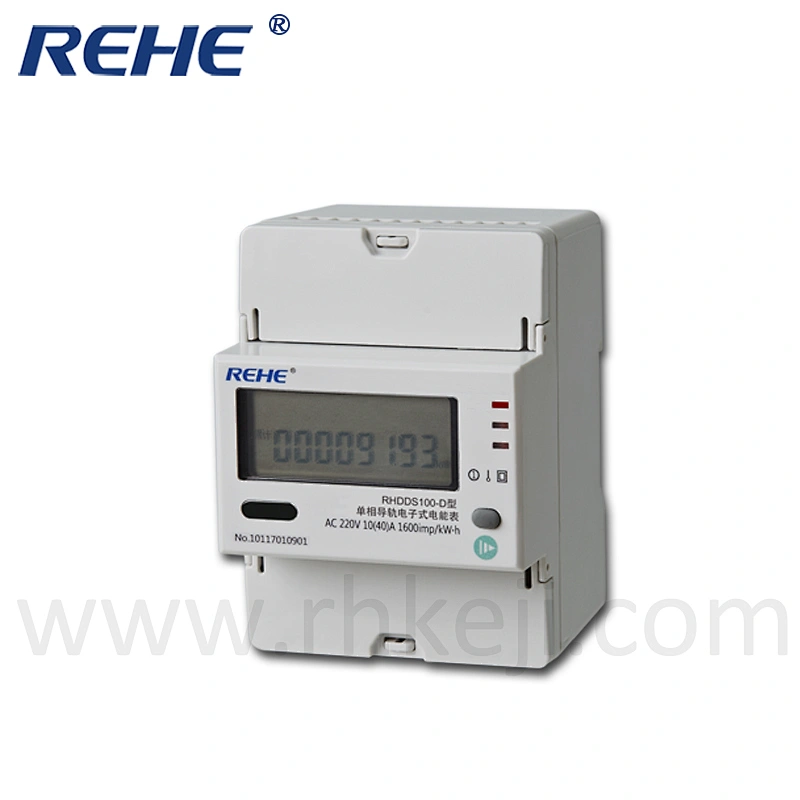

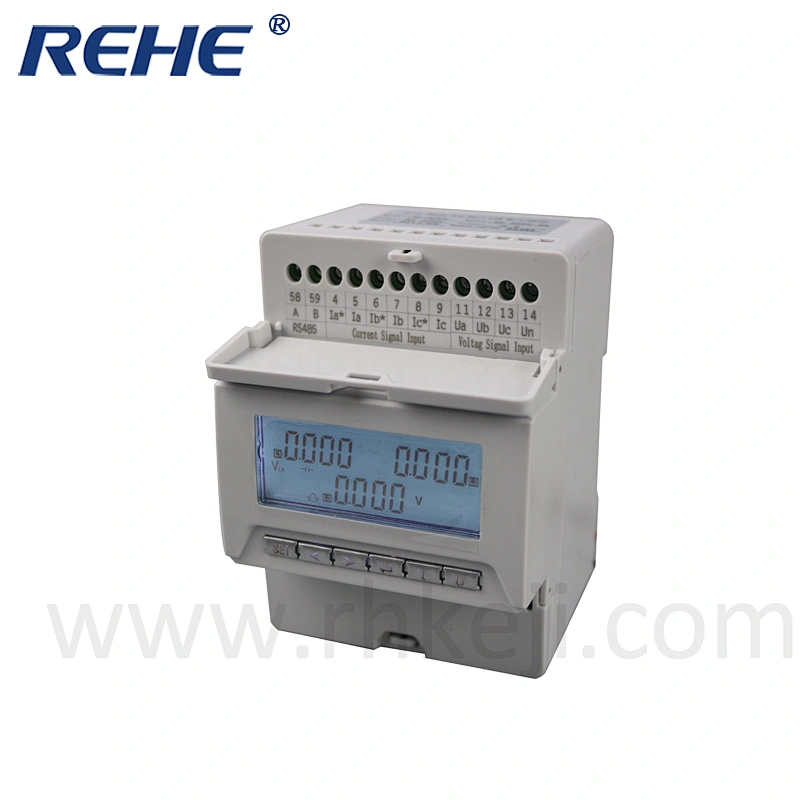

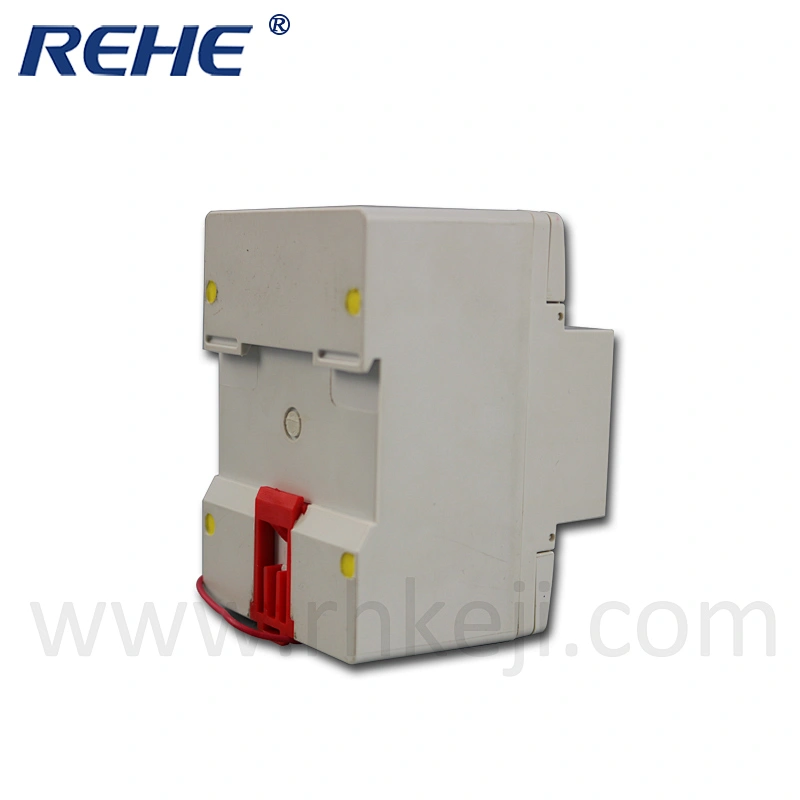

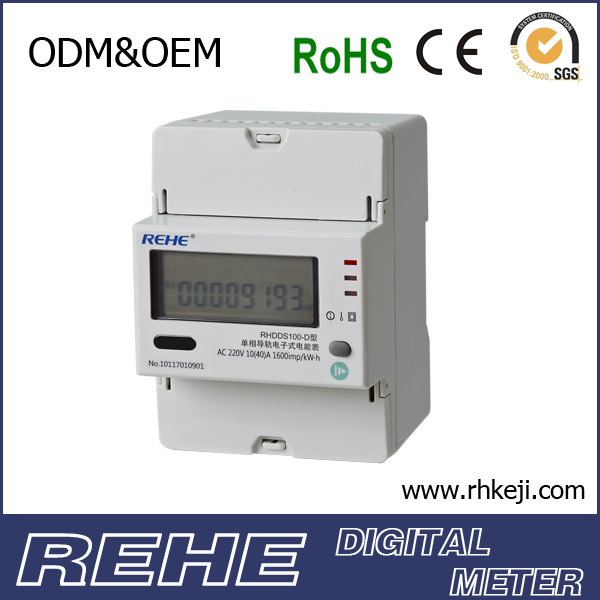

Detailed Images
Application
4 Module, single phase two wire active electronic DIN-rail watt-hour meter.
The meter is used to measure 50Hz or 60Hz active energy consumption from single phase two wire AC electricity net.
The features of small size & DIN-rail mounting makes it suitable for installation in distribution boards and small standard enclosures.
The meter is widely used in the office buildings, shopping malls, residences, airports and metro, etc.
