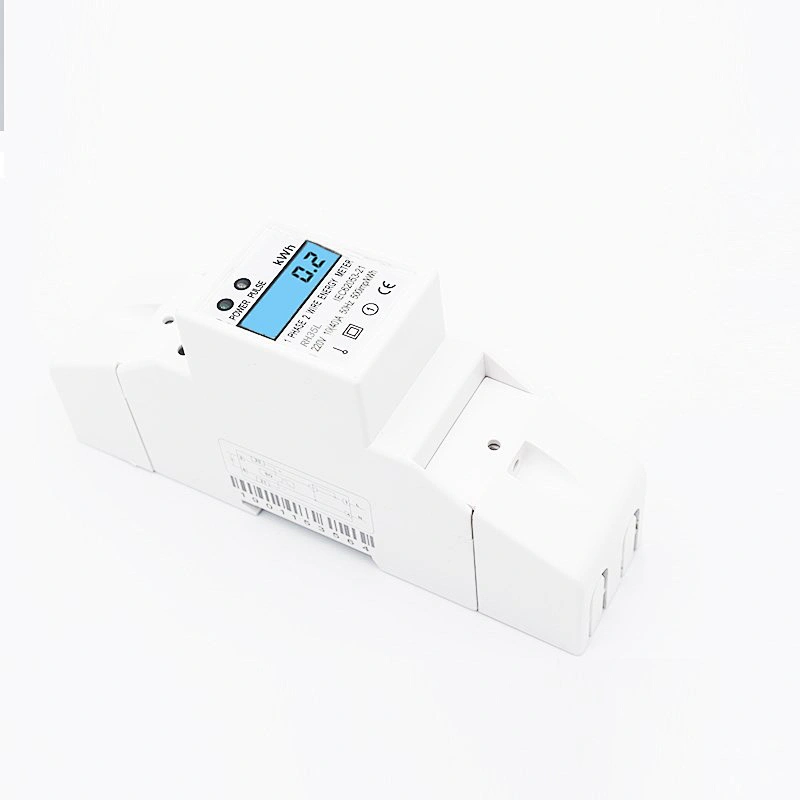

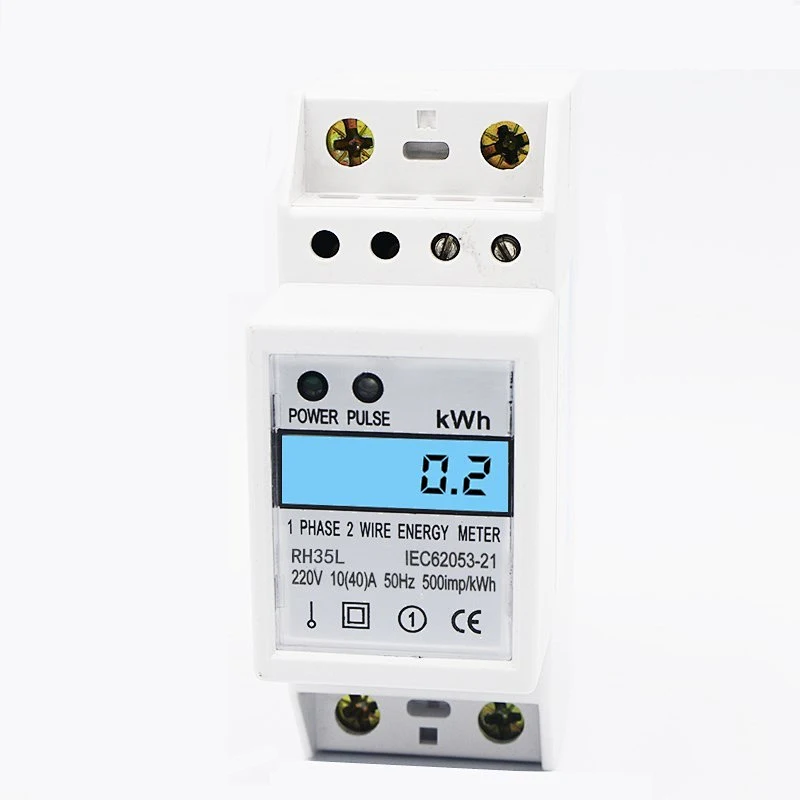

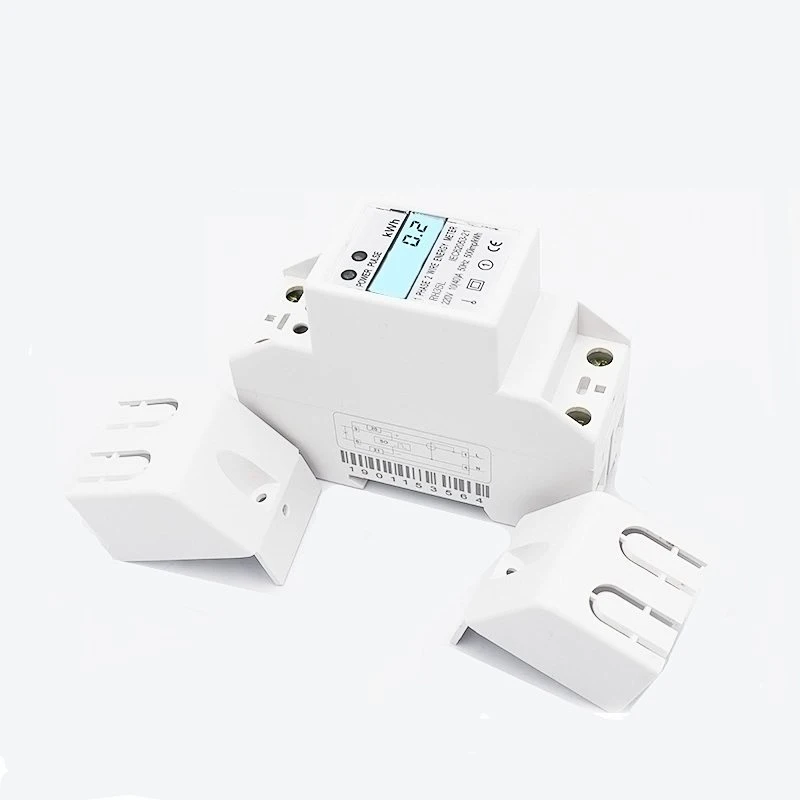

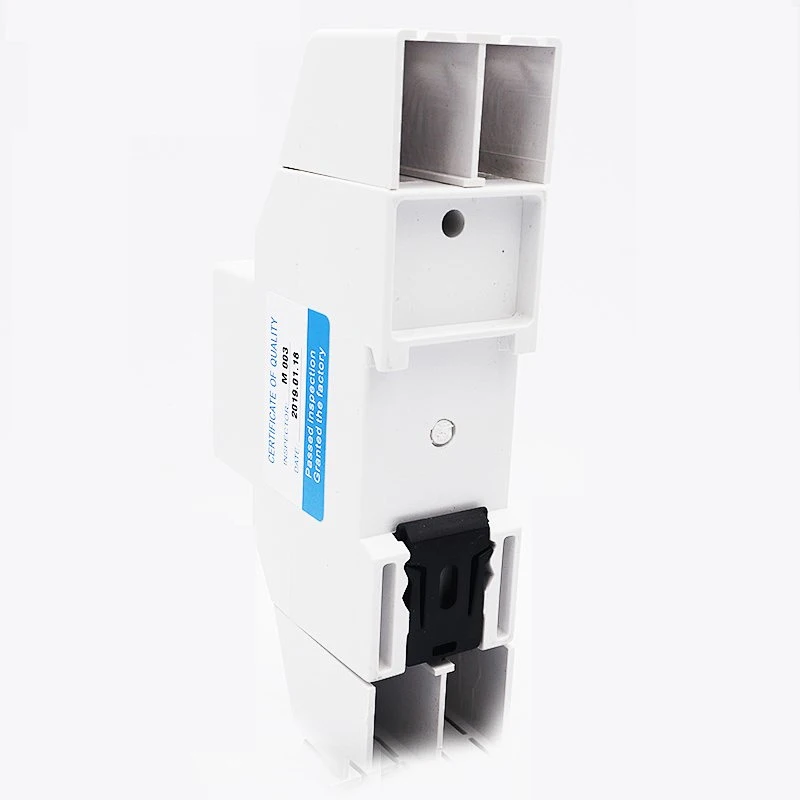

RH35L Single phase Electronic DIN rail active energy meter with White Backlight LCD display
RH35L Single phase Electronic DIN rail active energy meter with White Backlight LCD display
RH35L Single phase Electronic DIN rail active energy meter with White Backlight LCD display
RH35L Single phase Electronic DIN rail active energy meter with White Backlight LCD display
RH35L Single phase Electronic DIN rail active energy meter with White Backlight LCD display
RH35L Single phase Electronic DIN rail active energy meter with White Backlight LCD display
RH35L Single phase Electronic DIN rail active energy meter with White Backlight LCD display
RH35L Single phase Electronic DIN rail active energy meter with White Backlight LCD display
RH35L Single phase Electronic DIN rail active energy meter with White Backlight LCD display

RH35L Single phase Electronic DIN rail active energy meter with White Backlight LCD display

Model NO.
RH35L
Price:
US $ 9.09-10.47 / piece
Delivery
FOB Shanghai, Ningbo
Minimum order quantity
1 piece
Supply Ability
10000.0 piece / Month
Country of Origin
Zhejiang, China
Quantity:
  • Color:White
  • Warranty:18 Months
  • Rated Voltage:220V 230V
  • Mounting:35 mm Din Rail
  • Installation:DIN Rail Installation
  • Frequency:50HZ/60HZ
  • QTY:100pcs/carton
  • Display Mode:LCD backlight (5+1) display
  • Wiring Mode:Bottom in and top out
  • Poles:2P
  • Display Type:Digital Only
  • Phase:Single Phase
  • Brand Name:REHE
  • Output Voltage:220V
  • Model Number:RH35L
  • Dimensions:78*66*43mm
  • Operating Temperature:-20℃~+50℃
  • Measuring Energy Range:10(40)A
  • Accuracy Class:1.0
Technical parameter
TypeAccuracyRated voltageRated currentStarting current(A)Insulating performance
RH35LClass 1.0

220V

230V

5(20)A

10(40)A

15(60)A

20(80)A

0.02

AC voltage 4kv for 1 minute,1.2/50us waveform impulse voltage 6kv.

Note

If you need different reference voltage or current specification, please advisory us.

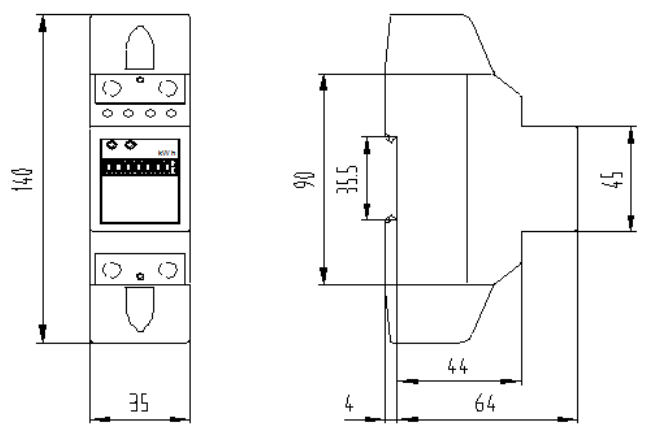

Mount dimension

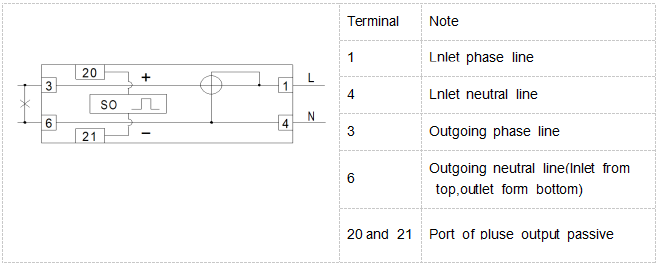

Wiring diagram

Type S
