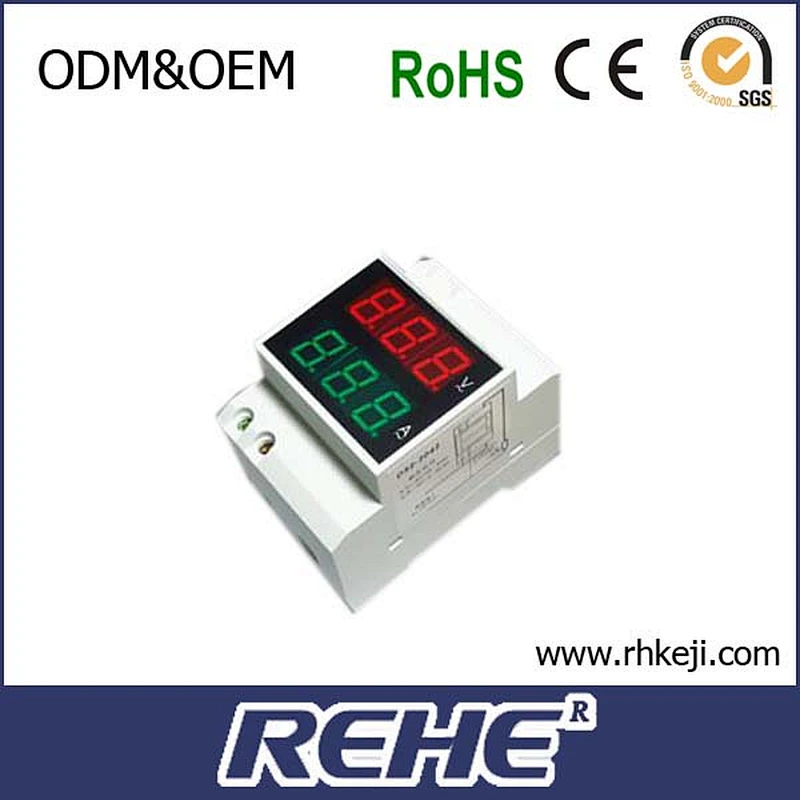

Dual Display Din-Rail slide Way AC Ammeter Voltmeter AC80-300V AC0.01-99.9A digital Voltage Current Meter

DIN-RAIL SlideWay Digital LED AC Voltmeter Ammeter AC80-300V AC220 AC0.2-99.9A Voltage Current Dual Display 2in1 Panel Meter Voltmeter Ammeter

Range :AC80-300V AC0.1-99.9A

Display colors: Tow colors red green

Resolution:1% ±2 digit

Consume power:Less than 0.2VA

Refresh rate:About 2 times per second

Dimensions:54x80x64 mm

Installation method:

Slide Way DIN-RAIL

Accuracy : 0.5 class

Speed :2 Per Second

Size

54*80*64mm

D52-2042 Din-rail AC voltage and current meter user Guides & Instructions

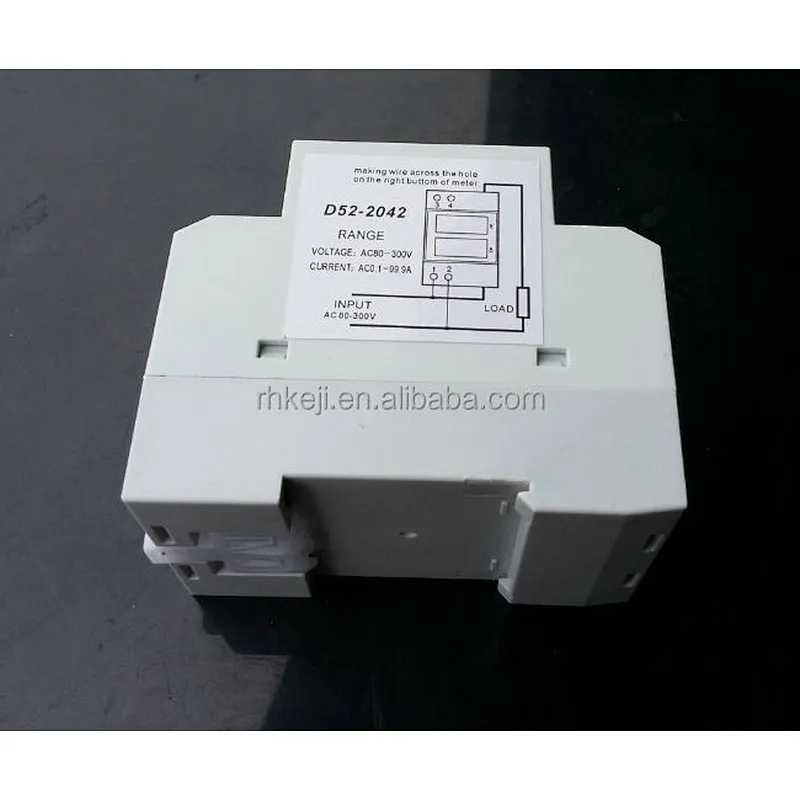

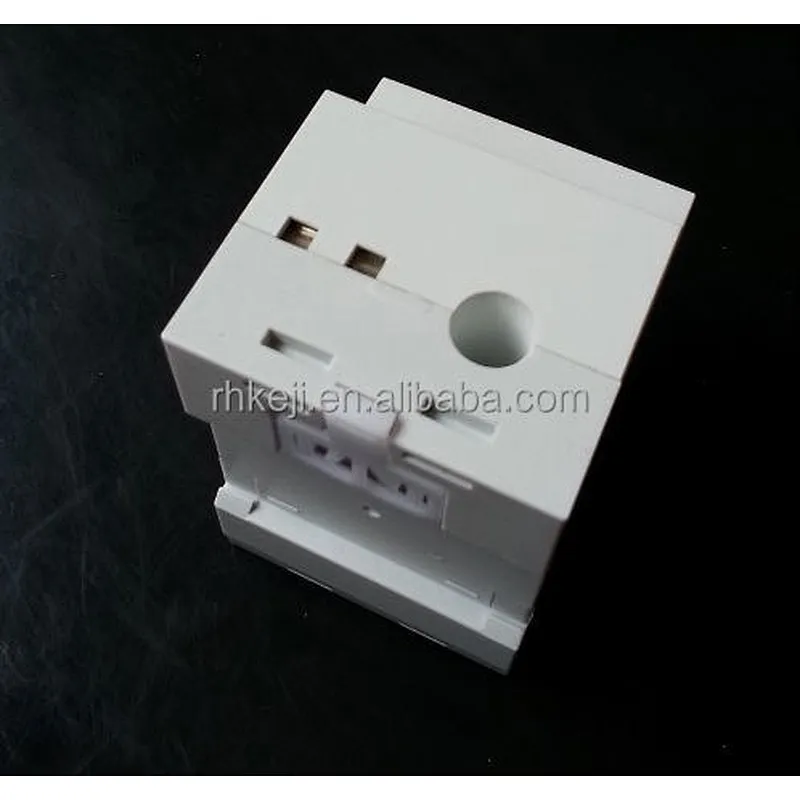

D52-204 Din-rail digital double display AC voltage, current meter is on the instrument, respectively, at the same time shows that AC voltage and AC current is measured. instrument measuring current Limited within 99.9 A ,not need an external AC transformer. Just only put the measurement circuit conductor through the instrument on the right side of the small round hole can complete the current measurement. Measuring the current is greater than 99.9 A , need of external transformer.

Technical Indicators

1.Accuracy :1% plus or minus 2 words

2.Display mode :0.5 inch LED digial tube

3.Range AC voltage :80-150 V,80-300V,200-450V

4.AC 0.2-99.9 A (greater than 100 A additional configuration transformer)

5.Power consumption < 0.2 VA

6.Speed :2 per second

7.Size:54*80*64mm

8.Installation :Din-rail

Note:

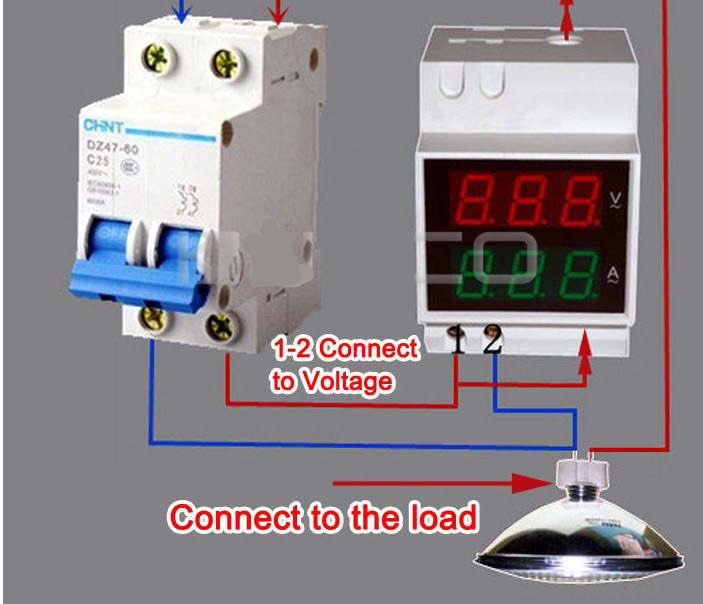

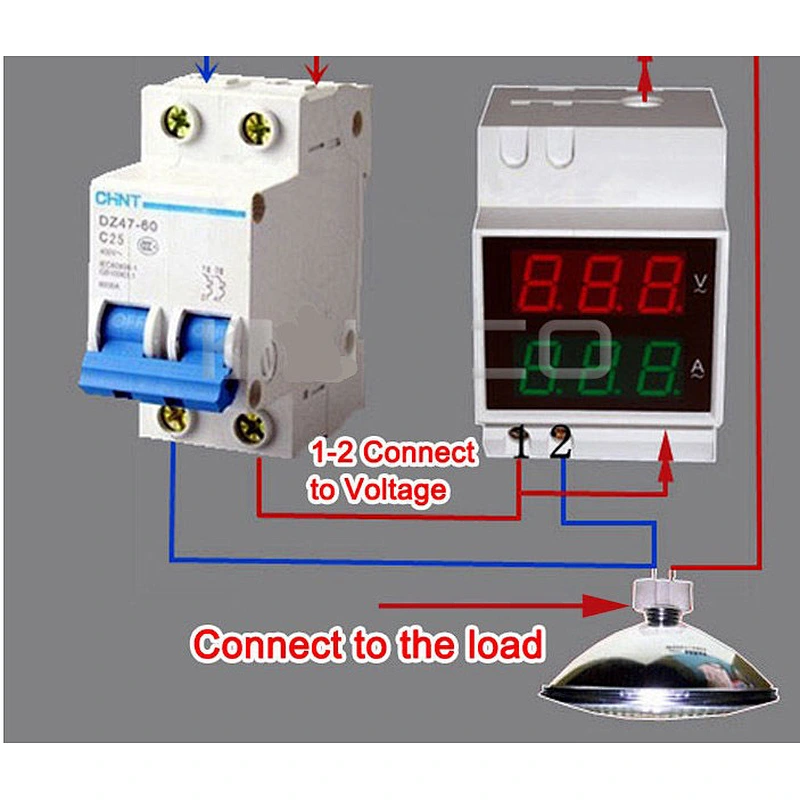

1.Connect the measuring voltage the 1 and 2 terminal on the bottom left of meter.

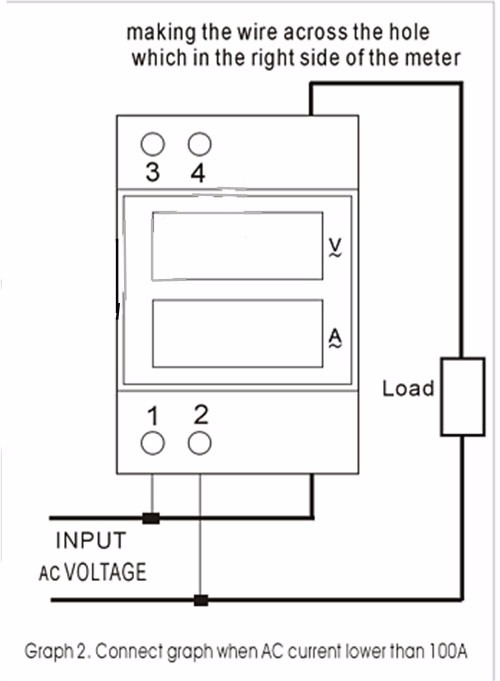

2.Install current transformer as graph 1. Connect the wires of secondary transformer to the terminal of 3.If measuring current between 0.2 and 99.9A ,see graph2, you can get current only making the wire across the hole on the bottom of the meter, and the direction of insert do not impact the measure result.
