RH18SC Factory Quality DIN rail Single phase Two wire White active electronic Energy meter
RH18SC Factory Quality DIN rail Single phase Two wire White active electronic Energy meter
RH18SC Factory Quality DIN rail Single phase Two wire White active electronic Energy meter
RH18SC Factory Quality DIN rail Single phase Two wire White active electronic Energy meter
RH18SC Factory Quality DIN rail Single phase Two wire White active electronic Energy meter
RH18SC Factory Quality DIN rail Single phase Two wire White active electronic Energy meter
RH18SC Factory Quality DIN rail Single phase Two wire White active electronic Energy meter
RH18SC Factory Quality DIN rail Single phase Two wire White active electronic Energy meter
RH18SC Factory Quality DIN rail Single phase Two wire White active electronic Energy meter
RH18SC Factory Quality DIN rail Single phase Two wire White active electronic Energy meter
RH18SC Factory Quality DIN rail Single phase Two wire White active electronic Energy meter

RH18SC Factory Quality DIN rail Single phase Two wire White active electronic Energy meter

Model NO.
RH18SC
Price:
US $ 7.50-8.63 / pieces
Delivery
FOB Shanghai, Ningbo
Minimum order quantity
5 pieces
Supply Ability
5000.0 pieces / Month
Country of Origin
Zhejiang, China
Quantity:
  • Rated voltage:220V 230V
  • Display:LCD 5+1
  • Color:White
  • Frequency:50/60Hz
  • Installation:DIN Rail Installation
  • Warranty:18 Months
  • Poles:1P
  • QTY:100pcs/carton
  • Supply Ability:5000
  • Mounting:35 Mm Din Rail
  • Display Type:Digital Only
  • Phase:Single Phase
  • Brand Name:REHE
  • Output Voltage:127V; 230V
  • Model Number:RH18SC
  • Dimensions:116*17.5*65mm
  • Operating Temperature:-20℃~+70℃
  • Measuring Energy Range:5(32)A
  • Accuracy Class:1.0
Technical parameter
TypeAccuracyRated voltageCurrent specificationsStarting current(A)Insulating performance
RH18SCClass 1.0

220V

230V

5(20)A 5(25)A

5(30)A5(32)A

0.02

AC voltage 4kv for 1mimute,1.2/50us waveform impulse

voltage 6kv

Note

If you need different reference voltage or current specification, please advisory us.

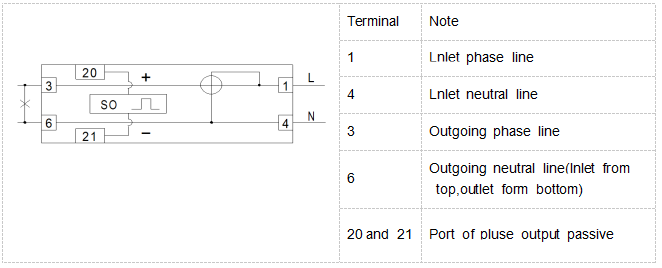

Wiring diagram

Type S
