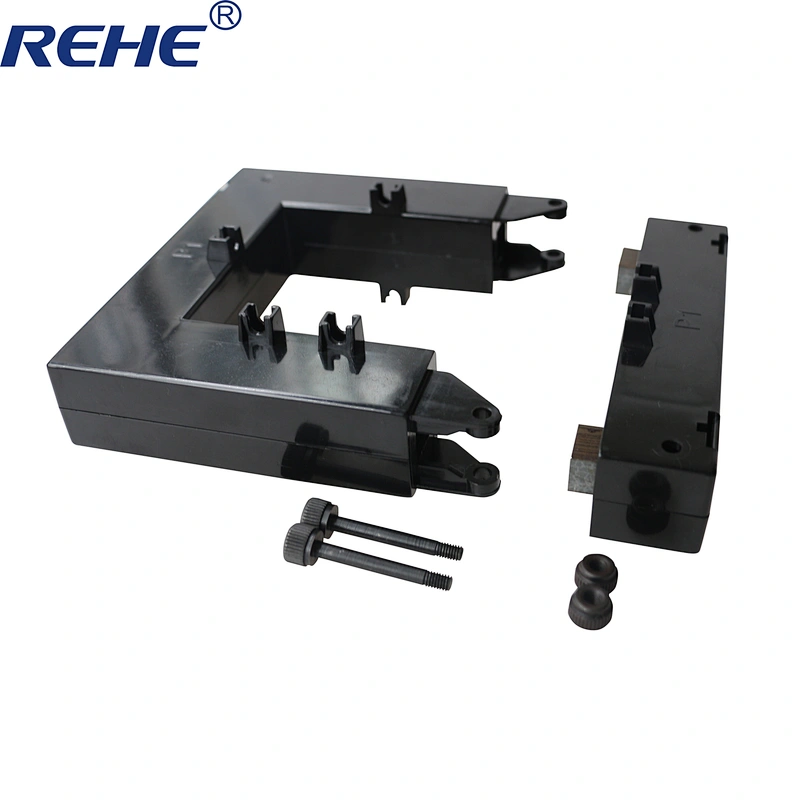

split ct DP-58 current transformer factory 600/5A wound type current transformer for Digital meter
split ct DP-58 current transformer factory 600/5A wound type current transformer for Digital meter
split ct DP-58 current transformer factory 600/5A wound type current transformer for Digital meter
split ct DP-58 current transformer factory 600/5A wound type current transformer for Digital meter
split ct DP-58 current transformer factory 600/5A wound type current transformer for Digital meter

split ct DP-58 current transformer factory 600/5A wound type current transformer for Digital meter

Model NO.
REHE-DP-58
Price:
US $ 103.03-103.03 / piece
Delivery
FOB Shanghai, Ningbo
Minimum order quantity
1 piece
Supply Ability
10000 piece / Day
Country of Origin
Zhejiang, China
Quantity:
  • Usage:Current
  • Coil Structure:Toroidal
  • Coil Number:Autotransformer
  • widow size:50*80 mm
  • Input range:250A -1200 A
  • Accuracy:0.5/ 1.0
  • Rated output:5A / 1A
  • Case:PC/UL94-V0
  • Usage:Current
  • Phase:Single
  • Brand Name:REHE
  • Model Number:REHE-DP-58
Product Description

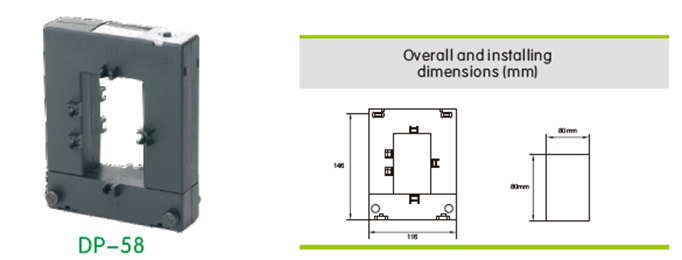

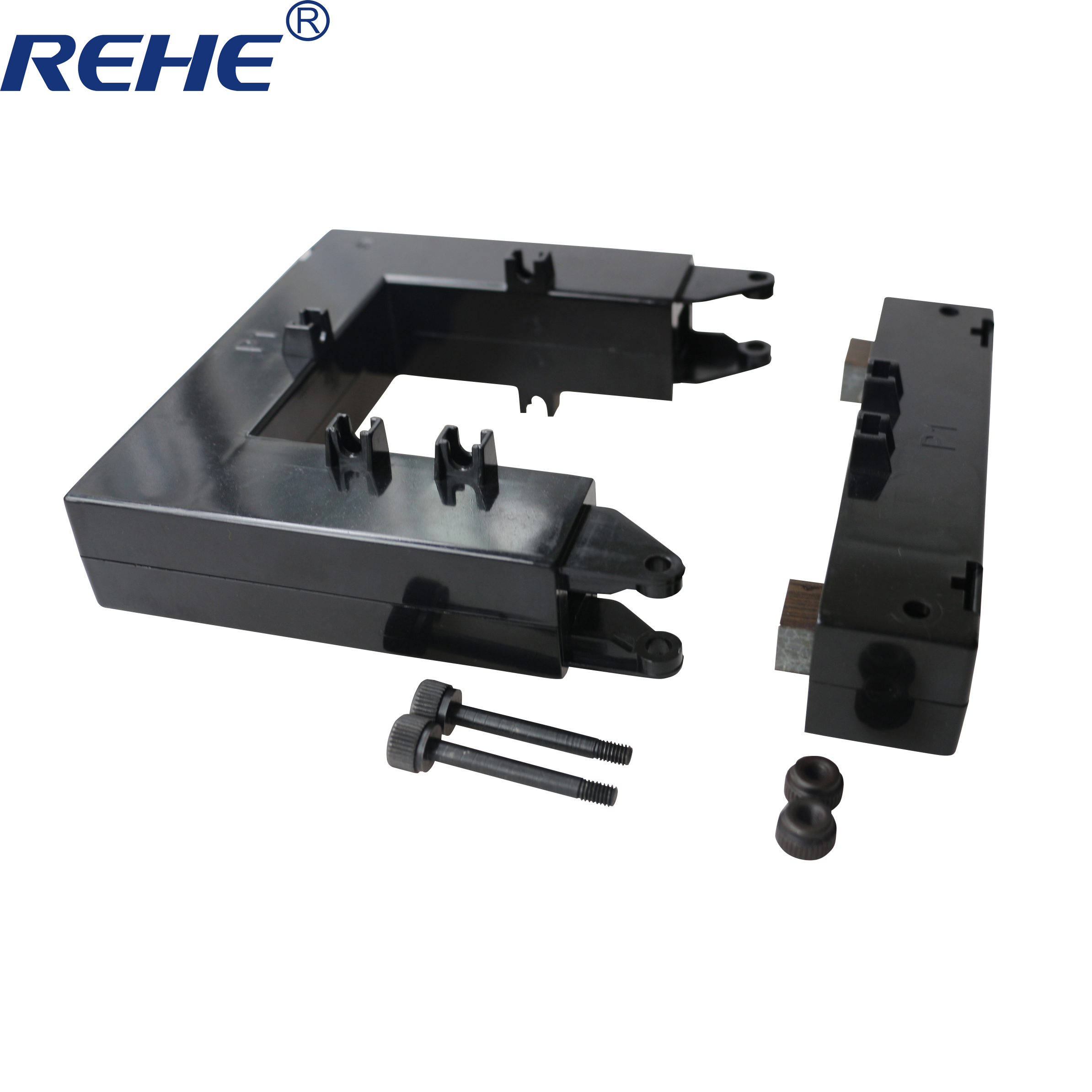

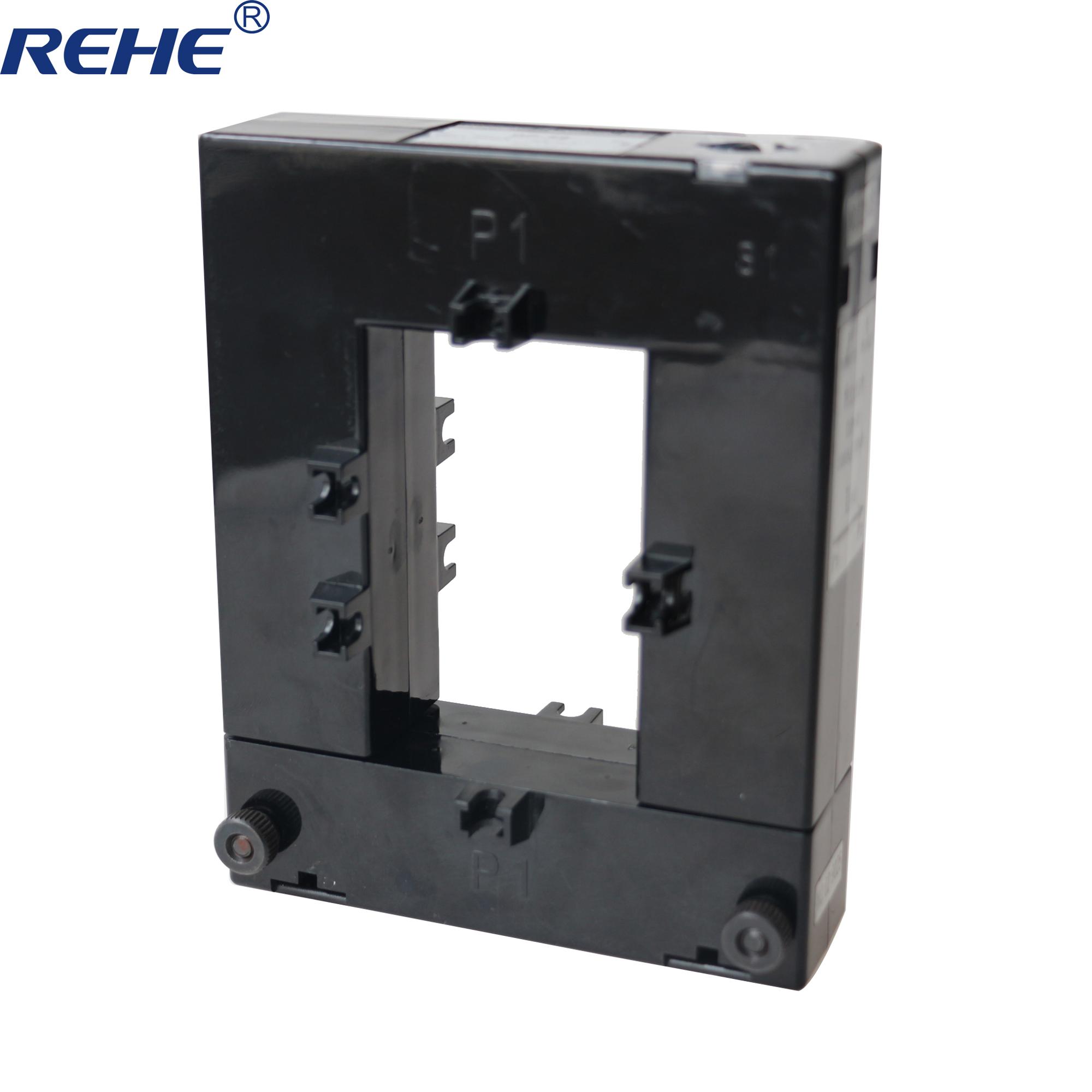

DP-58 diamention.jpgIMG_2194.jpgIMG_2196.jpg

Features

1) Double-screw fastening, safe, easy to install, portable

2) Two built in fixing methods: Base; Busbar mounting

3) Wide inner window, allowing clamping of big cables or bus-bars

4) Wide range of sizes to accommodate all the existing installations.

5) Primary current from 5A to 5000A

Specification

ModelNominal current ratioBurden(VA)/Accuracy
0.51.0
DP-58250/5A/2.5
300/5A/2.5
400/5A2.52.5
500/5A2.55
600/5A2.55
800/5A3.755
1000/5A510
1200/5A510
