Clamp-on Flexible Rogowski coil Current Transformer is an AC current transducer for permanent installation.
They combine the benefits of a thin, flexible, clip-around Rogowski (sense) coil with a signal conditioner providing
accurate, true rms measurement, of voltage or current.
1) AC current probe utility by the Rogowski principle
2) Flexible and lightweight 3) Coil length from 20cm to 100cm 4) Suitable to measure currents from mA to 100kA 5) Easy & quick installation in uninterruptible power line 6) Simple to install in applications where space is limited 7) The size of the Rogowski coil can be specified independently of the primary current 8) Does not suffer from magnetic saturation
TRANSDUCER
Coil length:
510mm
Inner diameter:
155mm (±10%)
Coil cross section:
6.5±0.2 mm/8±0.2 mm/10±0.2 mm
Fastening:
bayonetholder
Material:
thermoplastic UL94-V0
Color:
coil: black, red, yellow, blue (other color could be customized)
closing unit: black
CONNECTION CABLE
Type:
cable (with 3-wire terminal)

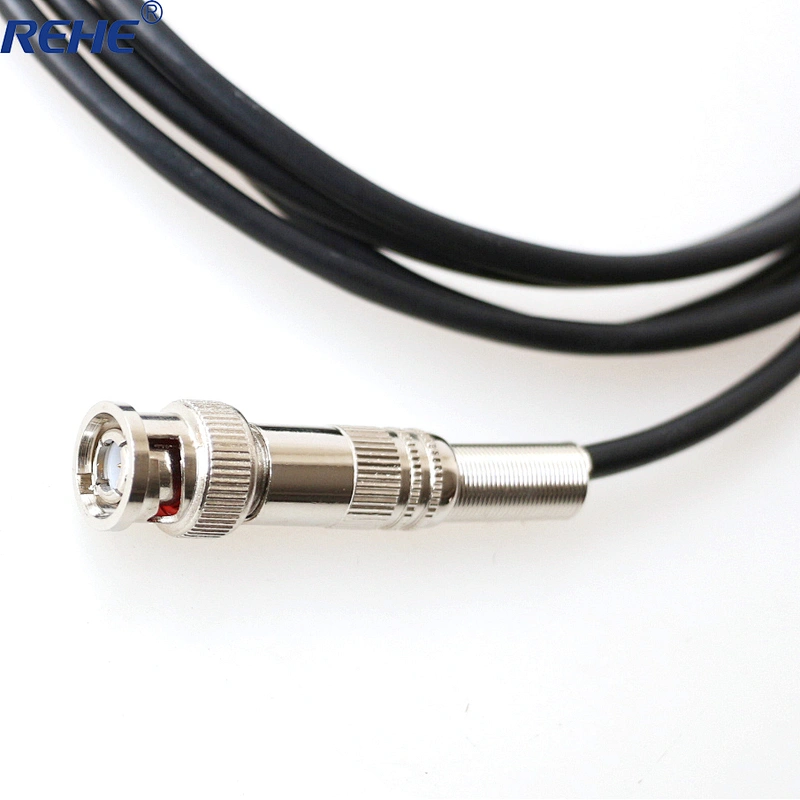

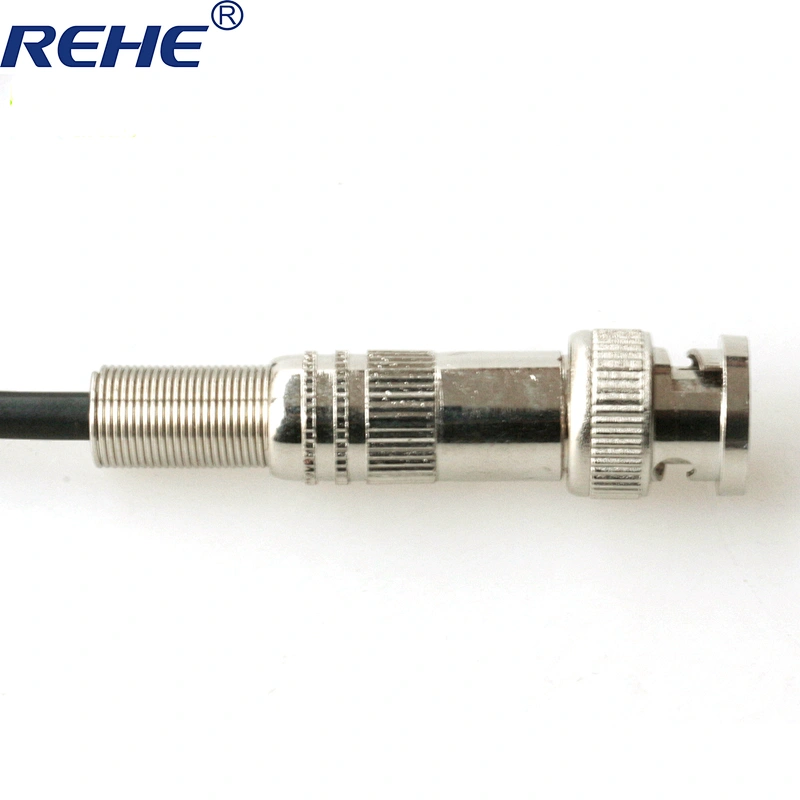

cable + BNC/Oscilloscope Interface
Length:
3000 mm (standard), other length could be customized.
Material:
Xy23/0.1Ts/2C+A+B
Color:
black
ELECTRICAL CHARACTERISTICS
Output level (RMS):
40mV/1000A @50Hz
80mV/1000A @50Hz
100mV/1000A @50Hz
Accuracy:
class 1.0 (coil must be calibrated with amplifier/integrator load impedance)
