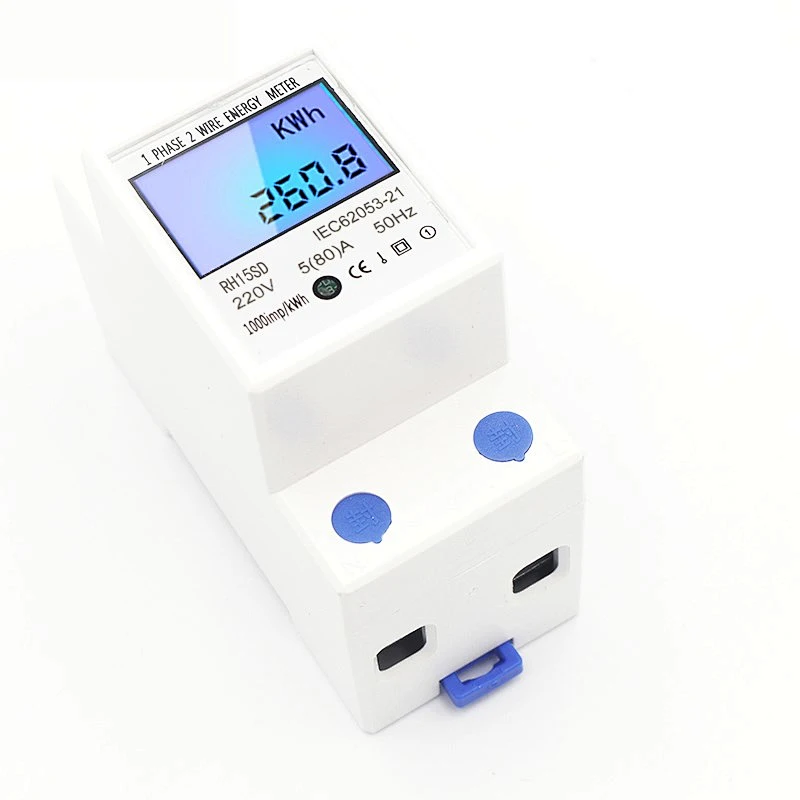

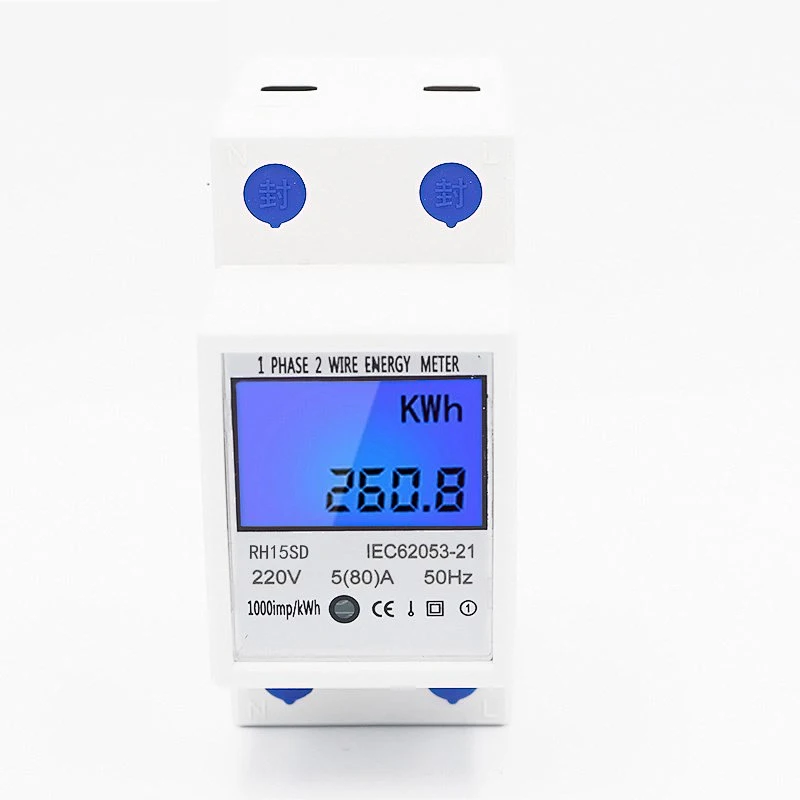

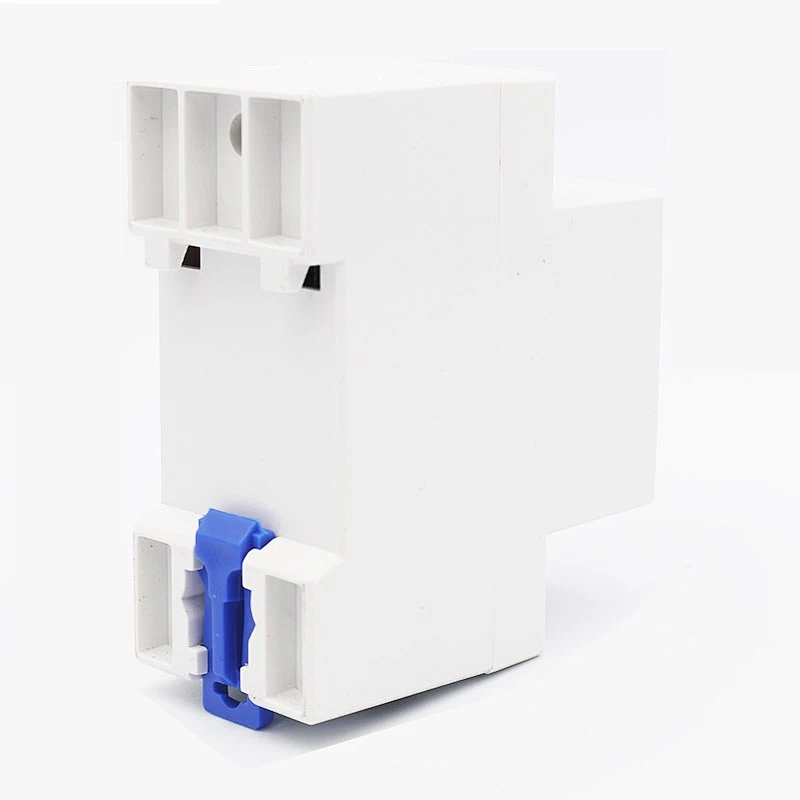

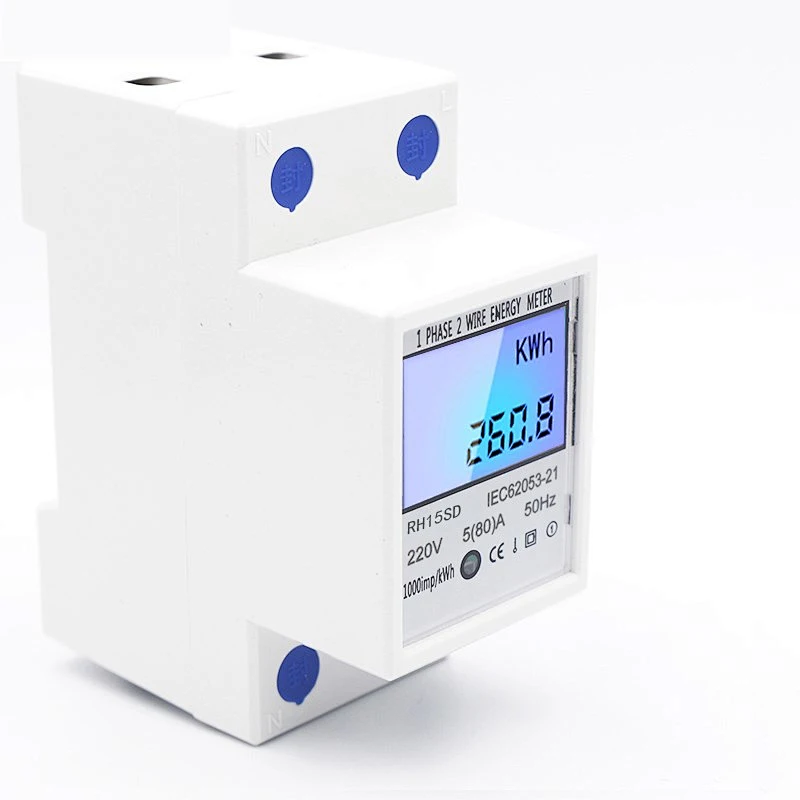

Good Quality and Low Price Electronic DIN rail type Active power meter with LCD display
Good Quality and Low Price Electronic DIN rail type Active power meter with LCD display
Good Quality and Low Price Electronic DIN rail type Active power meter with LCD display
Good Quality and Low Price Electronic DIN rail type Active power meter with LCD display
Good Quality and Low Price Electronic DIN rail type Active power meter with LCD display
Good Quality and Low Price Electronic DIN rail type Active power meter with LCD display
Good Quality and Low Price Electronic DIN rail type Active power meter with LCD display
Good Quality and Low Price Electronic DIN rail type Active power meter with LCD display
Good Quality and Low Price Electronic DIN rail type Active power meter with LCD display

Good Quality and Low Price Electronic DIN rail type Active power meter with LCD display

Model NO.
RH15SD
Price:
US $ 5.52-5.52 / piece
Delivery
FOB Shanghai, Ningbo
Minimum order quantity
1 piece
Supply Ability
5000 piece / Day
Country of Origin
Zhejiang, China
Quantity:
  • Color:White
  • Warranty:18 Months
  • Feature:Mini Size
  • Rated Voltage:220V 230V
  • Display Mode:LCD
  • Power:17000 watts
  • QTY:100pcs/carton
  • Mounting:35 Mm Din Rail
  • Frequency:50HZ/60HZ
  • Installation:DIN Rail Installation
  • Display Type:Digital Only
  • Phase:Single Phase
  • Brand Name:REHE
  • Output Voltage:220V
  • Model Number:RH15SD

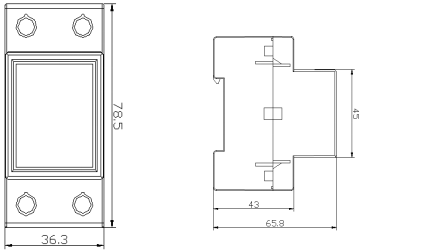

  • Dimensions:78*66*43mm
  • Operating Temperature:-20℃~+50℃
  • Measuring Energy Range:5(80)A
  • Accuracy Class:1.0
Technical parameter
TypeAccuracyRated voltageRated currentStarting currentInsulating performance
RH15SDClass 1.0

220V

230V

5(20)A 10(40)A

15(60)A 20(80)A

5(80)A

0.04%

Frequency AC voltage 2kv lasted 1minute,the impact voltage 6kv

Basic error

Phase balance load

0.05IbCosφ=1±1.5%
0.1Ib

Cosφ=0.5L

Cosφ=0.8C

±1.5%

±1.5%

0.1Ib-ImaxCosφ=1±1.0%
0.2Ib-Imax

Cosφ=0.5L

Cosφ=0.8C

±1.0%

±1.0%
