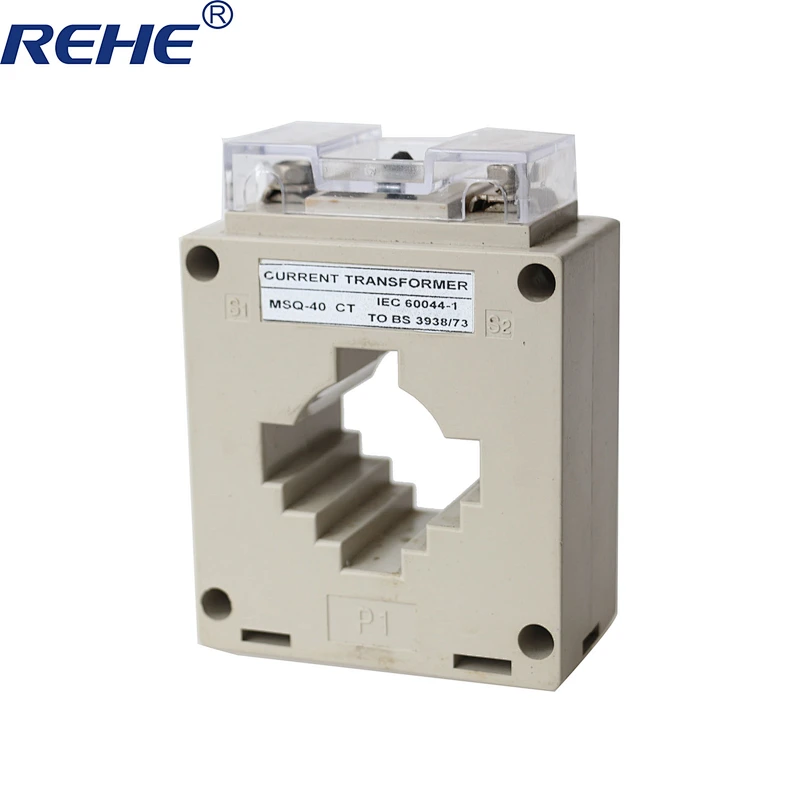

MSQ-40 500/5A MSQ current transformer low voltage current transformer ct

MSQ current transformer(MSQ-40 500/5A CLASS:0.5 15VA)

We are direct current transformer manufacturer, not middle man , We can offer you the great quality & competitive price.

MSQ range of Encased metering and measuring current transformer are designed and manufactured to cater for wide range of applications. Its quality has been proven and tested to IEC: 44-1 (1996) & ASTA Certified.

FEATURES:

• Flame retardant
• High mechanical strength
• High dielectric strength
• Transparent sealable terminal cover
• Base or Bus bar mounting

Description:

MSQ Current Transformers are suitable to be applied to test, control, display and record the running of the electrical equipment, in the AC circuit with the rated voltage value below 0.72KV and the frequency of 50-60Hz, mainly used in combination with measure meters like ammeter, watt-hour meter, control relayu etc.


MSQ current transformer / MFO current transformer:
1.Model:MSQ-30,MSQ-30B,MSQ-30T,MSQ-40,MSQ-60,MSQ-85,MSQ-100,MSQ-125
2.Standard:IEC60044-1
3.Certificate:ISO9001:2000, ISO14001:1996,CE
4. Professory transformer manufacturer
Specifications:
1.Rated current:5/5A-6000/5A,
2.Secondary current :5A.1A
3.Rated voltage:0.72kV
4.Rated frequency:50/60Hz
5.Class of accuracy:0.5~1.0
6. Rated security coefficient :FS<5
7.Ambient Temperature Range:-20 to +80

NOTE:We can supply some color if customer need ,like Grey ,Black and Blue
