- Usage:Current
- Coil Structure:Toroidal, MSQ current transformer
- Standard:IEC60044-1,BS7626,VDE0414
- Coil Number:Autotransformer
- Ratio:5/5A--300/5
- Sheathing material:PC,ABS
- Type:Busbar current transformer
- Rated voltage:0.72KV
- Frequency:50/60Hz
- Usage:Current
- Phase:Single
- Coil Structure:TOROIDAL
- Coil Number:AUTOTRANSFORMER
- Brand Name:REHE
- Model Number:REHE-MSQ30B

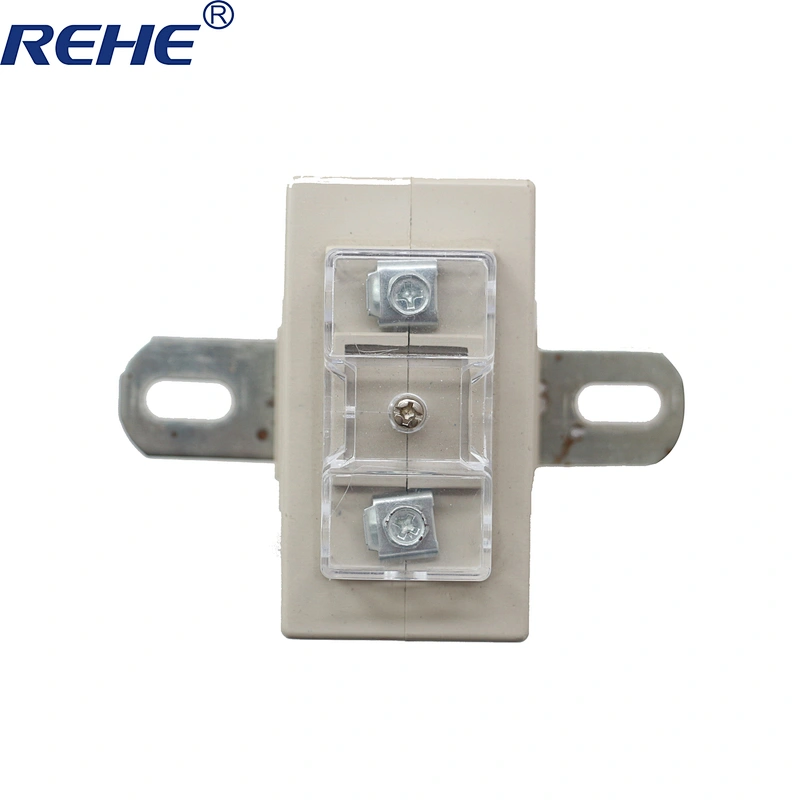

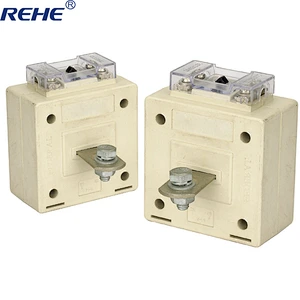

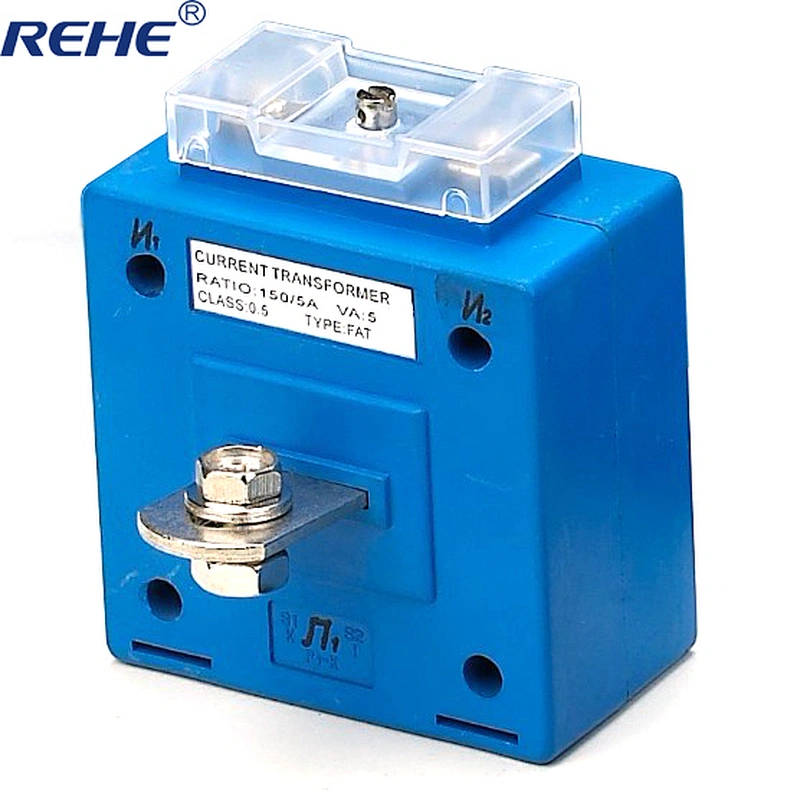

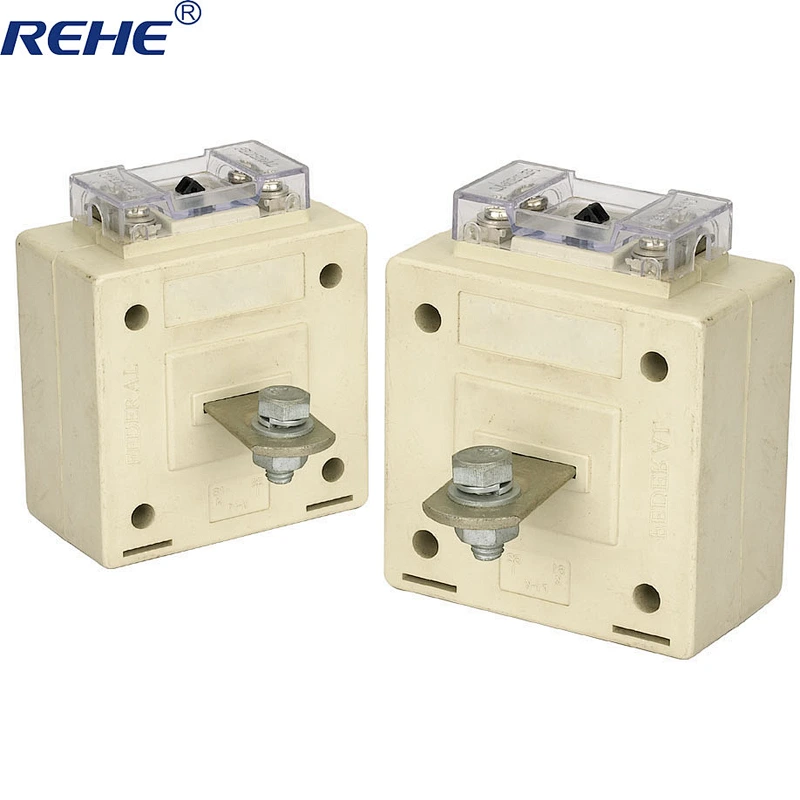

Product Description
MSQ current transformer / MFO current transformer:
1.Model:MSQ-30,MSQ-30B,MSQ-30T,MSQ-40,MSQ-60,MSQ-85,MSQ-100,MSQ-125
2.Standard:IEC60044-1
3.Certificate:ISO9001:2000, ISO14001:1996,CE
4. Professory transformer manufacturer
Specifications
1.Rated current:5/5A-6000/5A,
2.Secondary current :5A.1A
3.Rated voltage:0.72kV
4.Rated frequency:50/60Hz
5.Class of accuracy:0.5~1.0
6. Rated security coefficient :FS<5
7.Ambient Temperature Range:-20 to +80
| Type | Current ratio(A) | Rated power(VA) | Rated | |
| Class:0.5 | Class:1 | Frequency(Hz) | ||
| MSQ-30B | 5/5 | 5 | 7.5 | 50/60 |
| 10/5 | 5 | 7.5 | 50/60 | |
| 15/5 | 5 | 7.5 | 50/60 | |
| 20/5 | 5 | 7.5 | 50/60 | |
| 25/5 | 5 | 7.5 | 50/60 | |
| 30/5 | 5 | 7.5 | 50/60 | |
| 50/5 | 5 | 7.5 | 50/60 | |
| 75/5 | 5 | 7.5 | 50/60 | |
| 100/5 | 5 | 7.5 | 50/60 | |
| 150/5 | 5 | 7.5 | 50/60 | |
| 200/5 | 5 | 7.5 | 50/60 | |
| 250/5 | 5 | 7.5 | 50/60 | |
| 300/5 | 5 | 7.5 | 50/60 | |
NOTE: We can supply some color if customer need ,like Grey ,Black and Blue
