- Usage:Current
- Coil Structure:Toroidal, MSQ current transformer
- Standard:IEC60044-1,BS7626,VDE0414
- Coil Number:Autotransformer
- Ratio:5/5A--300/5
- Sheathing material:PC,ABS
- Type:Busbar current transformer
- Rated voltage:0.72KV
- Frequency:50/60Hz
- Usage:Current
- Phase:Single
- Coil Structure:TOROIDAL
- Brand Name:REHE

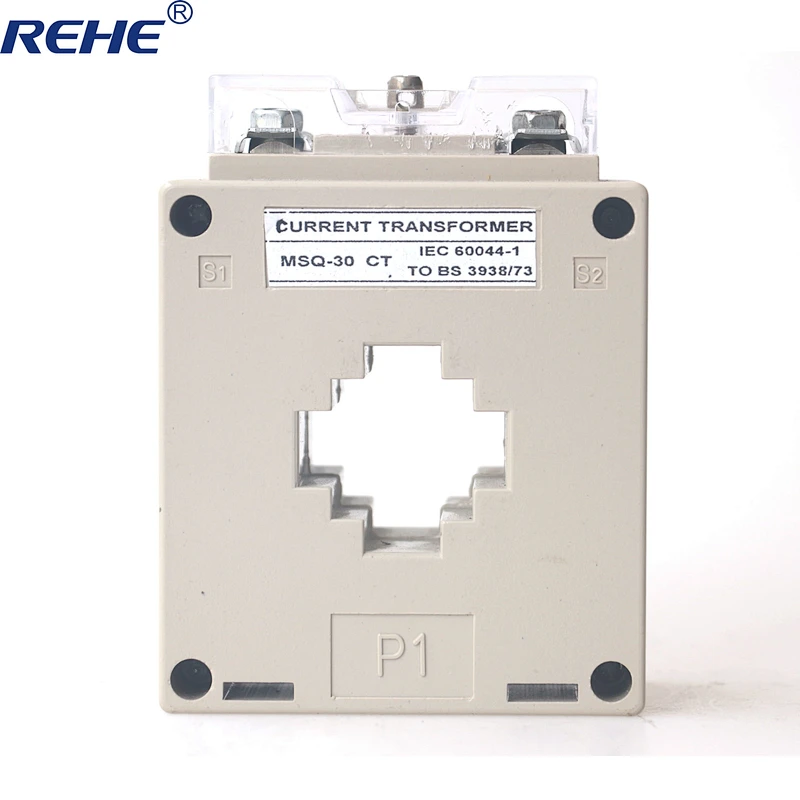

- Model Number:REHE-MSQ30
MSQ Current Transformers are suitable to be applied to test, control, display and record the running of the electrical equipment, in the AC circuit with the rated voltage value below 0.72KV and the frequency of 50-60Hz, mainly used in combination with measure meters like ammeter, watt-hour meter, control relayu etc.
MSQ current transformer / MFO current transformer:
1.Model:MSQ-30,MSQ-30B,MSQ-30T,MSQ-40,MSQ-60,MSQ-85,MSQ-100,MSQ-125
2.Standard:IEC60044-1
3.Certificate:ISO9001:2000, ISO14001:1996,CE
4. Professory transformer manufacturer
Specifications
1.Rated current:5/5A-6000/5A,
2.Secondary current :5A.1A
3.Rated voltage:0.72kV
4.Rated frequency:50/60Hz
5.Class of accuracy:0.5~1.0
6. Rated security coefficient :FS<5
7.Ambient Temperature Range:-20 to +80
| Type | Current ratio(A) | Rated power(VA) | Rated | |
| Class:0.5 | Class:1 | Frequency(Hz) | ||
| MSQ-30 | 30/5 | 5 | 5 | 50/60 |
| 40/5 | 5 | 5 | 50/60 | |
| 50/5 | 5 | 5 | 50/60 | |
| 60/5 | 5 | 5 | 50/60 | |
| 75/5 | 5 | 5 | 50/60 | |
| 80/5 | 5 | 5 | 50/60 | |
| 100/5 | 5 | 5 | 50/60 | |
| 150/5 | 5 | 5 | 50/60 | |
| 200/5 | 5 | 5 | 50/60 | |
| 250/5 | 5 | 7.5 | 50/60 | |
| 300/5 | 10 | 10 | 50/60 | |
NOTE: We can supply some color if customer need ,like Grey ,Black and Blue
