A New type of Single-phase Two-wire DIN rail active power meter
A New type of Single-phase Two-wire DIN rail active power meter
A New type of Single-phase Two-wire DIN rail active power meter
A New type of Single-phase Two-wire DIN rail active power meter
A New type of Single-phase Two-wire DIN rail active power meter
A New type of Single-phase Two-wire DIN rail active power meter
A New type of Single-phase Two-wire DIN rail active power meter
A New type of Single-phase Two-wire DIN rail active power meter
A New type of Single-phase Two-wire DIN rail active power meter
A New type of Single-phase Two-wire DIN rail active power meter
A New type of Single-phase Two-wire DIN rail active power meter

A New type of Single-phase Two-wire DIN rail active power meter

Model NO.
RH18S
Price:
US $ 8.28-8.28 / piece
Delivery
FOB Shanghai, Ningbo
Minimum order quantity
1 piece
Supply Ability
5000 piece / Day
Country of Origin
Zhejiang, China
Quantity:
  • Rated Voltage:220V 230V
  • Display Mode:Register(5+1)display
  • Installation:DIN Rail Installation
  • Color:White
  • QTY:100pcs/carton
  • Warranty:18 Months
  • Frequency:50HZ/60HZ
  • Poles:1P
  • Standard:DIN EN 50022
  • Mounting:35 Mm Din Rail
  • Display Type:Digital Only
  • Phase:Single Phase
  • Brand Name:REHE
  • Output Voltage:220V
  • Model Number:RH18S

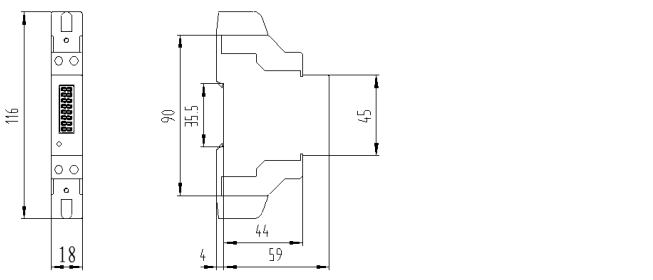

  • Dimensions:116mm*17.5mm*65mm
  • Operating Temperature:-20℃~+70℃
  • Measuring Energy Range:5(32)A
  • Accuracy Class:1.0
Technical parameter
TypeAccuracyRated voltageRated current

Starting

current(A)

Insulating performance
RH18SClass 1.0

220V

230V

5(20)A 5(25)A

5(30)A 5(32)A

0.02

AC voltage 4kv for 1 minute,1.2/50us waveform impulse voltage 6kv

Note

If you need different reference voltage or current specification, please advisory us.

Installation method
