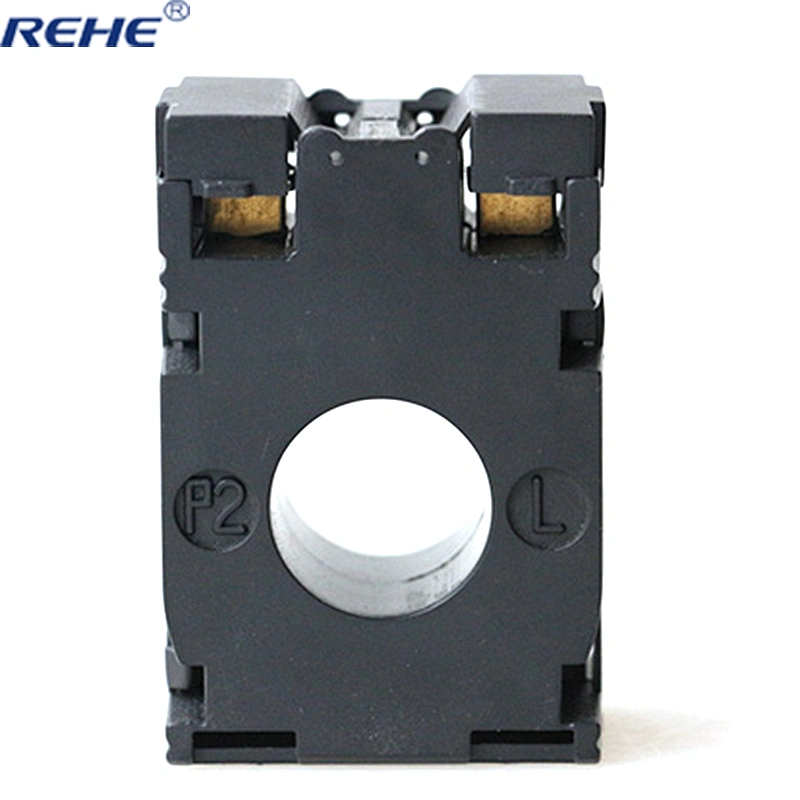

DM-20 5/5A-300/5A DM current transformer din rail toroidal transformer

Model NO.: REHE-DM-20
Price:: US $ 2.30-2.30 / piece
Delivery: FOB Shanghai, Ningbo
Minimum order quantity: 1 piece
Supply Ability: 10000.0 piece / Month
Country of Origin: Zhejiang, China

Quantity:

Product Description

Standard:IEC60044-1,BS7626,VDE0414

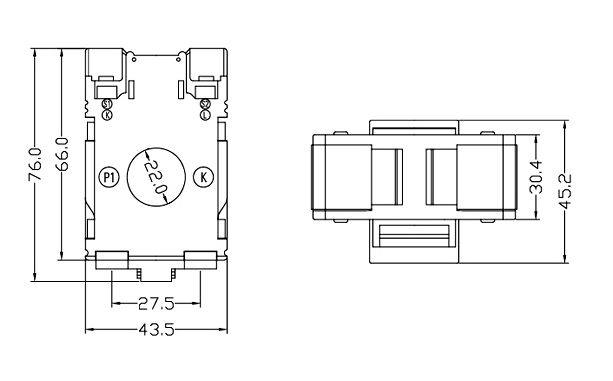

Window size:21mm
TYPE:DM current transformer
Rated voltage:0.72KV
Frequency:50/60Hz
Material:ABS
CLASS:0.5 / 1.0
Usage:Current
Phase:Single
Coil Structure:TOROIDAL
Coil Number:AUTOTRANSFORMER
Brand Name:REHE
Model Number:REHE-DM-20

Product Description

DM-20 Current transformer:

Primary current: Secondary current: Standard approval: Maximum voltage: Frequency: Rated load: Class: Short-time thermal current: Rated security coefficient:	5A-300A 5A,1A VDE0414,BS7626,IEC60044-1 0.72/3KV 50-60Hz 1.5VA,2.5VA,5VA 0.5,1.0 Ith=60×Ih FS<5

Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security coefficient:

5A-300A
5A,1A
VDE0414,BS7626,IEC60044-1
0.72/3KV
50-60Hz
1.5VA,2.5VA,5VA

0.5,1.0
Ith=60×Ih
FS<5

Type	Current ratio(A)	Rated power(VA)	Rated
Type	Current ratio(A)	Class:1	Frequency(Hz)
DM-20	5/5	1.5(10T)	50/60
	10/5	1.5(10T)	50/60
	15/5	1.5(5T)	50/60
	20/5	2.5(5T)	50/60
	25/5	2.5(4T)	50/60
	30/5	2.5(4T)	50/60
	50/5	2.5(2T)	50/60
	75/5	1.5	50/60
	100/5	2.5	50/60
	150/5	3.75	50/60
	200/5	5	50/60
	250/5	5	50/60
	300/5	5	50/60
