- Frequency:45-65Hz

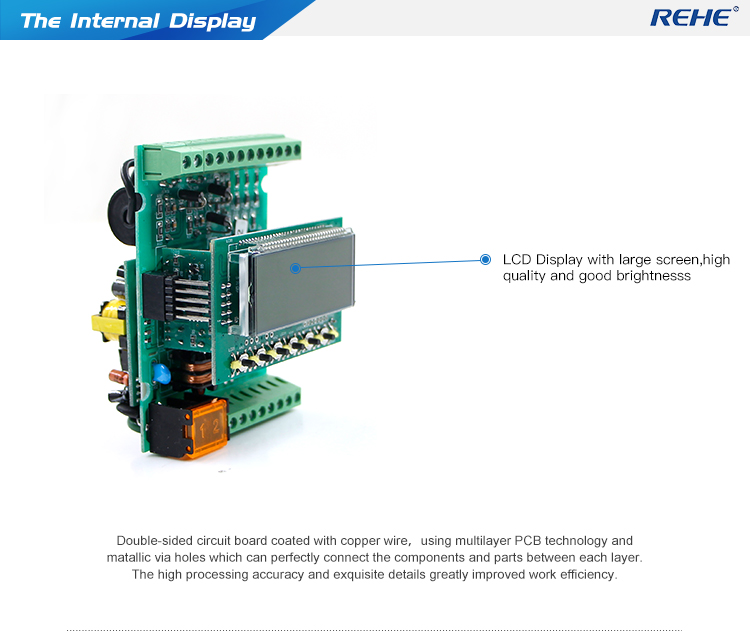

- Display:LCD
- Warranty:3 Years
- OEM:Avaliable
- Rated Current:1.5(6)A,5(30)A,5(60)A,10(40)A,10(60)A.20(80)A,30(100)A, etc.
- Operation current range:0.05Ib~ I max (Direct);0.02Ib~ I max (with CT)

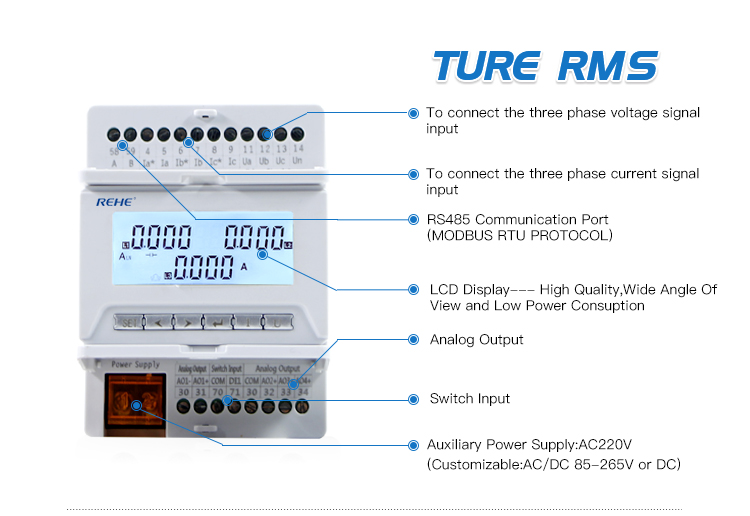

- Communication:RS485 Port MODBUS-RTU Protocol
- Power consumption:Voltage Circuit ≤1.0W 5VA;Current Circuit ≤1VA(Ib)
- Connection mode:3-phase four wires,3- phase 3-wires, 1phase 2 wires.

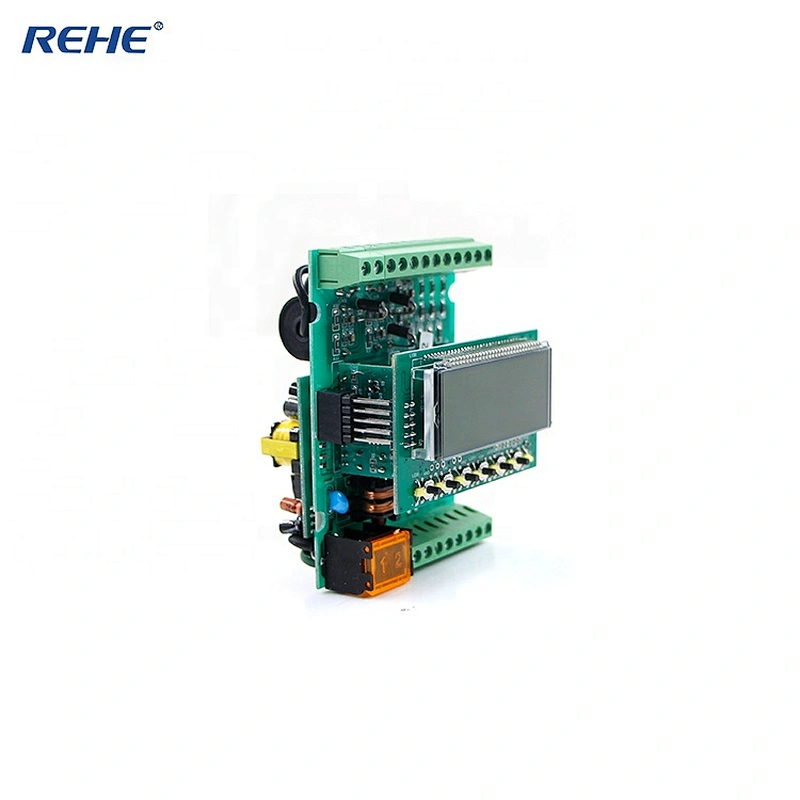

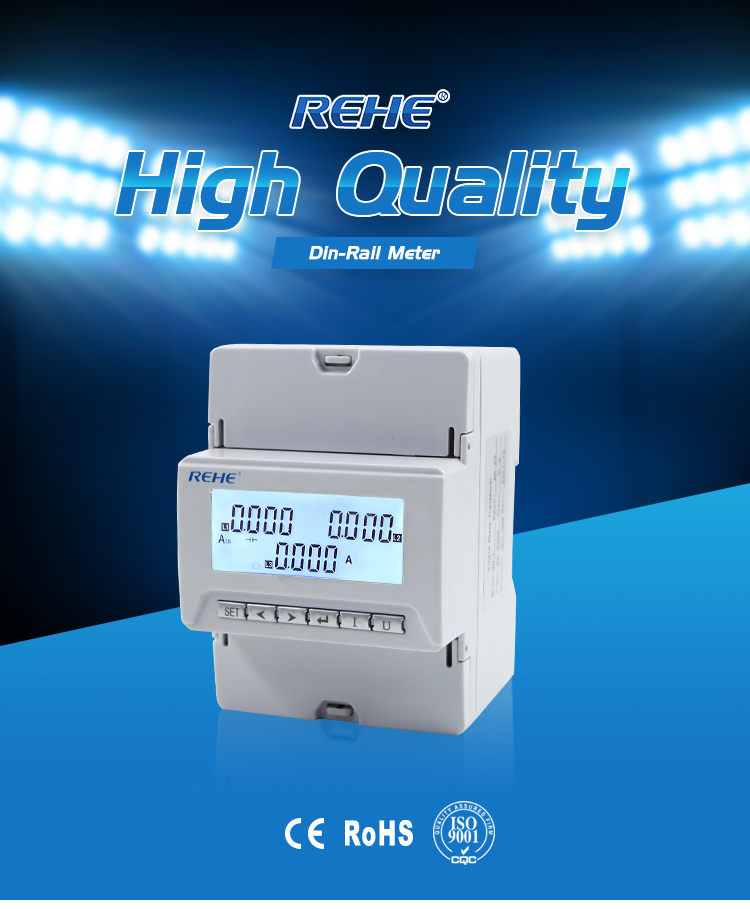

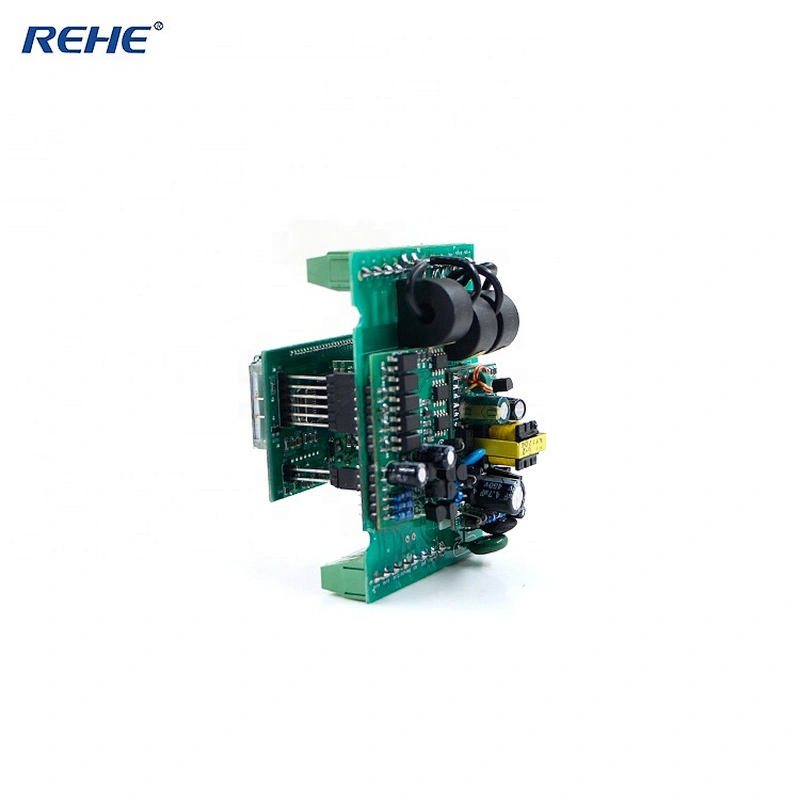

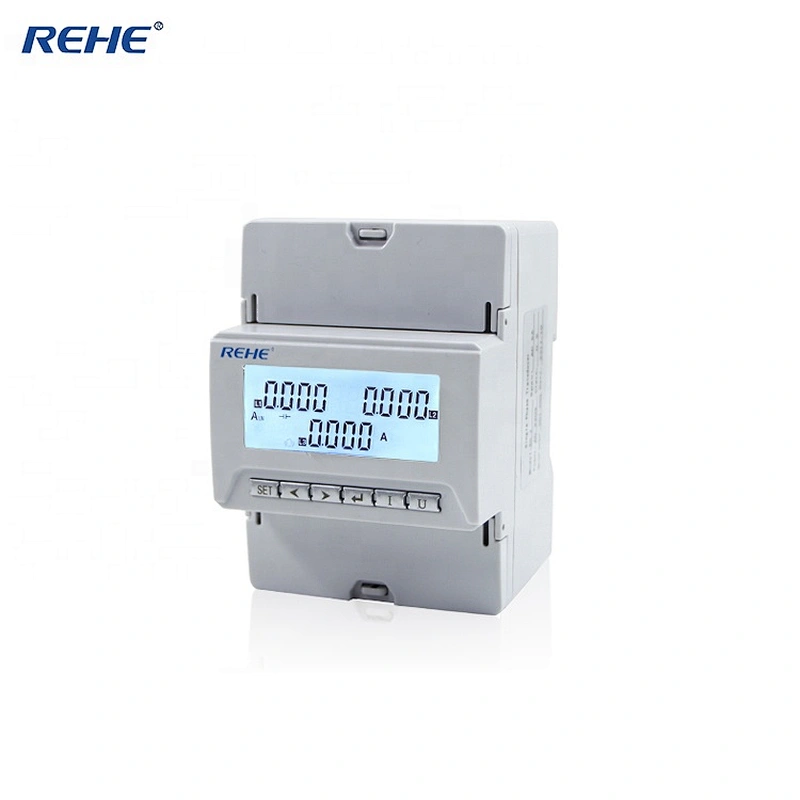

- Product name:Three-Phase Din Rail Current Meter With LCD screen
- Display Type:Analog and Digital
- Phase:Three Phase
- Brand Name:REHE

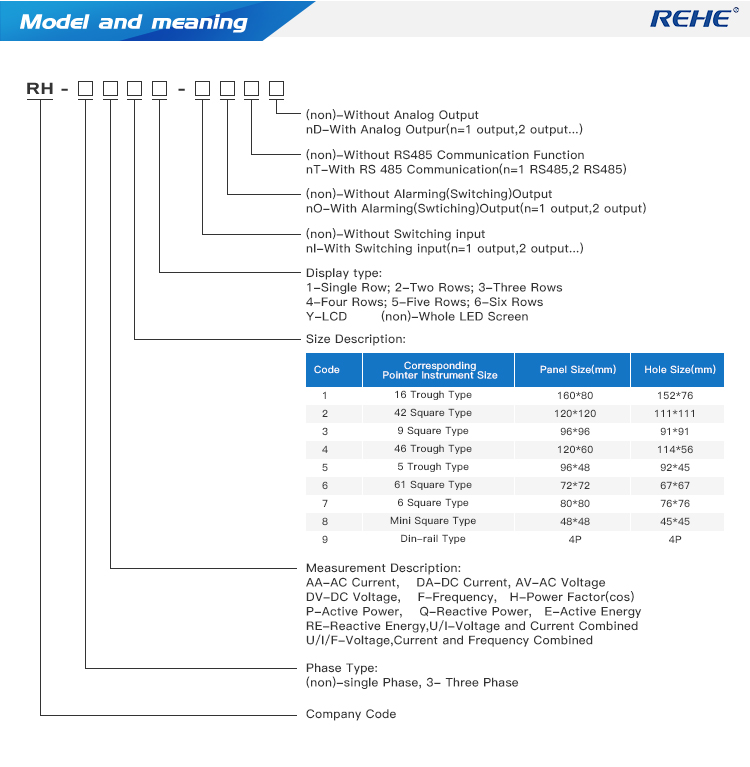

- Model Number:RH-3AA4P
- Measuring Energy Range:10(100)A
- Accuracy Class:0.5
- Output Voltage:220v/230v/240v
- Operating Temperature:-10℃~+55℃

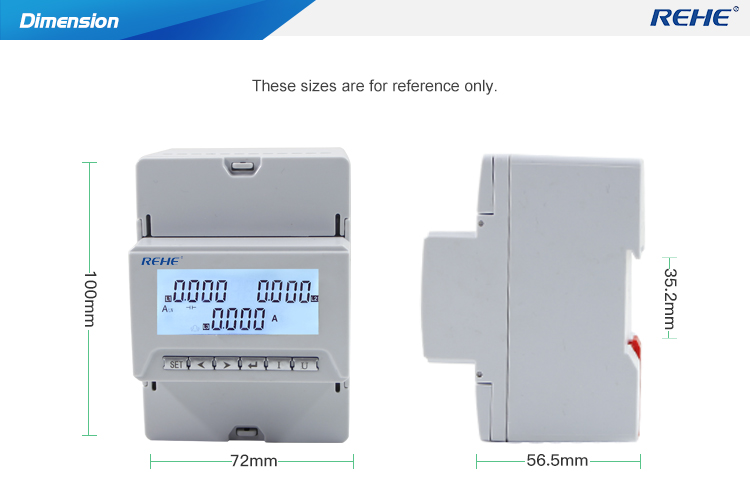

- Dimensions:76*74*91mm(L*W*H)
