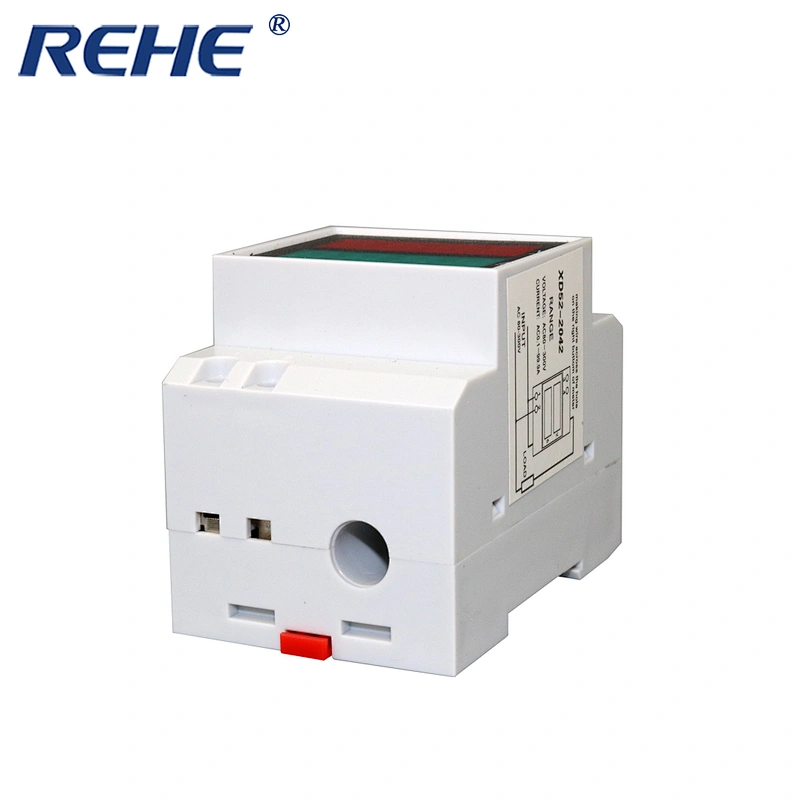

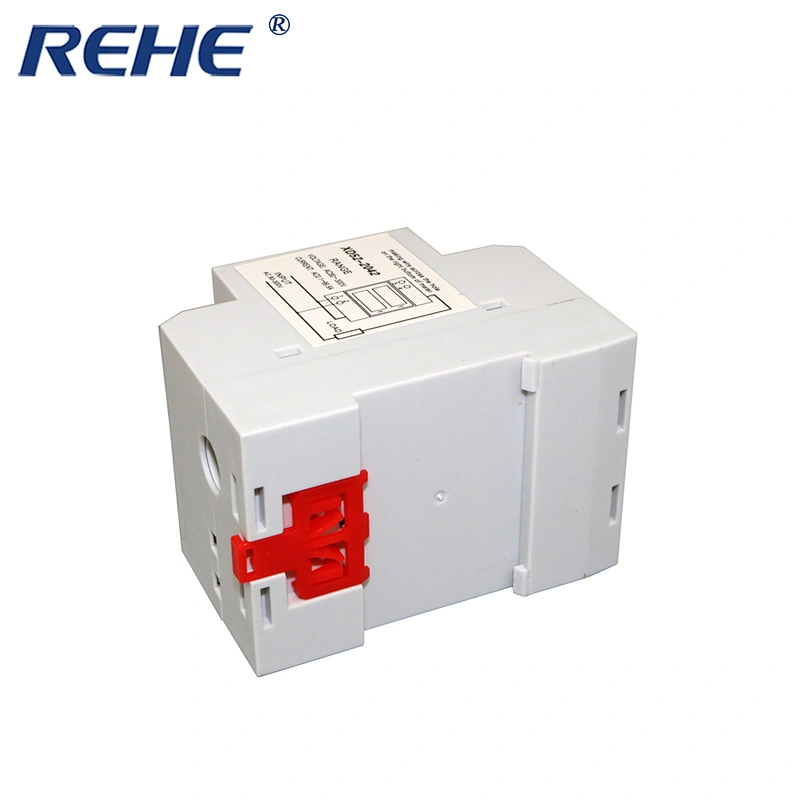

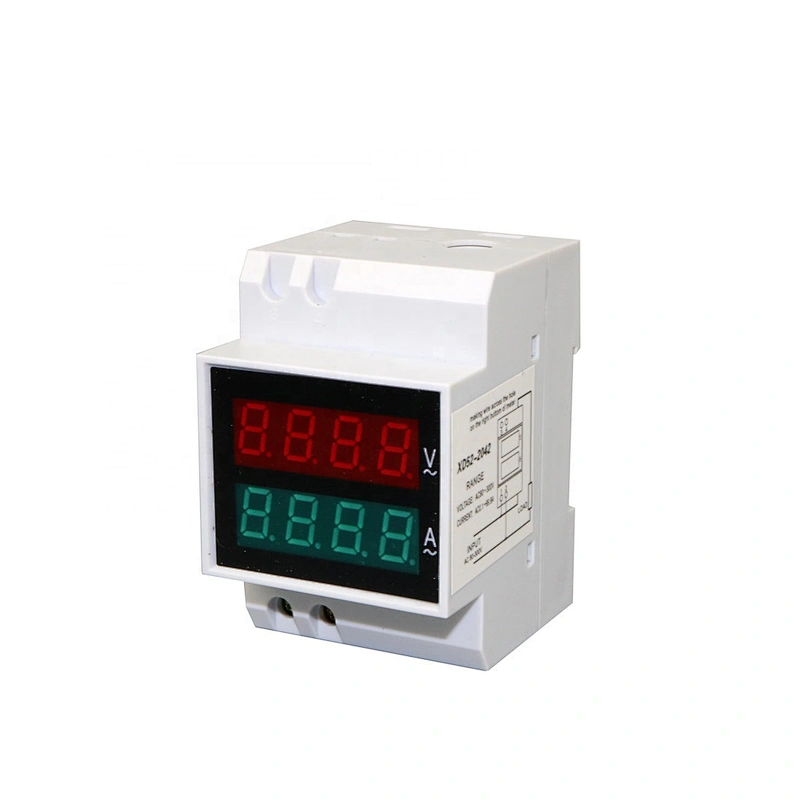

- Model Number:D52-2042
- Brand:REHE
- Display:Digital
- Range:AC80-300V AC80-150V AC200-450V
- Dimensions:54x80x64 mm
- Resolution:1% ±2 digit
- Installation method:Slide Way DIN-RAIL
- Refresh rate:About 2 times per second
- Warranty:2 Years
- Display Type:Digital Only
- Phase:Single Phase
- Accuracy Class:1%
- Output Voltage:220V
- Operating Temperature:-10℃~+60℃
Product Description
Usermanual
1.Measurementaccuracy: 1% plus or minus 2 characters
2.Monitor:LCDliquid crystaldisplay(screenviewsize:43*25mm)
3.Measurementranges:DCvoltage(1)DC0-1.999V,0-19.99V,0-199.9V,0-600V(needtoprovide3-40Vpower supply)(2)DC3-19.99V,DC3-40.0V(measurementvoltagecan beused asinstrumentsofpower,theinstrumentdoes notrequireanadditionalpower supply,measurethevoltagecan bemeasuredfromthe3V,3Vthefollowingcannot bemeasured.If youneedtostarttestingormeasuringvoltagefrom0vabove40V,you mustalsoincreasethepowerofagroupof3-40V,thathave the customerpayattentionwhileinuse!
DCcurrent:DC0-1.999A,0-10.00A,50A/75mV100A/75mV,150A/75mV200A/75mV,500/75mV
Customerstoordercurrentmeasurements10Arange(10A)instrument,instrumentbuilt-inshunt,whencustomersusedoes notneedan externalshunt.Ifthecustomerpurchasedameterabove10Ameasurementrangeoftheinstrument,theinstrumentshuntsarenotconfigured,customersneedtopurchaseanotherwithinstrumentspecificationsmeasuringrangeshunt.For example:buythecurrentmeasurementrange of the instrumentisthe0-50A,thentopurchasingspecificationsfor50/75mVshunt,attention!!!Andno matterthemeasuredcurrentis greater thanorless than10A,must beconnected to the purchaseoftheshunt.Clickthislinktopurchase:http://item.taobao.com/item.htm?spm=a1z10.1.w4004-2778163052.2.xvnHuC&id=16799019593
Measuringrangeasneededbytheuseratthetimeofordersubmissions.
4.Powerconsumption:0.5VA
5.Measurementspeed:approximately2timespersecond
6.Overalldimension:70*40*39mm(screenviewsize:43*25mm)
7.Installationdimensions:68*38mm(withvintage85C17pointerDCammeterinstalleddimensionsunchanged)
Operating limits:
Operatingtemperature:-10~+50c
Operatinghumidity:10~80%(nocondensation)
Workingpressure:80~106kPa
Sunlight:nodirectsunlight
