- Color:Black
- OEM:Yes
- Power consumption:<1VA
- Communication:RS485 Modbus
- Display:LCD Display
- Frequency:45~65Hz
- Harmonic:2-31 times
- Baud Rate:1200-38400(Factory default: 9600)
- Multi-rate:4 stes 8 period 4 kinds of multi rate
- Warranty:1 Year
- Display Type:Digital Only
- Phase:Three Phase
- Brand Name:REHE
- Output Voltage:AC 220V

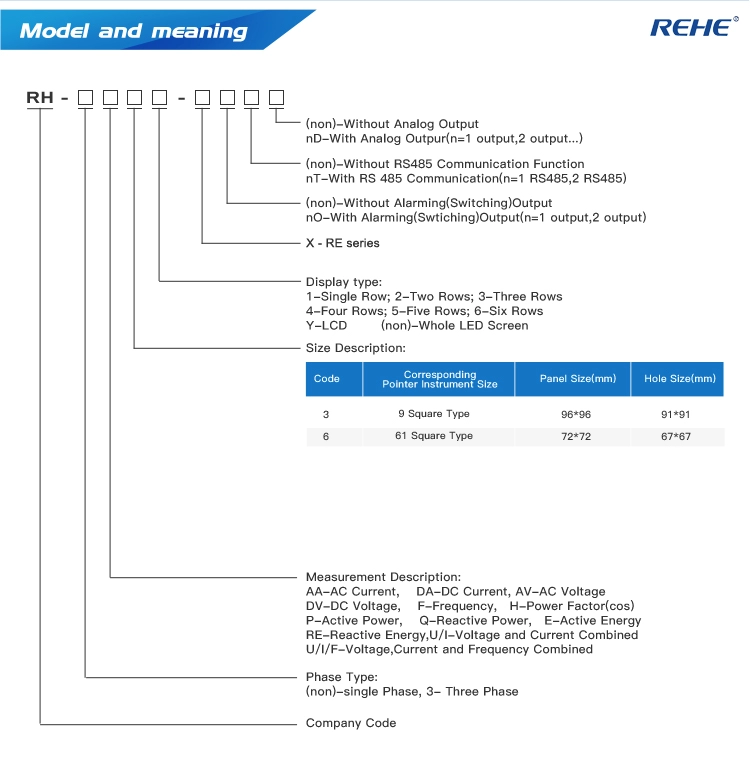

- Model Number:RH-3FHD3SY
- Dimensions:96*96
- Operating Temperature:-10℃~+55℃
- Measuring Energy Range:0-9999
- Accuracy Class:0.5, 0.2
Foreword
Thanks for using our company products. We will provide reliable quality and dedicated service to allow you to rest assured to use our company products. Before installation, circuit connection, running and maintenance, please make sure to read carefully the user manual, to ensure the correct using, during using please also make sure know very well of relative safety and caution items.
| Model | Size | Measurement range (Voltage) | Measurement range (Current) | Analog output |
| RH-3FHD3SY | 96*96 | 380V/100V | 5A/1A | 0/4~20mA or 0~5/10v Analog output Can programme and set Transmitted item and relative value |

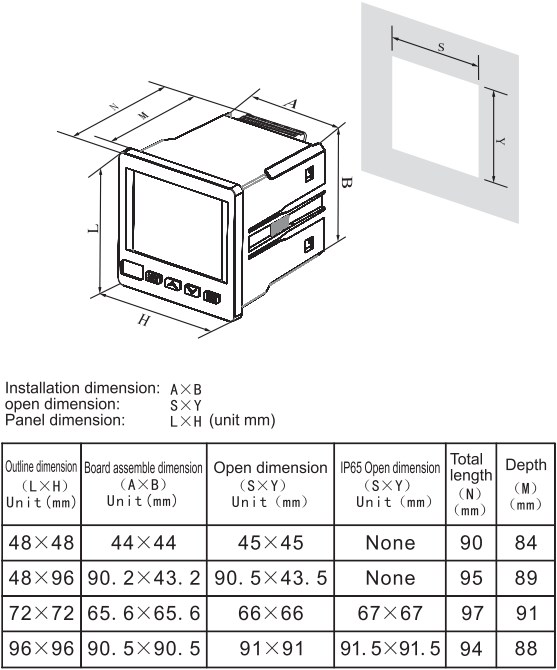

Dimension

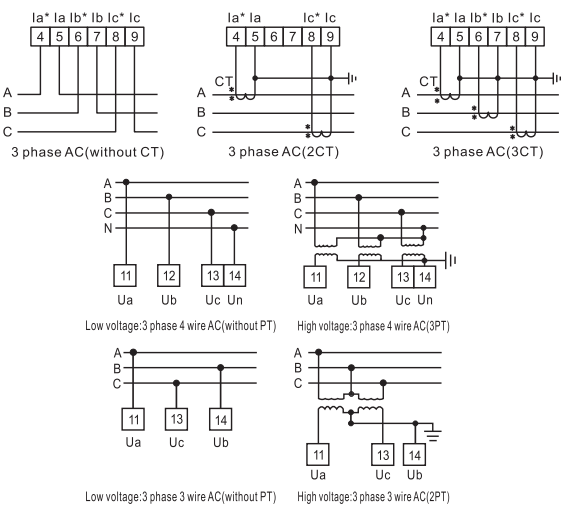

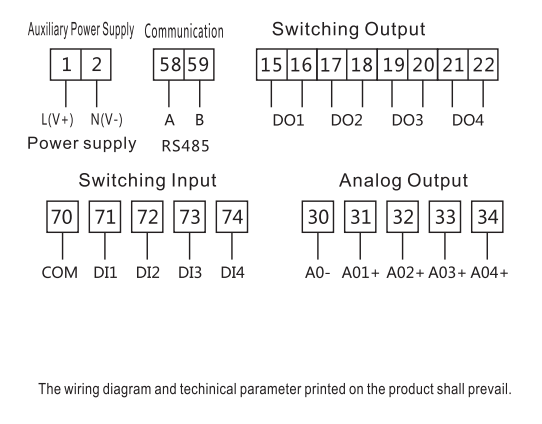

Wiring Diagram
