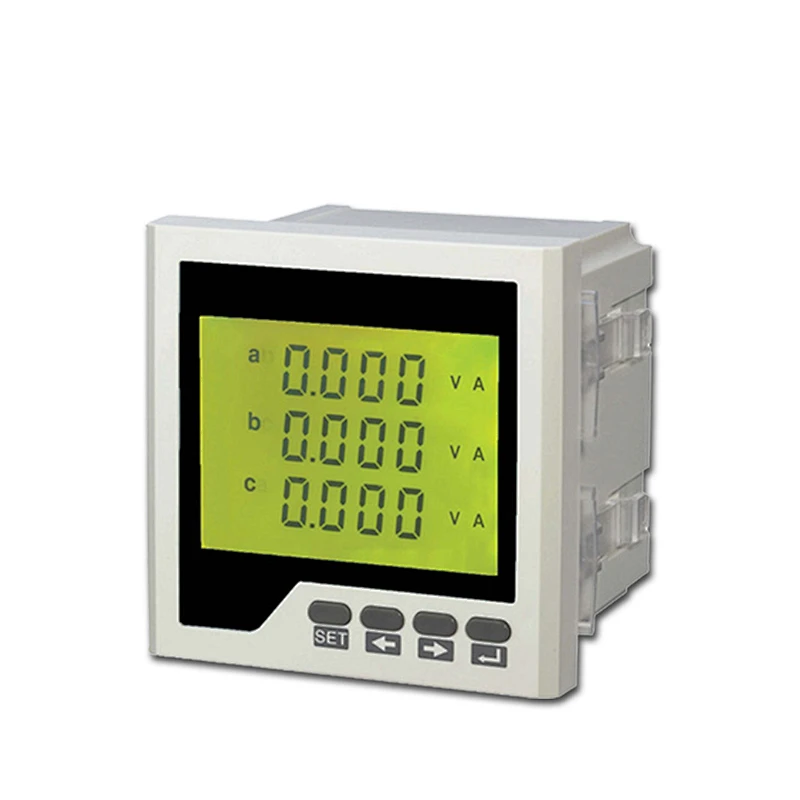

LCD 3 phase digital multi function power meter testing current voltage power energy,ect

LCD 3 phase digital multi function power meter testing current voltage power energy,ect

Model NO.: RH-3D3Y
Price:: US $ 36.80-46.00 / piece
Delivery: FOB Shanghai, Ningbo
Minimum order quantity: 1 piece
Supply Ability: 10000.0 piece / Day
Country of Origin: Zhejiang, China

Quantity:

Product Description

Name:Multi-function monitoring meter
Rated current:AC 1A,AC 5A(can add CT)
Rated voltage:AC 57.7V,AC 100V,AC 220V,AC 380V
Function:Free RS485 communication
Frequency:45~65Hz
Power supply:AC/DC 80~380V
Power consumption:Voltage: <1VA (per phase),Current: <0.4VA (per phase)
Color:White/Black
Display:LCD
Certificate:CE ISO9001

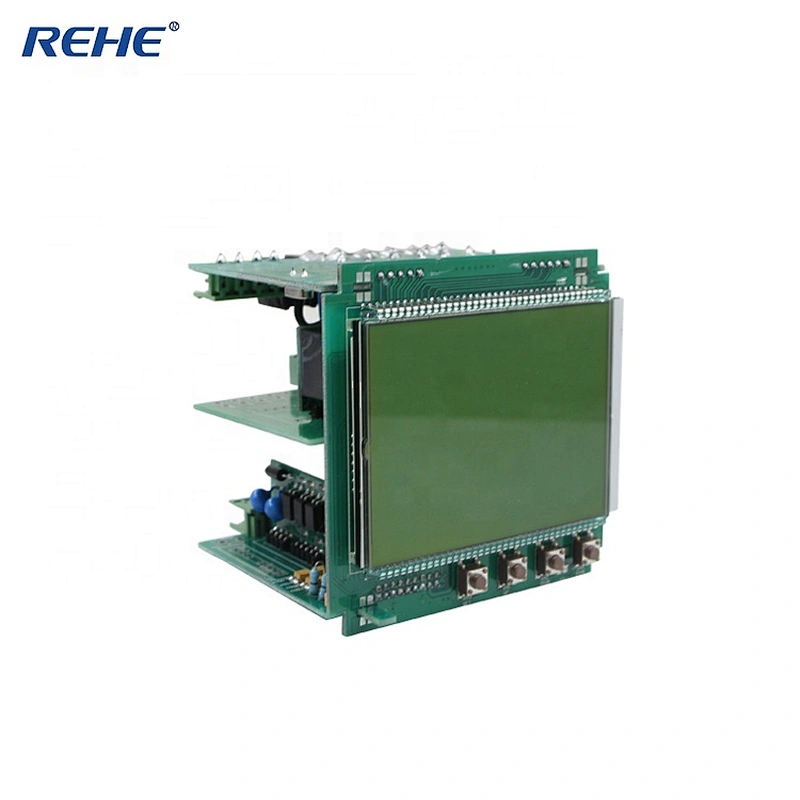

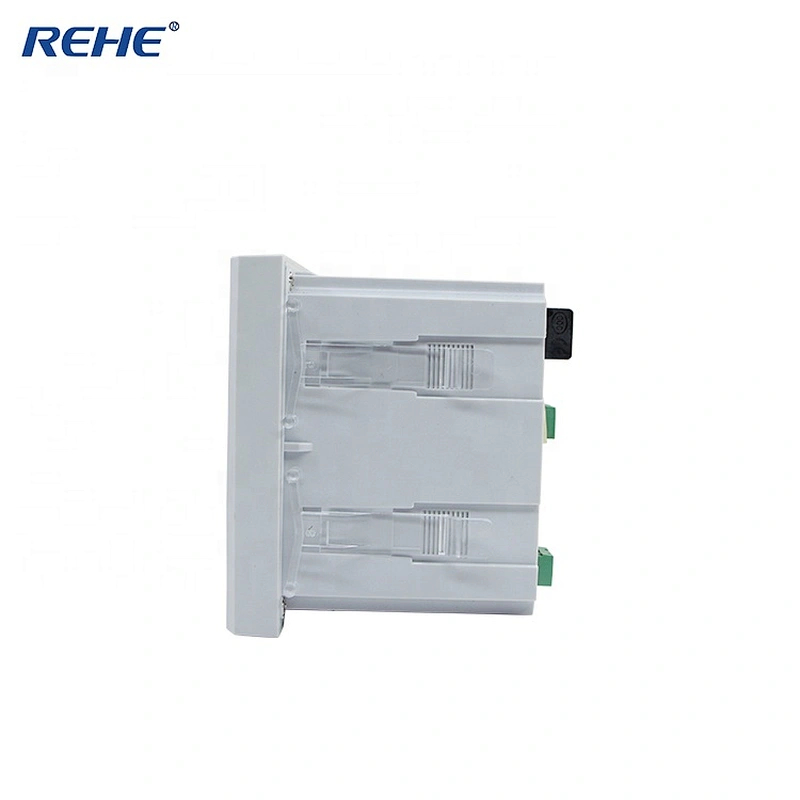

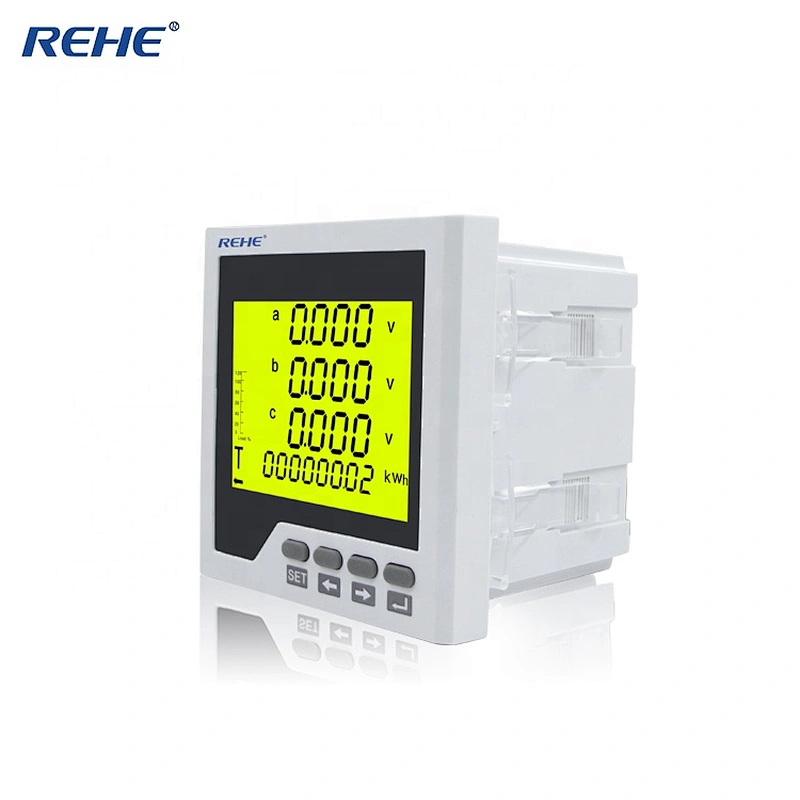

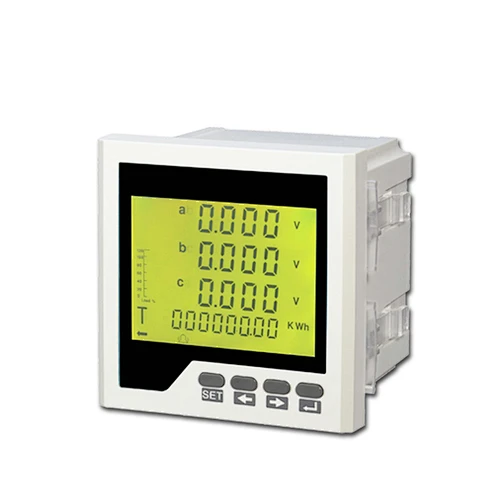

LCD 3 phase digital multi function power meter testing current voltage power energy,ect

Product Description

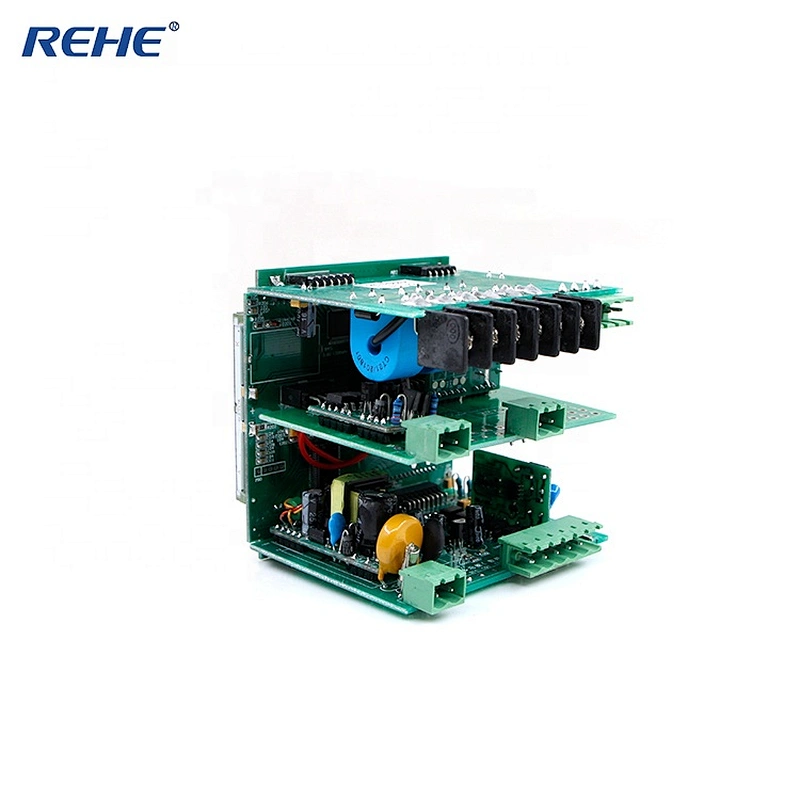

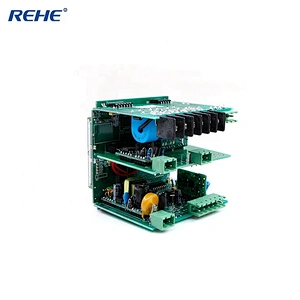

Performance Characteristics
High precision measurement of three phase voltage, three phase current, active power, reactive power, apparent power, power factor, frequency of electric parameters
Forward and reverse active or reactive energy measurement
Division of electric energy metering, time-sharing power timing meter reading
Measurement of three-phase voltage, three-phase current total harmonic distortion (THD), 2-31 odd harmonic component
Provide the digital tube display, local data query
Current, voltage gain programmable setting
Programmable voltage ratio
Support for fire control, remote cut off the fault circuit
Provide multiple loop control nodes, can be used for the alarm, trip control
Support for RS-485 communication, Modubus-RTU protocol
Support for switching input, output, analog quantity transmitting output
Auxiliary power supply :AC/DC power supply: AC/DC 80-270V,AC220V,AC380V,AC100V
To be completed by SCADA, PLC in a variety of communications software network

Performance Characteristics

High precision measurement of three phase voltage, three phase current, active power, reactive power, apparent power, power factor, frequency of electric parameters

Forward and reverse active or reactive energy measurement

Division of electric energy metering, time-sharing power timing meter reading

Measurement of three-phase voltage, three-phase current total harmonic distortion (THD), 2-31 odd harmonic component

Provide the digital tube display, local data query

Current, voltage gain programmable setting

Programmable voltage ratio

Support for fire control, remote cut off the fault circuit

Provide multiple loop control nodes, can be used for the alarm, trip control

Support for RS-485 communication, Modubus-RTU protocol

Support for switching input, output, analog quantity transmitting output

Auxiliary power supply :AC/DC power supply: AC/DC 80-270V,AC220V,AC380V,AC100V

To be completed by SCADA, PLC in a variety of communications software network

Technical Index

Accuracy of measurement	Voltage level 0.5, current level 0.5, active power 0.5, reactive power level 0.5,Frequency ±0.02Hz, active electric energy class 0.5s or class 0.2s, reactive energy grade 1 or grade 2, power factor 0.5

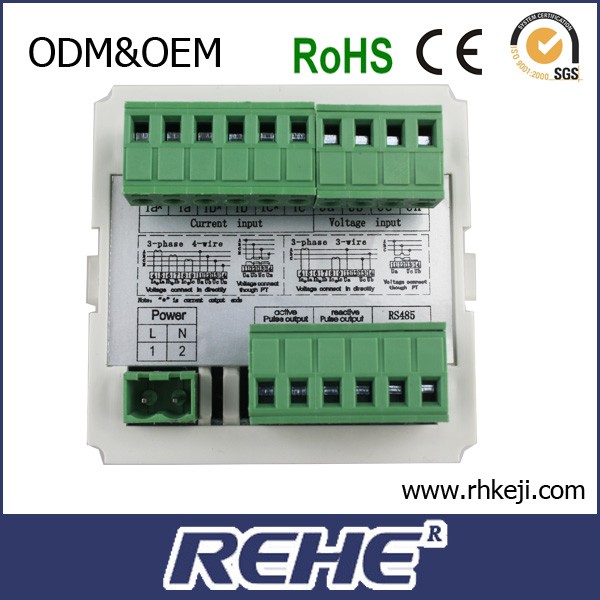

Signal input	Connection mode of four phase three wire, three phase three line
	Rated voltage of AC 57.7V, AC 100V, AC 220V, AC 380V
	Over load 1.2 times ( Continued ), 2 times / second ( instantaneous )
	Power<1VA/ phase
	Impedance >300KΩ,current:<20mΩ
	The frequency of 45~65Hz
	Power consumption <4VA

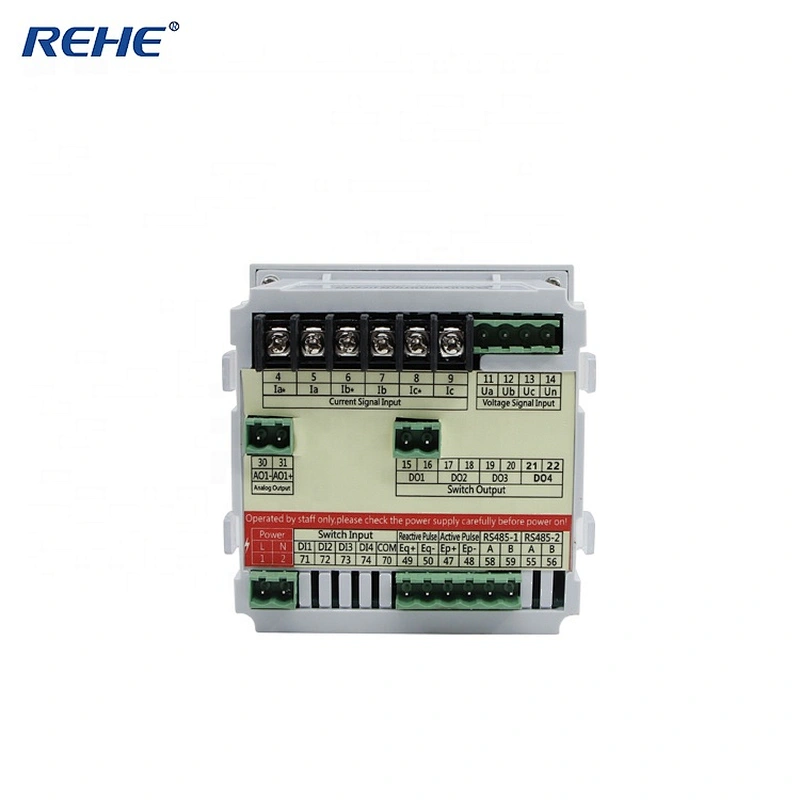

Function module	Communication interface 1 way RS-485 communication, Modbus-RTU protocol
	Baud rate: 1200~9600bps, the default 2400bps
	Switch input support 4 stem node input
	The switch output support 3 relay output, capacity: AC 250V/5A, DC 30V/5A
	Transmission output support 3 analog output: 0/4~20mA or 0~5/10V

Selection ofSpecification

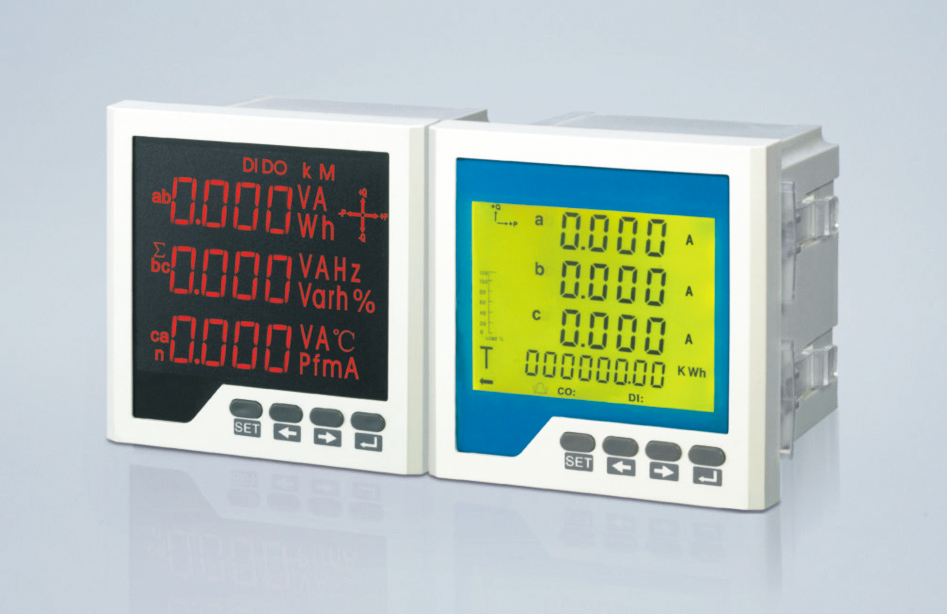

IntelligentLCDDigital Three phase Multifunctional Monitoring Meter(9999 display programmable)

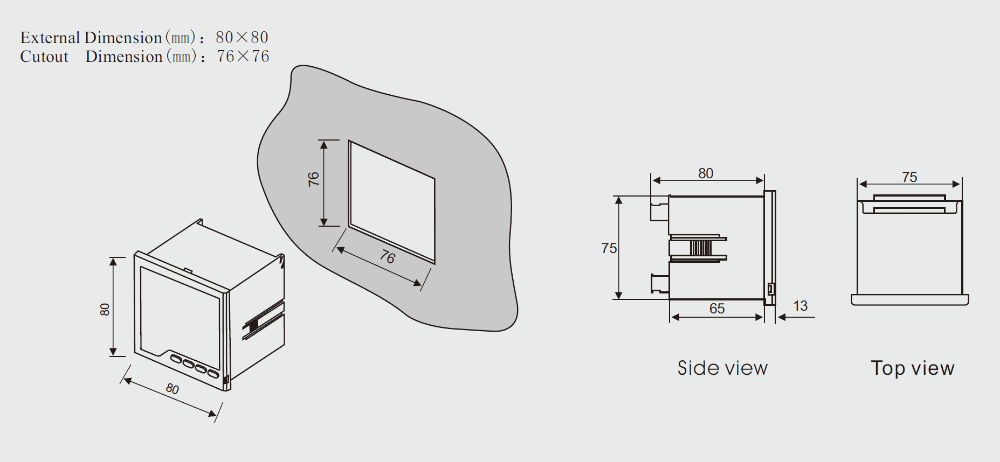

Model NO.	Display	Frame size(mm)	Hole size(mm)	Remark
RH-3D2Y	Specialized LCD	120*120	111*111
RH-3D3Y	Specialized LCD	96*96	92*92	HOT selling!

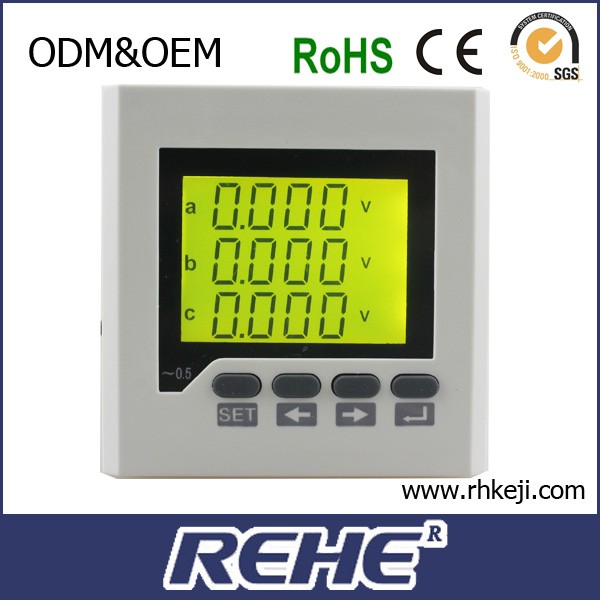

RH-3D7Y	Specialized LCD	80*80	76*76	HOT selling!
RH-3D6Y	Specialized LCD	72*72	68*68
RH-3D9Y	Specialized LCD	160*160	135*135
