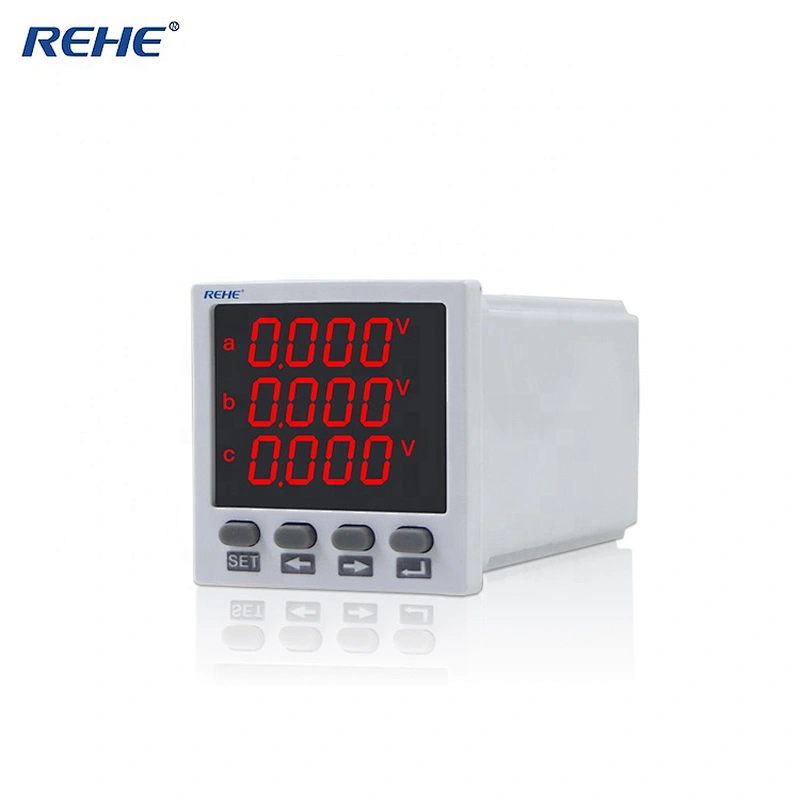

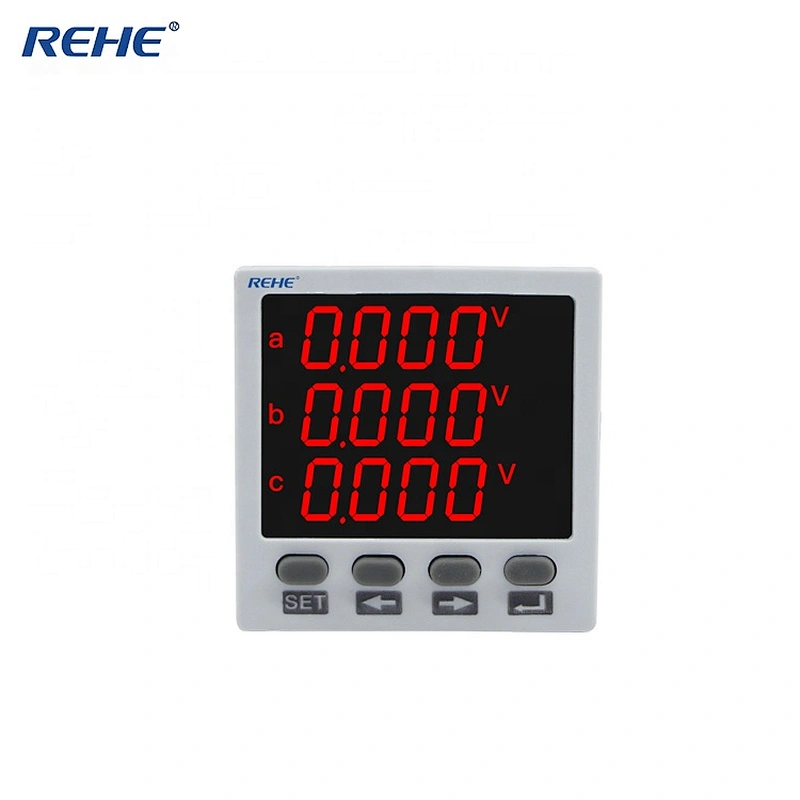

- Display Type:Digital Only
- Brand Name:REHE

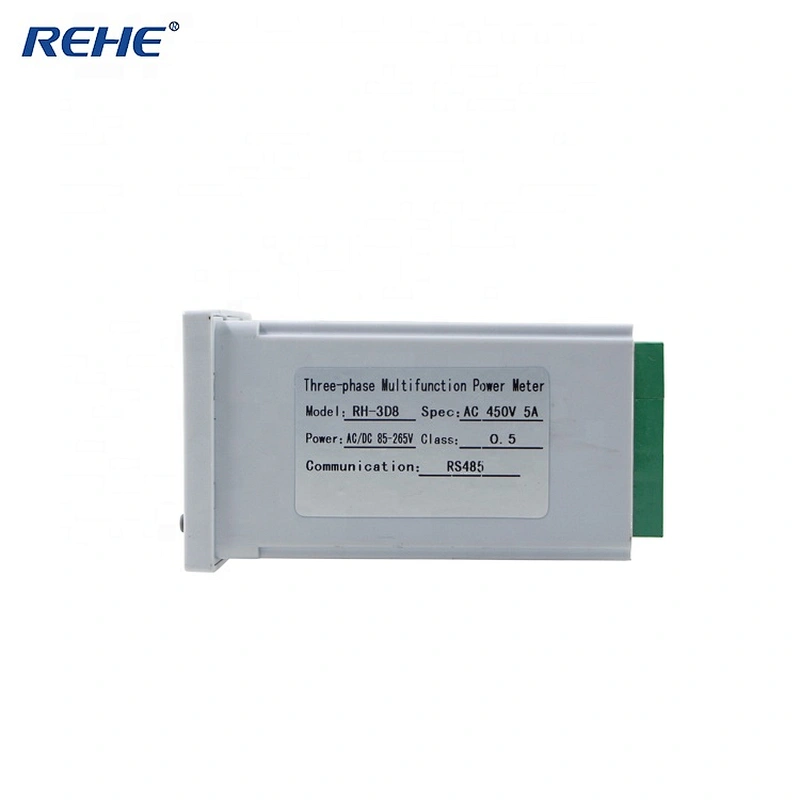

- Model Number:RH-3D8
- Measuring Range:0-9999
- Accuracy Class:0.5
- Supply Voltage:AC 220V or AC /DC 85~265V(optional)
- Operating Temperature:-10 ℃~+55 ℃

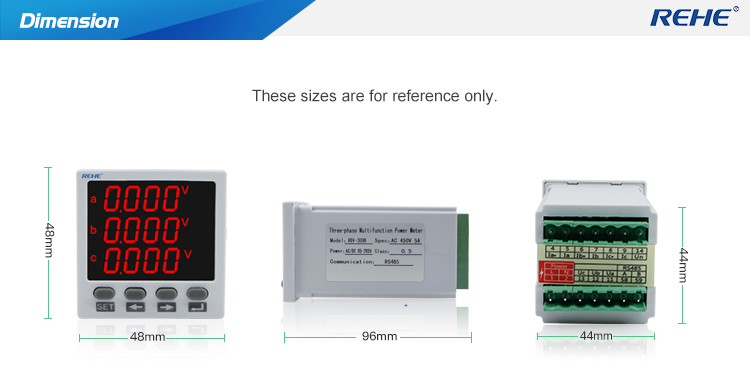

- Dimensions:48*48mm
- OEM:Yes
- Warranty:3 Years
- Color:White/Black (Optional)

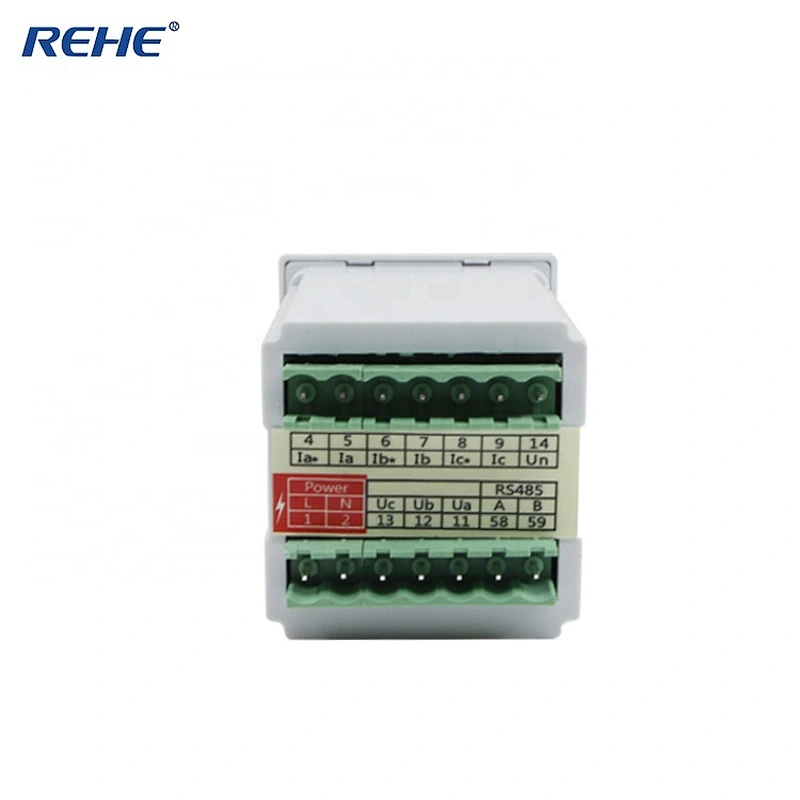

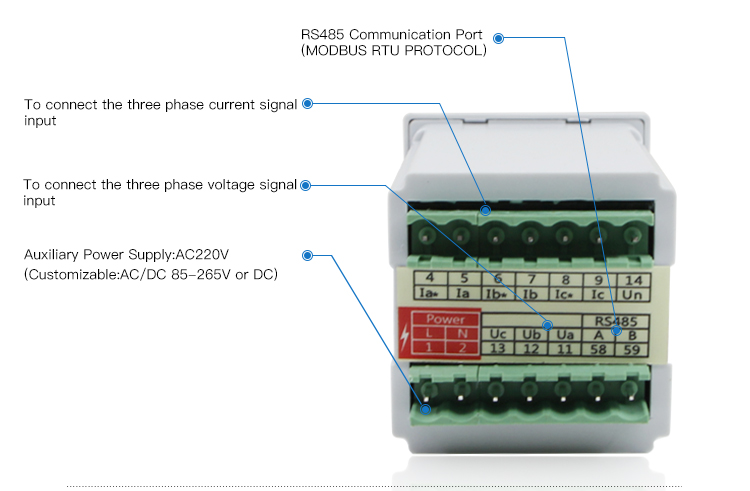

- Wiring:3P3W or 3P4W
- Auxiliary power:AC 220V or AC/DC 85~265V(Optional))
- Signal input:AC 5A 0-500V 50Hz( Default)
- Communication:RS485 Port MODBUS-RTU (Default)
- Transmission output:0/4~20mA or 0~5/10V
- Switch output:4 ways be Available
- Enclosure Material:Fire resistant

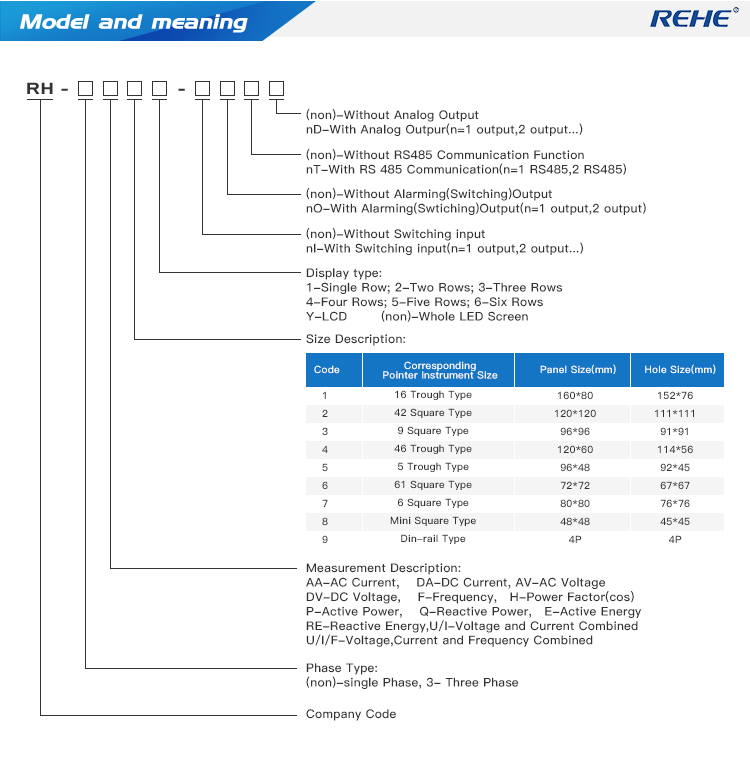

Model No. | Measurement | Optional Functions | Display | ||||||
| A,V,Hz,W,Var,Cos ,Kwh,kvar | multi-rate | Harmonic meausring | Switching input | Switching output | Analog output | RS485 | LED | LCD | |
RH-3D2 | √ | - | - | 4 | 4 | 4 | 2 | √ | - |
| RH-3D2Y | √ | - | - | 4 | 4 | 4 | 2 | - | √ |
| RH-3FD2Y | √ | √ | - | 4 | 4 | 4 | 2 | - | √ |
| RH-3HD2Y | √ | - | √ | 4 | 4 | 4 | 2 | - | √ |
| RH-3FHD2Y | √ | √ | √ | 4 | 4 | 4 | 2 | - | √ |
RH-3D3 | √ | - | - | 4 | 4 | 4 | 2 | √ | - |
| RH-3D3Y | √ | - | - | 4 | 4 | 4 | 2 | - | √ |
| RH-3FD3Y | √ | √ | - | 4 | 4 | 4 | 2 | - | √ |
| RH-3HD3Y | √ | - | √ | 4 | 4 | 4 | 2 | - | √ |
| RH-3FHD3Y | √ | √ | √ | 4 | 4 | 4 | 2 | - | √ |
| RH-3D7 | √ | - | - | 4 | 2 | 2 | 1 | √ | - |
| RH-3D7Y | √ | - | - | 4 | 2 | 2 | 1 | - | √ |
| RH-3FD7Y | √ | √ | - | 4 | 2 | 2 | 1 | - | √ |
| RH-3HD7Y | √ | - | √ | 4 | 2 | 2 | 1 | - | √ |
| RH-3FHD7Y | √ | √ | √ | 4 | 2 | 2 | 1 | - | √ |
| RH-3D6 | √ | - | - | 4 | 2 | 2 | 1 | √ | - |
| RH-3D6Y | √ | - | - | 4 | 2 | 2 | 1 | - | √ |
| RH-3FD6Y | √ | √ | - | 4 | 2 | 2 | 1 | - | √ |
| RH-3HD6Y | √ | - | √ | 4 | 2 | 2 | 1 | - | √ |
| RH-3FHD6Y | √ | √ | √ | 4 | 2 | 2 | 1 | - | √ |
Send Message
Related Products

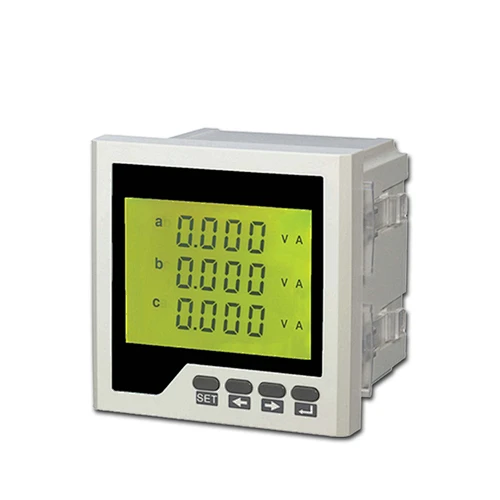

Model NO. RH-3HD7Y
