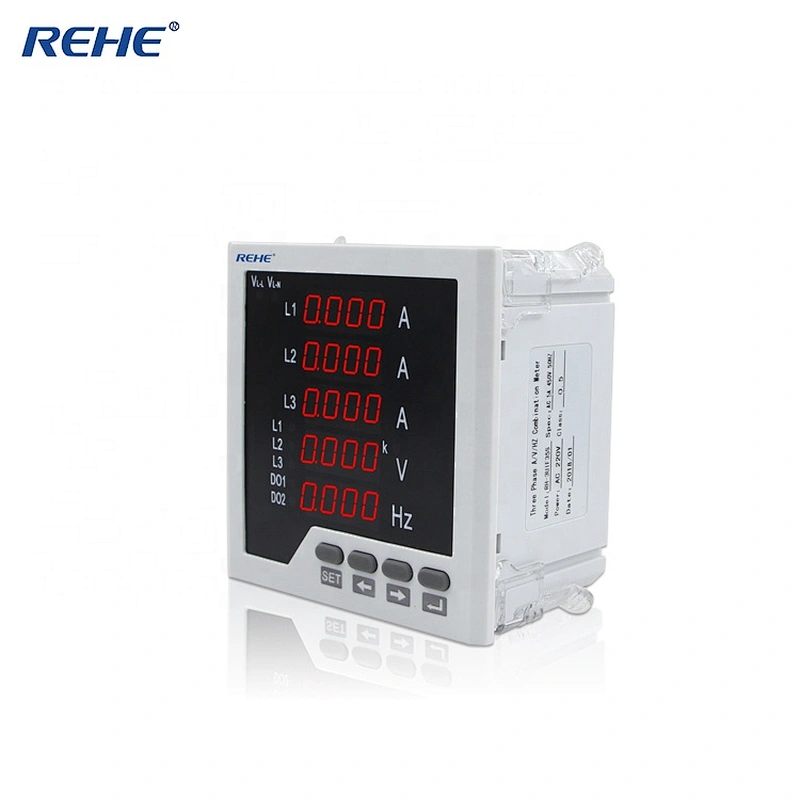

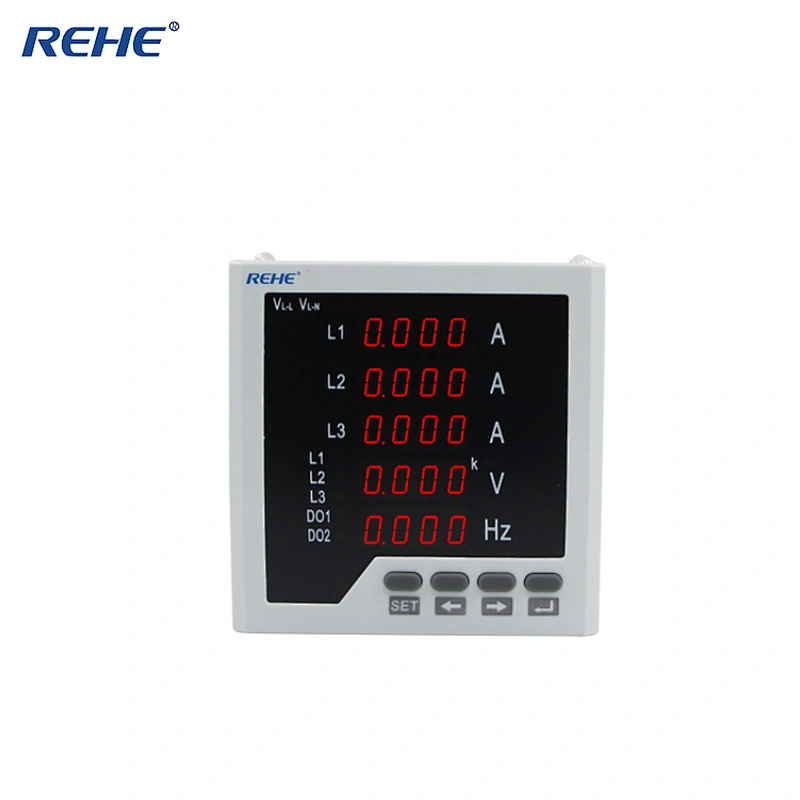

Slim model Three phase multi amp volt Hz digital multi panel Meter 010v meter
Slim model Three phase multi amp volt Hz digital multi panel Meter 010v meter
Slim model Three phase multi amp volt Hz digital multi panel Meter 010v meter
Slim model Three phase multi amp volt Hz digital multi panel Meter 010v meter
Slim model Three phase multi amp volt Hz digital multi panel Meter 010v meter
Slim model Three phase multi amp volt Hz digital multi panel Meter 010v meter
Slim model Three phase multi amp volt Hz digital multi panel Meter 010v meter
Slim model Three phase multi amp volt Hz digital multi panel Meter 010v meter
Slim model Three phase multi amp volt Hz digital multi panel Meter 010v meter
Slim model Three phase multi amp volt Hz digital multi panel Meter 010v meter
Slim model Three phase multi amp volt Hz digital multi panel Meter 010v meter
Slim model Three phase multi amp volt Hz digital multi panel Meter 010v meter
Slim model Three phase multi amp volt Hz digital multi panel Meter 010v meter

Slim model Three phase multi amp volt Hz digital multi panel Meter 010v meter

Model NO.
RH-3UIF35S
Price:
US $ 18.00-22.70 / piece
Delivery
FOB Shanghai, Ningbo
Minimum order quantity
1 piece
Supply Ability
10000 piece / Month
Country of Origin
Zhejiang, China
Quantity:
  • Display Type:Digital Only
  • Phase:Three Phase
  • Brand Name:REHE
  • Model Number:RH-3UIF35S
  • Measuring Energy Range:0-9999
  • Accuracy Class:0.5
  • Output Voltage:0-9999
  • Operating Temperature:-10℃~+55℃
  • Dimensions:96*96mm
  • Color:White/Black
  • Display:Digital Display
  • Warranty:3 Years
  • Measurement Range:0-9999
  • Phase:Three Phase
  • Rated current:AC 5A

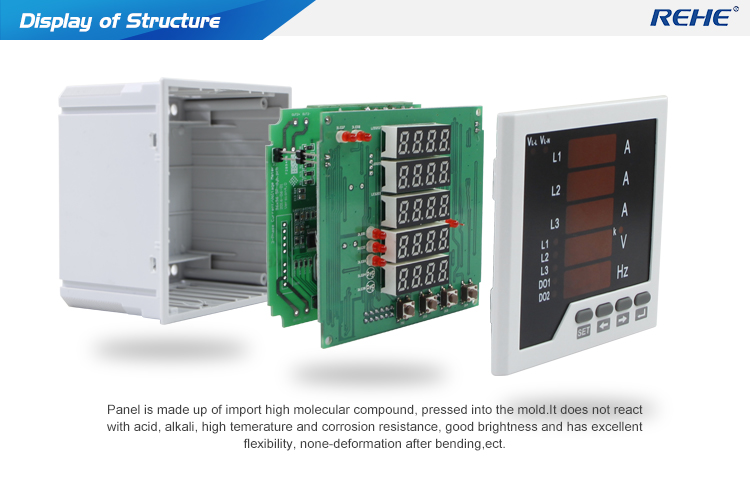

  • Material:Abs plastic
  • Rated voltage:AC 0-450V


RH-3UIF35S

Parameter

Current,voltage,frequency

Measure voltage

AC 0-500 V

Measure current

Max AC 0~5 A(can add CT )

Measure Frequency

45~65 Hz

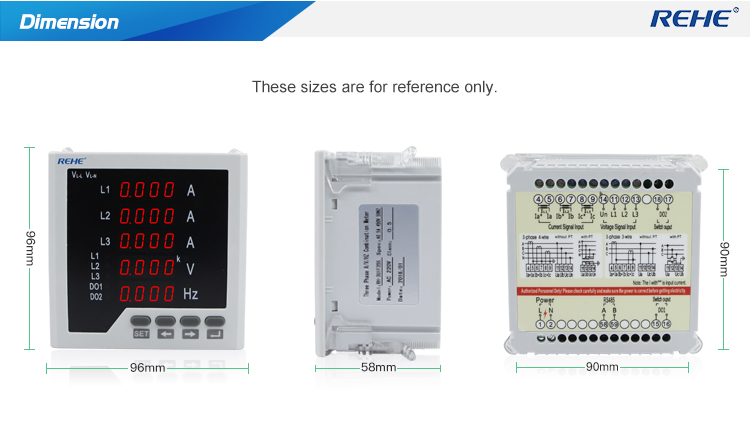

Frame size

96*96mm

Hole size

91*91mm

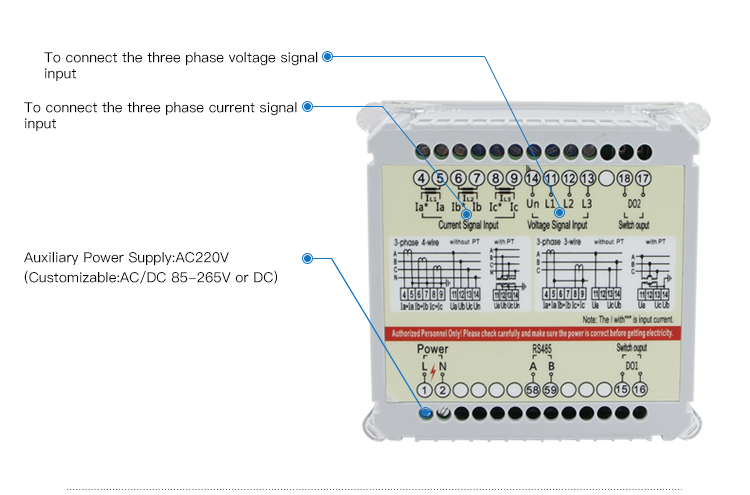

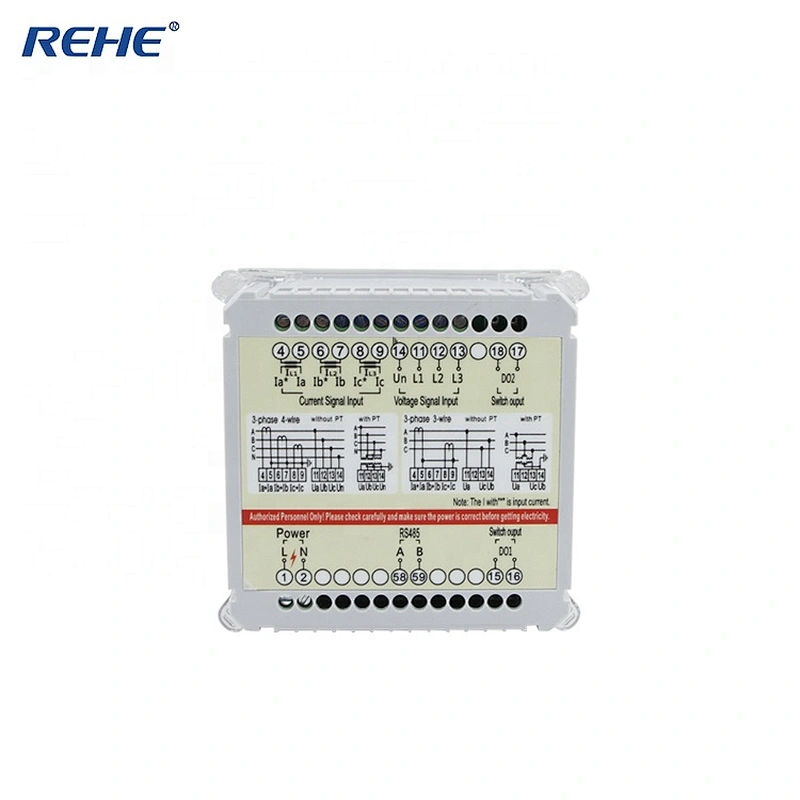

Connection mode

Three Phase four wires,three phase three wires

Power supply

AC 220V ,AC85~265V&DC100-300V,AC380V,

AC100V (optional)

Extra function

4 way alarms , analogoutput, RS485 (optional)
