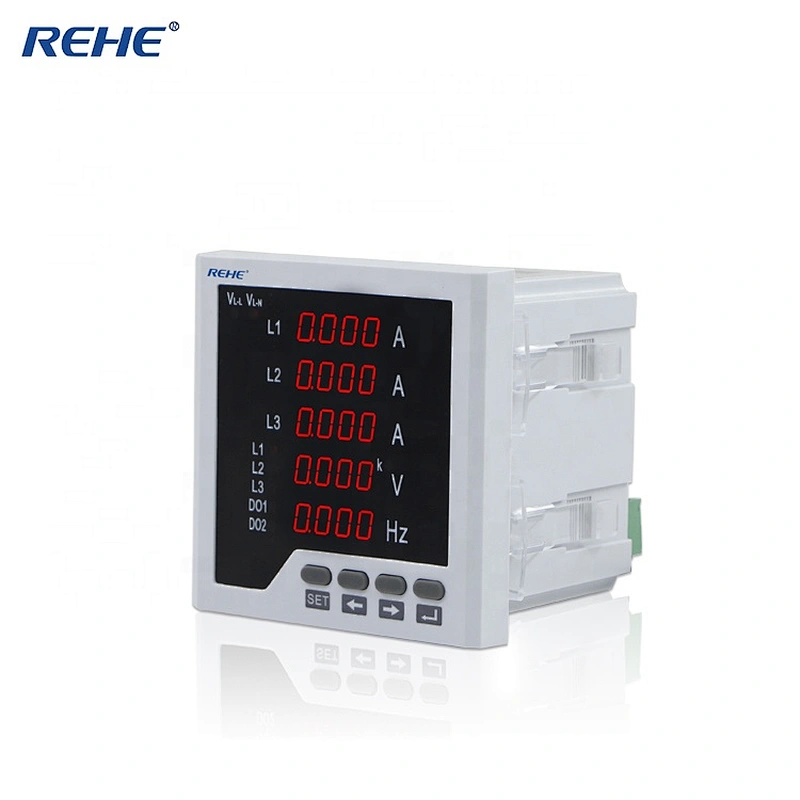

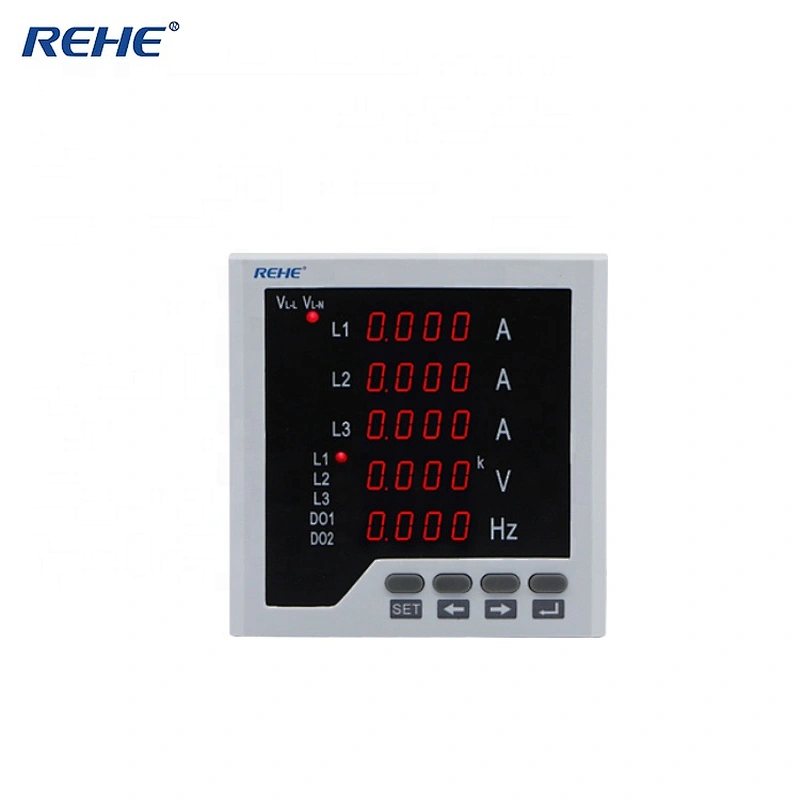

Five Rows display New Type 3 Phase LED Digital Panel Meter to measure A.V.Hz
Five Rows display New Type 3 Phase LED Digital Panel Meter to measure A.V.Hz
Five Rows display New Type 3 Phase LED Digital Panel Meter to measure A.V.Hz
Five Rows display New Type 3 Phase LED Digital Panel Meter to measure A.V.Hz
Five Rows display New Type 3 Phase LED Digital Panel Meter to measure A.V.Hz
Five Rows display New Type 3 Phase LED Digital Panel Meter to measure A.V.Hz
Five Rows display New Type 3 Phase LED Digital Panel Meter to measure A.V.Hz
Five Rows display New Type 3 Phase LED Digital Panel Meter to measure A.V.Hz
Five Rows display New Type 3 Phase LED Digital Panel Meter to measure A.V.Hz
Five Rows display New Type 3 Phase LED Digital Panel Meter to measure A.V.Hz
Five Rows display New Type 3 Phase LED Digital Panel Meter to measure A.V.Hz
Five Rows display New Type 3 Phase LED Digital Panel Meter to measure A.V.Hz
Five Rows display New Type 3 Phase LED Digital Panel Meter to measure A.V.Hz

Five Rows display New Type 3 Phase LED Digital Panel Meter to measure A.V.Hz

Model NO.
RH-3UIF35J
Price:
US $ 21.00-23.00 / piece
Delivery
FOB Shanghai, Ningbo
Minimum order quantity
1 piece
Supply Ability
1000 piece / Day
Country of Origin
Zhejiang, China
Quantity:
  • Display Type:Digital Only
  • Brand Name:REHE
  • Model Number:RH-3UIF35J
  • Measuring Range:0-9999
  • Accuracy Class:0.5
  • Operating Temperature:-10℃~+55℃

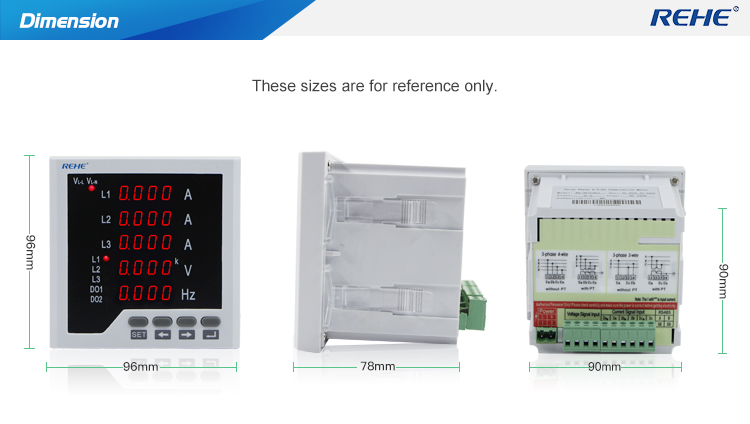

  • Dimensions:96*96mm

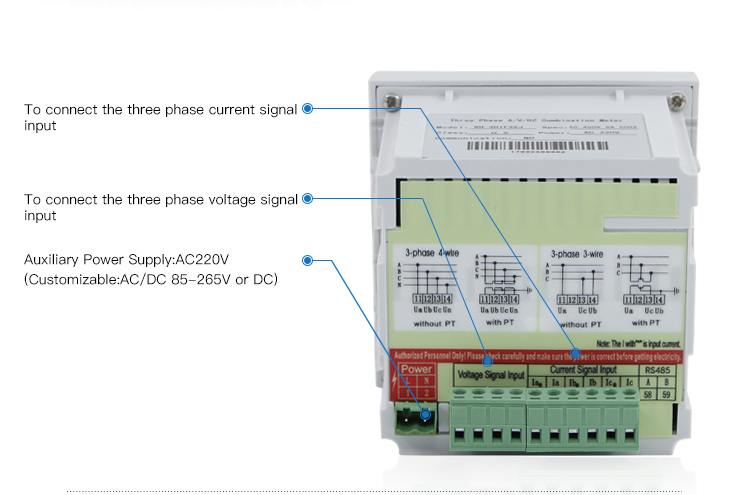

  • Auxiliary power supply:AC/DC 85V-265V,AC220V, AC380V, AC100V(V)
  • Rated current:AC1A,5A.(exceed 5A,need extra CT)
  • Rated voltage:AC0-500V
  • Customized Transmission output:analog output: 0/4~20mA or 0~5/10V
  • Extra Function:RS485,Modbus,switch input,output,analog output
  • Power consumption:<4VA

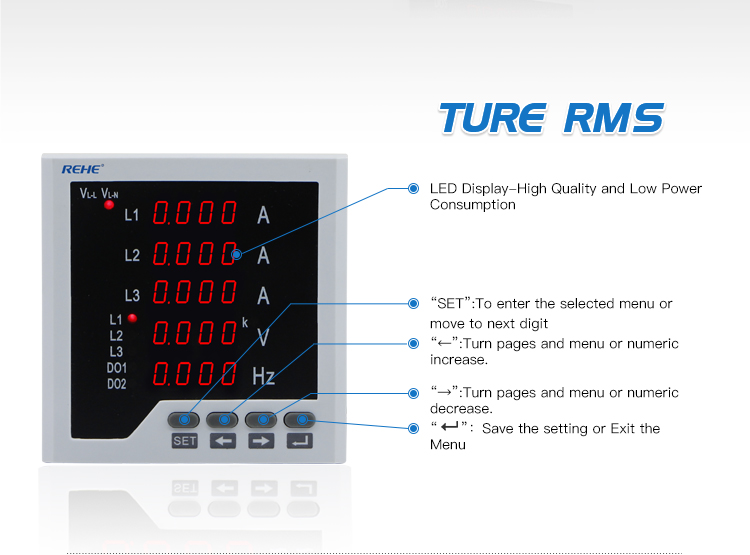

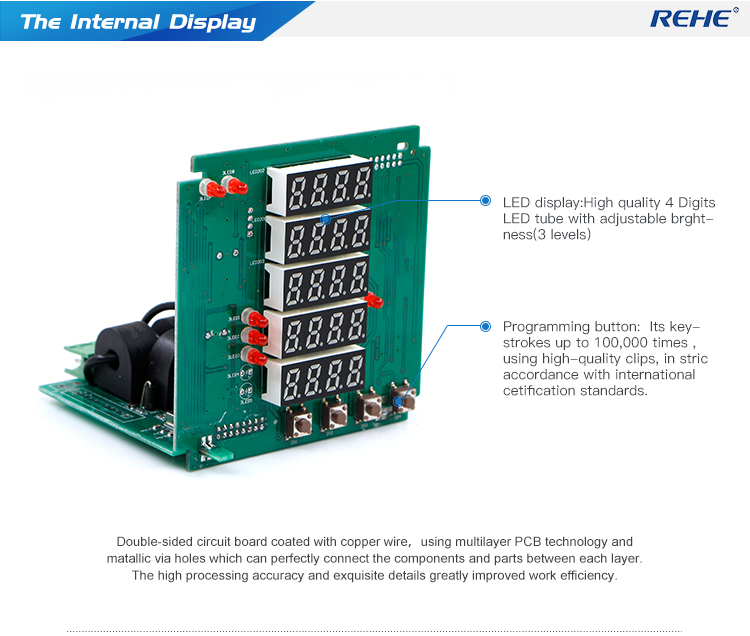

  • Display:Five rows LED Intelligent Digital
  • Color:Black/White
  • Certificate:CE ISO9001
  • Product name:New Type 3 Phase Digital Analog Amp Volt And Frequency Meter

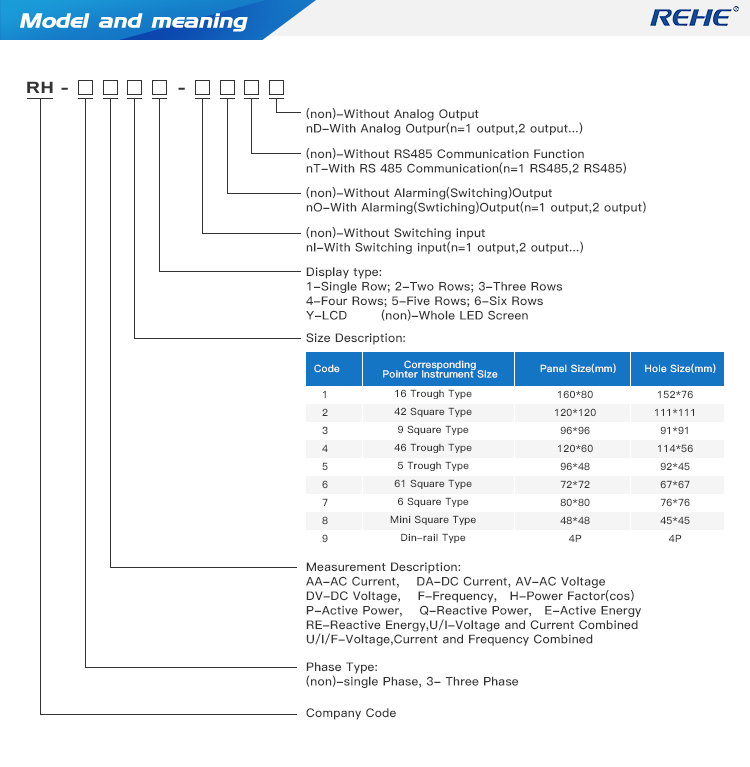

Model No.MeasurementOptional Function DisplayPanel Size(mm)
RH-3UIF35JCurrentVoltageFrequencyRelay OutputSwitching InputAnalog OutputRS485LED96*96

Remarks:

1.The Factory Default function: To measure three phase current,voltage and also frequency.

2.If the optional functions is required,it should be informed to the factory extraly
