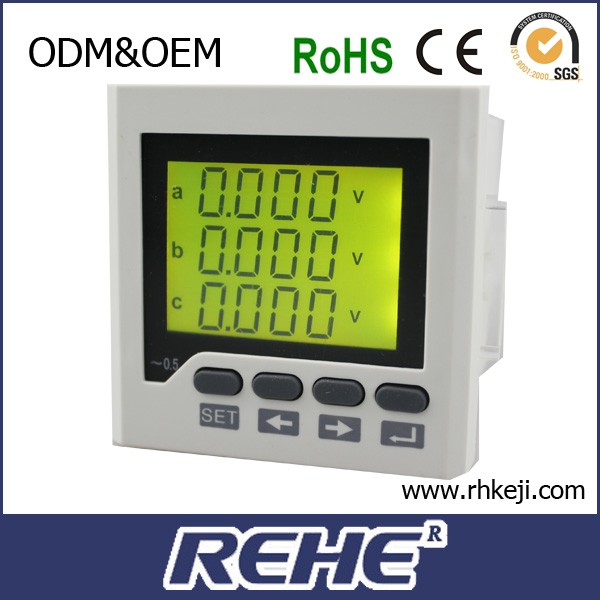

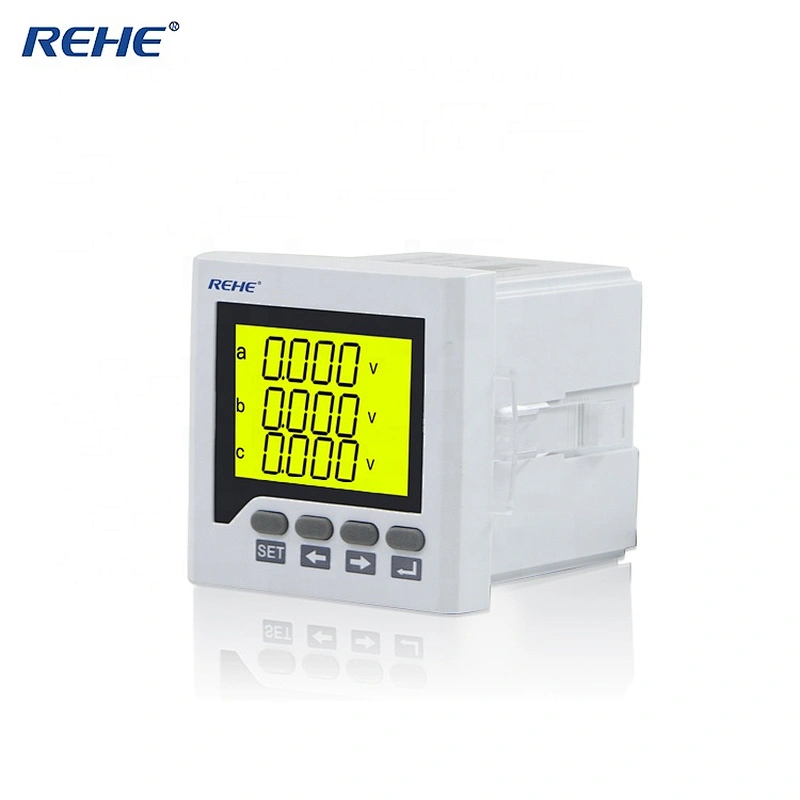

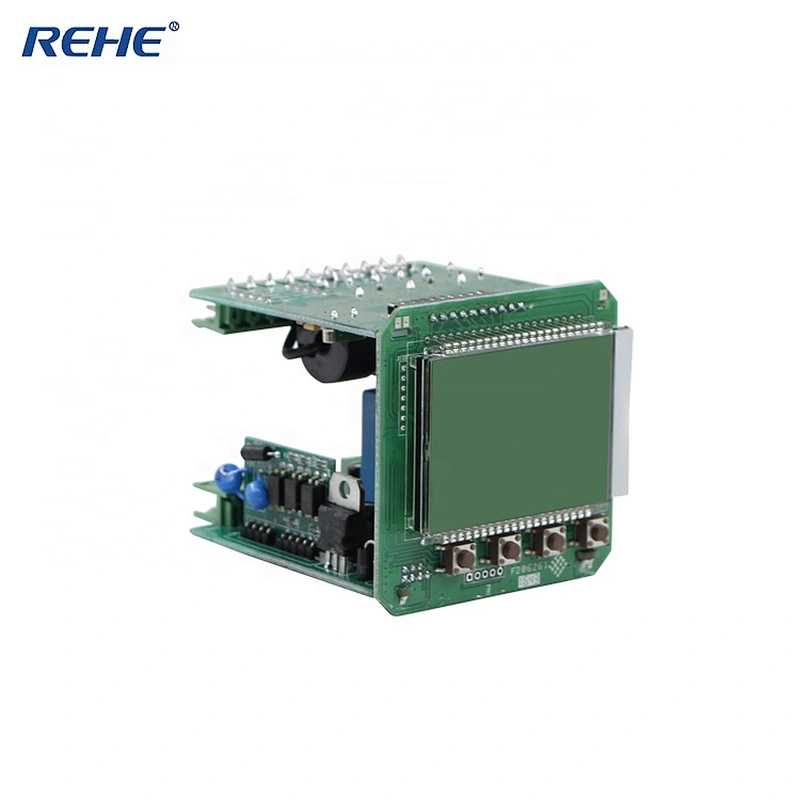

RH-3UIF6Y REHE Meter digital 3 phase current voltage frequency combination meter

Quantity:

Specification

Model	RH-3UIF6Y
Measure range	Current,voltage,frequency
Measure voltage	AC 0-500 V
Measure current	AC 0~5 A(can add CT)
Measure Frequnecy	45~65 Hz

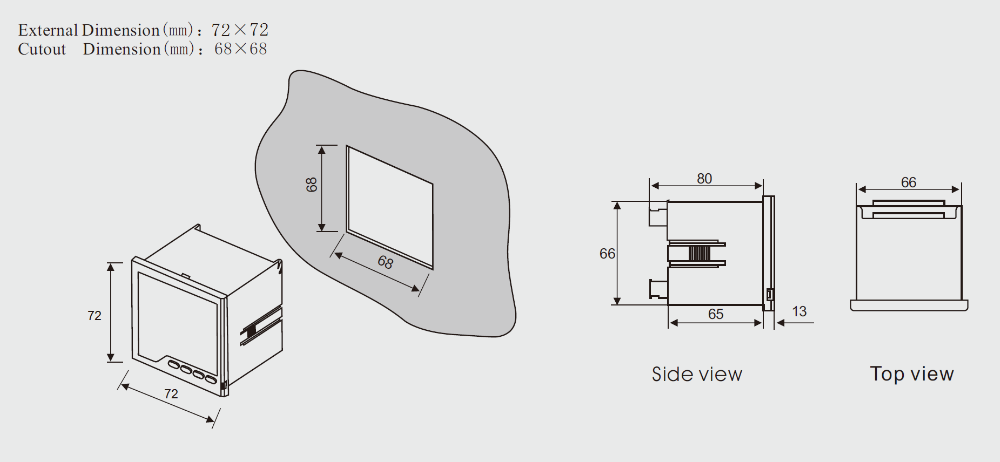

Frame size	72x72mm
Hole size	68x68mm

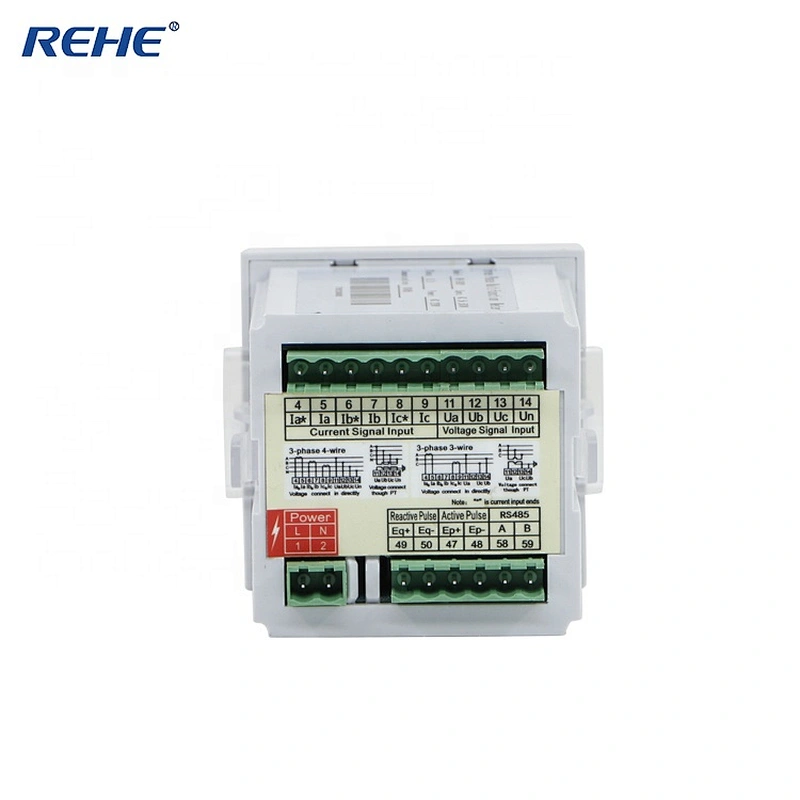

Connection mode	three-phase four wire,three-phase three wire
Power supply	AC/DC 80~270V,AC380V, AC100V

Product Description

RH-3UIF series High precision measurement measurement of three phase AC voltage and current and frequency.

Provide the digital tube display, local data query.

Digital display ,can set the ratio of voltage and current.

1.Communication interface 1 way RS-485 communication, Modbus-RTU protocol

2.Baud rate: 1200~9600bps, the default 2400bps

3.Switch input support 4 stem node input.

4.The switch output support 3 relay output, capacity: AC 250V/5A, DC 30V/5A

5.Transmission output support 3 analog output: 0/4~20mA or 0~5/10V

Intelligent Digital Three phase Ampere and Voltage and Frequency Combined Meter(9999 display programmable)
Model NO.	Display	Frame size（mm）	Hole size(mm)	Remark
RH-3UIF23	Digital Three-rows LED	120*120	111*111
RH-3UIF33	Digital Three-rows LED	96*96	92*92
RH-3UIF63	Digital Three-rows LED	72*72	68*68
RH-3UIF73	Digital Three-rows LED	80*80	76*76
RH-3UIF35	Digital Five-rows LED	96*96	92*92	5 rows display
RH-3UIF2Y	Digital Three-rows LCD	120*120	111*111
RH-3UIF3Y	Digital Three-rows LCD	96*96	92*92
RH-3UIF6Y	Digital Three-rows LCD	72*72	68*68
RH-3UIF7Y	Digital Three-rows LCD	80*80	76*76
