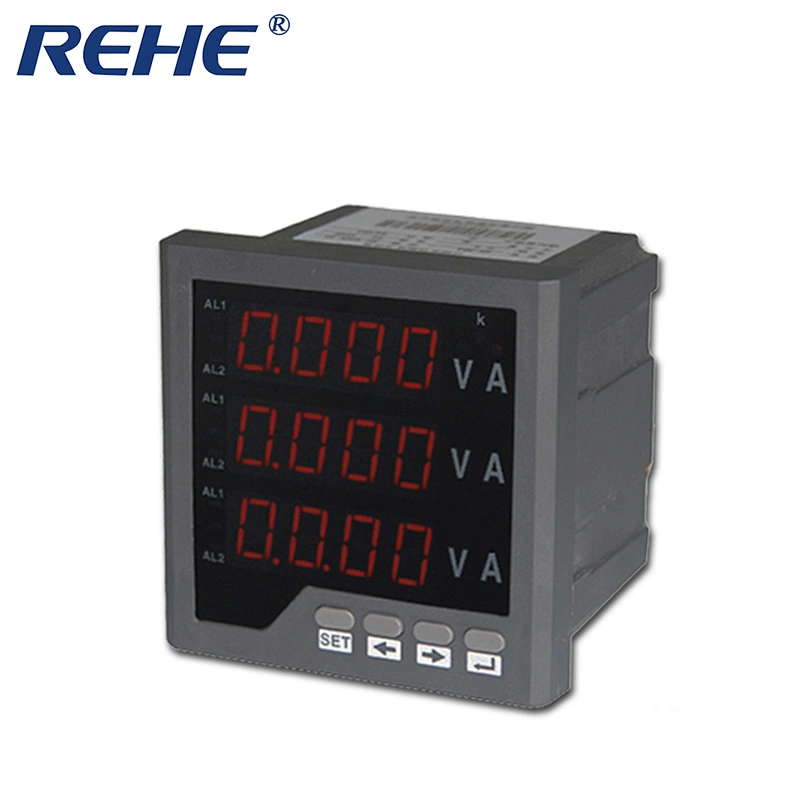

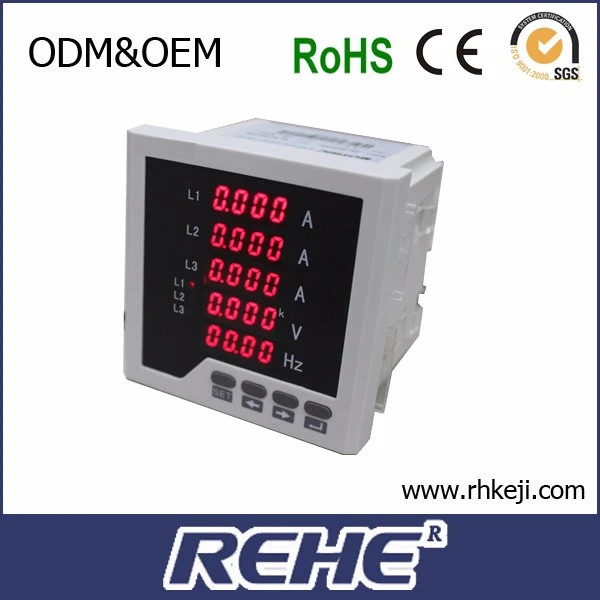

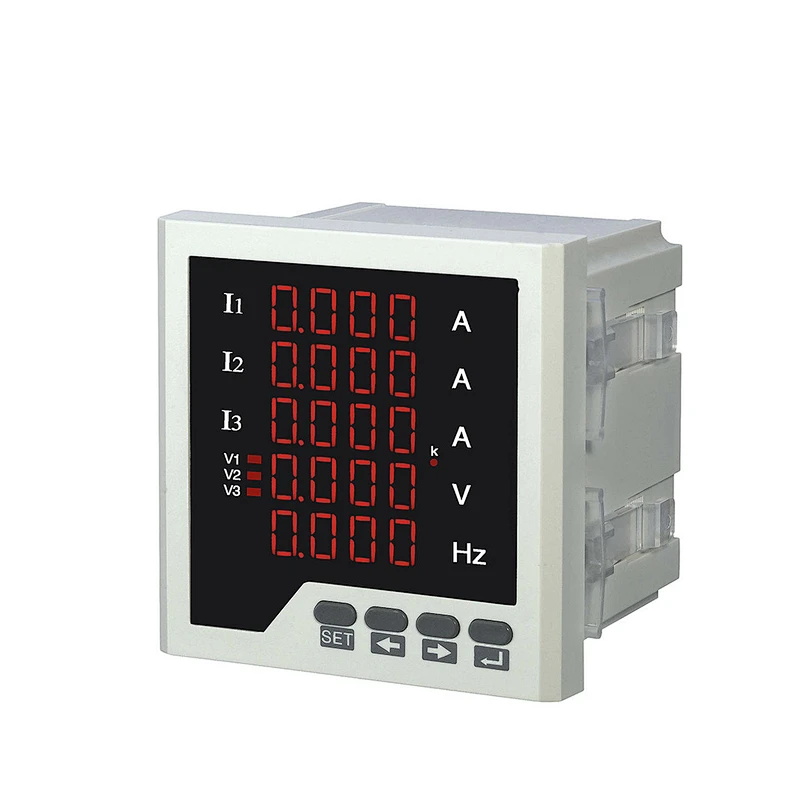

RH-3UIF35 Five rows led display digital three phase ac A V HZ munlti-function monitoring meter

RH-3UIF35 Five rows led display digital three phase ac A V HZ munlti-function monitoring meter

Model NO.: RH-3UIF35
Price:: US $ 20.99-20.99 / piece
Delivery: FOB Shanghai, Ningbo
Minimum order quantity: 1 piece
Supply Ability: 5000 piece / Week
Country of Origin: Zhejiang, China

Quantity:

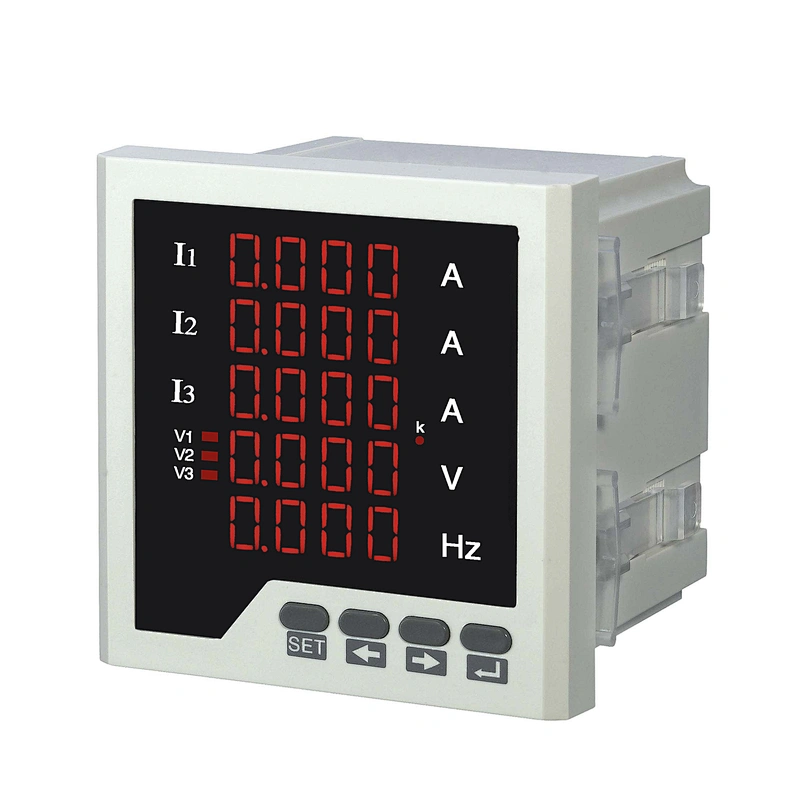

Product Description

Name:Munlti-function monitoring meter
Color:Black/White
Display:5 Digits
Certificate:CE ISO9001
Warranty:3 Years
Phase:Three Phase
Function:Measurement
Frequency:50/60Hz
Communication:RS485 Serial
Application:Shopping Mall Construction
Display Type:Digital Only
Brand Name:REHE
Model Number:RH-3UIF35
Measuring Energy Range:0-9999
Accuracy Class:0.5
Output Voltage:AC100V/220V/380V
Operating Temperature:-10℃~+55℃
Dimensions:96*96

product description

Performance Characteristics

High precision measurement three-phase voltage,three -phase current,active power, reactive power,apparent power,power factor,frequency of electric parameters

2.To Provide a nixie tube or Liquid crystal display ,local data query

3.Current and voltage gain programmable settings

4.Support for RS-485 communication, Mod bus- RTU protocol

5.Support for switching input, output, analog quantity transmitting output

6.Auxiliary power supply: ACDC 80V-270V, AC220V, AC380V, AC100V, DC48V, DC24V

7.A variety of shapes, to meet the different requirements of the cabinet body electric circuit

Technical index

Accuracy of measurement

Voltage level:0.5

Current level:0.5

Active power 0.5

Reactive power level o.5

Power factor 0..5

Frequency ±0.02HZ

Signal input

Connection mode of single -phase, three- phase four wire, three phase three line

Rated voltage of AC57.7V,AC100V,AC220V,AC380V

Rated current of AC 1A, AC 5A

Over load:voltage of 1.2 times( Continued ), 2times / second ( instantaneous )

Current of 1.2 times( Continued ), 10times / 5second ( instantaneous )

Power consumption voltage: <1VA/ phase, current <0.4VA/phase

Impedance:voltage>300KΩ current <20mΩ

The frequency: 45-65Hz

Auxiliary power supply

Working range of ACDC 80V-270V,AC220V,AC380V,AC100V,DC48V,DC24V

Power consumption:<4VA

Function module

Communication interface 1 way RS-485 communication, Mod bus- RTU protocol

Baud rate: 1200~9600bps, the default 2400bps

Switch input support 4 stem node input

The switch output support 3 relay output, capacity:AC2505A,DC30V5A

Transmission output support 3 analog output:04-20mA or 0-510V

Environment

environment

Environment:Working temperature:-10°C ~+55°C

Storage temperature:-25°C ~+70°C

Relative humidity is less than 93%, no corrosive gas

Elevation≤2500m

Safety

Insulation resistance >100MΩ

AC withstand voltage AC2KV

Electromagnetic compatibility

ESD level 4

Electrical fast transient burst level 4

Surge level 4

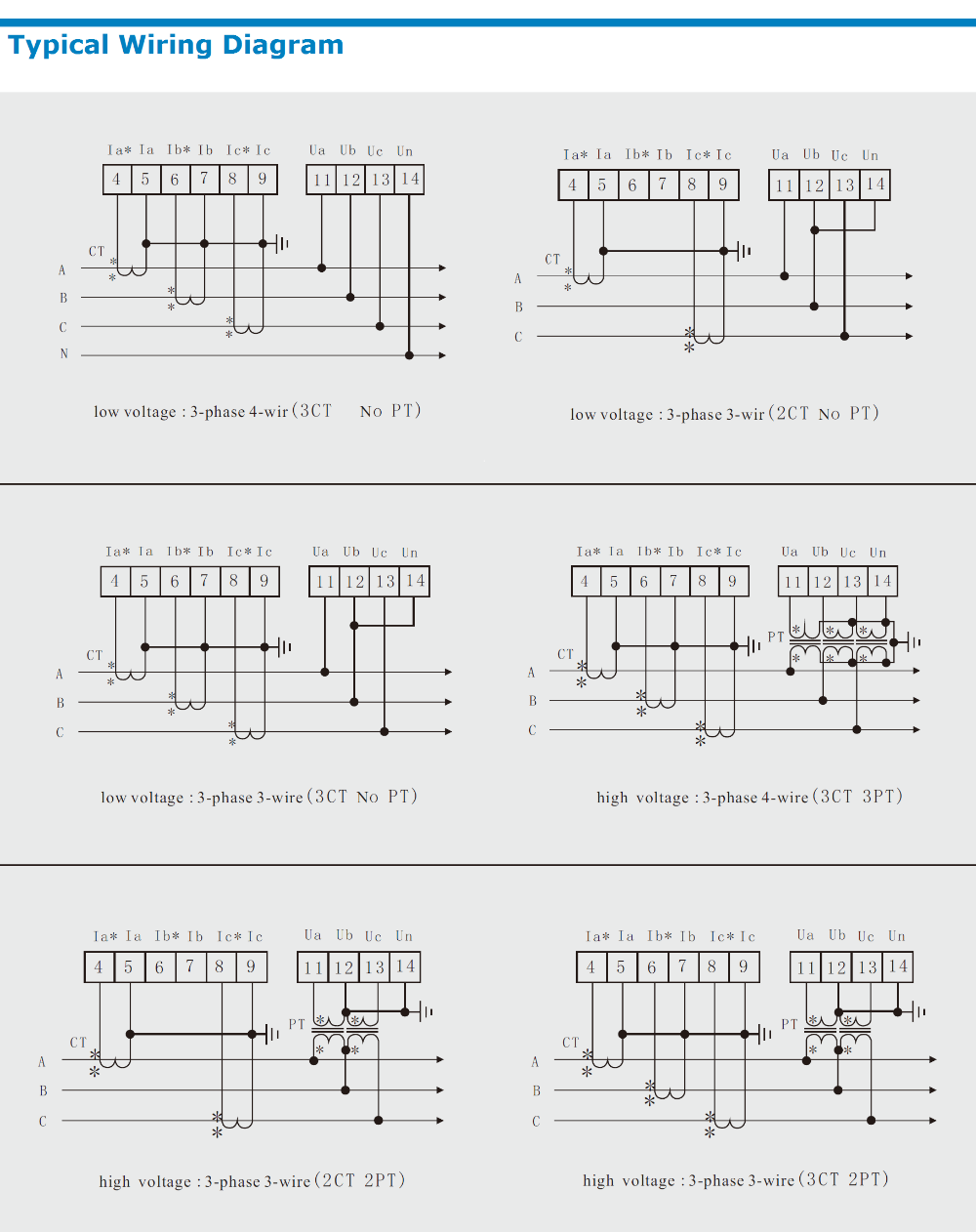

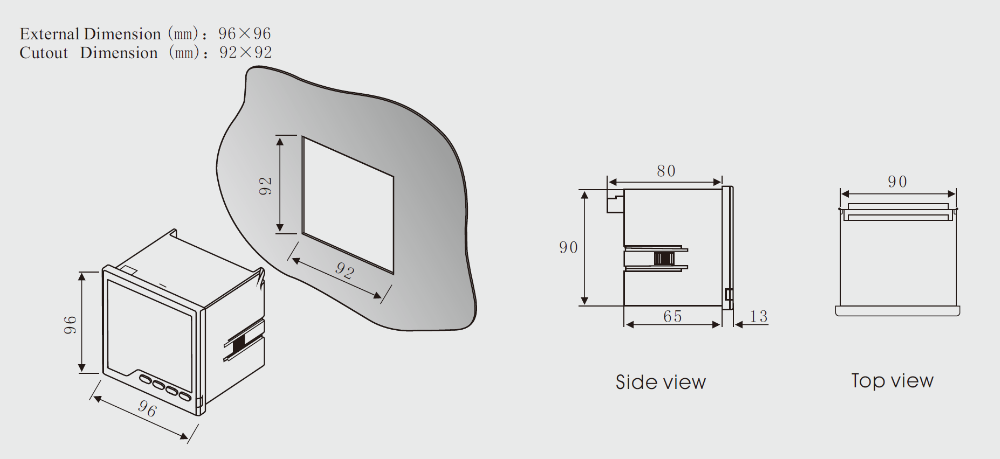

Outline dimensions

Frame size :120*120,80*80,96*48,96*96,80*80,48*48,120*60,160*80

Hole size:111*111,76*76,92*45,92*92,68*68,45*45,114*56,152*76

Function	Measurement					Extend the functionality				Display		Hole size
Model	Single phase current	Single phase voltage	Three phase current	Three phase current	Frequency	Switch input	Switch output	Analog output	Communication interface	LED	LCD	Hole size
RH-3UIF11	-	-	√	√	√	2	2	1	1	√	-	152*76
RH-3UIF23	-	-	√	√	√	2	2	3	1	√	-	111*111
RH-3UIF2Y	-	-	√	√	√	2	2	3	1	-	√	111*111
RH-3UIF33	-	-	√	√	√	2	2	3	1	√	-	91*91
RH-3UIF3Y	-	-	√	√	√	2	2	3	1	-	√	91*91
RH-3UIF41	-	-	√	√	√	2	2	1	1	√	-	114*56
RH-3UIF51	-	-	√	√	√	2	2	1	1	√	-	92*45
RH-3UIF63	-	-	√	√	√	2	2	1	1	√	-	67*67
RH-3UIF6Y	-	-	√	√	√	2	2	1	1	-	√	67*67
RH-3UIF73	-	-	√	√	√	2	2	1	1	√	-	76*76
RH-3UIF7Y	-	-	√	√	√	2	2	1	1	-	√	76*76
RH-3UIF83	-	-	√	√	√	2	2	1	1	√	-	45*45
RH-UIF11	√	√	-	-	√	2	2	1	1	√	-	152*76
RH-UIF23	√	√	-	-	√	2	2	3	1	√	-	111*111
RH-UIF33	√	√	-	-	√	2	2	3	1	√	-	91*91
RH-UIF43	√	√	-	-	√	2	2	1	1	√	-	114*56
RH-UIF53	√	√	-	-	√	2	2	1	1	√	-	92*45
RH-UIF63	√	√	-	-	√	2	2	1	1	√	-	67*67
RH-UIF73	√	√	-	-	√	2	2	1	1	√	-	76*76
RH-UIF83	√	√	-	-	√	2	2	1	1	√	-	45*45
