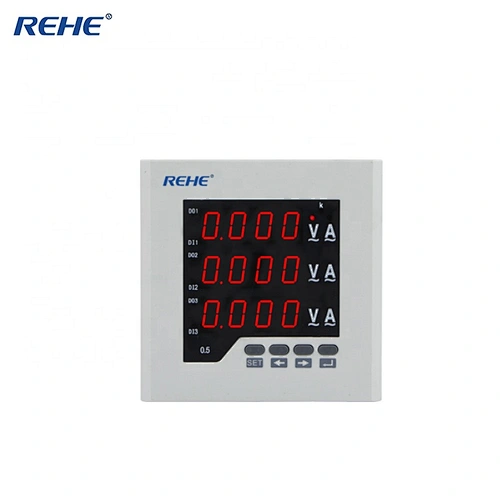

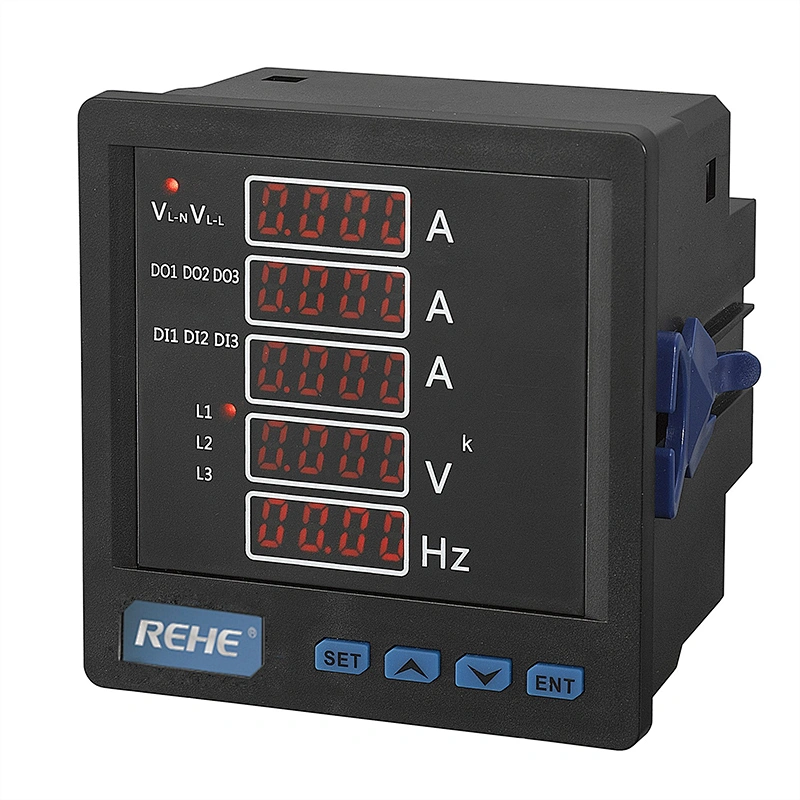

Digital only display Three Phase Intelligent Combination electric power meter

Model NO.: RH-3UI(F)3Y
Price:: US $ 31.80-31.80 / piece
Delivery: FOB Shanghai, Ningbo
Minimum order quantity: 1 piece
Supply Ability: 5000 piece / Week
Country of Origin: Zhejiang, China

Quantity:

Product Description

Color:Black
OEM:Yes
Power consumption:<1VA
Communication:RS485 Port MODBUS-RTU
Display type:LED/LCD Display

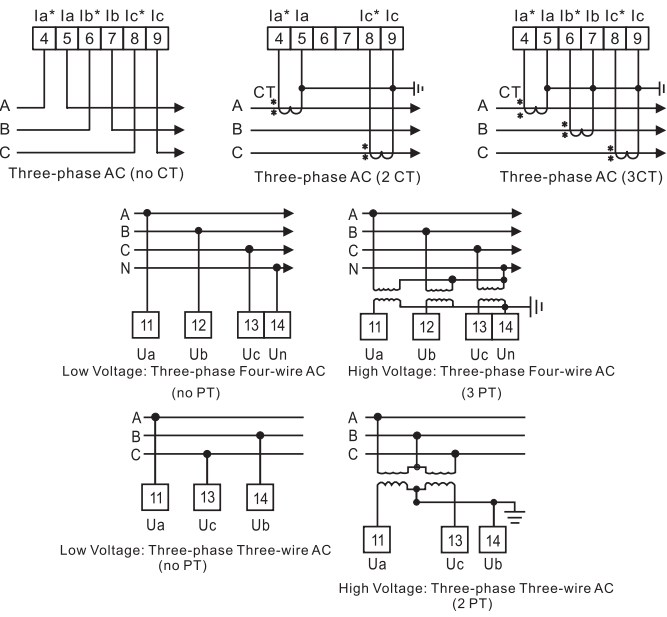

Connection:3-phase 4-wire/3-phase 3-wire
Power source:AC85~265V,DC100~300V <5VA
Baud Rate:1200-38400(Default 9600)
Frequency:45~65Hz
Warranty:1 Year
Display Type:Digital Only
Phase:Three Phase
Brand Name:REHE
Output Voltage:AC 220V
Model Number:RH-3UI(F)3Y

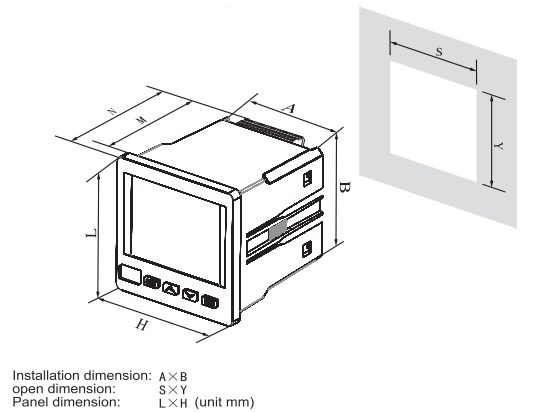

Dimensions:96*96
Operating Temperature:-10℃~+55℃
Measuring Energy Range:0-9999
Accuracy Class:0.5, 0.2

Foreword

Thanks for using our company products. We will provide reliable quality and dedicated service to allow you to rest assured to use our company products. Before installation, circuit connection, running and maintenance, please make sure to read carefully the user manual, to ensure the correct using, during using please also make sure know very well of relative safety and caution items.

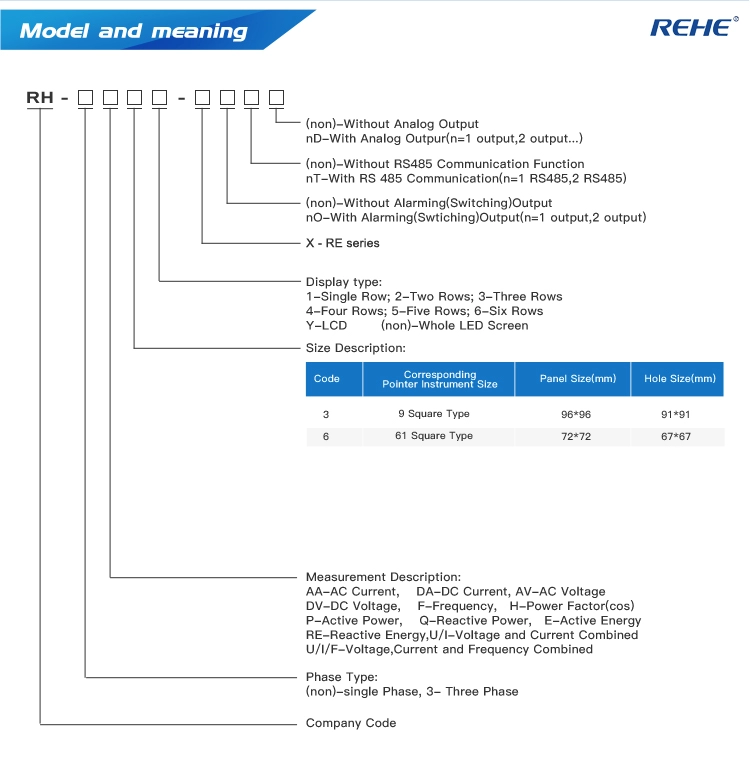

Model	Size	Connection	Display type
RH-3UI(F)2Y	120*120mm	3-phase 4-wire/3-phase 3-wire	LED/LCD Display
RH-3UI(F)3Y	96*96mm	3-phase 4-wire/3-phase 3-wire	LED/LCD Display

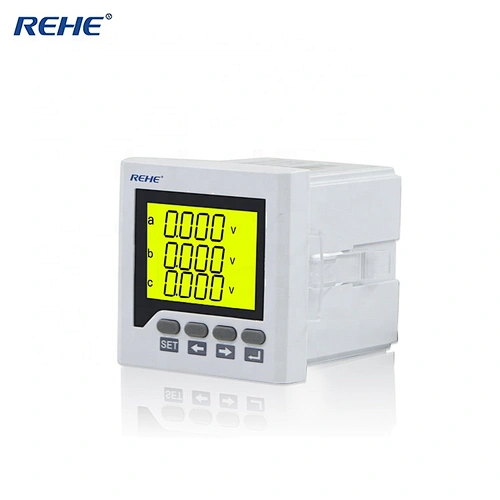

RH-3UI(F)6Y	72*72mm	3-phase 4-wire/3-phase 3-wire	LED/LCD Display
RH-3UI(F)7Y	80*80mm	3-phase 4-wire/3-phase 3-wire	LED/LCD Display
