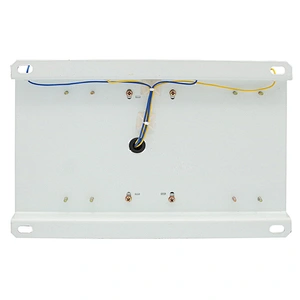

The Latest Design ATSQ2Y series Intelligent Double/Dual Power Automatic Transfer Switch 800/4P

The Latest Design ATSQ2Y series Intelligent Double/Dual Power Automatic Transfer Switch 800/4P

Model NO.: RH-ATSQ2Y
Price:: US $ 449.64-449.64 / piece
Delivery: FOB Shanghai, Ningbo
Minimum order quantity: 1 piece
Supply Ability: 3000 piece / Day
Country of Origin: Zhejiang, China

Quantity:

Product Description

Rated current:10~1250A
Poles:3P/4P
Warranty:1 Year
Material:Class CB
Handle:YES
OEM:Yes
Type:Mould Case Circuit Breaker
Package:Standard Export Packing
Express:DHL,TNT, EMS, FEDEX or as your request
Product name:Intelligent double power automatic transfer switch
Brand Name:REHE
Model Number:RH-ATSQ2Y
Max. Current:800A
Max. Voltage:400V

Foreword

Thanks for using our company products. We will provide reliable quality and dedicated service to allow you to rest assured to use our company products. Before installation, circuit connection, running and maintenance, please make sure to read carefully the user manual, to ensure the correct using, during using please also make sure know very well of relative safety and caution items.

Usage

RH-ATSQ2Y dual power automatic transfer switch (hereinafter referred to as A.T.S) for 50Hz / 60Hz, the rated operating voltage is 380V (3P, 4P), and the rated current is 10A~1250A (double loop power supply system). It can convert the normal power and reversed power automatically to ensure the reliability of the power, mainly for high -rise buildings, shopping malls, fire pumps, smoke fans, elevators, life water pumps, accident lighting and other places. This product complies with GB/T14048.11 standard.

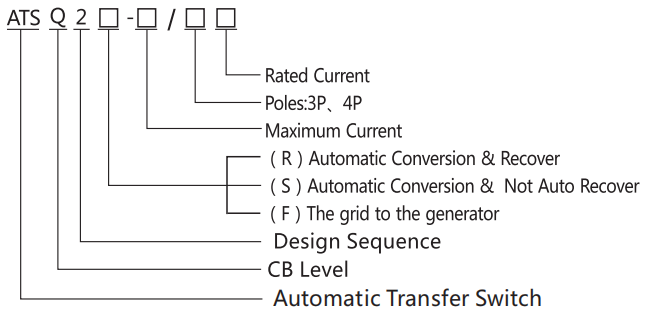

Model

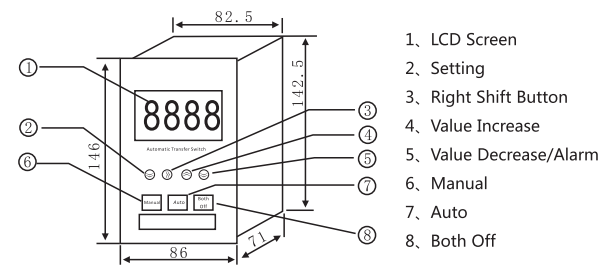

Outline

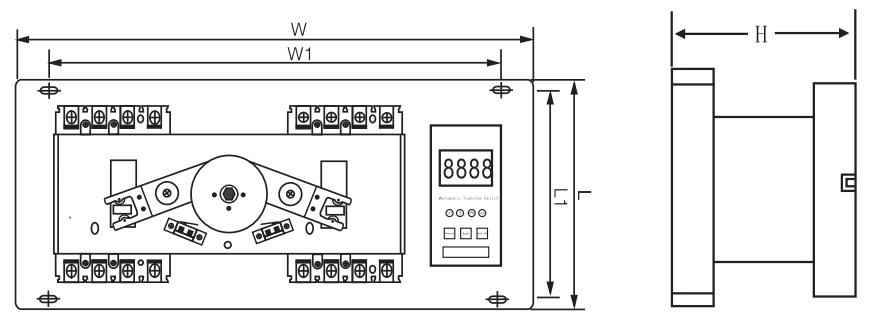

Installation Size

Model / Size	W	W1	L	L1	H
ATSQ2Y-63/3P	380	345	240	220	140
ATSQ2Y-63/4P	380	345	240	220	140
ATSQ2Y-100/3P	420	385	240	220	140
ATSQ2Y-100/4P	420	385	240	220	140
ATSQ2Y-225/3P	470	435	240	220	150
ATSQ2Y-225/4P	470	435	240	220	160
ATSQ2Y-400/3P	615	555	330	300	200
ATSQ2Y-400/4P	615	555	330	300	200
ATSQ2Y-630/3P	680	620	330	300	200
ATSQ2Y-630/4P	740	680	330	300	200
ATSQ2Y-800/3P	725	670	330	300	200
ATSQ2Y-800/4P	790	735	330	300	200
