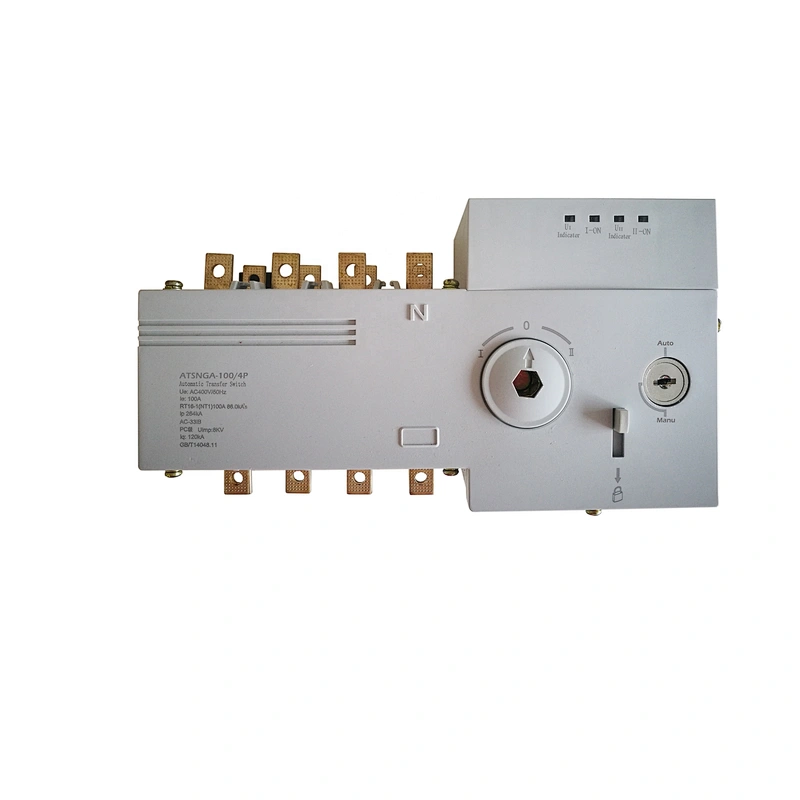

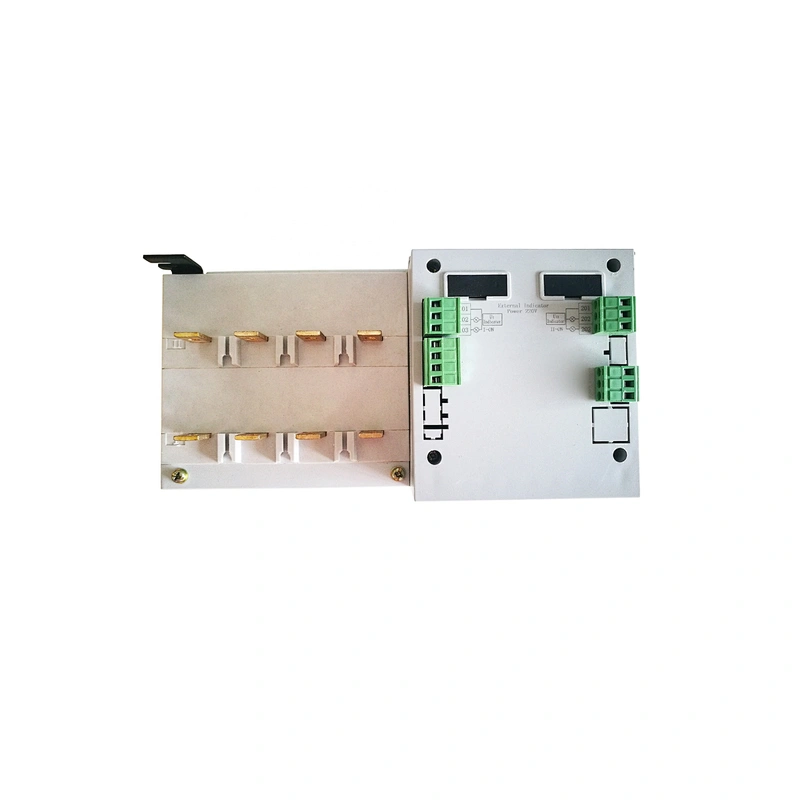

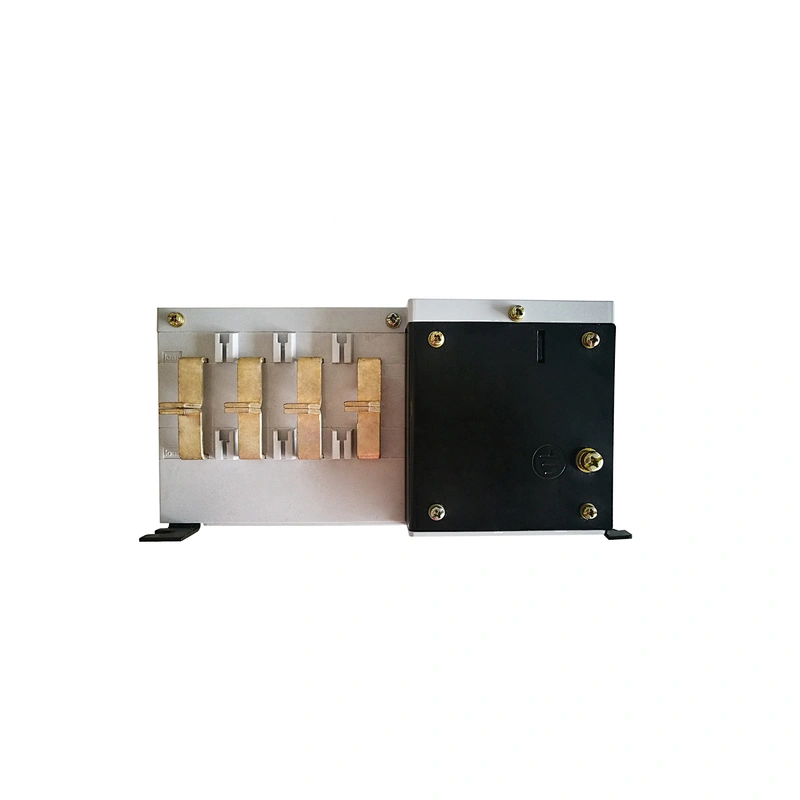

Intelligent 100A 250A 200 amp Dual Power Automatic Changeover Switch automatic transfer switch

Intelligent 100A 250A 200 amp Dual Power Automatic Changeover Switch automatic transfer switch

Model NO.: ATSNGA
Price:: US $ 34.00-34.00 / piece
Delivery: FOB Shanghai, Ningbo
Minimum order quantity: 1 piece
Supply Ability: 100000 piece / Month
Country of Origin: Zhejiang, China

Quantity:

Product Description

Brand Name:REHE
Model Number:ATSNGA
Max. Current:630A
Max. Voltage:400V
Optional Current:100~630A
Operation Voltage:220VAC
Frequency:50/60Hz
Rated Voltage:400VAC
Rated impulse withstand voltage Uimp:6KV
Working Temperature:-15℃~+60℃
Relative Humidity:≤90%
External closing instructions:Active
Electrical Level:PC
Function:ON-OFF-ON

Dual Power Switch

DETAILED INFORMATION OF PRODUCTS

ATSNGA dual power automatic transfer switch(ATSE),which combines
switches and logic control in one, truly really implement
mechatronics, with a series functions of voltage detection,
frequency detection, communication interface, electrical,
mechanical interlock function, enables automatic, electric remote
emergency manual control.

Operation run by the logic control board manage to achieve synchronous motor with a variety of logic commands, synchronous motor
driven switch spring to store energy, instantaneous release mechanism to accelerate quickly making and breaking the circuit or
circuit-switched, achieve security isolation through visible state, greatly improves the electrical and mechanical properties.

Characteristics:

1.Double row composite contacts, horizontal pull-type structure, micro-motor control;
2.Adopt reliable mechanical interlock and electrical interlocks, actuators usie a separate load isolation switch, safe and reliable;
3.Adopt zero-bit technology, emergency situations can be forced to zero (cut off two-way power),for fire protection;
4.Perform load isolation switch adopt a single motor drive, stable and reliable switching, no noise,small impact;
5.Operating drive motor only go through current when performing load isolation switch instantaneously, working steadily without power supply, significant energy saving;
6.Perform load isolation switch with mechanical interlock devices to ensure normal power and backup
power noninterference;
7.A clear on-off position indicator, lock functions, and reliable isolation between power supply and load;security and good performance, high degree of automation,high reliability;
8.Mechatronics design, accurate, flexible, smooth switching, adopts the international advanced logic control technology, anti-interference ability, without external interference;
9.Main power on and backup power off; main power off, backup power on and main and backup power both off three stable work (I-O-II);
10.Easy installation, control circuit adopts plug-in terminal connection;
11.Four operating functions: emergency manual operation, electric remote control operation, the emergency disconnect operation under automatic control, automatic control operation.

DIAGRAM OF DIGITAL METER

REMARKS:

Any additional function,the price needs to be calculated separatelly
