- Brand Name:REHE
- Model Number:RHATS1-NA
- Max. Current:125A
- Max. Voltage:AC 400V
- ATS Operation type:ATS dual power switch
- Poles:3/4 poles
- Rated Current:10-125A
- Function:Generator starting
- Classification:Circuit breaker
- ATSE:With undervoltage,overvoltage Phase failure protection
- Control device:Built-in controller

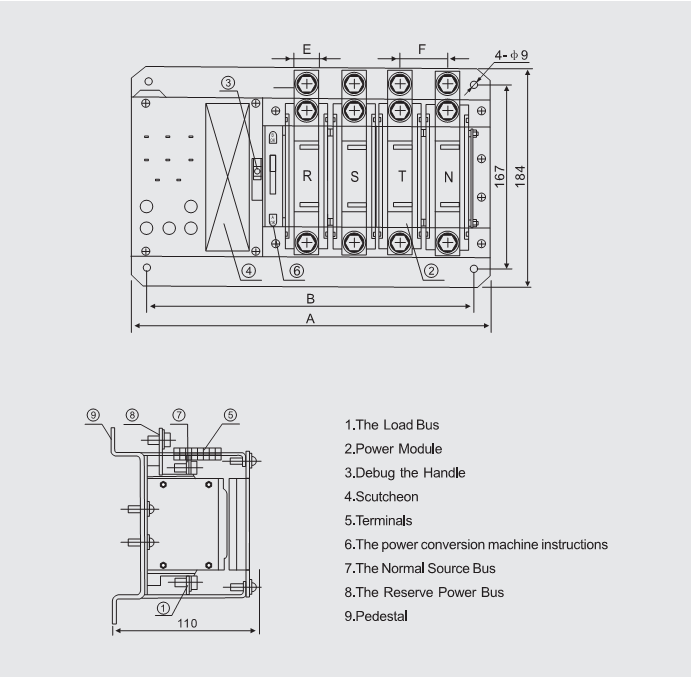

- Size:374*254*20mm
- Switch:on-off-on
- Ontology:Ontology with controller
Product Application

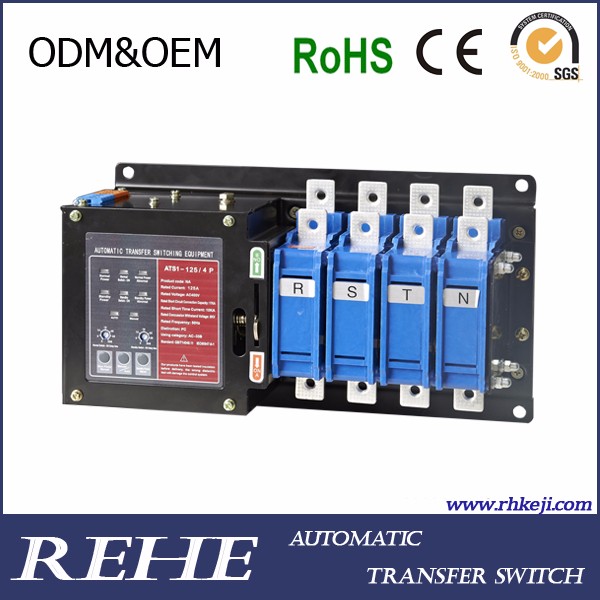

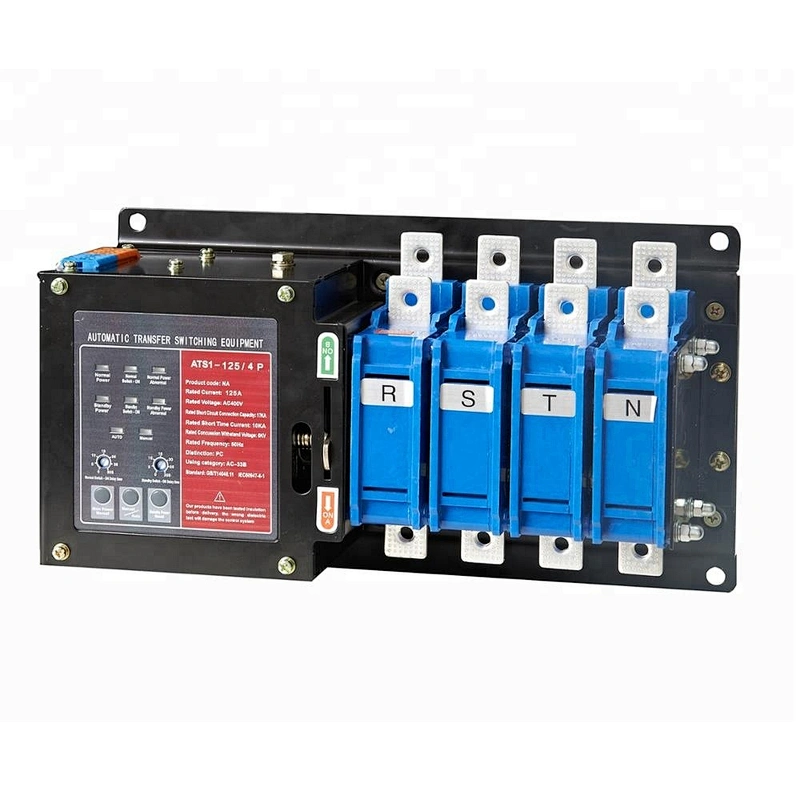

RHATS1-NA Model Intelligent Automatic Transfer Switch,it has three modes:
1.Automatic Conversion and recover
2.Automatic Conversion but not Auto recover,
3.Power Grid to Generator. It will detect the three phase voltage of both the two power supply.When any phase has overvoltage,undervoltage or phase failure,the device will convert from the abnormal power source to normal power source;For the one used for Power grid to generator system,it also can give orders to the generator to work.
Sketch:
1.RHATS1-NA model is one of our self-developed device,it conform with GB/T14048.11 etc
2.Product structure: small volume, large current, simple structure, ATS integrative
3.Characteristics: Fast switching , low failure rate, easy maintenance, reliable performance
4.Transformation:Power grid to power grid, power grid to generator, and automatic recovery
5.Rated Current: 10-125A
6.Rated Voltage:400V
7.Number of poles: 3/4 poles
8.ATSE:With undervoltage,overvoltage Phase failure protection
Remarks:

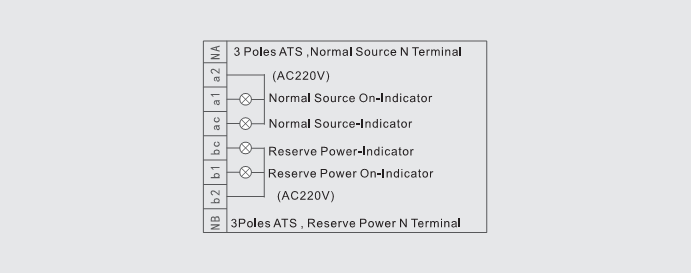

When using 3 Poles ATS,we should connect the Netural line of Normal Source&Reserve Power to the NA and NB interface,the external indicators should be connected correctly or the ATS can’t work properly.
