- OEM:Yes
- Material:Class PC
- Rated voltage:400v
- Rated current:10-125A
- Standard:GB/T 14048.11
- Poles:3p/4p
- Package:Standard Export Carton
- Express:DHL,TNT,EMS,Fedex
- Type:Automatic Transfer Switch

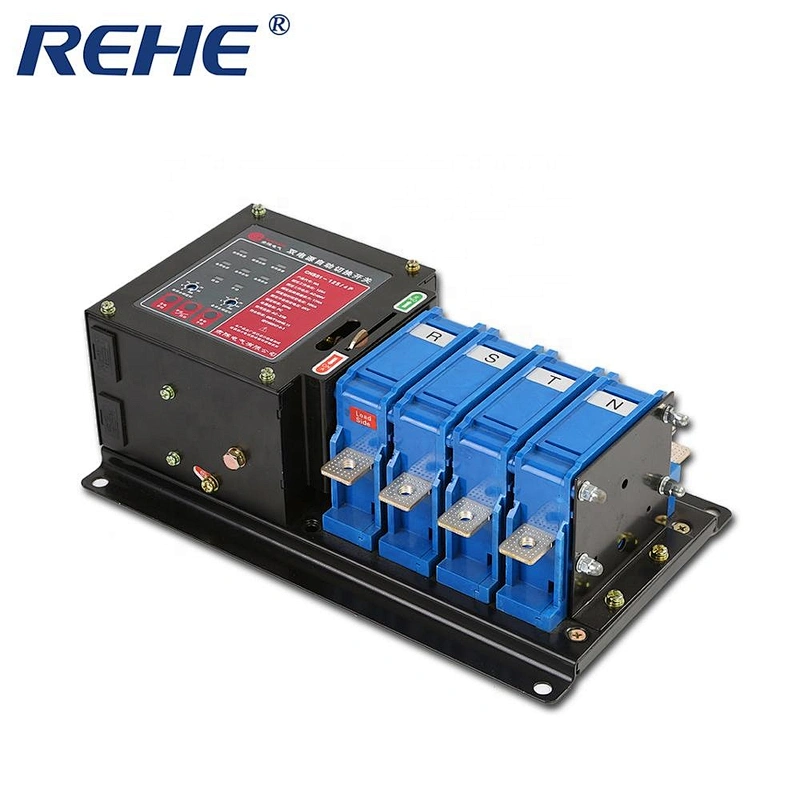

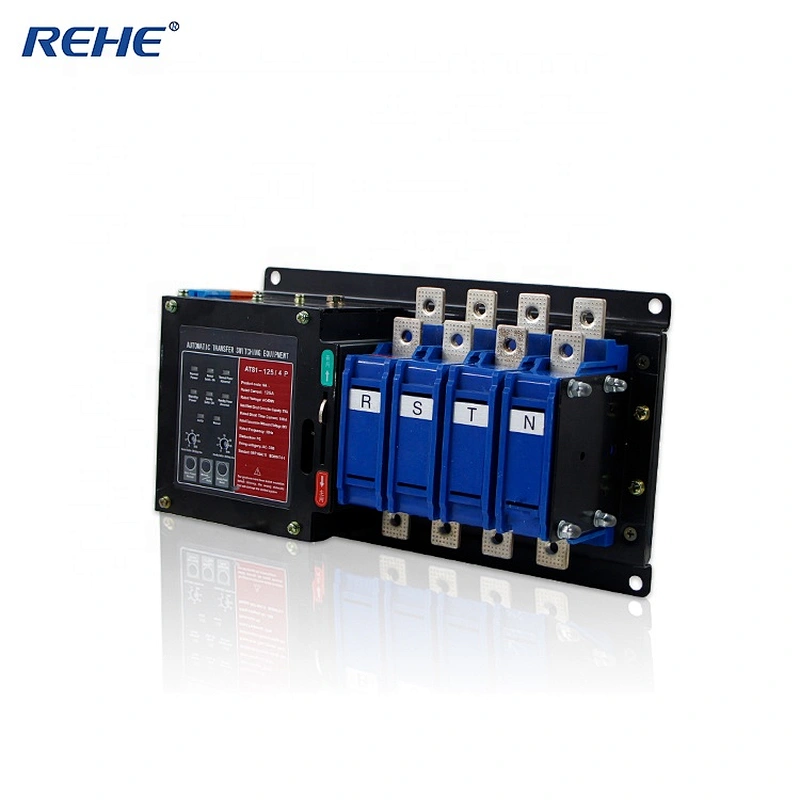

- Product name:Hot-selling Factory AUTO/MANUAL RH-NA Changeover Switch 3P/4P 125A ATS
- Brand Name:REHE
- Model Number:RH-NA 125A/3
- Max. Current:125A
- Max. Voltage:400V
Application

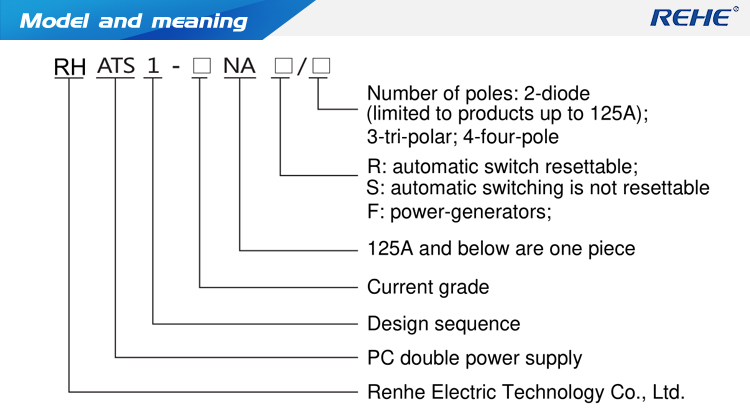

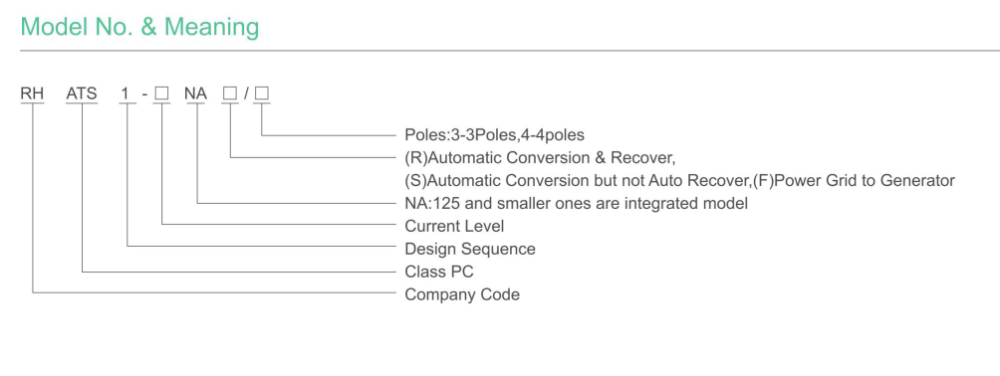

RHNA Model Intelligent Automatic Transfer Switch ,it has three models:
1.Automatic Conversion and recover
2.Automatic Conversion but no Auto recover
3.Power Grid to Generator.It will detect the three phase voltage of both the two power supply.When any phase has over voltage,under voltage or phase failure,the device will convert from the abnormal power source to normal power source;For the one used for Power grid to generator system,it also can give orders to the generator to work.
Sketch
1.RHNA model is one of our self- developed device,it conform with GB/T14048.11 etc
2.Product structure: small volume,large current,simple structure,ATS integrative
3.Characteristics:Fast switching,low failure rate,easy maintenance,reliable performance
4.Rated Current:10-125A
5.Rated Voltage:400V
6.Number of poles:3/4 poles
7.ATSE:with under voltage ,over voltage Phase failure protection
