High quality ATSQ2 Series 1000/4P Intelligent Double Power Automatic Transfer Switch

High quality ATSQ2 Series 1000/4P Intelligent Double Power Automatic Transfer Switch

Model NO.: RH-ATSQ2M
Price:: US $ 1000.81-1000.81 / piece
Delivery: FOB Shanghai, Ningbo
Minimum order quantity: 1 piece
Supply Ability: 1000 piece / Week
Country of Origin: Zhejiang, China

Quantity:

Product Description

Rated current:10~1250A
Poles:3 pole, 4 pole
Warranty:1 Year
Material:Class CB
Handle:YES
OEM:Yes
Type:Mould Case Circuit Breaker
Package:Standard Export Packing
Express:DHL,TNT, EMS, FEDEX or as your request
Product name:Intelligent double power automatic transfer switch
Brand Name:REHE
Model Number:RH-ATSQ2M
Max. Current:1000A
Max. Voltage:400V

Foreword

Thanks for using our company products. We will provide reliable quality and dedicated service to allow you to rest assured to use our company products. Before installation, circuit connection, running and maintenance, please make sure to read carefully the user manual, to ensure the correct using, during using please also make sure know very well of relative safety and caution items.

Usage

RH-ATSQ2M dual power automatic transfer switch (hereinafter referred to as A.T.S) for 50Hz / 60Hz, the rated operating voltage is 380V (3P, 4P), and the rated current is 10A~1250A (double loop power supply system). It can convert the normal power and reversed power automatically to ensure the reliability of the power, mainly for high -rise buildings, shopping malls, fire pumps, smoke fans, elevators, life water pumps, accident lighting and other places.

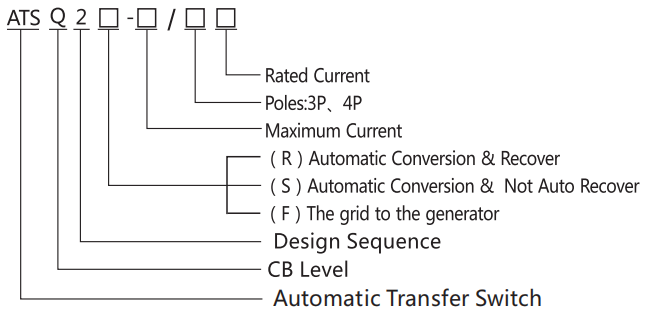

Model

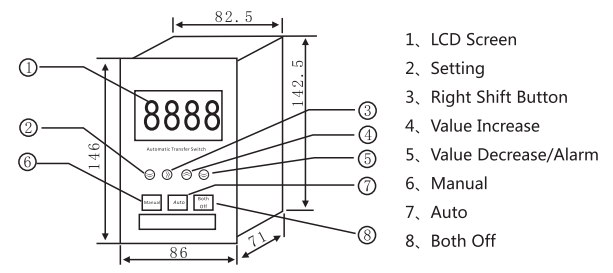

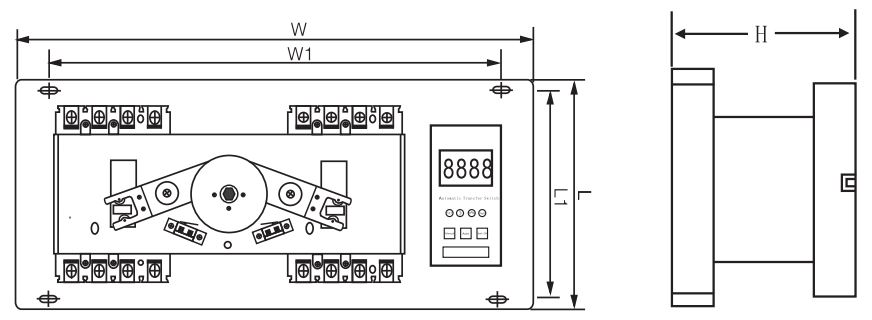

Outline


Product model

Model	Current	Unit
ATSQ2M-63/3P	63A	1 PC
ATSQ2M-63/4P	63A	1 PC
ATSQ2M-100/3P	16-100A	1 PC
ATSQ2M-100/4P	16-100A	1 PC
ATSQ2M-225/3P	100-225A	1 PC
ATSQ2M-225/4P	100-225A	1 PC
ATSQ2M-400/3P	225-400A	1 PC
ATSQ2M-400/4P	225-400A	1 PC
ATSQ2M-630/3P	400-630A	1 PC
ATSQ2M-630/4P	400-630A	1 PC
ATSQ2M-800/3P	630-800A	1 PC
ATSQ2M-800/4P	630-800A	1 PC
ATSQ2M-1000/4P	1000A	1 PC
