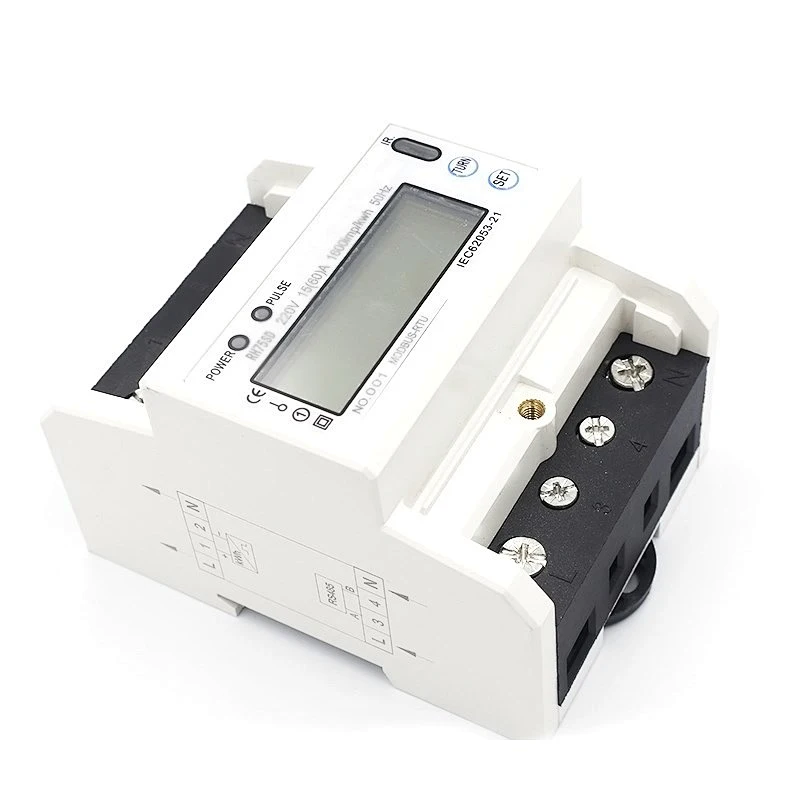

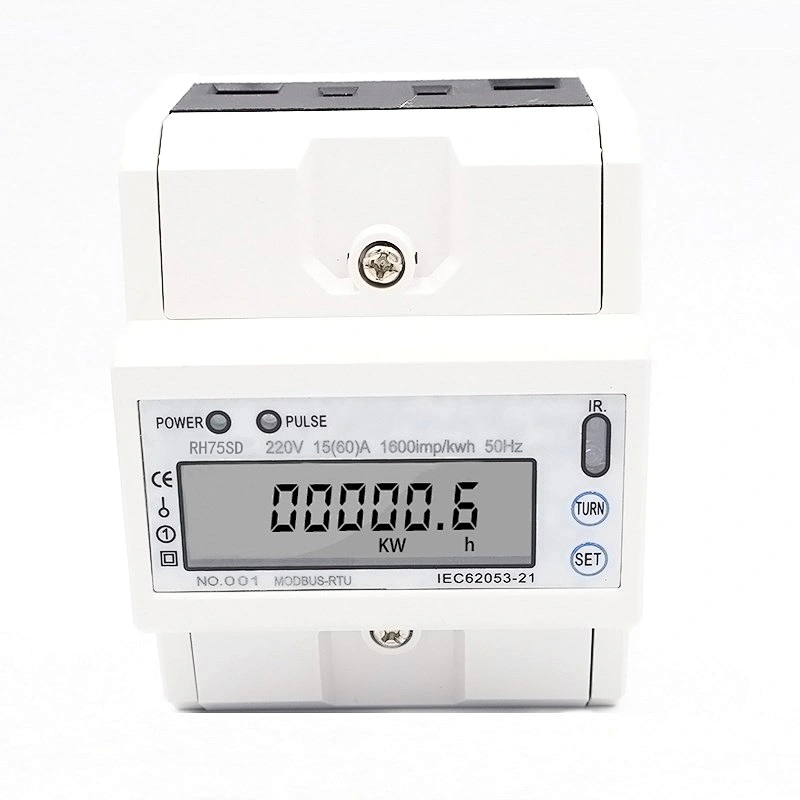

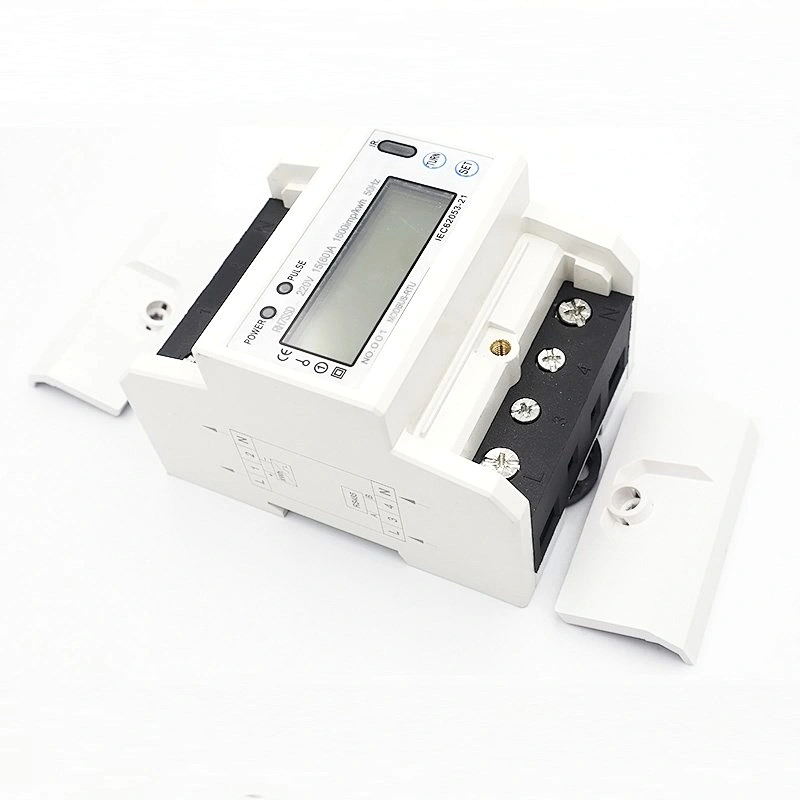

RH75SD Multi function DIN Rail 1 Phase 2 Wire 220V 15(60)A 1600imp/kwh Energy meter with RS485

RH75SD Multi function DIN Rail 1 Phase 2 Wire 220V 15(60)A 1600imp/kwh Energy meter with RS485

Model NO.: RH75SD
Price:: US $ 15.30-15.30 / piece
Delivery: FOB Shanghai, Ningbo
Minimum order quantity: 1 piece
Supply Ability: 10000 piece / Week
Country of Origin: Zhejiang, China

Quantity:

Product Description

Color:White
Frequency:50HZ/60HZ
Rated voltage:220V 230V

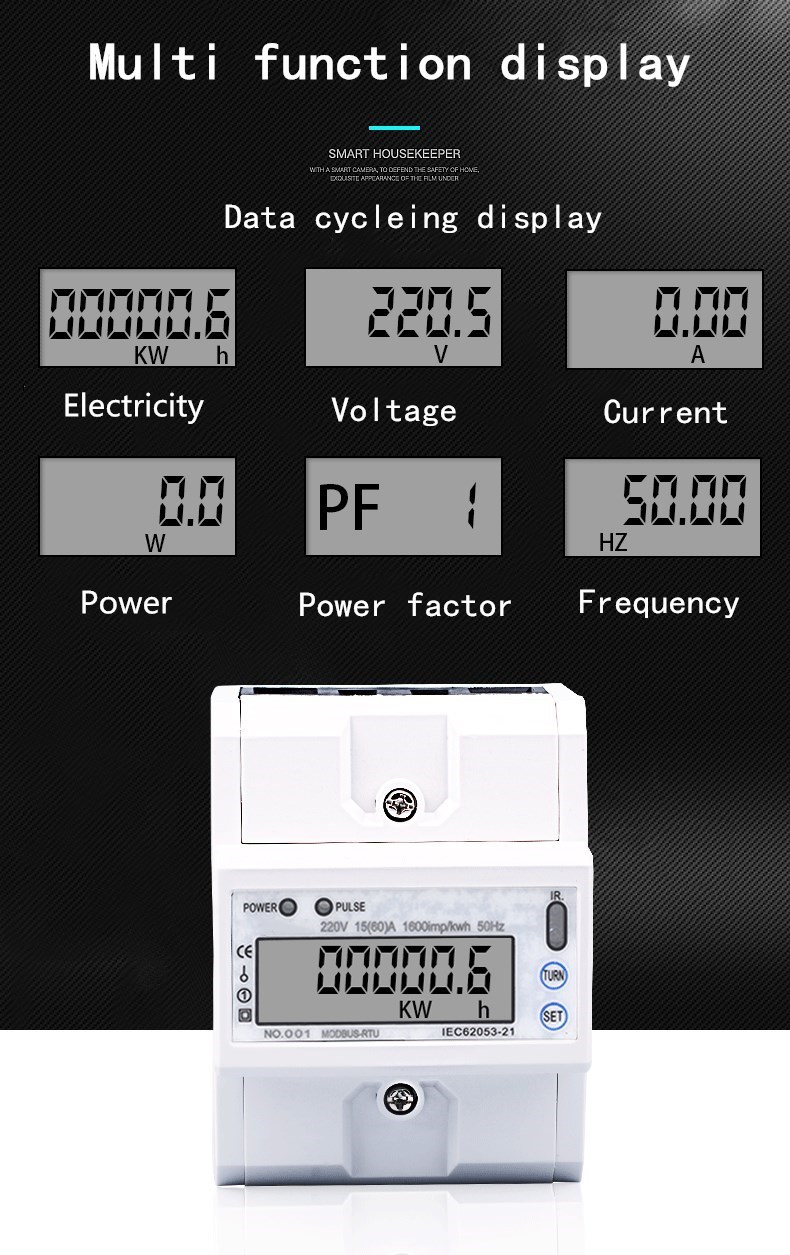

Display:LCD Display
Wiring method:Type S and type U
Baud rate:1200/2400/4800 or 9600bps(default)
Communication:RS485 / MODBUS Protocol
Material:PC (Poly Carbonate)
QTY:60pcs/carton
Warranty:18 Months
Display Type:Digital Only
Phase:Single Phase
Brand Name:REHE
Output Voltage:220V
Model Number:RH75SD
Dimensions:100*76*65mm
Operating Temperature:-10℃~+50℃
Measuring Energy Range:20(80)A
Accuracy Class:1.0

Technical parameter

Type

Accuracy

Rated voltage

Rated current

Starting current(A)

Insulating performance

RH75SD

Class 1.0

220V

230V

5(20)A 10(40)A

15(60)A 20(80)A

0.02

AC voltage 4kv for 1 mimute,
1.2/50us waveform impulse voltage 6kv.

Note

If you need different reference voltage or current specification, please advisory us.

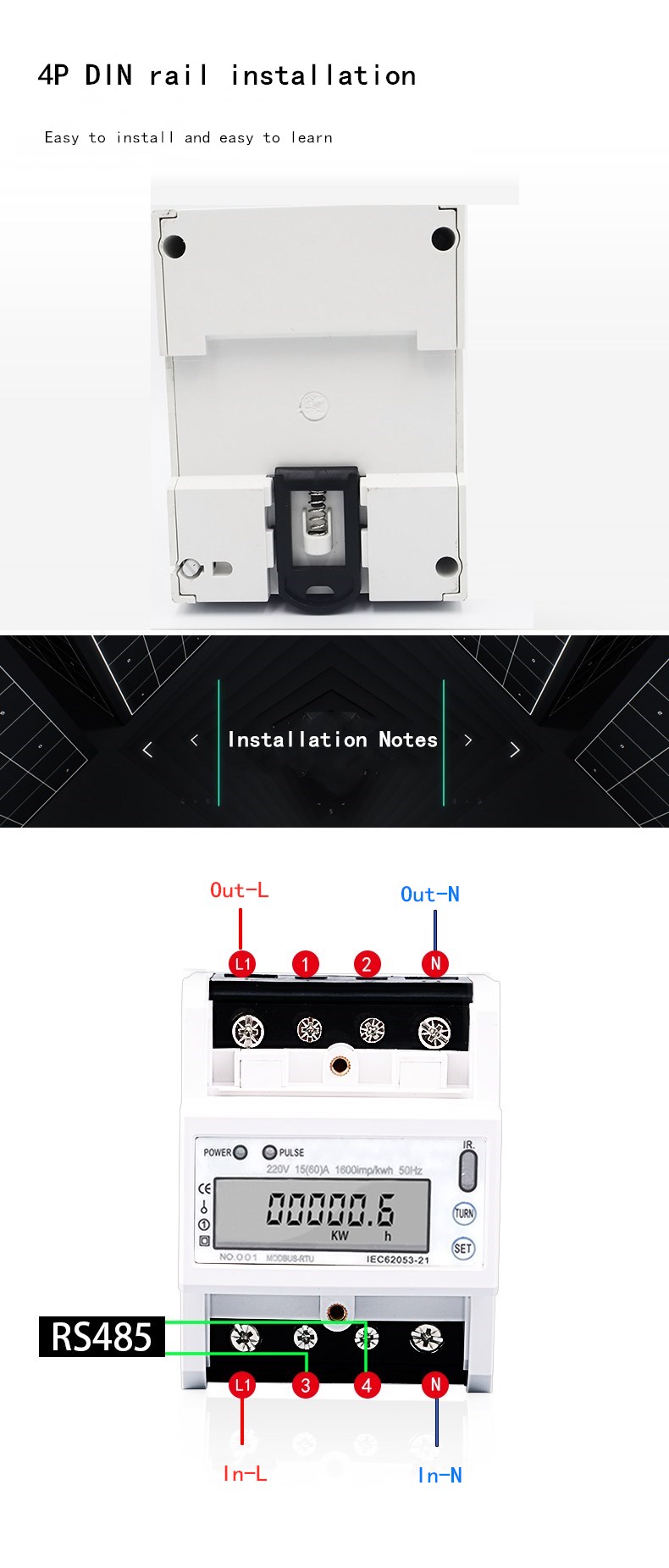

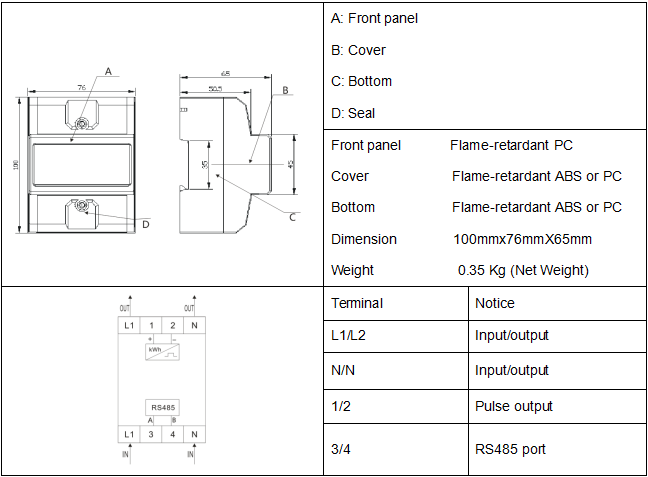

Wiring diagram

Type S

Indicators

Working Humidity ≤75%

Storage Humidity ≤95%

Operating Temperature -10℃~+50℃

Storage Temperature -30℃~+70℃

International Standard IEC 62053-21

Domestic Standard GB/T17215.321-2008

Accuracy Class 1.0

Dustproof and Waterproof IP51

Protective Insulation Encapsulation Type ΙΙ
