- Color:White

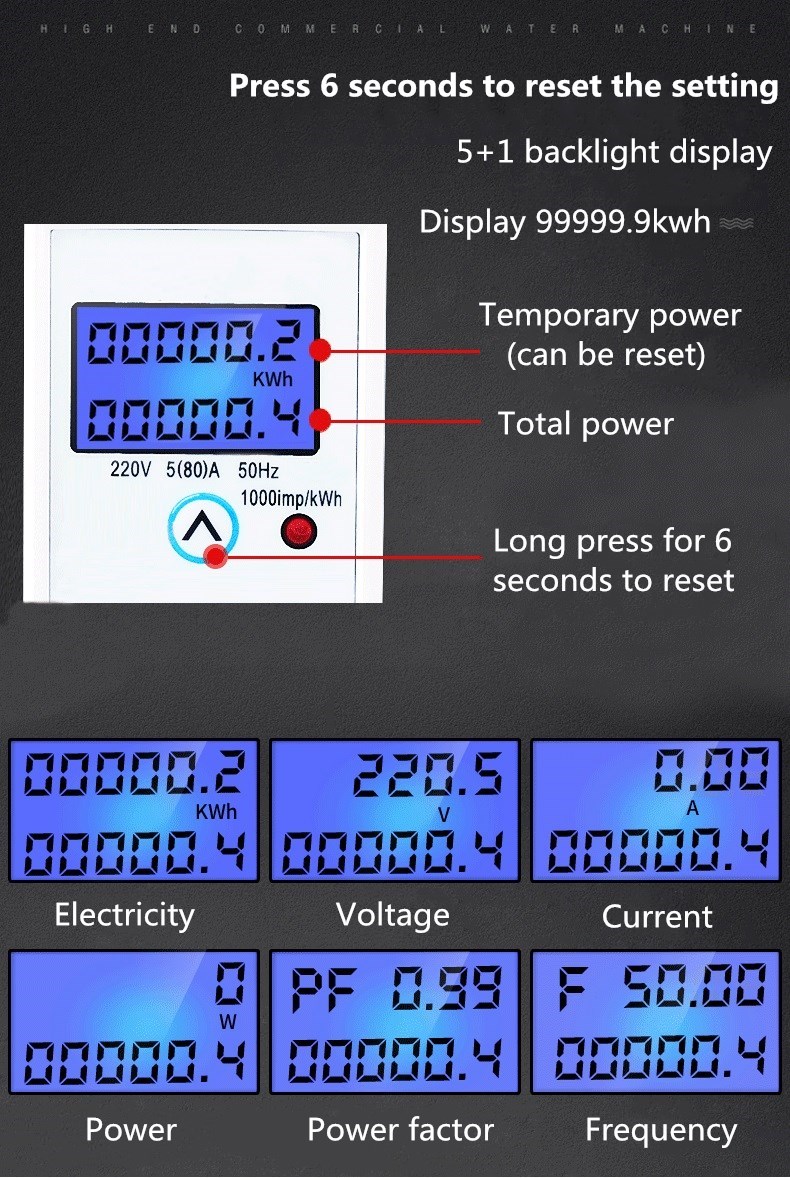

- Display:LCD Display
- Frequency:50HZ/60HZ
- Rated voltage:220V 230V
- STARTING CURRENT:0.04%
- QTY:100pcs/carton
- Wiring method:Type S and type U
- Poles:2P

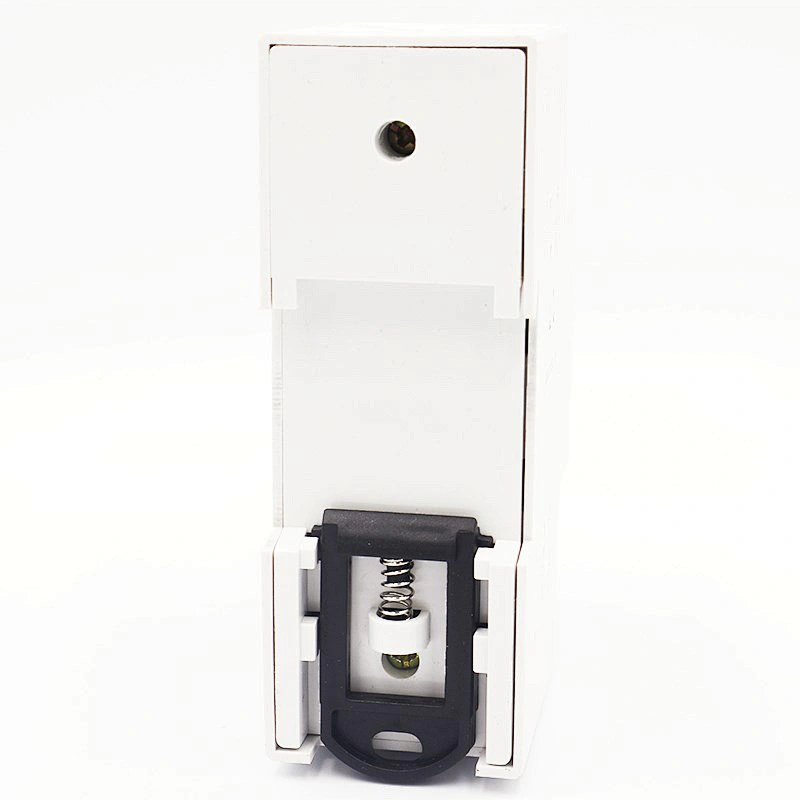

- Installation:DIN Rail Installation
- Warranty:18 Months
- Display Type:Digital Only
- Phase:Single Phase

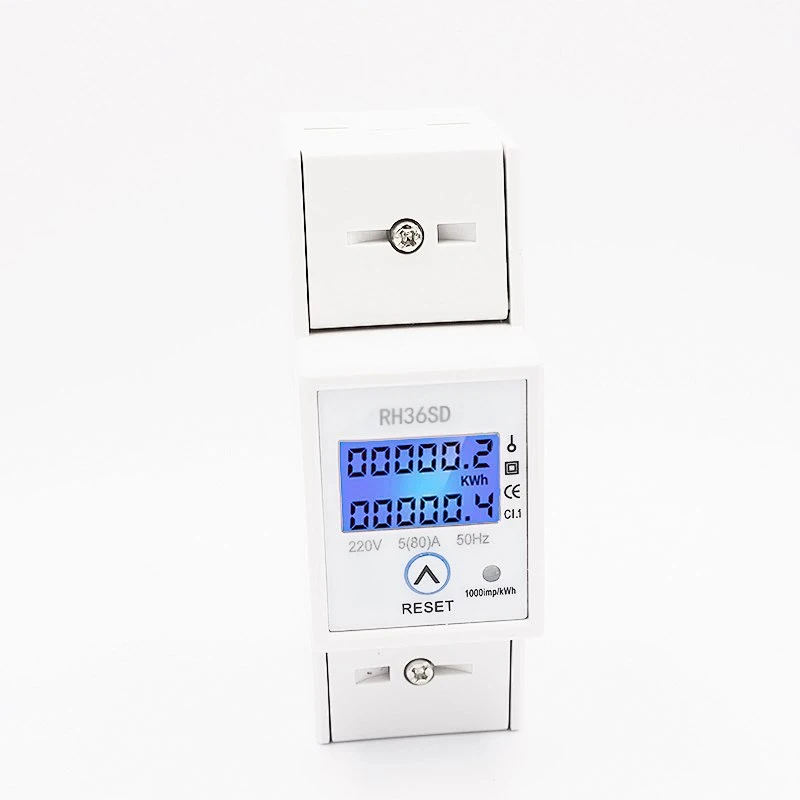

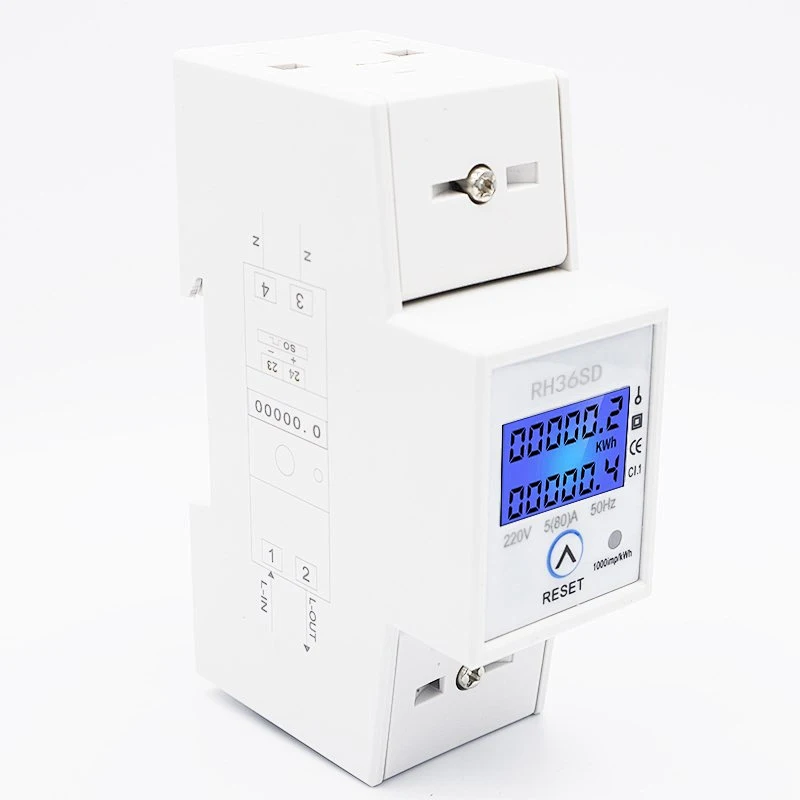

- Brand Name:REHE
- Model Number:RH36SD
- Dimensions:78*66*43mm
- Operating Temperature:-10℃~+50℃
- Measuring Energy Range:5(80)A
- Accuracy Class:1.0
Technical parameter
| Type | Accuracy | Rated voltage | Rated current | Starting current | Insulating performance |
| RH36SD | Class 1.0 | 220V 230V | 5(20)A 10(40)A 15(60)A 5(80)A | 0.04% | Frequency AC voltage 2kv lasted 1 minute, the impact voltage 6kv |
Basic error
Phase balance load
| 0.05Ib | Cosφ=1 | ±1.5% |
| 0.1Ib | Cosφ=0.5L Cosφ=0.8C | ±1.5% ±1.5% |
| 0.1Ib-Imax | Cosφ=1 | ±1.0% |
| 0.2Ib-Imax | Cosφ=0.5L Cosφ=0.8C | ±1.0% ±1.0% |

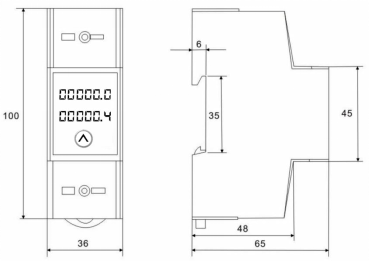

Outline and wiring
![XKJ)~`C[_VY]7E}70BN_MQF.png](https://yunpan.cdn.site.joinf.com/5085003477396663/2021/09/6132d5679591e.png?imageMogr2/format/webp/auto-orient)

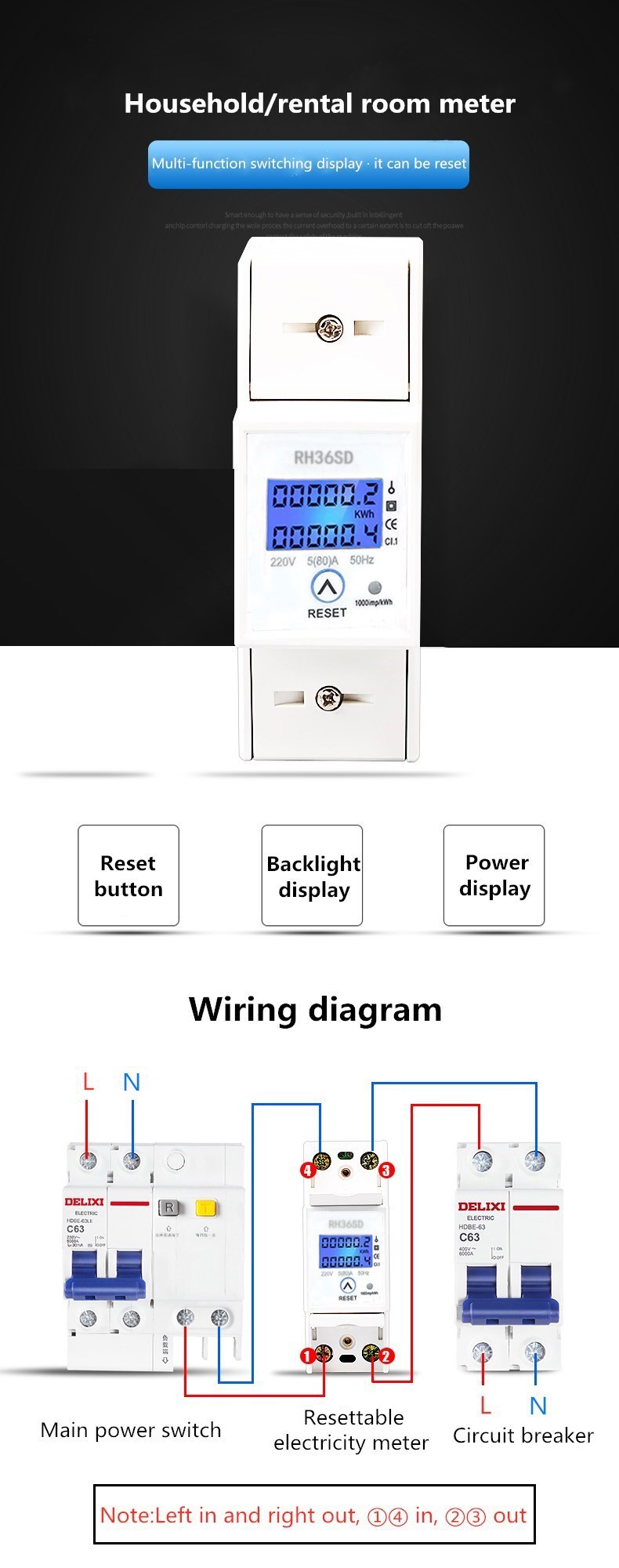

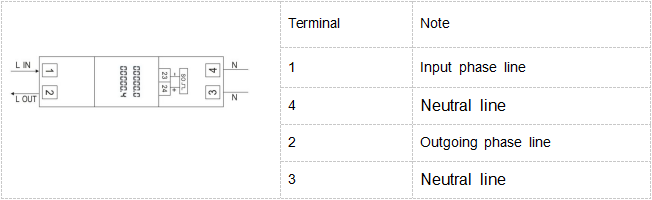

Wiring diagram
Type S
After-sales service
Within 18 months from the date of manufacture the user complies with all of above rules. If the meter still being sealed does not conform to any technical requirements of IEC61036, or of any certification of Power Department or Measuring Department, the manufacture guarantees to repair freely or to change.
