- Mounting diameter:22mm
- Ampere Measuring range:AC 0-100A
- Voltage Measuring range:AC 50-380V

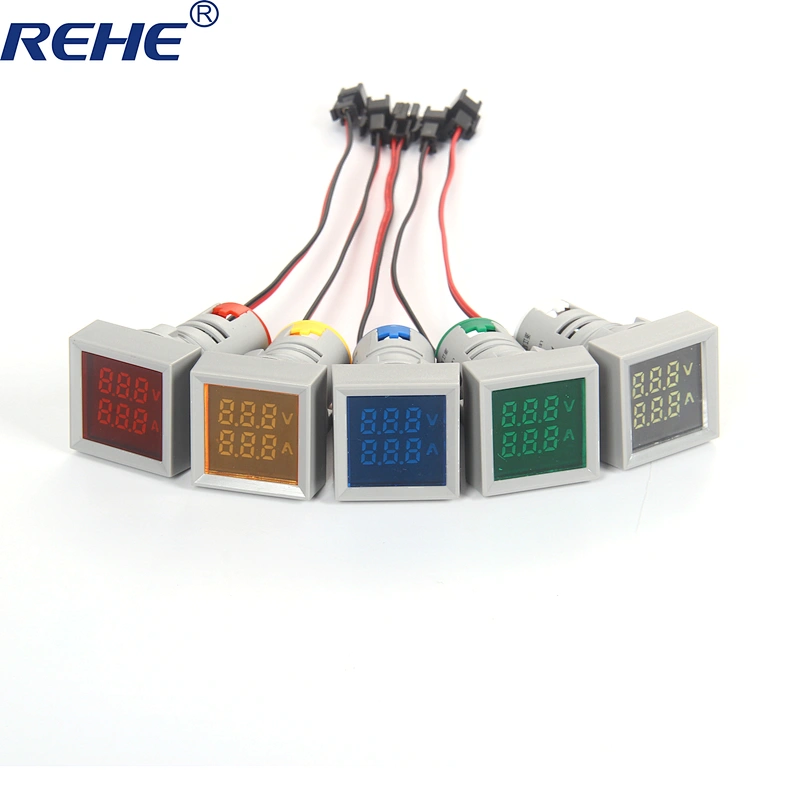

- Color:Red/Green/Yellow/Blue/White
- Sample rate:About 1time/s
- Input circuit power loss:<2VA
- No input signal hint message:Display 00.0 V display 00.0 HZ display 00.0
- Display Type:Digital Only
- Phase:Single Phase
- Brand Name:REHE
- Model Number:REHE- AD101-22VAM
- Measuring Energy Range:0-100A 50-500V
- Accuracy Class:± 2% A V
- Output Voltage:AC 50-380V
- Operating Temperature:-25℃~+55℃
- Dimensions:21.75mm*22mm*51.69mm
1. Model:

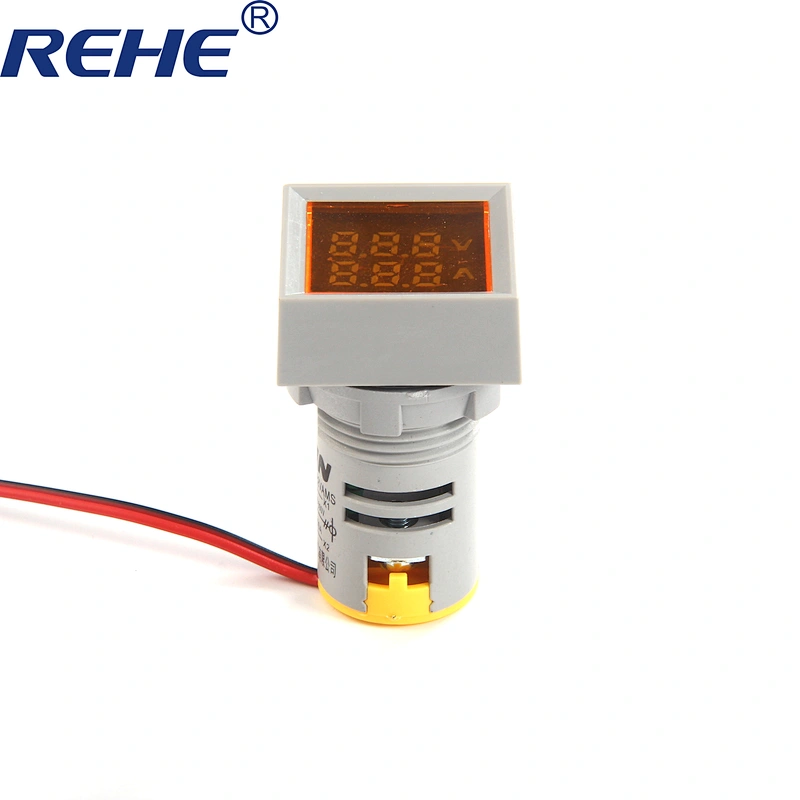

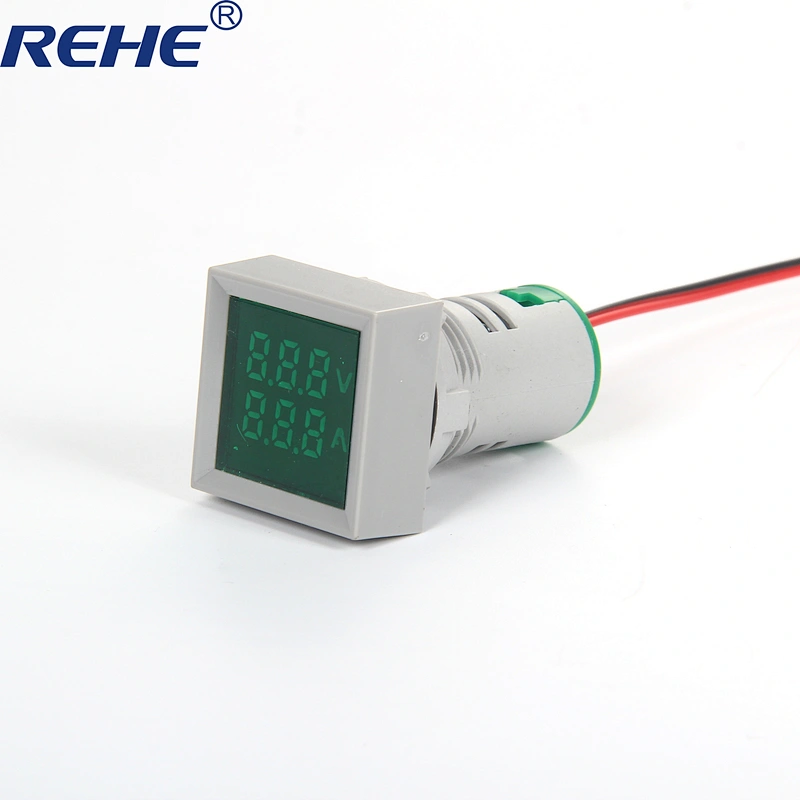

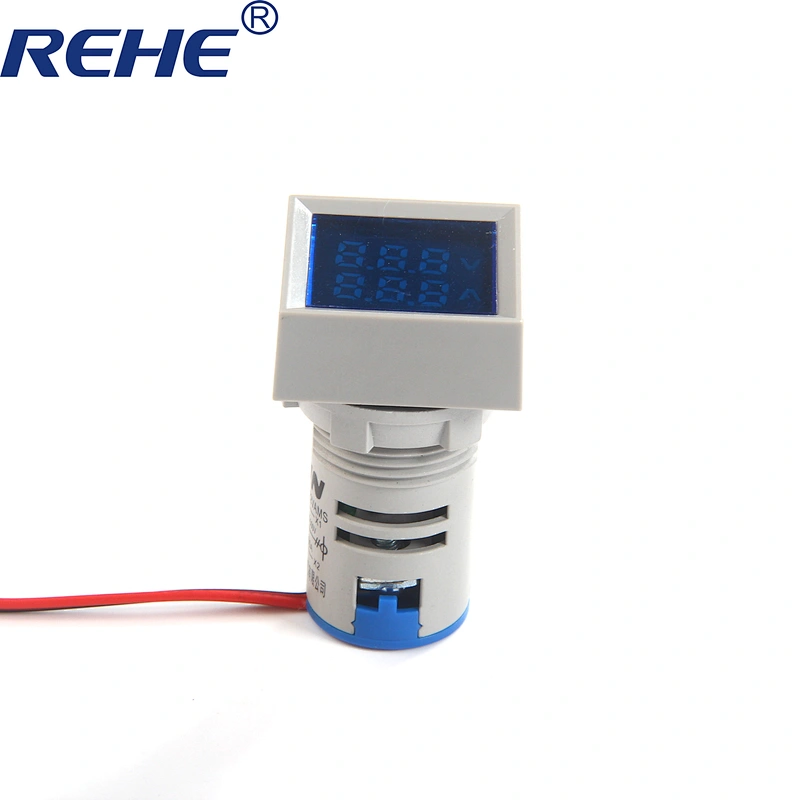

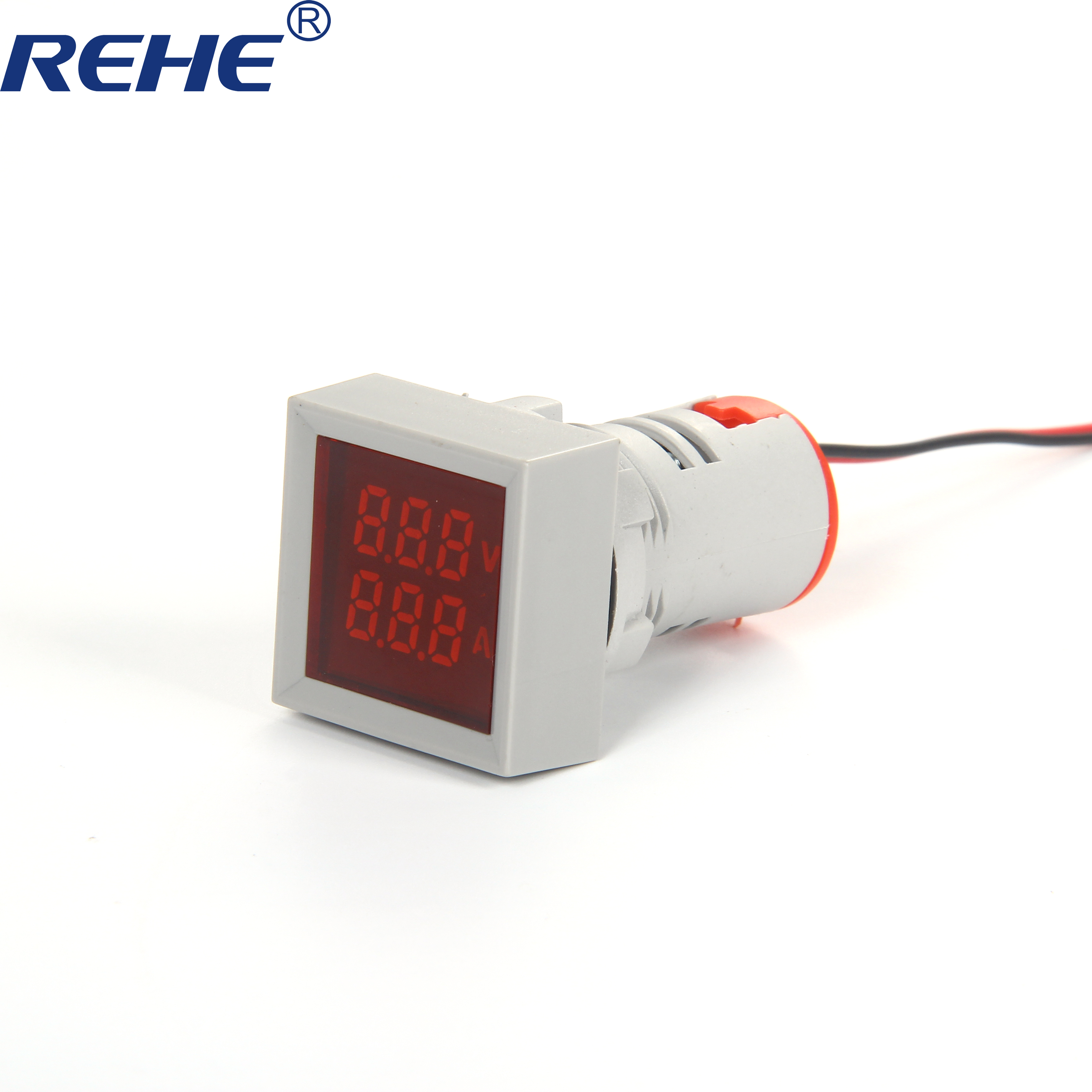

22mm diameter indicator light (pilot light) Volmeter
2. Features:
Lens Material:PC;
Lighting Source:LED;
Color of lamps:R-red, Y-yellow, B-blue, G-green, O-orange, W-white;
Volt:50V--500V;
Color of Lens:Red, Orange, Blue, Green
Nature of supply:AC ;
Rated Temp:T90;
Life of continuous working:Typically over 30,000 hours. The end of life for a lamp is not usually a sudden failure;
Certification:ISO9001, VDENEC, CE, EMC, CQC, CCC,ROHS;
Reasonable price and efficient services.
3. Main technical parameters
Environmental Temperature:-25℃~+55℃;
Working under vibration frequency 2-80Hz,acceleration at 0.7g;
Relative Air Humidity:≤98%;
Pollution rank is three grade and installation category is III;
Protection Degree:Head IP65(OEM could be IP67);
Voltage of working frequency:2.5kV (AC valid value), 1min;
Leakage Index:CT1≥100;
Frequency:AC 50-60Hz
| Type | Indicator Lights volmeter |
| Input Voltage | 10-600V |
| Color | Red, Orange, Blue, Green ,White |
| Diameter | 22mm |
| Life | ≥30,000h |
| Brightness | ≥60cd/Square Meters |
| Lamp Body Material | Plastic |
| Beam Angle | 360° |
| Color | Red/Green/Yellow/White |
| Certifications | Certifications CE |
