- Voltage measuring range:AC 50-500V
- Frequency compatibility range:50-60 HZ

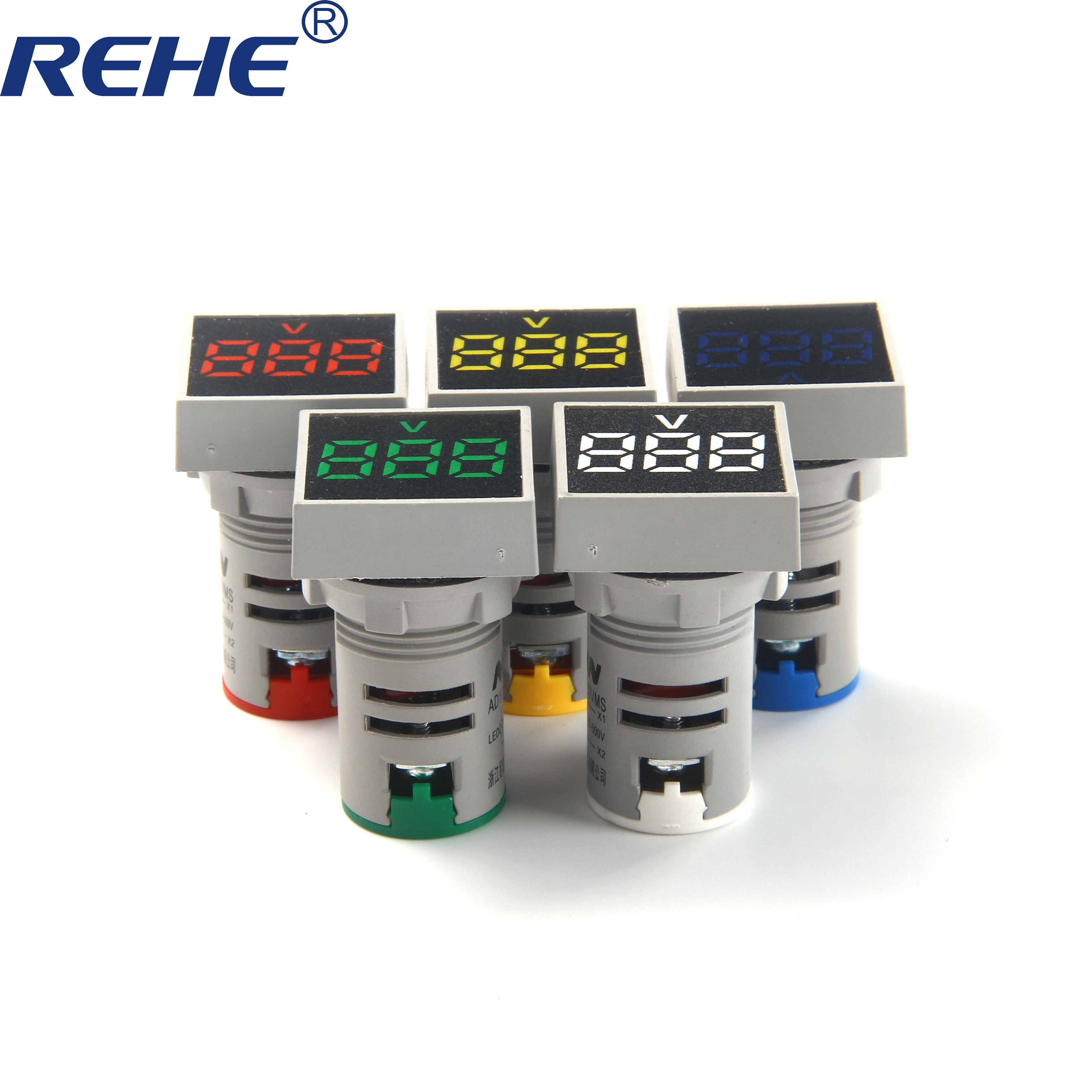

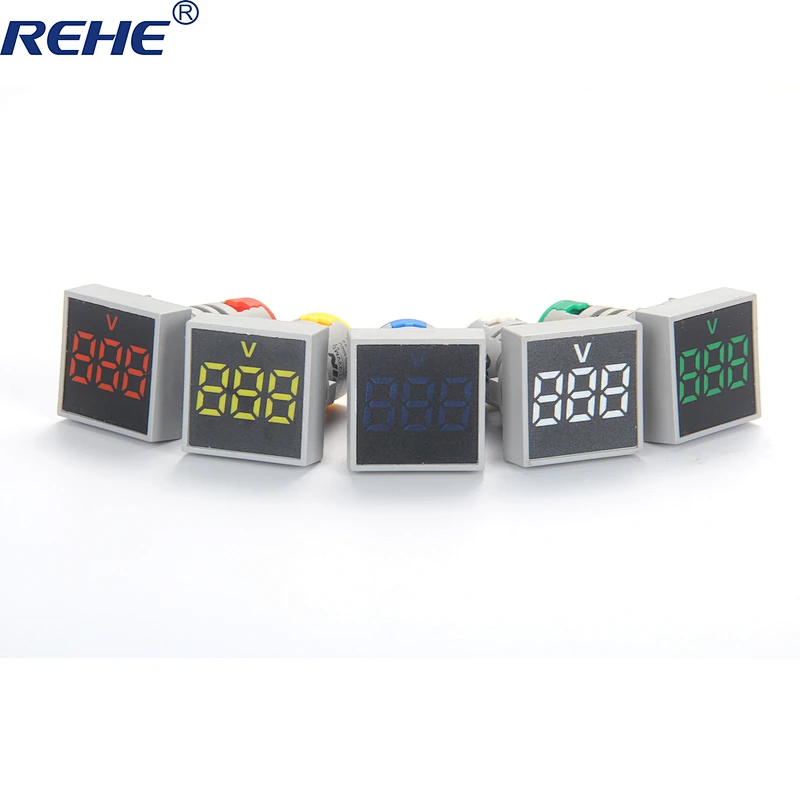

- Color:Red/Green/Yellow/Blue/White
- Accuracy:2% ± V
- Display resolution:1V
- Sample rate:About 1time/s
- Input circuit power lo:<2VA
- Display Type:Digital Only
- Brand Name:REHE
- Model Number:RH- AD101-22VMS
- Operating Temperature:-25℃~+55℃
- Dimensions:22mm
1. Model:

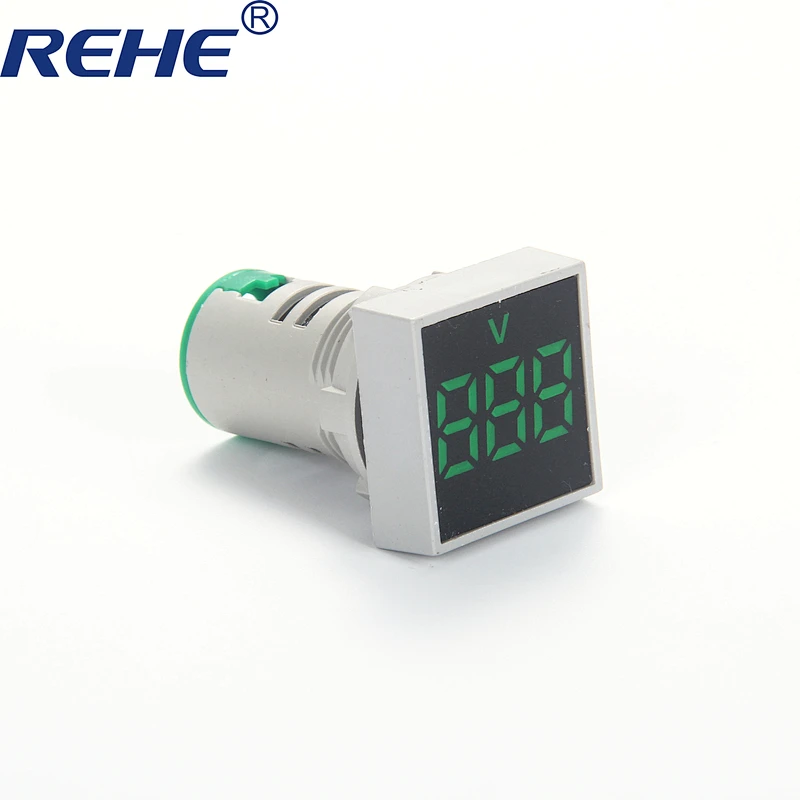

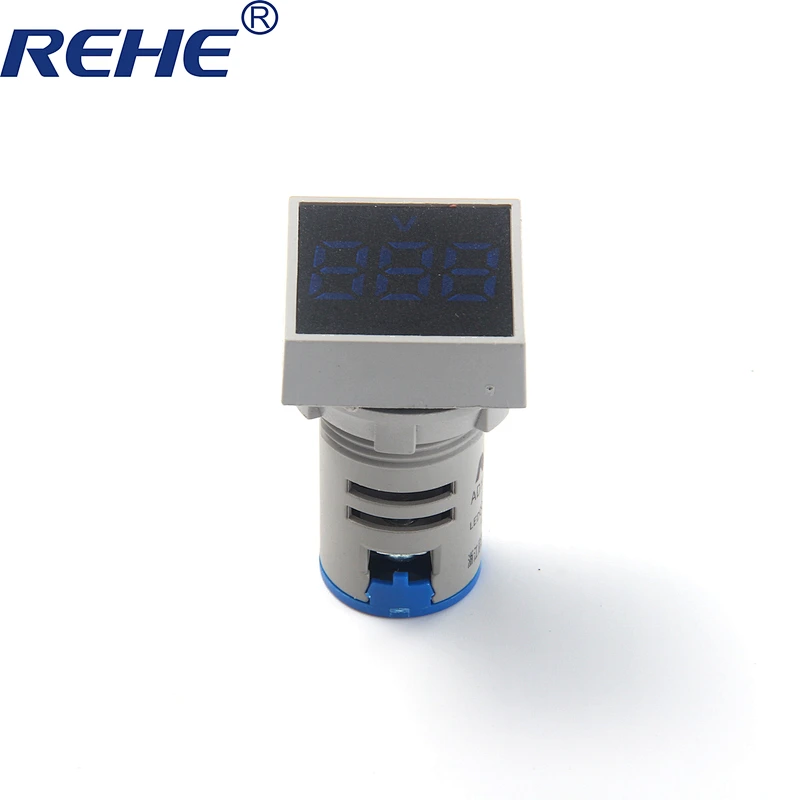

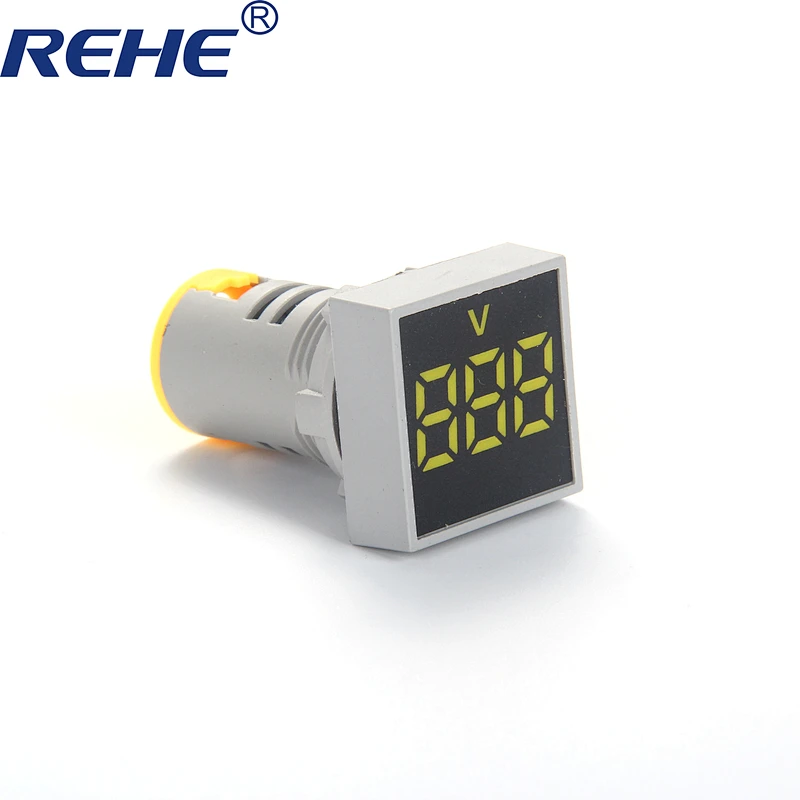

AD101-22VMS indicator light (pilot light) Volmeter
2. Features:
Lens Material: PC;
Lighting Source: LED;
Color of lamps: red, yellow, blue, green, orange, white;
Volt.20V--500V;
Color of Lens: Red, Orange, Blue, Green
Nature of supply: AC ;
Rated Temp : T90;
Life of continuous working: Typically over 30,000 hours. The end of life for a lamp is not usually a sudden failure;
Certification: ISO9001, CE,
Reasonable price and efficient services.
3. Main technical parameters
Environmental Temperature : -25℃~+55℃
Working under vibration frequency 2-80Hz,acceleration at 0.7g;
Relative Air Humidity: ≤98%;
Pollution rank is three grade and installation category is III;
Protection Degree: Head IP65(OEM could be IP67);
Voltage of working frequency: 2.5kV (AC valid value), 1min;
Leakage Index: CT1≥100;
Frequency: AC 50-60Hz
| Type | REHE-AD101-22VMS |
| Place of origin | Zhejiang Province,China(Mainland) |
| Brand name | REHE |
| Mounting diameter | 22mm |
| Voltage measuring range | AC 50-500V |
Frequency compatibility range | 50-60HZ |
| Color | Red Green Yellow Blue White |
| Accuracy | 2% ±V |
| Display resolution | 1V |
| sample rate | About 1 time/s |
| Input circuit power loss | <2VA |
| No input signal hint message | Display 000 |
Notice : Can not used in the electric environment with frequency conversion, high frequency, strong harmonic interference signal.
