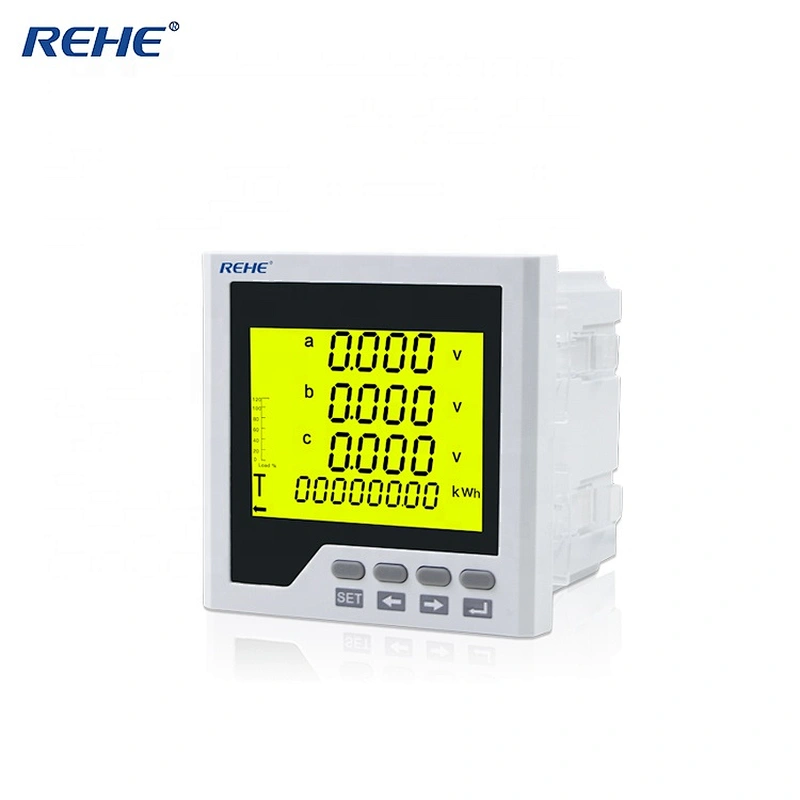

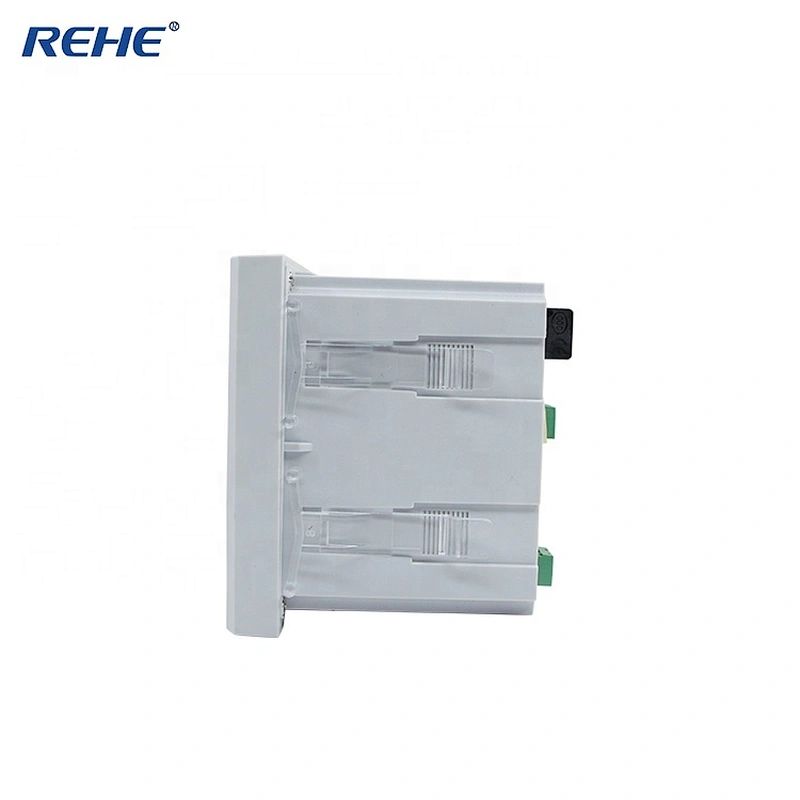

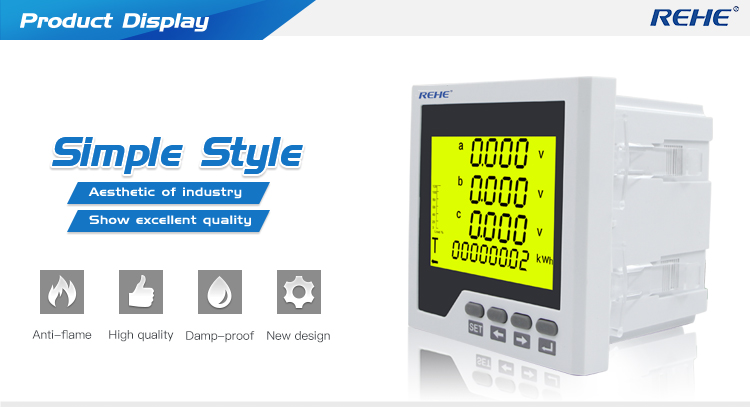

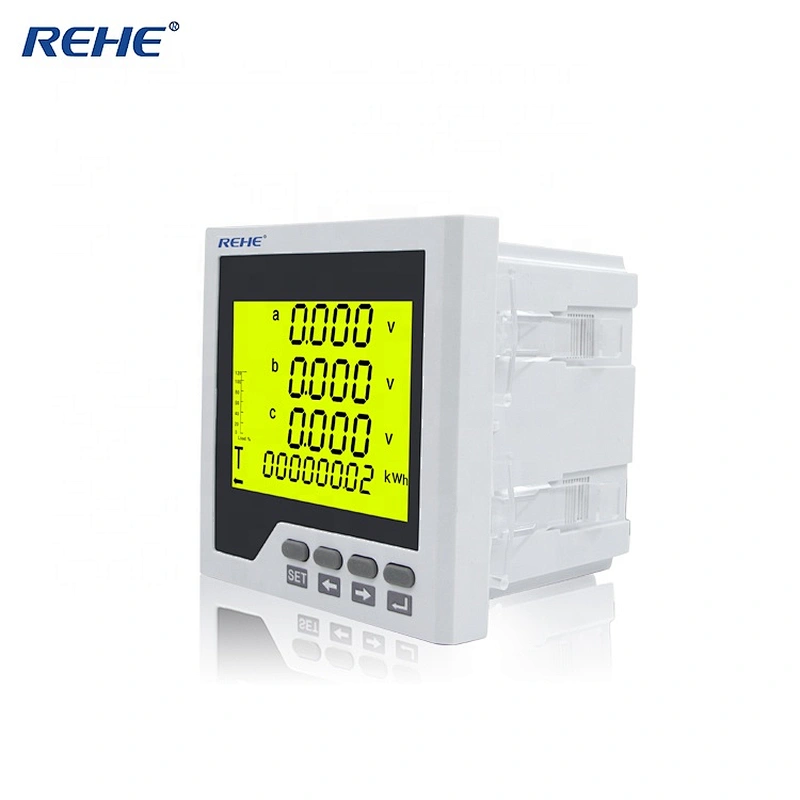

Slim type amp,volt,hz 96*96mmThree Phase LCD Multi-function digital panel Power Meter with RS485 alarm RH-3FHD3Y

Slim type amp,volt,hz 96*96mmThree Phase LCD Multi-function digital panel Power Meter with RS485 alarm RH-3FHD3Y

Model NO.: RH-3FHD3Y
Price:: US $ 60.00-70.00 / piece
Minimum order quantity: 1 piece
Supply Ability: 5000 piece / Week
Country of Origin: Ningbo/Shanghai /Yiwu

Quantity:

Product Description

Place of Origin:CN;ZHE
Display Type:Digital Only
Brand Name:REHE
Model Number:RH-3FHD3Y
Measuring Range:0-9999
Accuracy Class:0.5
Supply Voltage:AC 220V or AC /DC 85~265V
Operating Temperature:-10 ℃~+55 ℃

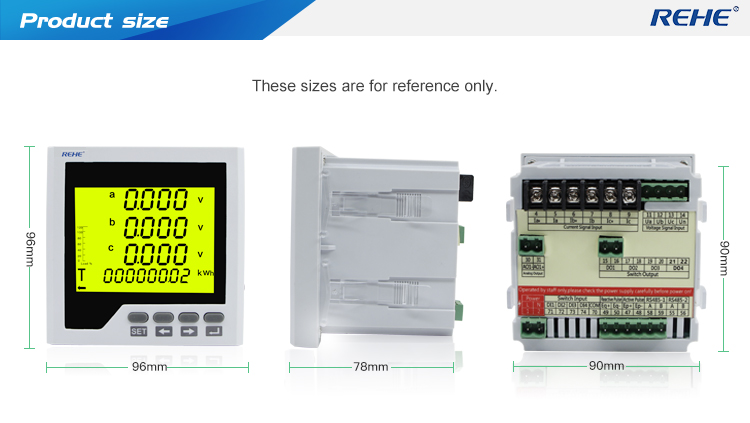

Dimensions:96*96mm
OEM:Yes
Warranty:3 years
Color:White or Black (Optional)

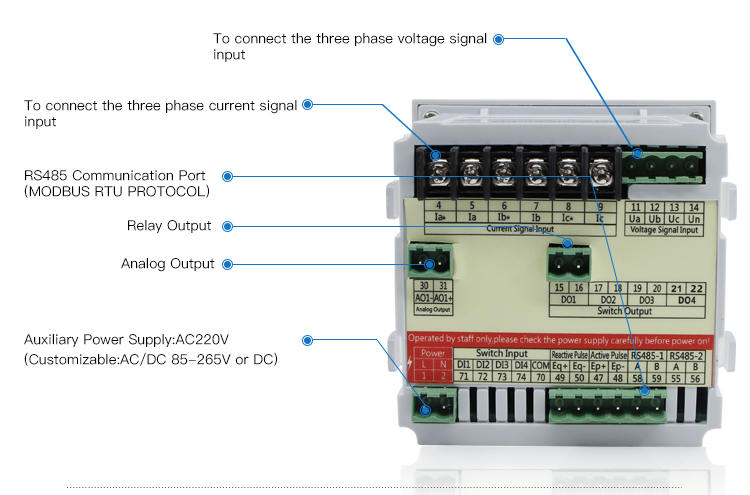

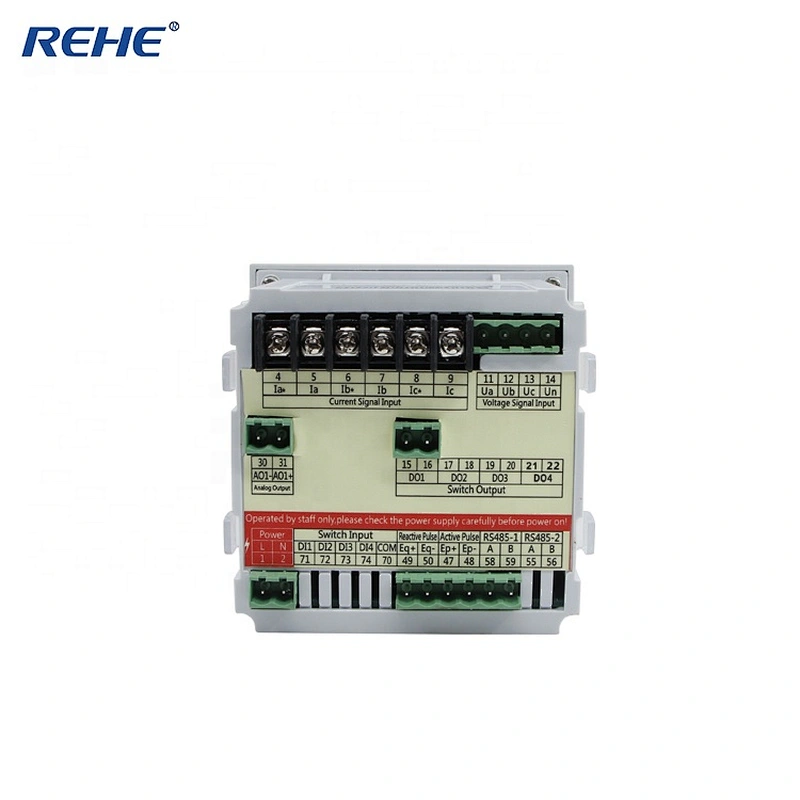

Wiring:3P3W or 3P4W
Auxiliary power:AC 220V or AC/DC 85~265V(Optional))
Signal input:AC 5A 0-500V 50Hz( Default)
Communication:RS485 Port MODBUS-RTU (Default)
Transmission output:0/4~20mA or 0~5/10V
Switch output:4 ways be Available
Product name:Intelligent 96*96mmThree Phase Multi-function Meter RH-3D3Y

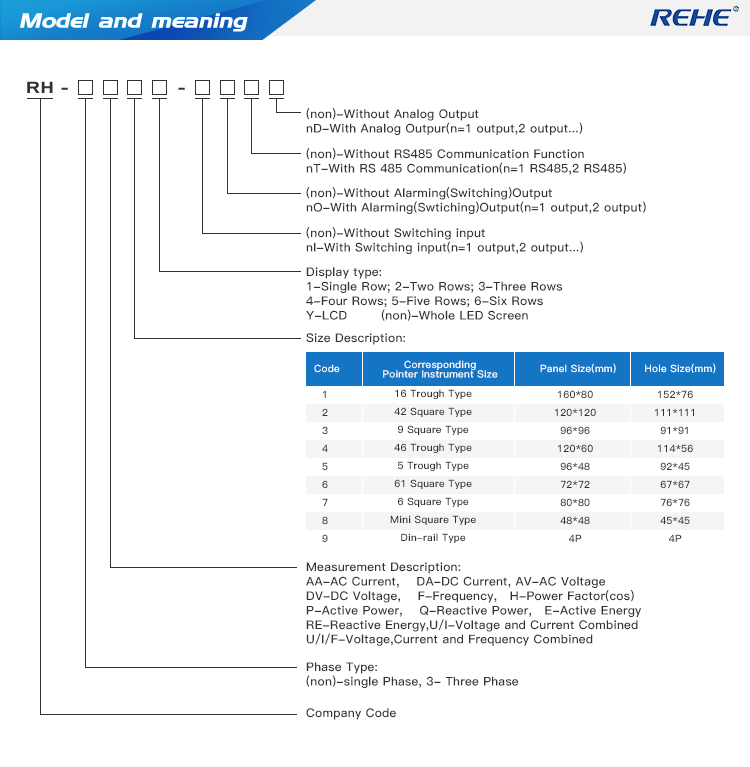

Function Model No.	Measure			Extended function(optional)				Display
Function Model No.	A,V,Hz,W,Var,Cos ,Kwh,kvar	multi-rate	Harmonic meausring	Switching input	Switching output	Analog output	RS485	LED	LCD
RH-3D2	√	-	-	4	4	4	2	√	-
RH-3D2Y	√	-	-	4	4	4	2	-	√
RH-3FD2Y	√	√	-	4	4	4	2	-	√
RH-3HD2Y	√	-	√	4	4	4	2	-	√
RH-3FHD2Y	√	√	√	4	4	4	2	-	√
RH-3D3	√	-	-	4	4	4	2	√	-
RH-3D3Y	√	-	-	4	4	4	2	-	√
RH-3FD3Y	√	√	-	4	4	4	2	-	√
RH-3HD3Y	√	-	√	4	4	4	2	-	√
RH-3FHD3Y	√	√	√	4	4	4	2	-	√
RH-3D7	√	-	-	4	2	2	1	√	-
RH-3D7Y	√	-	-	4	2	2	1	-	√
RH-3FD7Y	√	√	-	4	2	2	1	-	√
RH-3HD7Y	√	-	√	4	2	2	1	-	√
RH-3FHD7Y	√	√	√	4	2	2	1	-	√
RH-3D6	√	-	-	4	2	2	1	√	-
RH-3D6Y	√	-	-	4	2	2	1	-	√
RH-3FD6Y	√	√	-	4	2	2	1	-	√
RH-3HD6Y	√	-	√	4	2	2	1	-	√
RH-3FHD6Y	√	√	√	4	2	2	1	-	√
