- OEM:Yes
- Warranty:1 year
- Color:Black

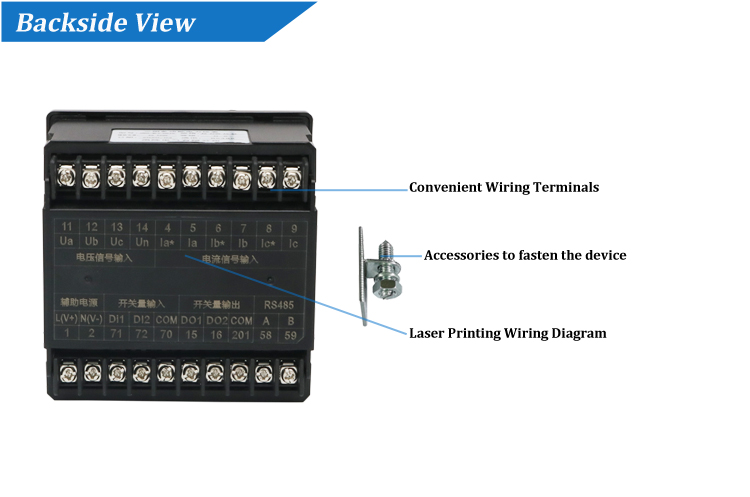

- Wiring:3P3W or 3P4W
- Auxiliary power:AC 220V or AC/DC 85~265V(Optional))
- Signal input:AC 5A 0-500V 50Hz( Default)
- Communication:RS485 Port MODBUS-RTU (Default)

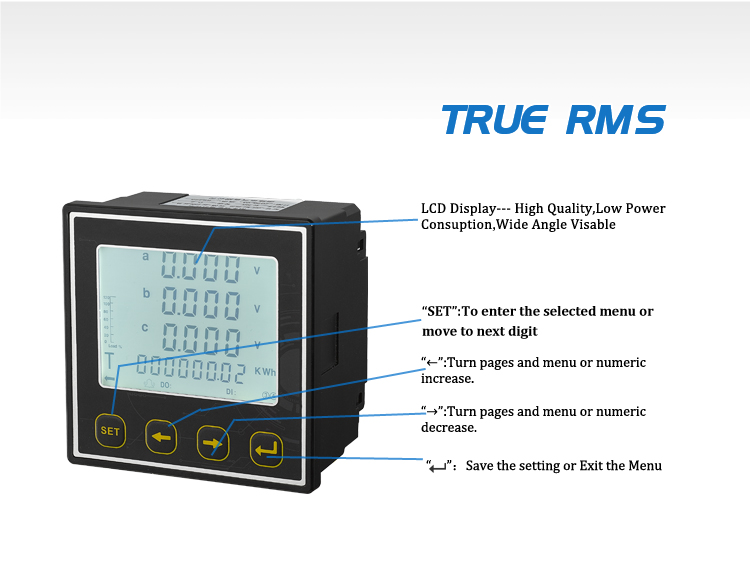

- Display:LED Intelligent Digital
- Accuracy:0.5% FS
- Function:Multifunciton
- Display Type:Digital Only
- Place of Origin:CN;ZHE
- Brand Name:REHE

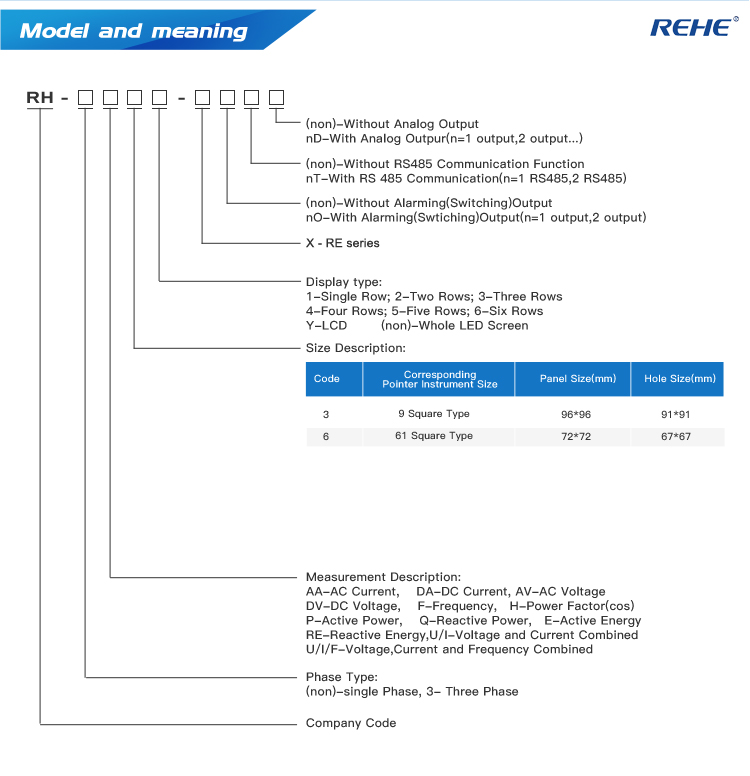

- Model Number:RH-3D3YX
- Measuring Range:0-9999
- Accuracy Class:0.5
- Supply Voltage:AC 220V or AC /DC 85~265V
- Operating Temperature:-10 ℃~+55 ℃
- Dimensions:96*96mm
Function
Model No. | Measure | function | Display | |
| A,V,Hz,W,Var,Cos ,Kwh,kvar | RS485 | LED | LCD | |
RH-3D3YX | √ | 1 | - | √ |
| RH-3D6YX | √ | 1 | - | √ |

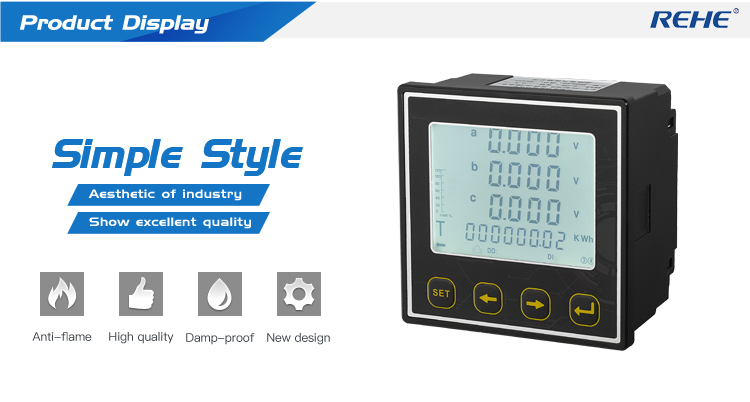

New Design Cheap price digital panel meters,ammeter,voltmeter,frequency meter,multifunciton power meter,it's widely used in industry area and also complete cabinet
Send Message
Related Products

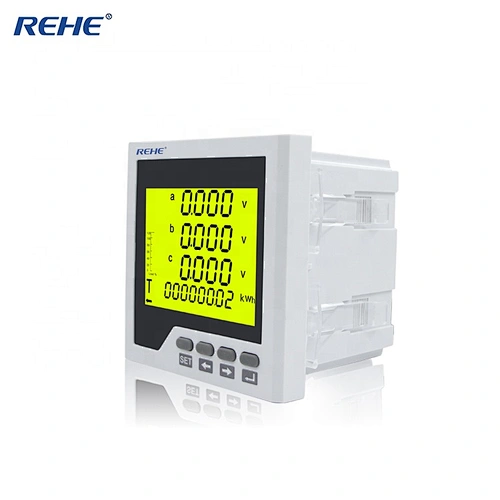

Model NO. RH-3D6Y
