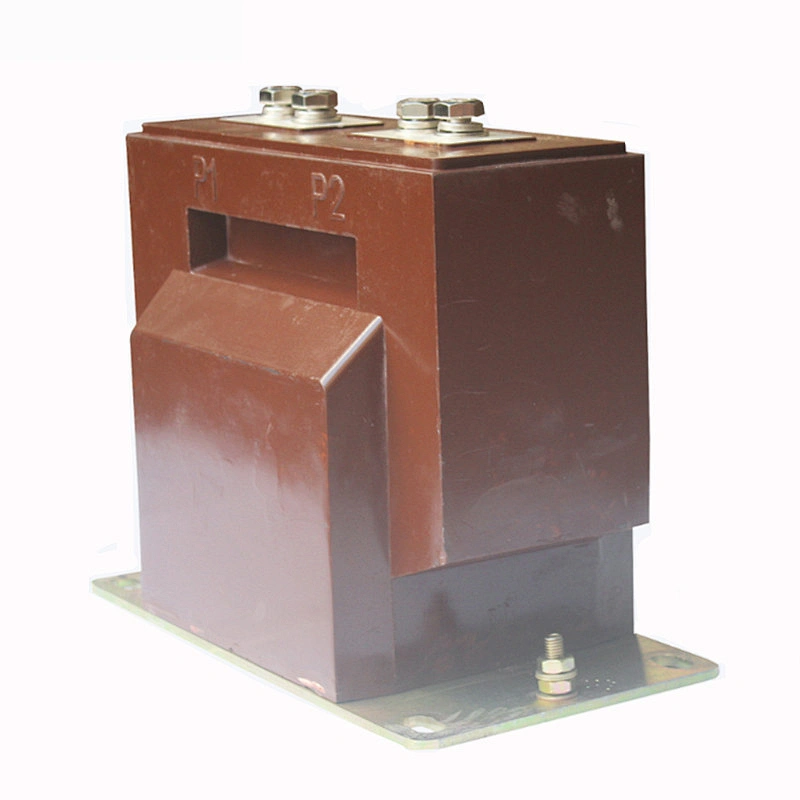

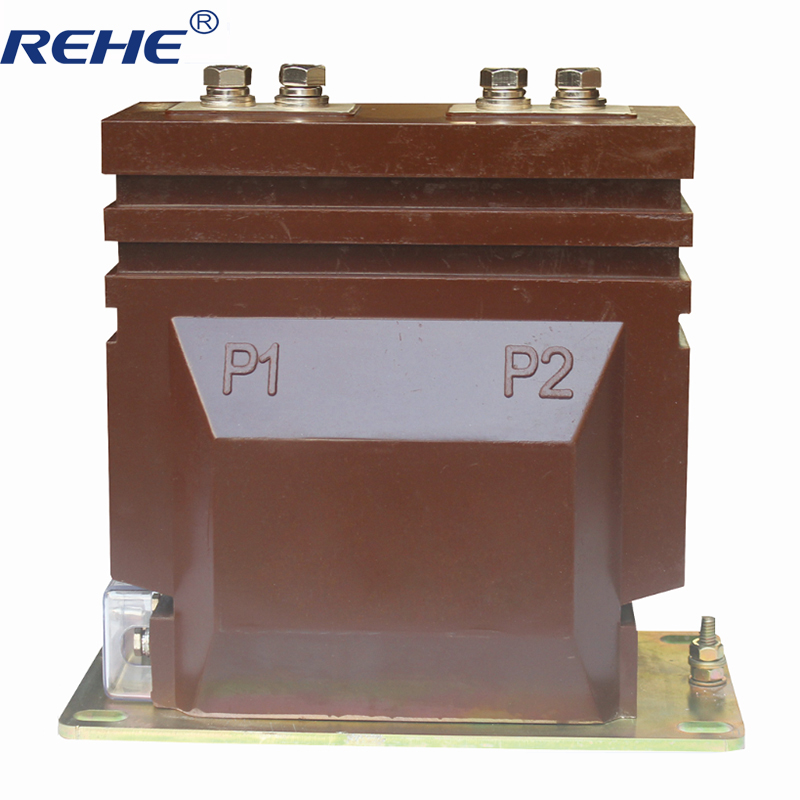

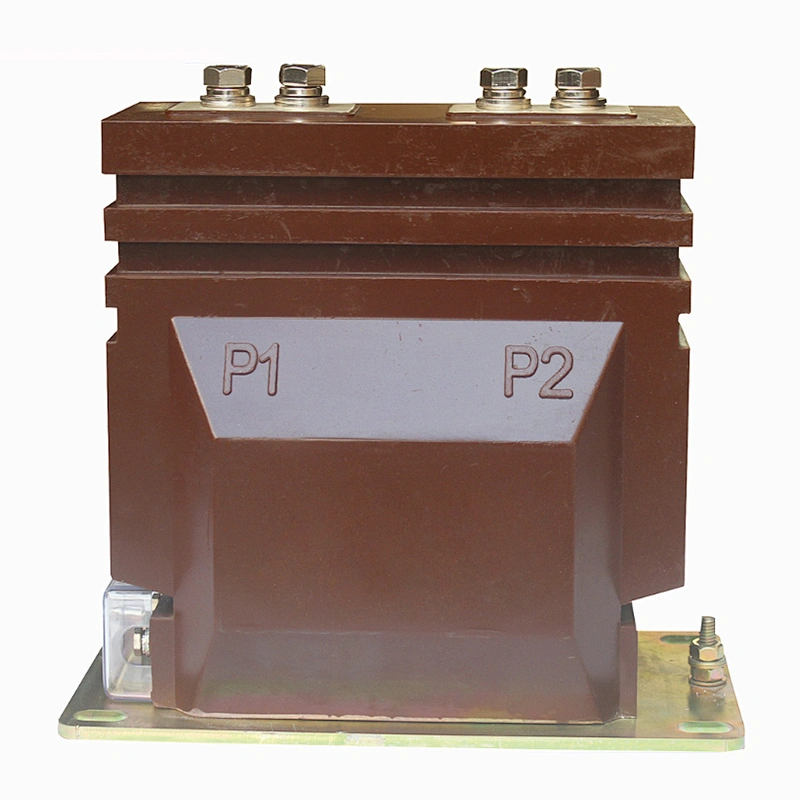

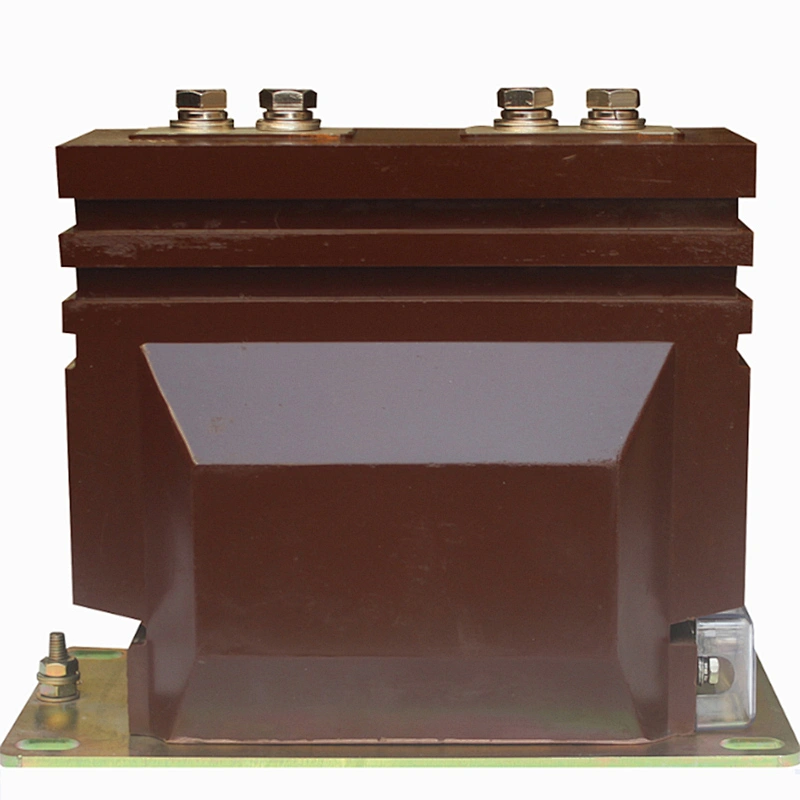

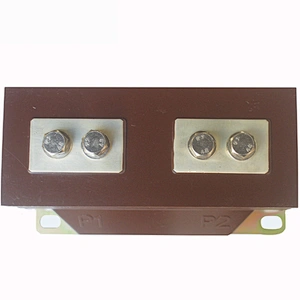

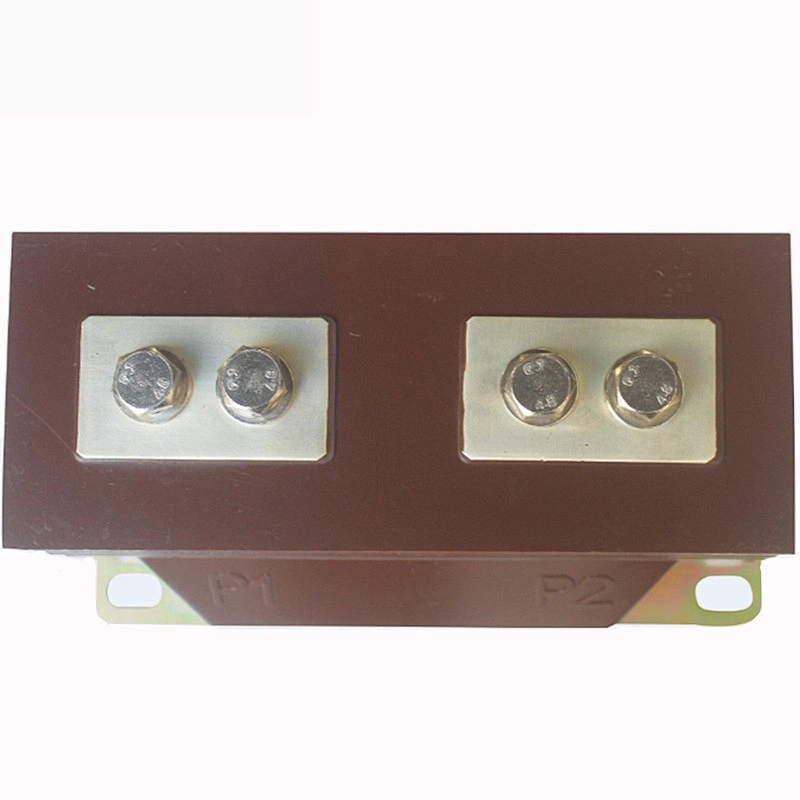

LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT
LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT
LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT
LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT
LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT
LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT
LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT
LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT
LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT

LZZBJ6-10Q Current Transformer Indoor Single-Phase epoxy resin casting type CT

Model NO.
LZZBJ6-10Q
Price:
US $ 80.00-80.00 / piece
Delivery
FOB Shanghai, Ningbo
Minimum order quantity
1 piece
Supply Ability
5000 piece / Week
Country of Origin
Zhejiang, China
Quantity:
  • Color:Brown
  • Product name:Indoor Single Phase Epoxy Resin Casting Type Cureent Transformer
  • Material:Copper
  • Frequency:50Hz/60Hz
  • Keyword:Current Transformer
  • Temperature:-5℃~+40℃
  • Application:Metering Protection
  • Specifications:5/5-500/5
  • Secondary current:5A/1A
  • Certification:CE
  • Usage:Current
  • Phase:Single
  • Coil Structure:TOROIDAL
  • Coil Number:AUTOTRANSFORMER
  • Brand Name:REHE
  • Model Number:LZZBJ6-10Q

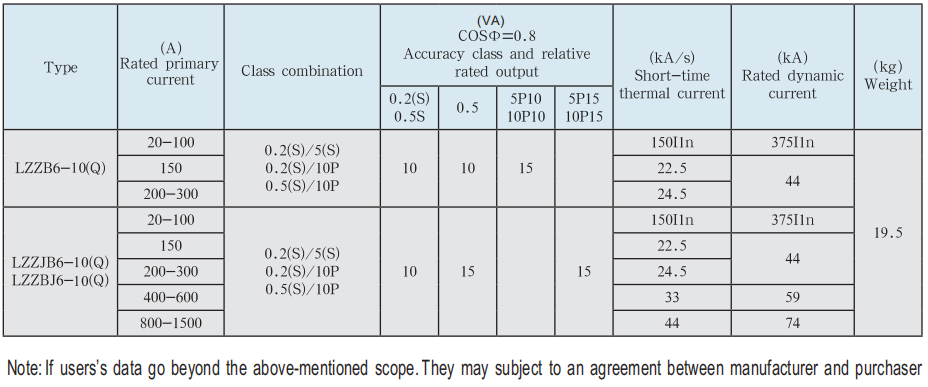

Technical data

The current transformers are in accordance
with GB20840.2 and IEC61869-2 standards
Rated insulation level: 12/42/75kV
Rated frequency: 50Hz or 60Hz
Rated secondary current: 5A or 1A
Ambient temperature: -5℃~+40℃
