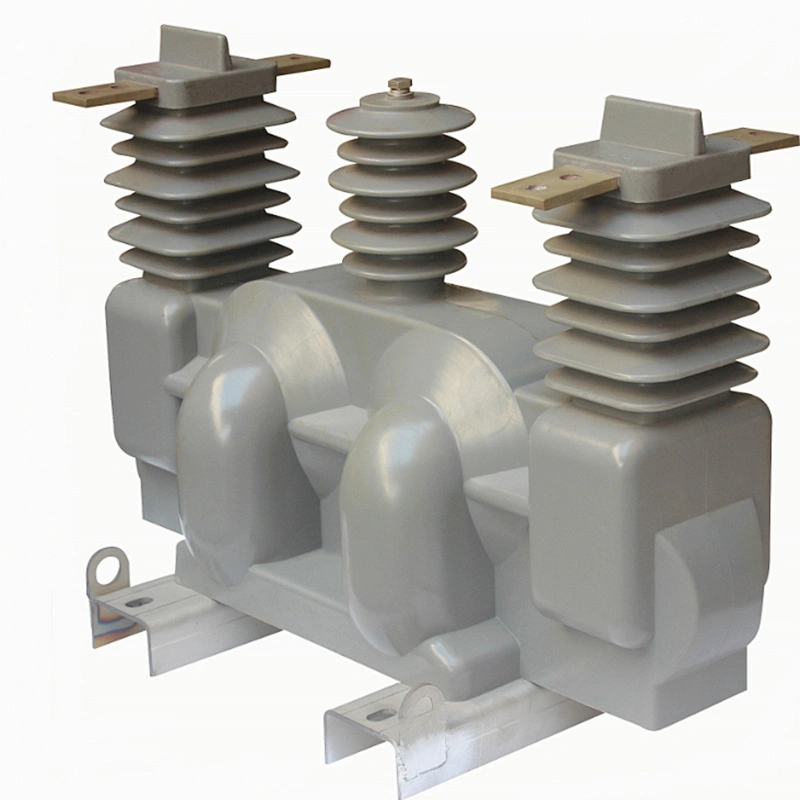

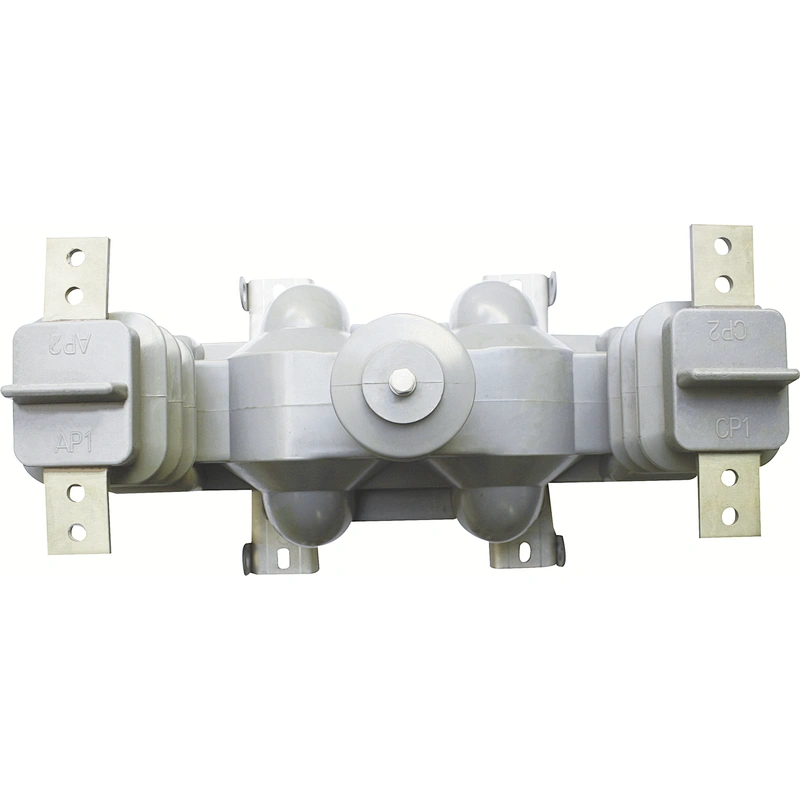

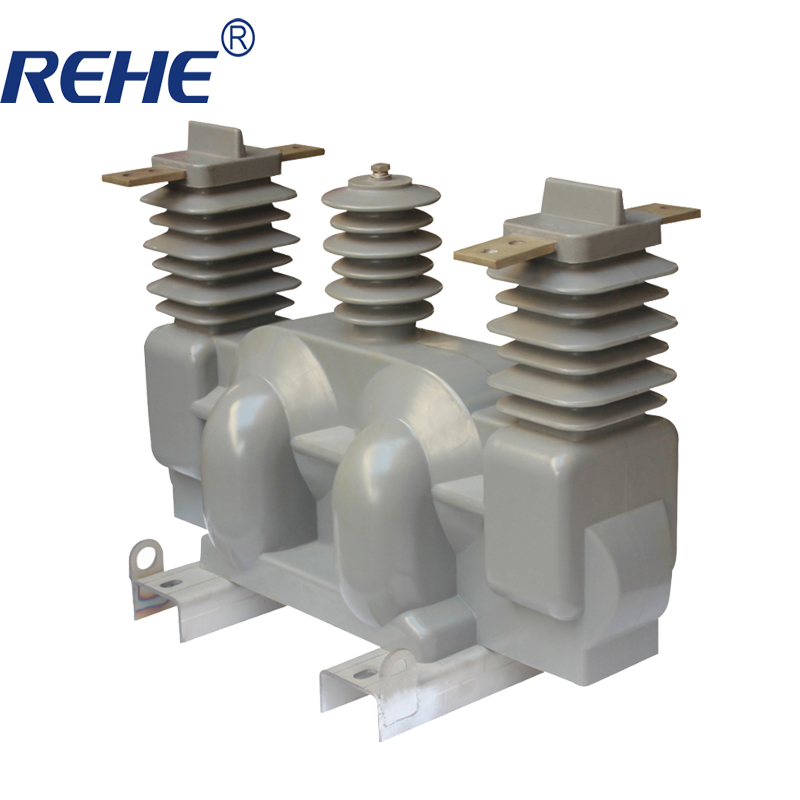

JLSZV-10W Outdoor Epoxy Resin Casting Type 10kV Three Phase Voltage and Current Combination type Transformers
JLSZV-10W Outdoor Epoxy Resin Casting Type 10kV Three Phase Voltage and Current Combination type Transformers
JLSZV-10W Outdoor Epoxy Resin Casting Type 10kV Three Phase Voltage and Current Combination type Transformers
JLSZV-10W Outdoor Epoxy Resin Casting Type 10kV Three Phase Voltage and Current Combination type Transformers
JLSZV-10W Outdoor Epoxy Resin Casting Type 10kV Three Phase Voltage and Current Combination type Transformers

JLSZV-10W Outdoor Epoxy Resin Casting Type 10kV Three Phase Voltage and Current Combination type Transformers

Model NO.
JLSZV-10W
Price:
US $ 500.00-510.00 / pieces
Delivery
FOB Shanghai, Ningbo
Minimum order quantity
10 pieces
Supply Ability
8000.0 pieces / Month
Country of Origin
Zhejiang, China
Quantity:
  • Product name:Outdoor Three Phase Combination Type Transformer
  • Material:Copper
  • Keyword:Dry Type Transformer
  • Application:Potential
  • Specifications:150/5 0.2S 10000/0.1 0.2
  • Rated Secondary Current:AC150/5A
  • Certification:CE
  • Frequency:50/60 Hz
  • Rated insulation level:7.2/32/60kV
  • Usage:Current and Power
  • Phase:Three
  • Coil Structure:TOROIDAL
  • Coil Number:AUTOTRANSFORMER
  • Brand Name:REHE
  • Model Number:JLSZV-10W


Technical data

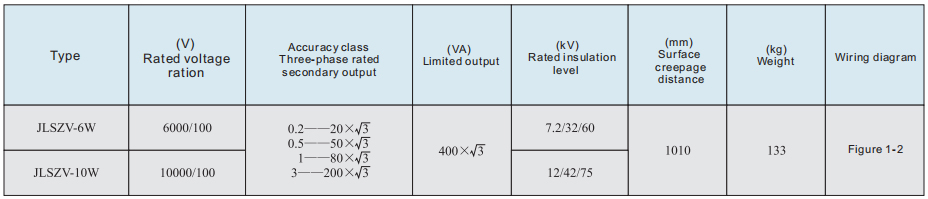

Parameter of voltage part
Parameter of current part

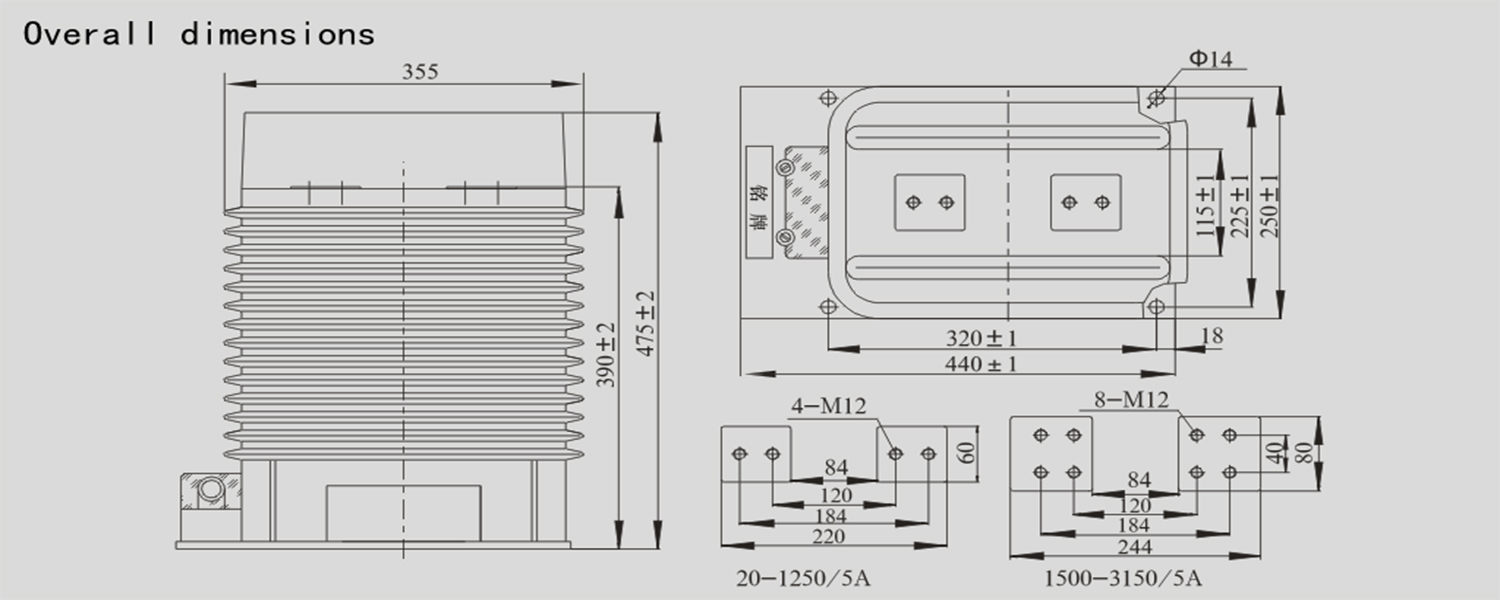

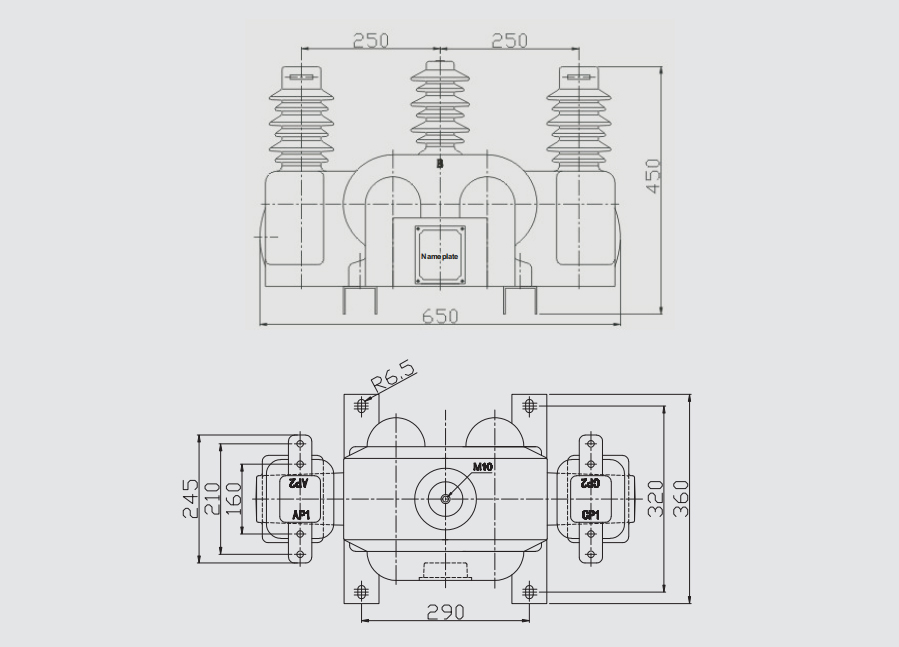

Overall dimensions

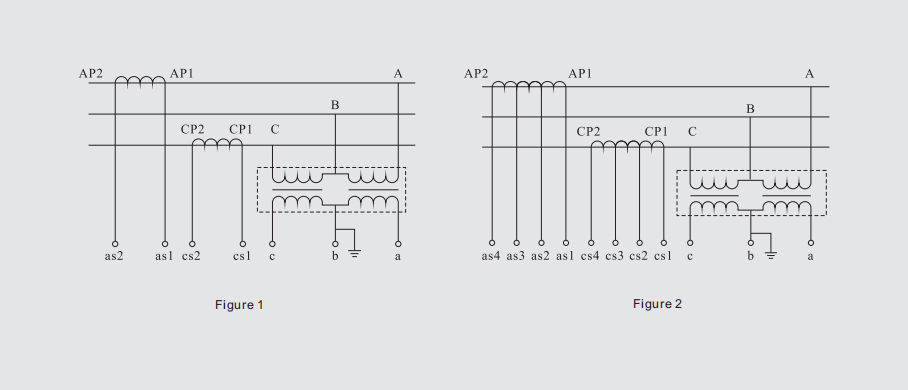

Wiring diagram


JLSZV-10W150/5A 0.2S 10000/0.1kV1PC510USD/PCTwo components without cable
