- Color:Grey/Black (Can be customized)
- Enclosure Material:Fire Resistance
- Phase:Single phase
- Size of mounting hole:91x91MM
- Display:3 rows LED
- Additional function:RS485,Relay Output
- Warranty:3 Years
- Range:AC5A 500V 50Hz
- Brand:REHE
- Auxiliary Power:AC220V
- Display Type:Digital Only
- Model Number:RH-UIF33
- Measuring Range:0~9999
- Accuracy Class:0.5
- Supply Voltage:AC220V
- Operating Temperature:-10℃~+55℃
- Dimensions:96X96MM

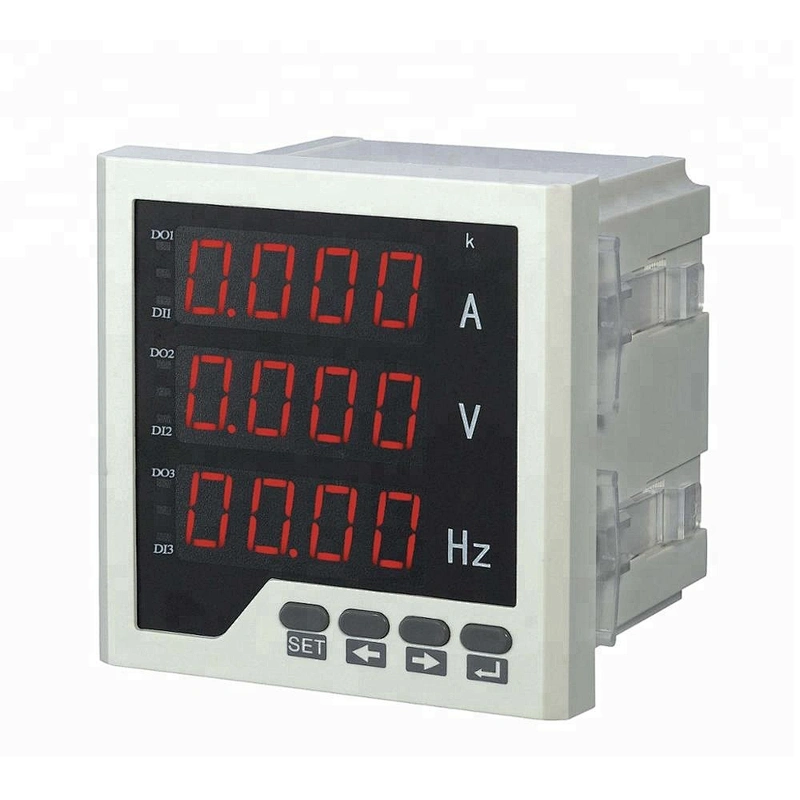

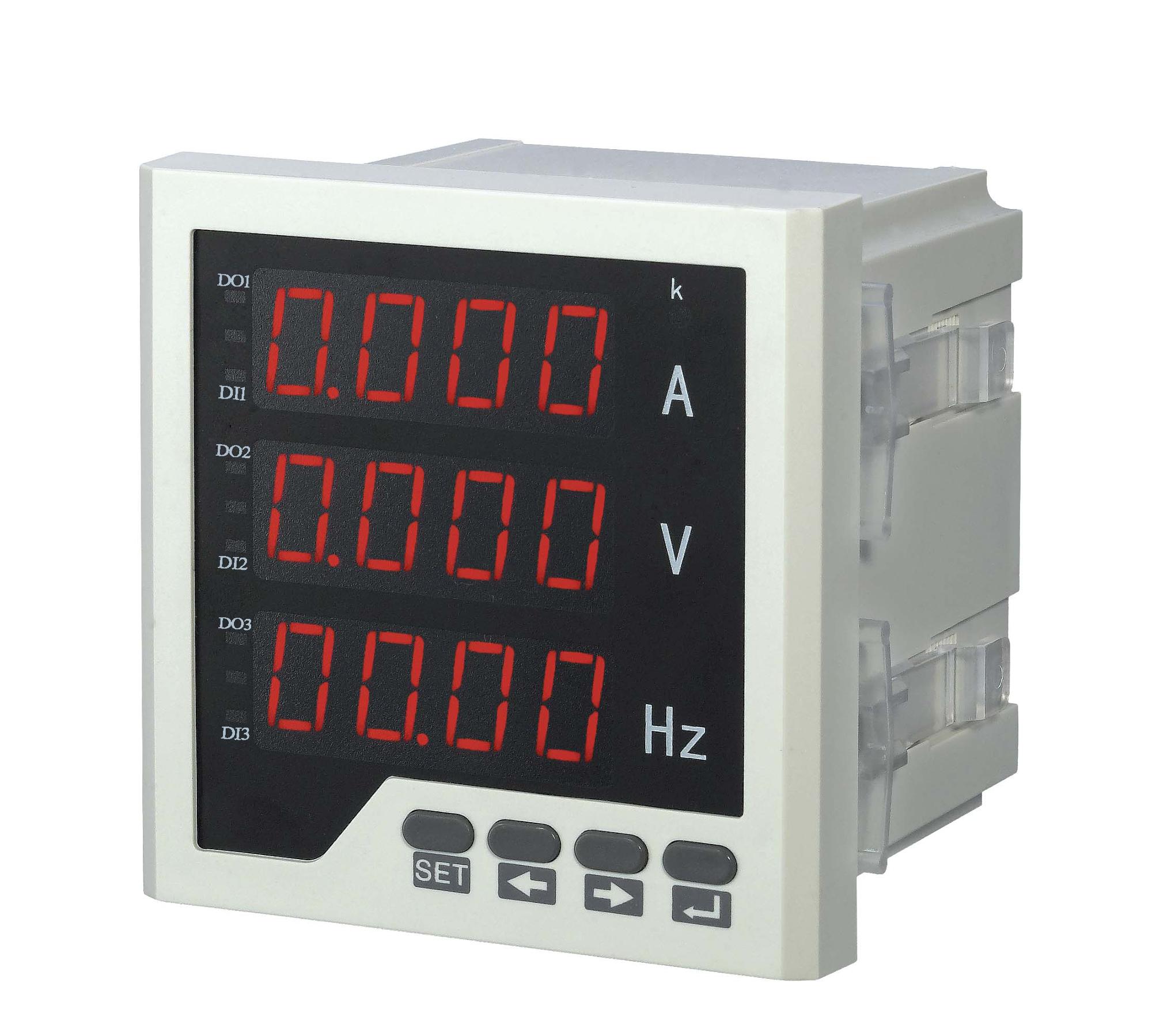

3 Row LED Display AC Ammeter Volt Amp Watt Meter (RH-3UIF33)
Feature
- Factory Supply
- Certificate: CE, ISO9001
- Service: ODM/OEM is available
- Support for RS-485 Modbus-RTU (optional function)
Product Description
 | Product Name | Volt Amp Watt Meter |
| Model no. | RH-UIF33 | |
| Panel size | 96x96mm | |
| Installation size | 91x91mm | |
| Material | ABS plastic | |
| Color | Grey, Black |
| Model NO. | Display | Frame size(mm) | Hole size(mm) |
| RH-UIF23 | Digital 3-row LED | 120x120 | 111x111 |
| RH-UIF33 | Digital 3-row LED | 96x96 | 91x91 |
| RH-UIF63 | Digital 3-row LED | 72x72 | 67x67 |
| RH-UIF73 | Digital 3-row LED | 80x80 | 76x76 |
| RH-UIF2Y | Digital 3-row LCD | 120x120 | 111x111 |
| RH-UIF3Y | Digital 3-row LCD | 96x96 | 91x91 |
| RH-UIF6Y | Digital 3-row LCD | 72x72 | 67x67 |
| RH-UIF7Y | Digital 3-row LCD | 80x80 | 76x76 |
