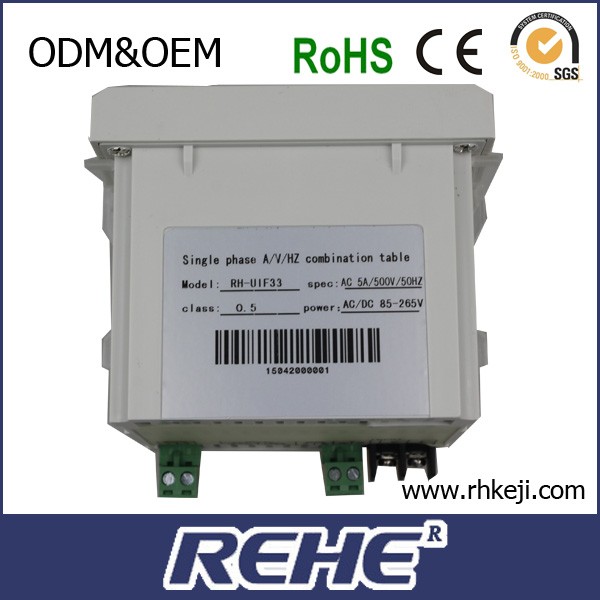

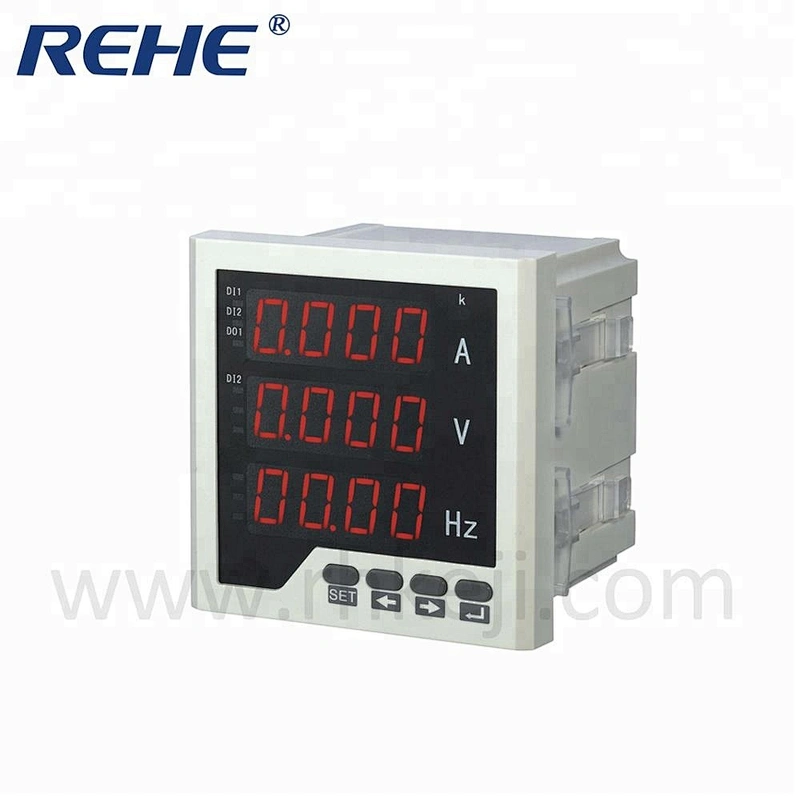

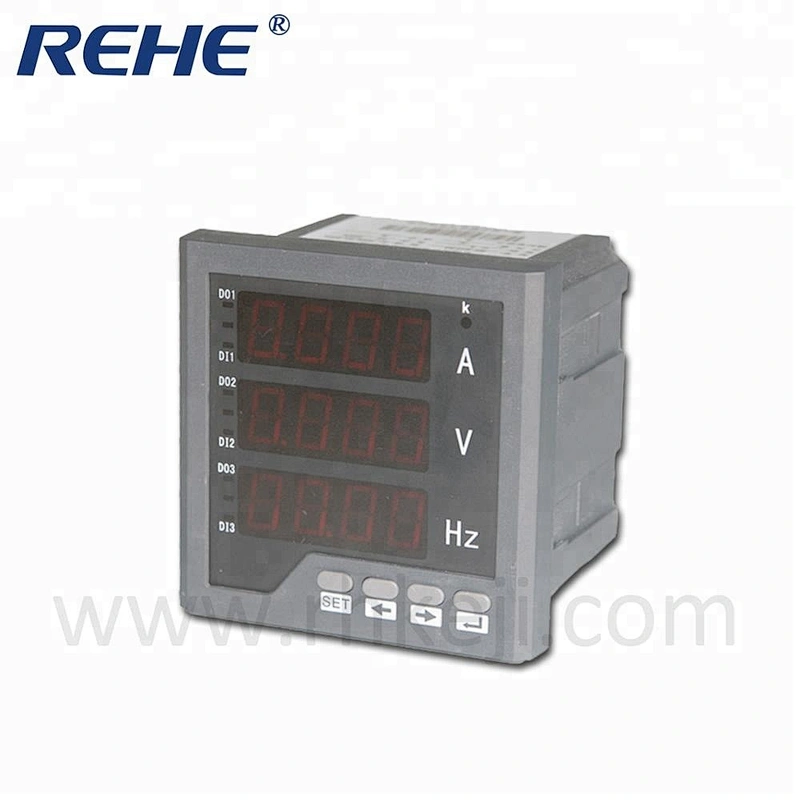

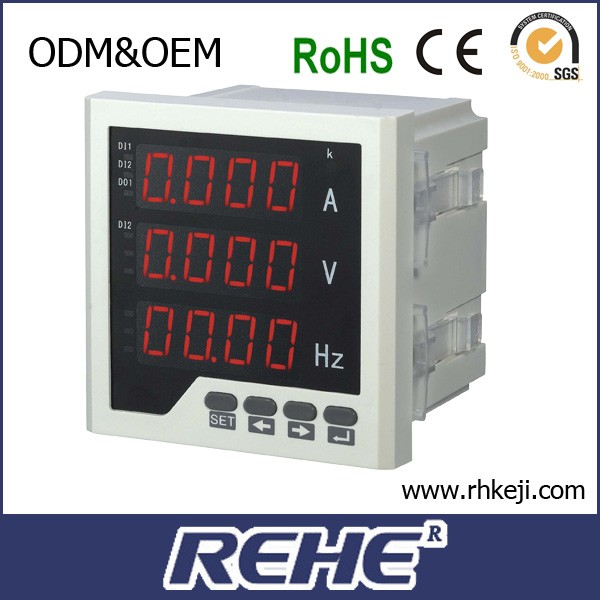

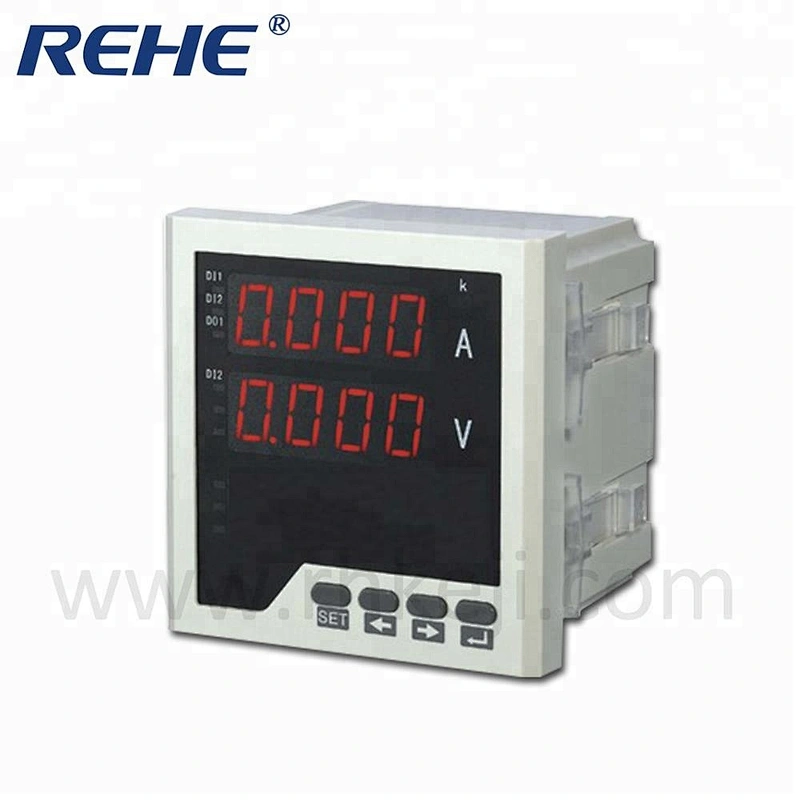

RS485 Single Phase AC Digital Voltage Current And Frequency Combination Meter

Quantity:

Specification

Model	RH-UIF33
Measure range	Current,voltage,frequency
Measure voltage	AC 0-500 V
Measure current	AC 0~5 A(can add CT)
Measure Frequnecy	45~65 Hz

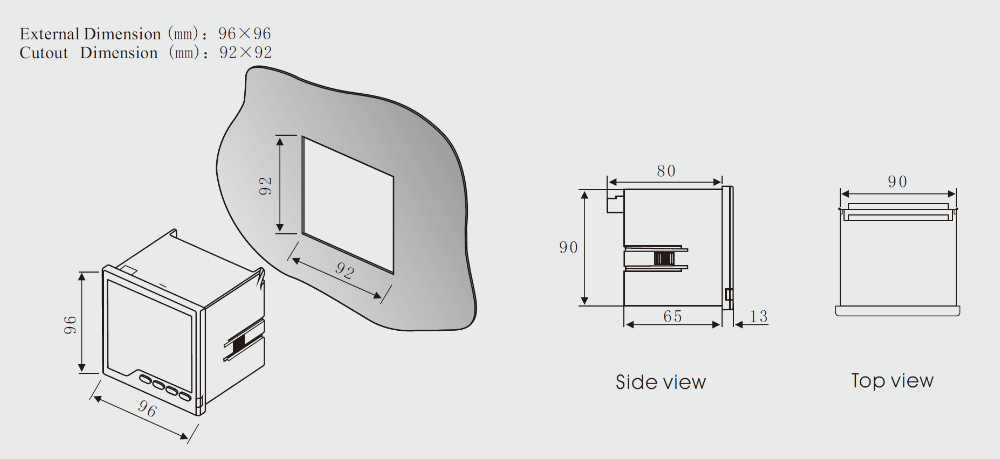

Frame size	96x96mm
Hole size	92x92mm

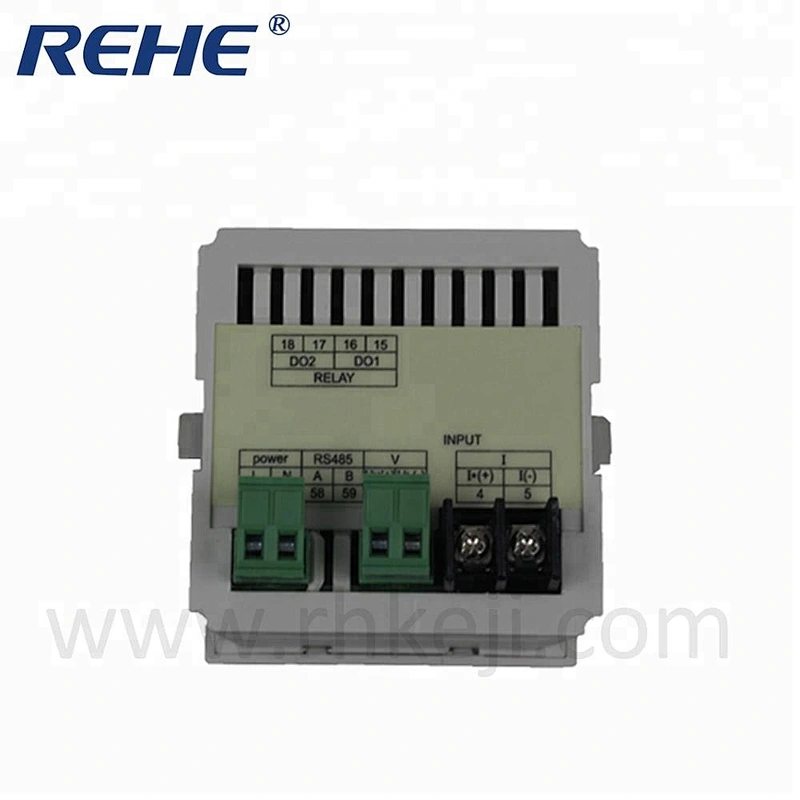

Function	RS485,Switch input,output,analog output
Power supply	AC/DC 80~270V,AC380V, AC100V

Product Description

RH-UIF series High precision measurement measurement of three phase AC voltage and current and frequency.

Provide the digital tube display, local data query.

Digital display ,can set the ratio of voltage and current.

1.Communication interface 1 way RS-485 communication, Modbus-RTU protocol

2.Baud rate: 1200~9600bps, the default 2400bps

3.Switch input support 4 stem node input.

4.The switch output support 3 relay output, capacity: AC 250V/5A, DC 30V/5A

5.Transmission output support 3 analog output: 0/4~20mA or 0~5/10V

Intelligent Digital Three phase Ampere and Voltage and Frequency Combined Meter(9999 display programmable)
Model NO.	Display	Frame size（mm）	Hole size(mm)	Remark
RH-UIF23	Digital Single-row LED	120x120	111*111
RH-UIF33	Digital Single-row LED	96*96	92*92
RH-UIF63	Digital Single-row LED	72*72	68*68
RH-UIF73	Digital Single-row LED	80*80	76*76
RH-DUI51	Digital Single-row LED	48*96	45*92	DC,amp,volt
RH-3UIF23	Digital Three-rows LED	120*120	111*111
RH-3UIF33	Digital Three-rows LED	96*96	92*92
RH-3UIF63	Digital Three-rows LED	72*72	68*68
RH-3UIF73	Digital Three-rows LED	80*80	76*76
RH-3UIF35	Digital Five-rows LED	96*96	92*92	5 rows display
RH-3UIF2Y	Digital Three-rows LCD	120*120	111*111
RH-3UIF3Y	Digital Three-rows LCD	96*96	92*92
RH-3UIF6Y	Digital Three-rows LCD	72*72	68*68
RH-3UIF7Y	Digital Three-rows LCD	80*80	76*76
