High Quality White DIN Rail Single Phase Two Wire Digital Electric Power Meter
High Quality White DIN Rail Single Phase Two Wire Digital Electric Power Meter
High Quality White DIN Rail Single Phase Two Wire Digital Electric Power Meter
High Quality White DIN Rail Single Phase Two Wire Digital Electric Power Meter
High Quality White DIN Rail Single Phase Two Wire Digital Electric Power Meter
High Quality White DIN Rail Single Phase Two Wire Digital Electric Power Meter
High Quality White DIN Rail Single Phase Two Wire Digital Electric Power Meter
High Quality White DIN Rail Single Phase Two Wire Digital Electric Power Meter
High Quality White DIN Rail Single Phase Two Wire Digital Electric Power Meter
High Quality White DIN Rail Single Phase Two Wire Digital Electric Power Meter
High Quality White DIN Rail Single Phase Two Wire Digital Electric Power Meter

High Quality White DIN Rail Single Phase Two Wire Digital Electric Power Meter

Model NO.
RH35SR
Price:
US $ 18.98-20.13 / pieces
Delivery
FOB Shanghai, Ningbo
Minimum order quantity
20 pieces
Supply Ability
5000.0 pieces / Month
Country of Origin
Zhejiang, China
Quantity:
  • Color:White
  • Frequency:50HZ/60HZ
  • Rated voltage:220V 230V
  • Display:LCD Display
  • Pulse Constant:1000imp
  • Poles:2P
  • Communication:RS485 (communication protocol MODBUS-RTU)
  • QTY:100pcs/carton
  • Installation:DIN Rail Installation
  • Warranty:18 Months
  • Display Type:Digital Only
  • Phase:Single Phase
  • Brand Name:REHE
  • Output Voltage:220V 230V
  • Model Number:RH35SR
  • Dimensions:78*66*43mm
  • Operating Temperature:-10°C~+50°C
  • Measuring Energy Range:20(80)A
  • Accuracy Class:1.0
Technical parameter
TypeAccuracyRated voltageRated currentStarting current(A)Insulating performance
RH35SRClass 1.0

220V

230V

5(20)A 10(40)A

15(60)A 20(80)A

0.02

AC voltage 4kv for 1 minute,
1.2/50us waveform impulse voltage 6kv.

Note

If you need different reference voltage or current specification, please advisory us.

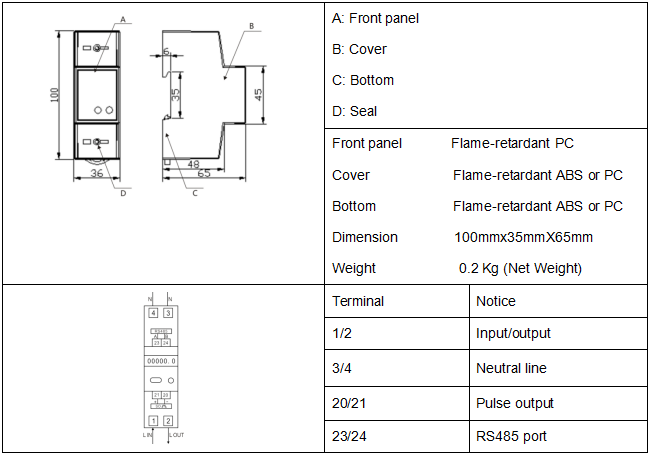

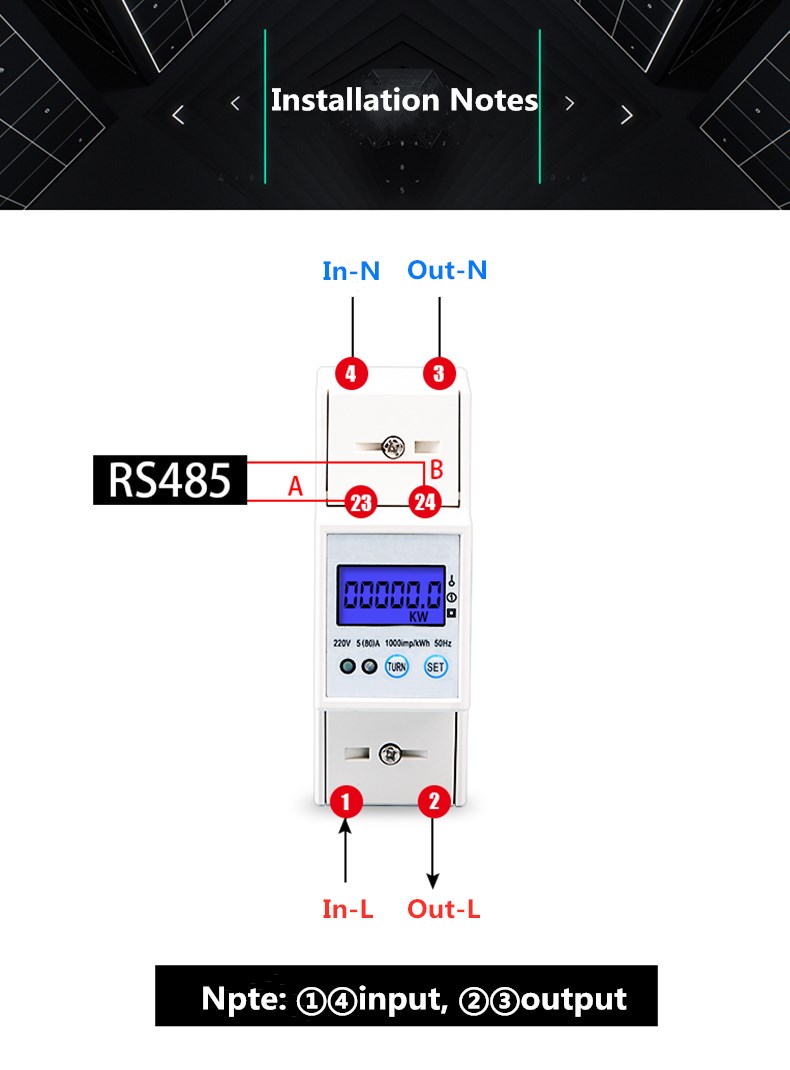

Wiring diagram

Type S
