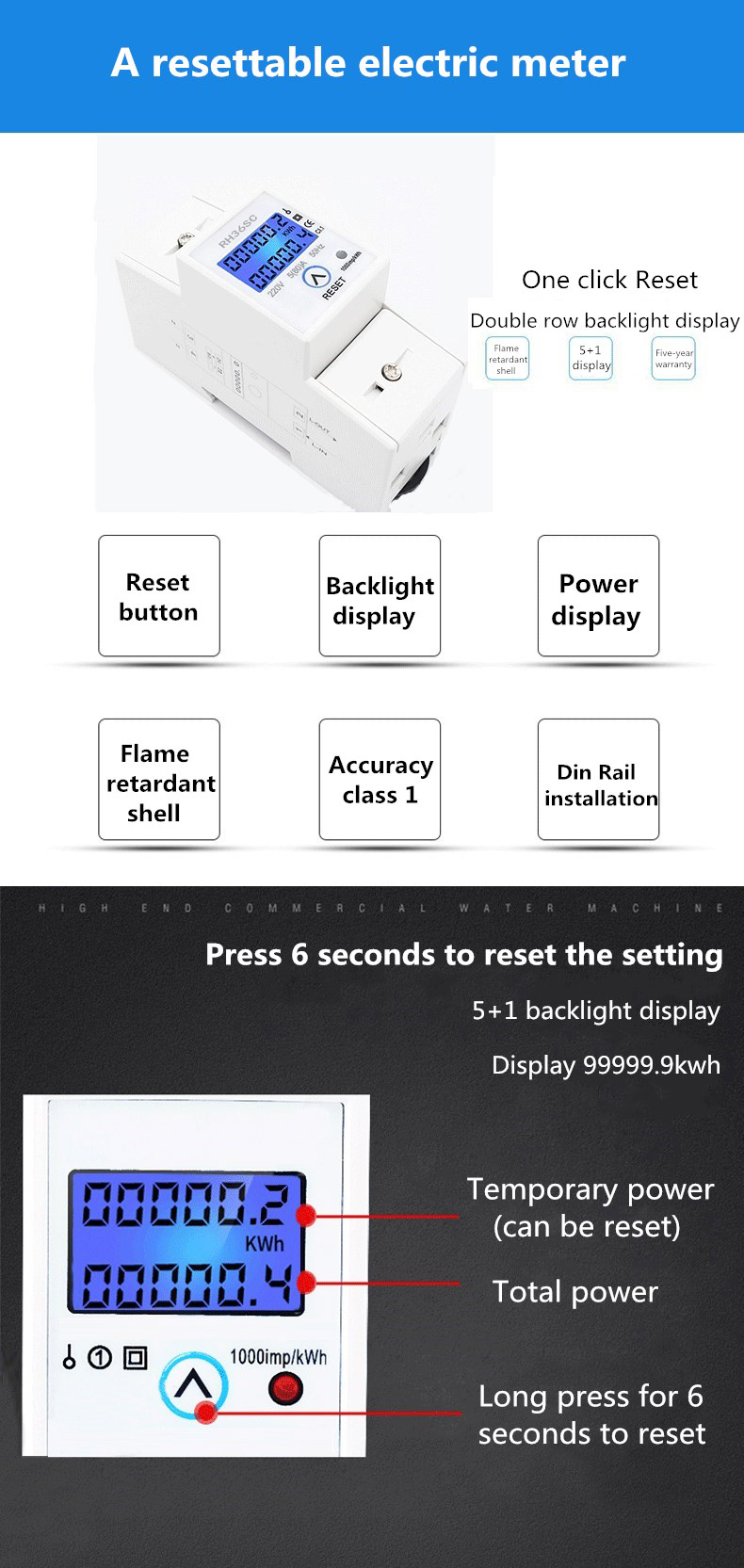

New Style Single Phase Digital Panel Power Meter A Resettable Electric Meter

New Style Single Phase Digital Panel Power Meter A Resettable Electric Meter

Model NO.: RH36SC
Price:: US $ 8.17-8.17 / piece
Delivery: FOB Shanghai, Ningbo
Minimum order quantity: 1 piece
Supply Ability: 10000 piece / Day
Country of Origin: Zhejiang, China

Quantity:

Product Description

Color:White
Frequency:50HZ/60HZ
Display:LCD Display
Poles:2P
QTY:100pcs/carton
Rated voltage:220V 230V
Pulse Constant:1000imp
Installation:DIN Rail Installation
Wiring method:Type S and type U
Warranty:18 Months
Display Type:Digital Only
Phase:Single Phase
Brand Name:REHE
Model Number:RH36SC
Dimensions:78*66*43mm
Operating Temperature:-10°C - +50°C
Measuring Energy Range:5(80)A
Accuracy Class:1.0

Technical parameter

Type

Accuracy

Rated voltage

Rated current

Starting current

Insulating performance

RH36SC

Class 1.0

220V

230V

5(20)A 10(40)A

15(60)A 5(80)A

0.04%

Frequency AC voltage 2kv lasted 1 minute, the impact voltage 6kv

Basic error

Phase balance load

0.05Ib	Cosφ=1	±1.5%
0.1Ib	Cosφ=0.5L Cosφ=0.8C	±1.5% ±1.5%
0.1Ib-Imax	Cosφ=1	±1.0%
0.2Ib-Imax	Cosφ=0.5L Cosφ=0.8C	±1.0% ±1.0%

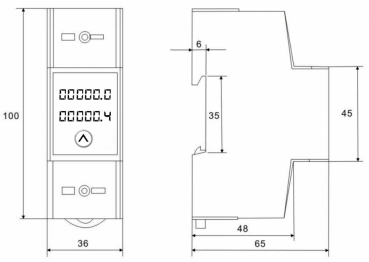

Outline and wiring

~G~URHRE4WIYE_X77~3`NMK.png XKJ)~`C[_VY]7E}70BN_MQF.png

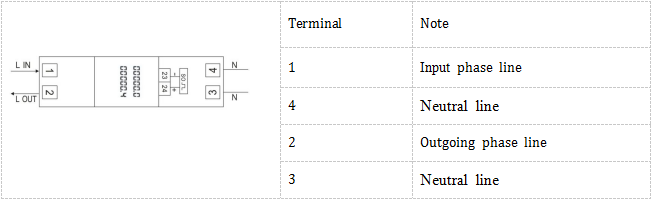

Wiring diagram

Type S

After-sales service

Within 18 months from the date of manufacture the user complies with all of above rules. If the meter still being sealed does not conform to any technical requirements of IEC61036, or of any certification of Power Department or Measuring Department, the manufacture guarantees to repair freely or to change.
