- Color:Black/White
- Warranty:3 Years
- Brand:OEM, neutral or REHE
- Phase:Single Phase

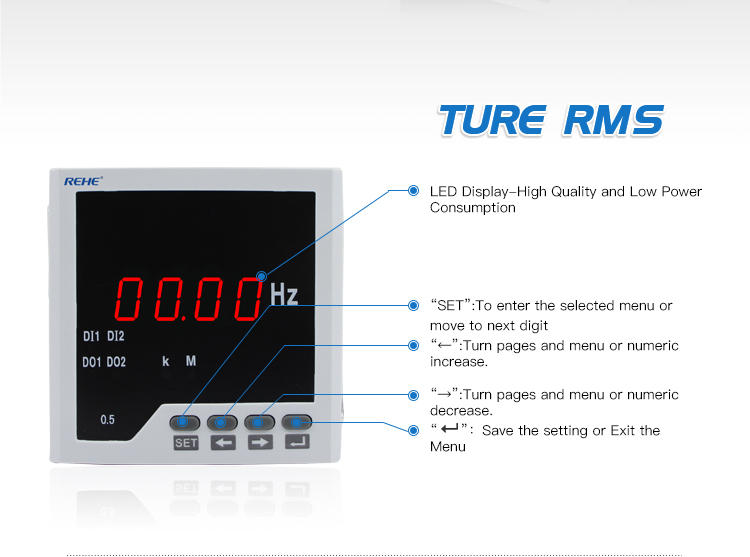

- Display:LED/LCD
- Weight:0.4KG
- Communication:RS485 Modbus-RTU
- Certificate:CE/ ISO9000
- Function:Alarm, analog output, RS485 available

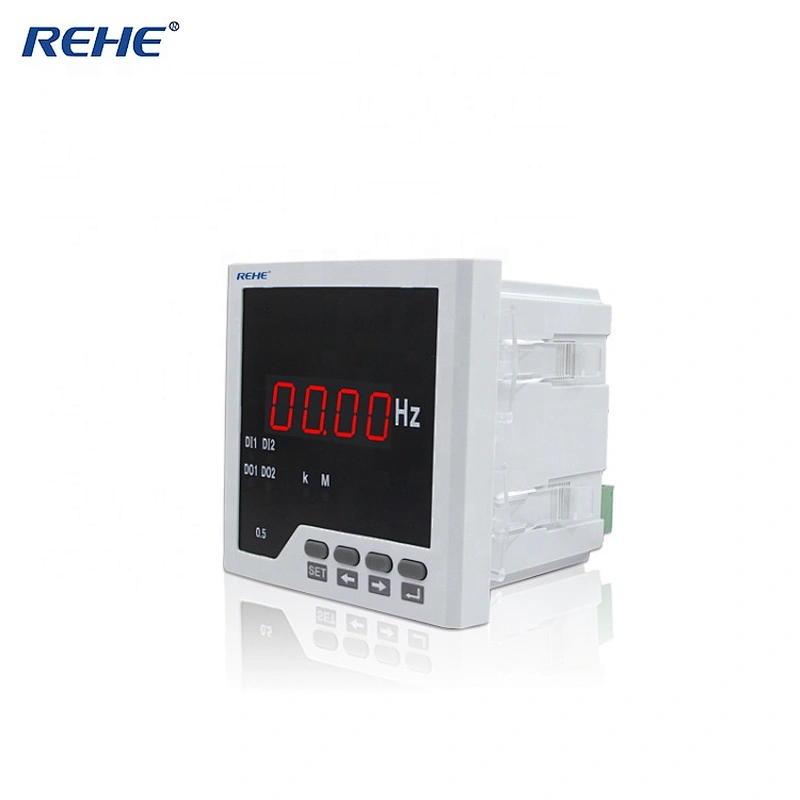

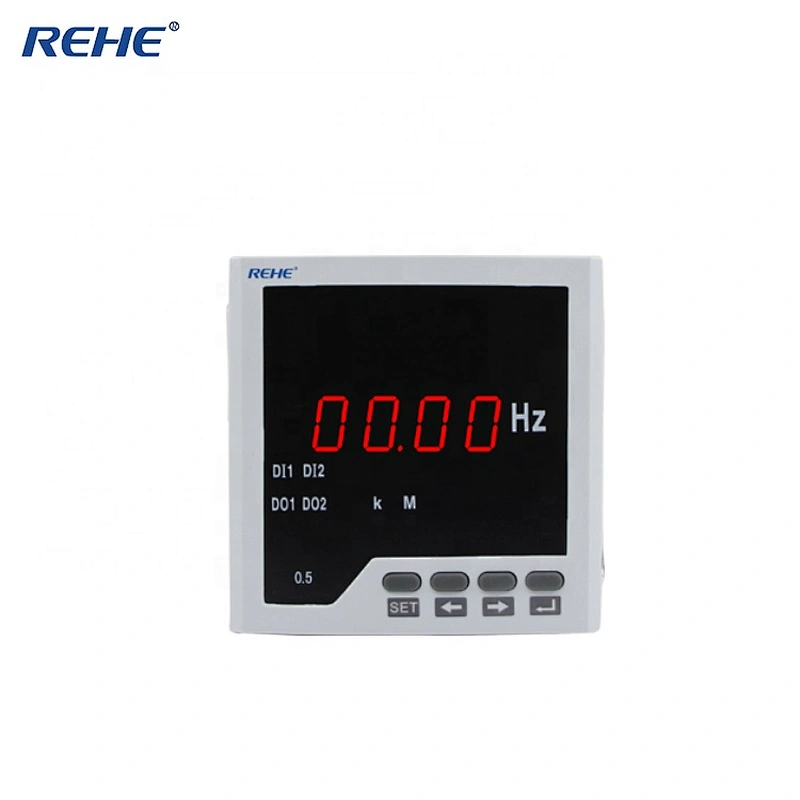

- Product Name:Frequency Counter Hz Meter With RS485 RH-F31
- Display Type:Digital Only

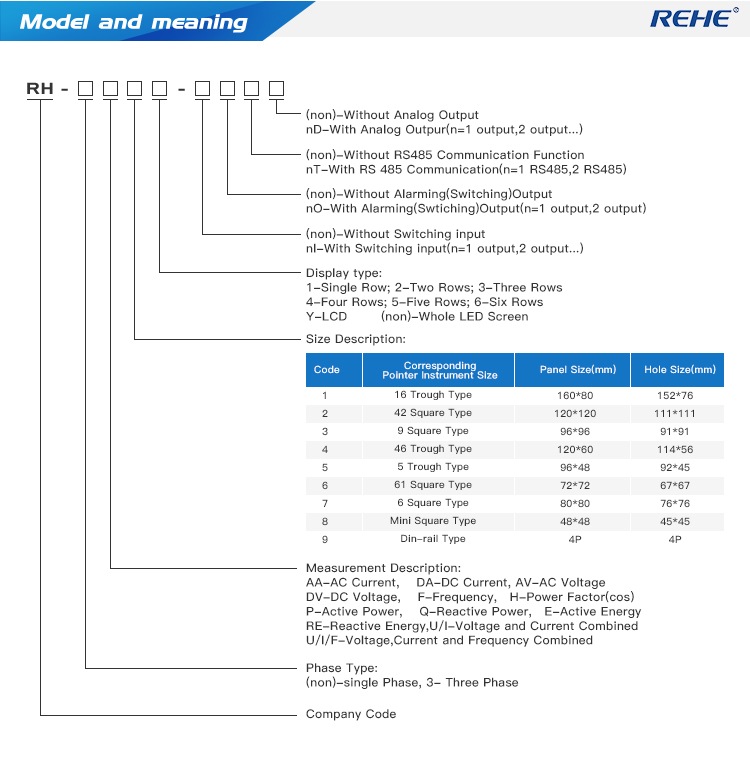

- Model Number:RH-F31
- Measuring Range:0-9999
- Accuracy Class:±0.02HZ
- Voltage:AC 220V or AC/DC85V-265V
- Operating Temperature:-10℃~+55℃

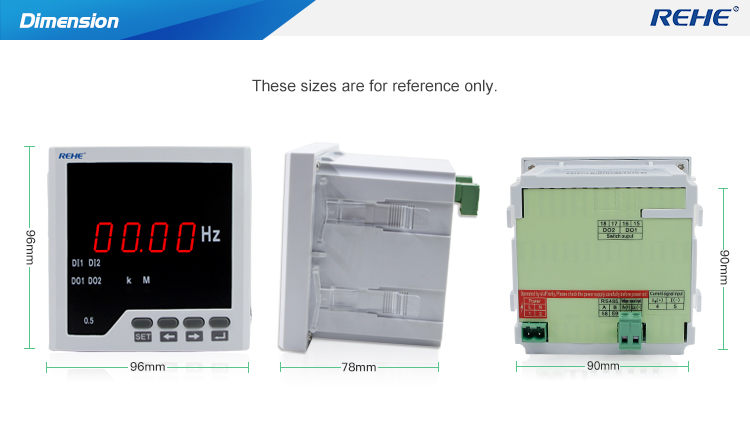

- Dimensions:96*96mm
Model | RH-F31 | |
Parameter | frequency | |
Measure Frequency | 45~65 Hz | |
Frame size | 96x96mm | |
Hole size | 92x92mm | |

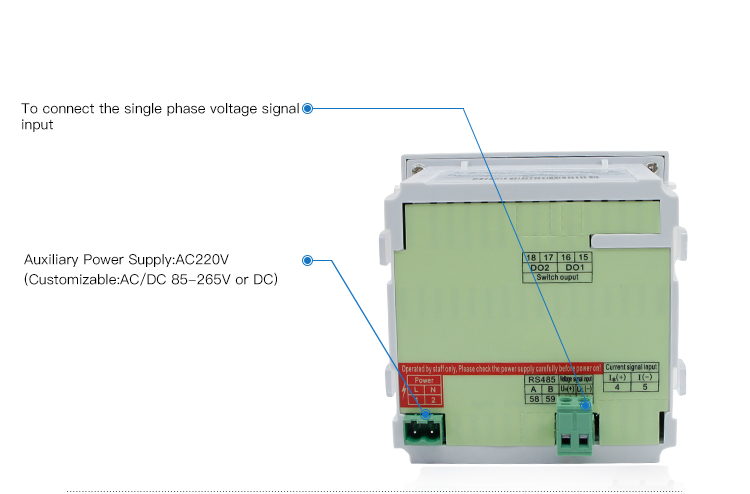

Connection mode | single phase two wire | |
Power supply | AC 220V ,AC/DC 85~265V,AC380V, AC100V | |
Extra function | alarms , analogoutput, RS485 |
