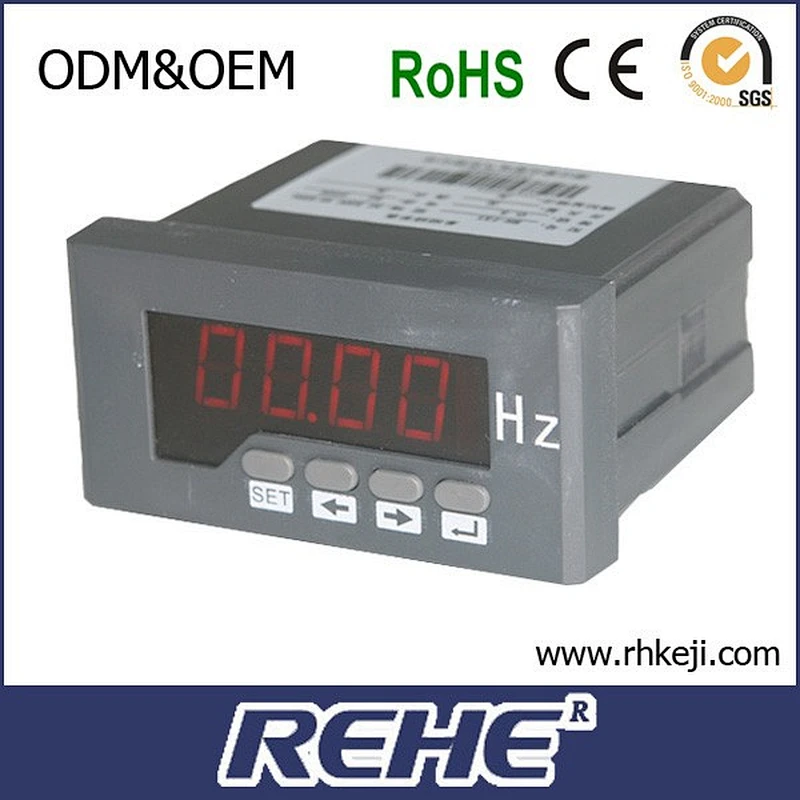

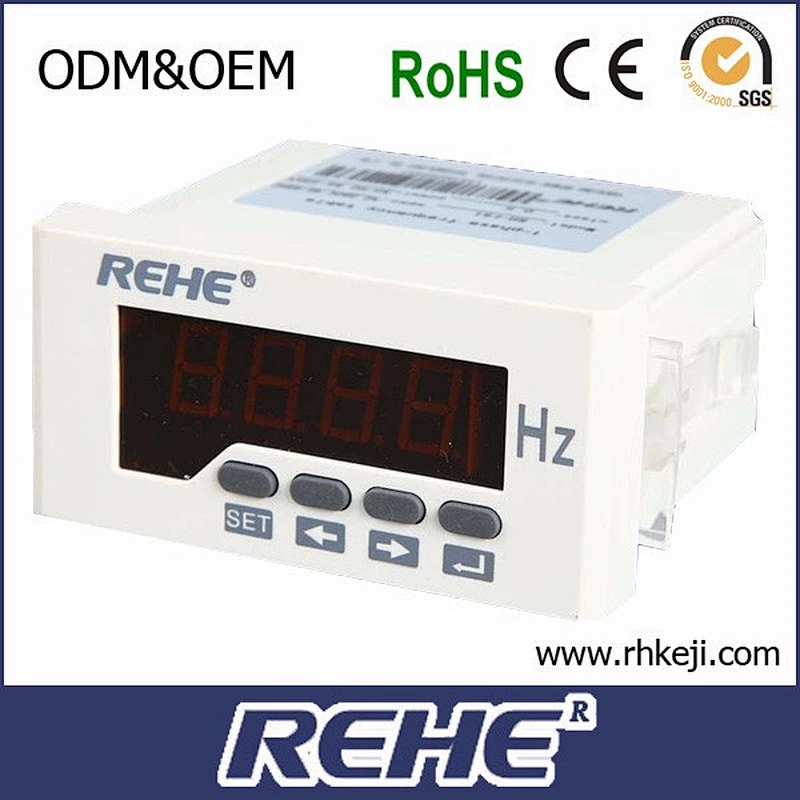

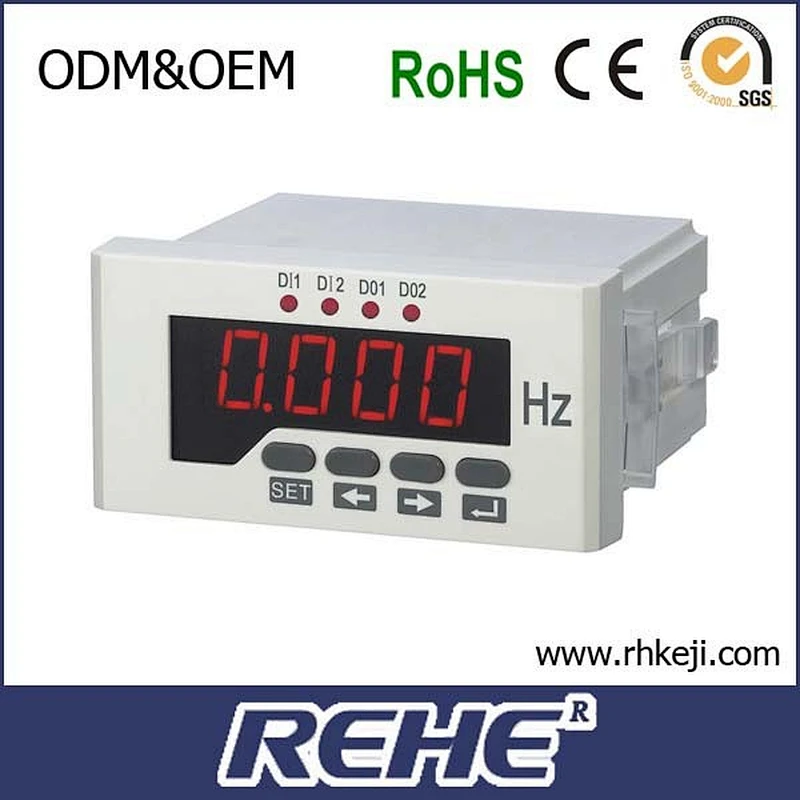

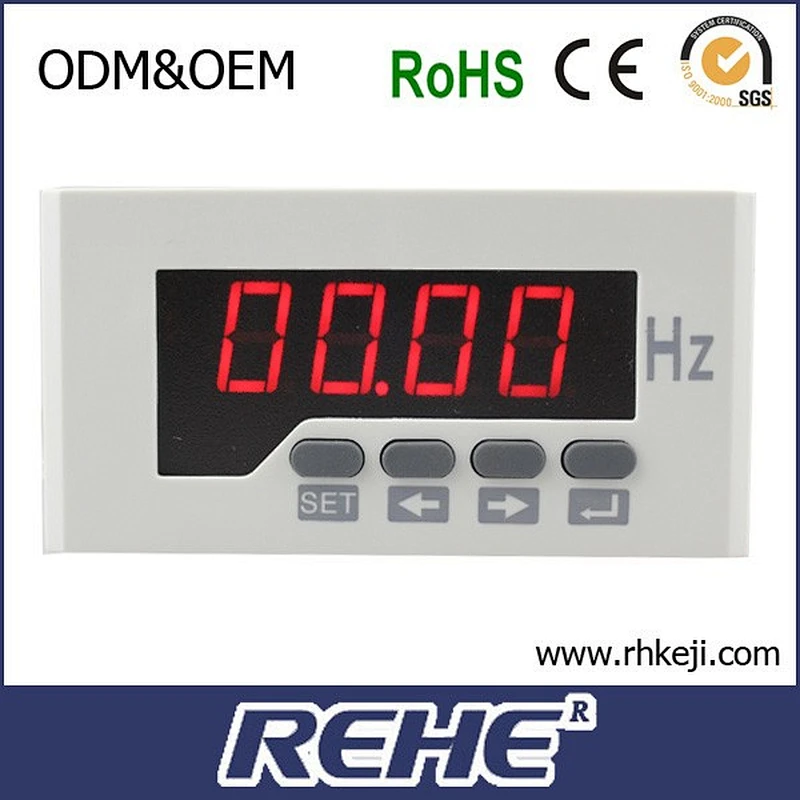

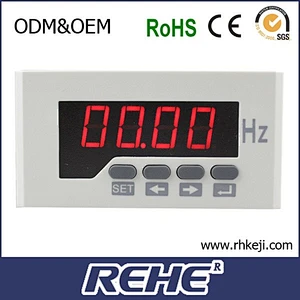

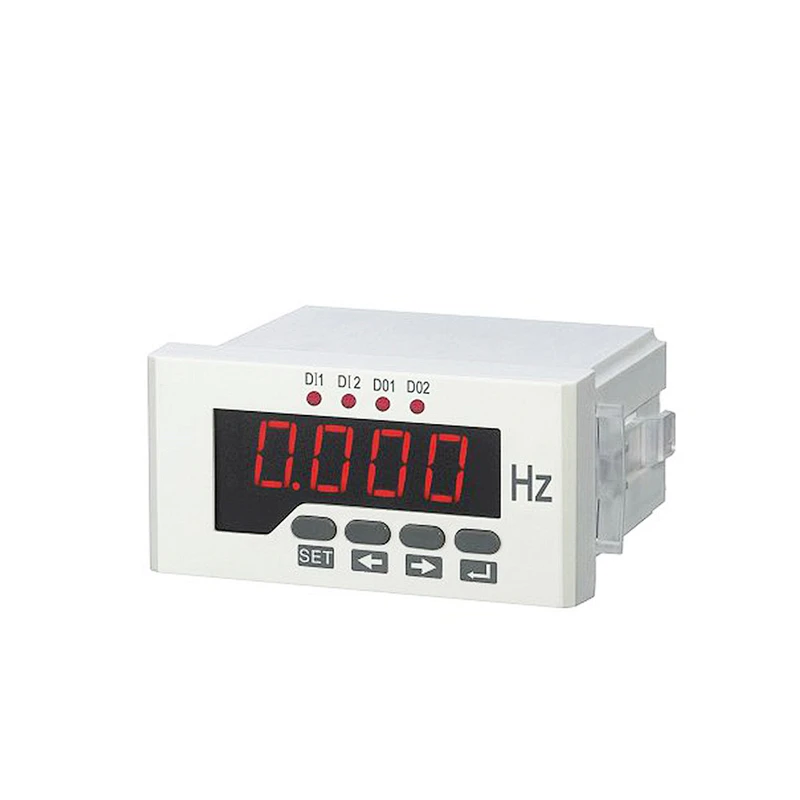

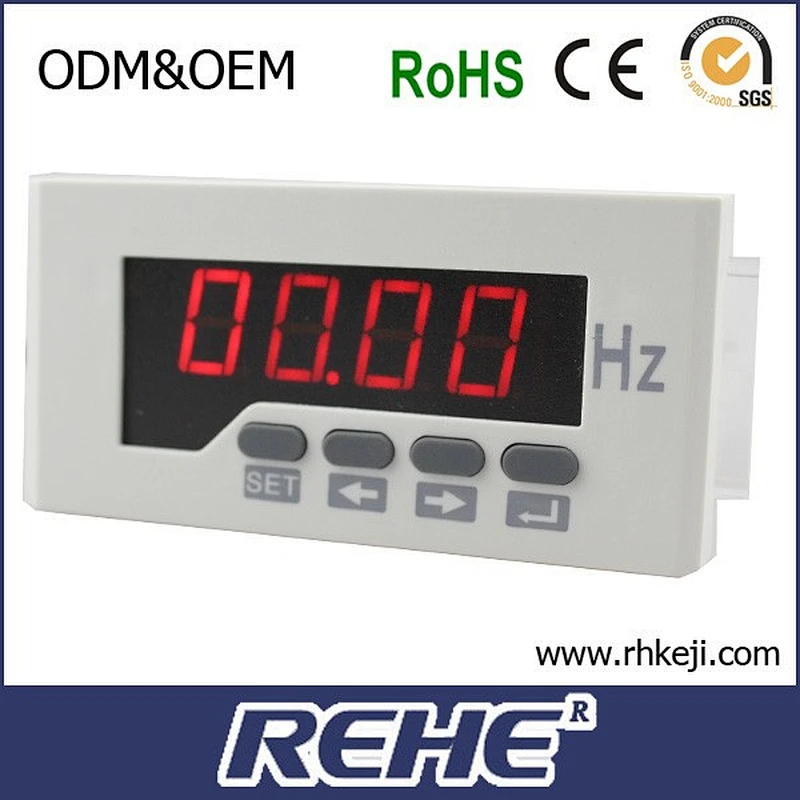

120*60 high quality smart meter high frequency lcr meter F41

120*60 high quality smart meter high frequency lcr meter F41

Model NO.: RH-F41
Price:: US $ 7.30-7.30 / piece
Delivery: FOB Shanghai, Ningbo
Minimum order quantity: 1 piece
Supply Ability: 5000 piece / Day
Country of Origin: Zhejiang, China

Quantity:

Product Description

Color:White/Black
Dimension:120*60
Display:9999
Accuracy:±0.02hz
Input range:0-5A 500V AC
Delivery:Within 30 days after receipt of 30% payment by T/T
Package:Polybag+paperbox+export carton
Warranty:3 Years
Service:OEM available
Display Type:Digital Only
Brand Name:REHE
Model Number:RH-F41
Measuring Range:9999
Voltage:220V AC
Operating Temperature:-10℃~+55℃
Dimensions:60*120

Product Description

48x96 type Single Phase Frequency Meter F51

Dimension:customized	Custom processing:Yes	Measuring range:0-9999
Model NO.:RH-F	Accuracy class: 0.5	Installation:embedded
Brand name: REHE	Usage: High precision measurement of frequency	Auxiliary power supply:DC 80V-270V, DC48V, DC24V, AC220V
Perfomance Characteristics
1. High precision measurement of single phase AC frequency
2. Provide the digital tube display, local data query
3. Programmable voltage and current ratio
4. Support for RS-485 communication, Modbus-RTU protocol
5. Support for switching input, output, analog quantity transmitting output
6. Auxiliary power supply: CDC 80V-270V, AC220V, AC380V, AC100V, DC48V, DC24V
7. A variety of shapes, to meet the different requirements of the cabinet body electric circuit
Technical Index
Accuracy of measurement	Frequency ±0.02Hz

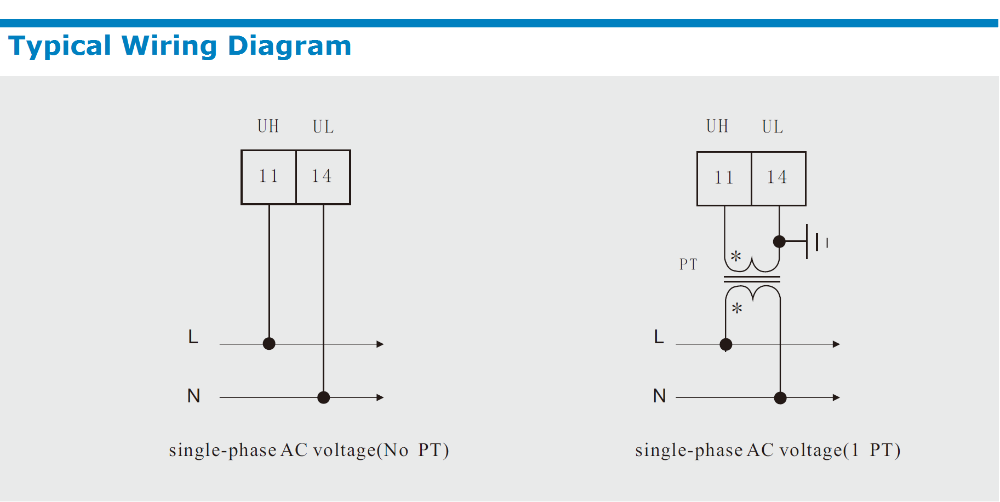

Signal input	Connection mode of single phase
	Rated voltage of AC57.7V,AC100V,AC220V,AC380V
	Rated current of AC1A, AC5A
	Over load:voltage of 1.2 times( Continued ), times / second ( instantaneous )
	Current of 1.2 times( Continued ), 10times / 5second ( instantaneous )
	Power<1VA/ phase current <0.4VA/phase
	Impedance:voltage>300KΩ current <20mΩ
	Frequency:45-65Hz
Auxiliary power supply	Working range of ACDC 80V-270V,AC220V,AC380V,AC100V,DC48V,DC24V
	Power consumption:<4VA
Function module	Communication interface 1 way RS-485 communication, Modbus-RTU protocol
	Baud rate: 1200~9600bps, the default 2400bps
	Switch input support 4 stem node input
	The switch output support 3 relay output, capacity:AC2505A,DC30V5A
Environment	Working temperature:-10°C ~+55°C
	Storage temperature:-25°C ~+70°C
	Relative humidity is less than 93%, no corrosive gas
	Elevation≤2500m
safety	Insulation resistance >100MΩ
	AC withstand voltage AC 2KV
Electromagnetic compatibility	ESD level 4
	Electrical fast transient burst level 4
	Surge level 4
Selcction ofSpecification
Single-phase active/reactive watt-hour meter
Model NO.	Display	Frame size(mm)	Hole size(mm)	Remark
RH-F11	Digital Single-row LED	160*80	152*76
RH-F21	Digital Single-row LED	120*120	111*111
RH-F31	Digital Single-row LED	96*96	92*92

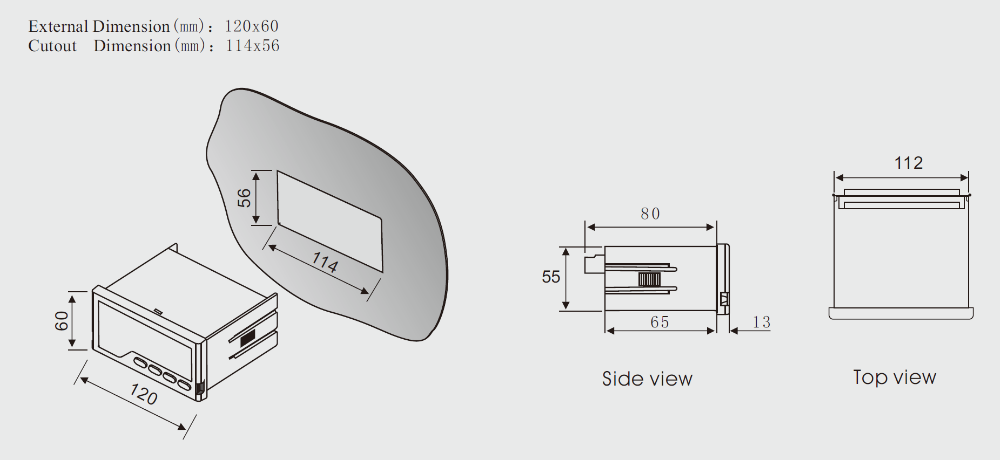

RH-F41	Digital Single-row LED	120*60	114*56
RH-F51	Digital Single-row LED	96*48	92*45
RH-F61	Digital Single-row LED	72*72	68*68
RH-F71	Digital Single-row LED	80*80	76*76
RH-F81	Digital Single-row LED	48*48	45*45
Extended Modules:
AC/DC power supply(switching power supply)$4
Order notes: Please write clearly the requested types, input signal and the functional modules, etc when purchasing. Others: Factory default settings (Use default setting if no instruction).
